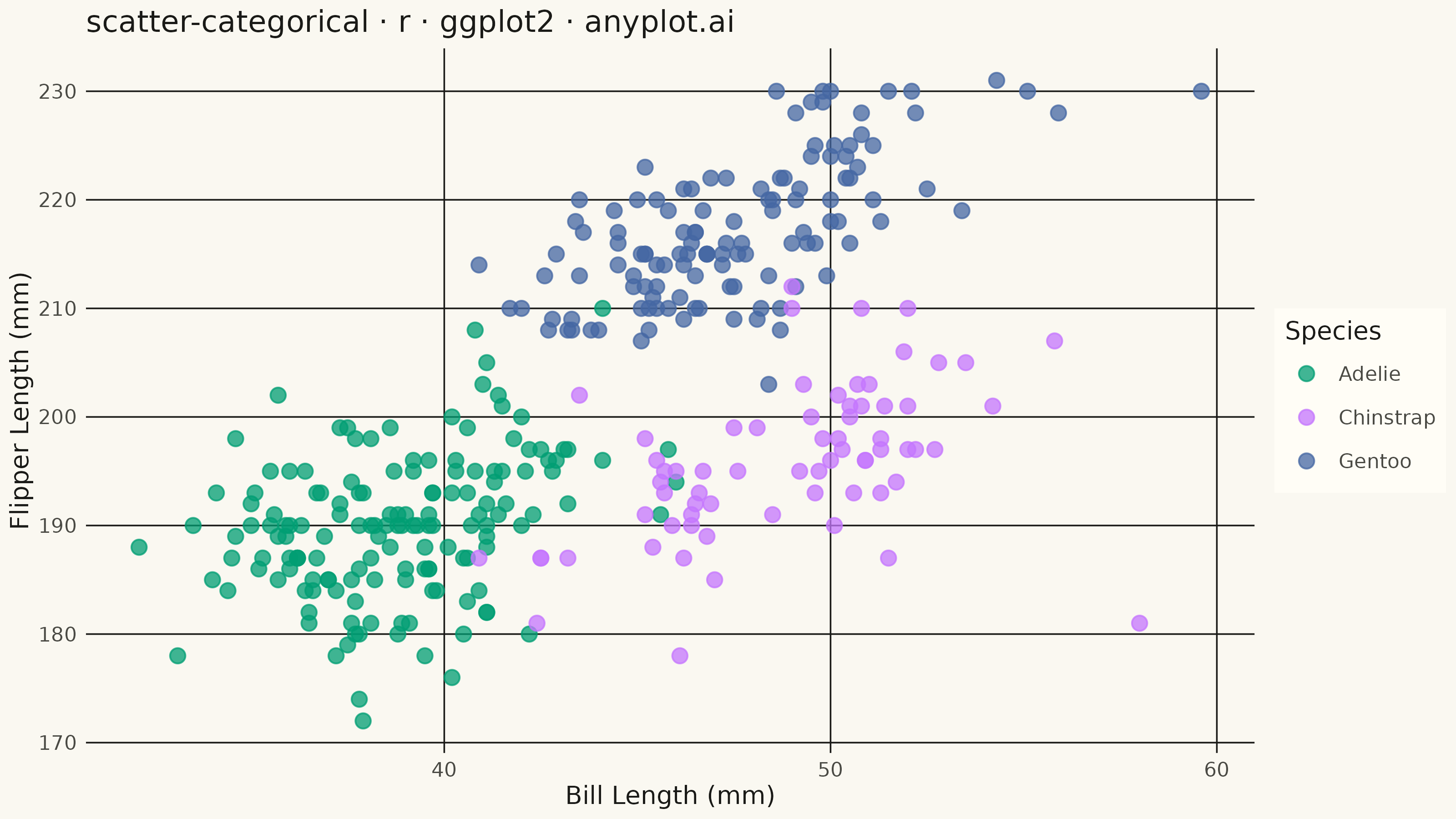

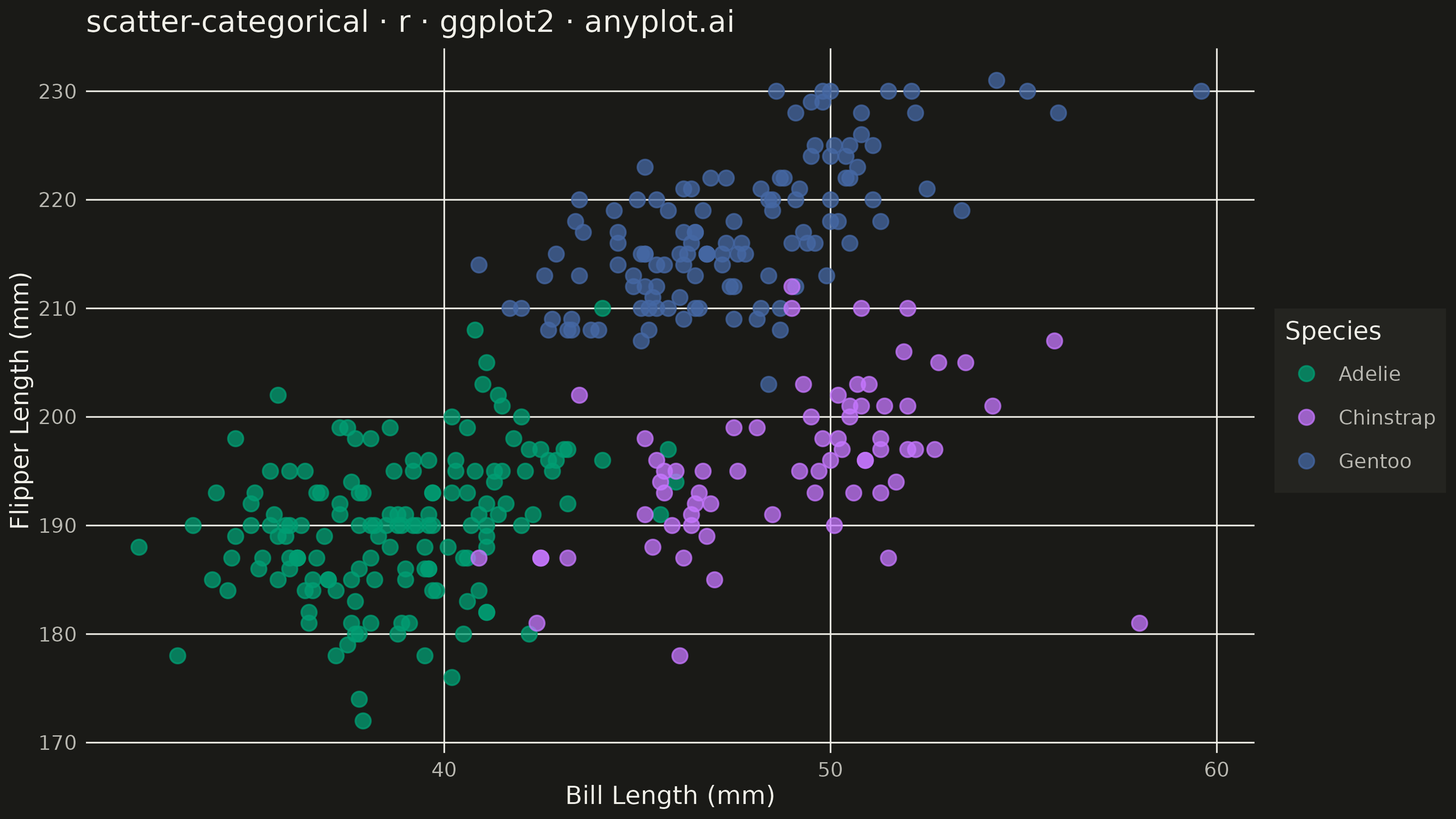

A scatter plot where points are colored according to a categorical variable. Each category has a distinct color, allowing visual comparison of patterns across groups. A legend maps colors to category names.
#' anyplot.ai
#' scatter-categorical: Categorical Scatter Plot
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 82/100 | Created: 2026-09-05
library(ggplot2)
library(dplyr)
library(ragg)
library(palmerpenguins)
set.seed(42)
# --- Theme tokens -----------------------------------------------------------
THEME <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
ELEVATED_BG <- if (THEME == "light") "#FFFDF6" else "#242420"
INK <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT <- if (THEME == "light") "#4A4A44" else "#B8B7B0"
# Imprint palette — first 3 categorical series (see prompts/default-style-guide.md)
IMPRINT_PALETTE <- c("#009E73", "#C475FD", "#4467A3")
# --- Data ---------------------------------------------------------------
df <- penguins %>%
filter(!is.na(bill_length_mm), !is.na(flipper_length_mm)) %>%
mutate(species = as.character(species))
# --- Plot -----------------------------------------------------------------
title_text <- "scatter-categorical · r · ggplot2 · anyplot.ai"
# Grid lines blended toward the background instead of full-strength INK
# (ggplot2 does not expose grid alpha directly, so pre-mix the color).
GRID_COLOR <- grDevices::adjustcolor(INK, alpha.f = 0.2)
p <- ggplot(df, aes(x = bill_length_mm, y = flipper_length_mm, color = species, fill = species)) +
stat_ellipse(linewidth = 0.6, alpha = 0.6, level = 0.68, show.legend = FALSE) +
geom_point(shape = 21, color = "white", stroke = 0.3, size = 2.5, alpha = 0.85) +
scale_color_manual(values = IMPRINT_PALETTE, guide = "none") +
scale_fill_manual(values = IMPRINT_PALETTE, name = "Species") +
labs(
title = title_text,
x = "Bill Length (mm)",
y = "Flipper Length (mm)"
) +
theme_minimal(base_size = 8) +
theme(
plot.background = element_rect(fill = PAGE_BG, color = PAGE_BG),
panel.background = element_rect(fill = PAGE_BG, color = NA),
panel.grid.major = element_line(color = GRID_COLOR, linewidth = 0.3),
panel.grid.minor = element_blank(),
axis.title = element_text(color = INK, size = 10),
axis.text = element_text(color = INK_SOFT, size = 8),
axis.ticks = element_blank(),
plot.title = element_text(color = INK, size = 12, face = "plain"),
legend.background = element_rect(fill = ELEVATED_BG, color = NA),
legend.key = element_rect(fill = ELEVATED_BG, color = NA),
legend.text = element_text(color = INK_SOFT, size = 8),
legend.title = element_text(color = INK, size = 10)
)
# --- Save -------------------------------------------------------------------
ggsave(
filename = sprintf("plot-%s.png", THEME),
plot = p,
device = ragg::agg_png,
width = 8,
height = 4.5,
units = "in",
dpi = 400
)
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/scatter-categorical/ggplot2/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "scatter-categorical",
"language": "r",
"library": "ggplot2",
"page": "https://anyplot.ai/scatter-categorical/r/ggplot2",
"hub": "https://anyplot.ai/scatter-categorical",
"code_json": "https://api.anyplot.ai/specs/scatter-categorical/ggplot2/code",
"spec_json": "https://api.anyplot.ai/specs/scatter-categorical",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/scatter-categorical/r/ggplot2/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/scatter-categorical/r/ggplot2/plot-dark.png",
"quality_score": 82.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Categorical Scatter Plot on anyplot.ai.
