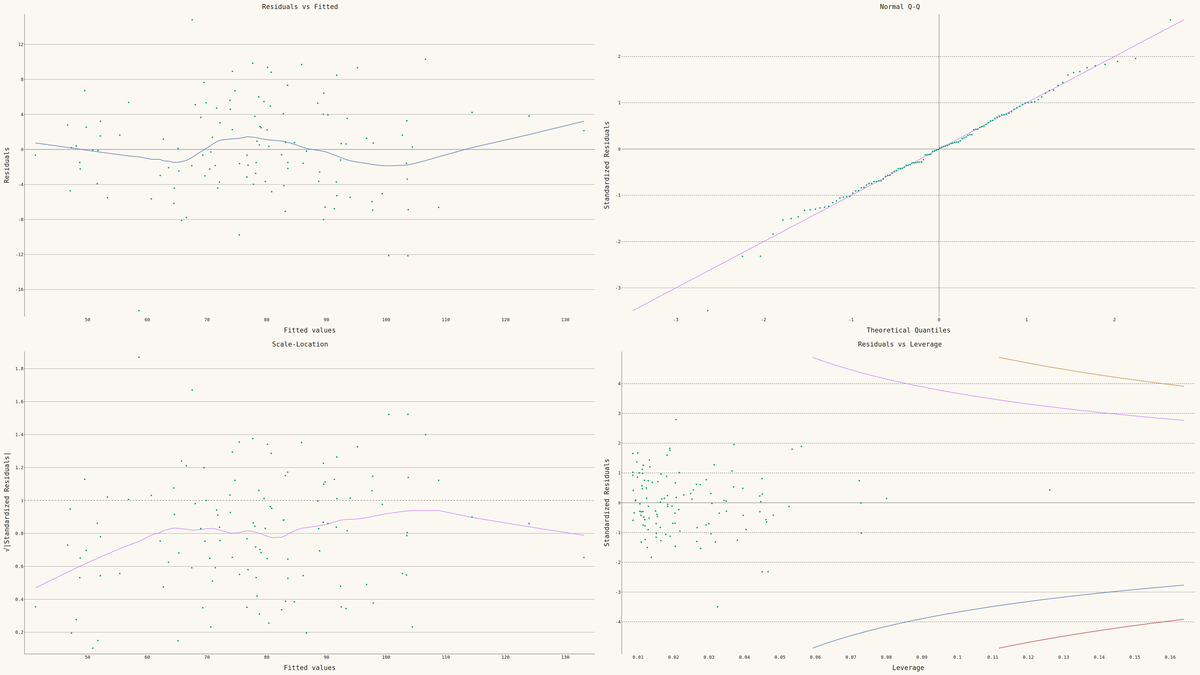

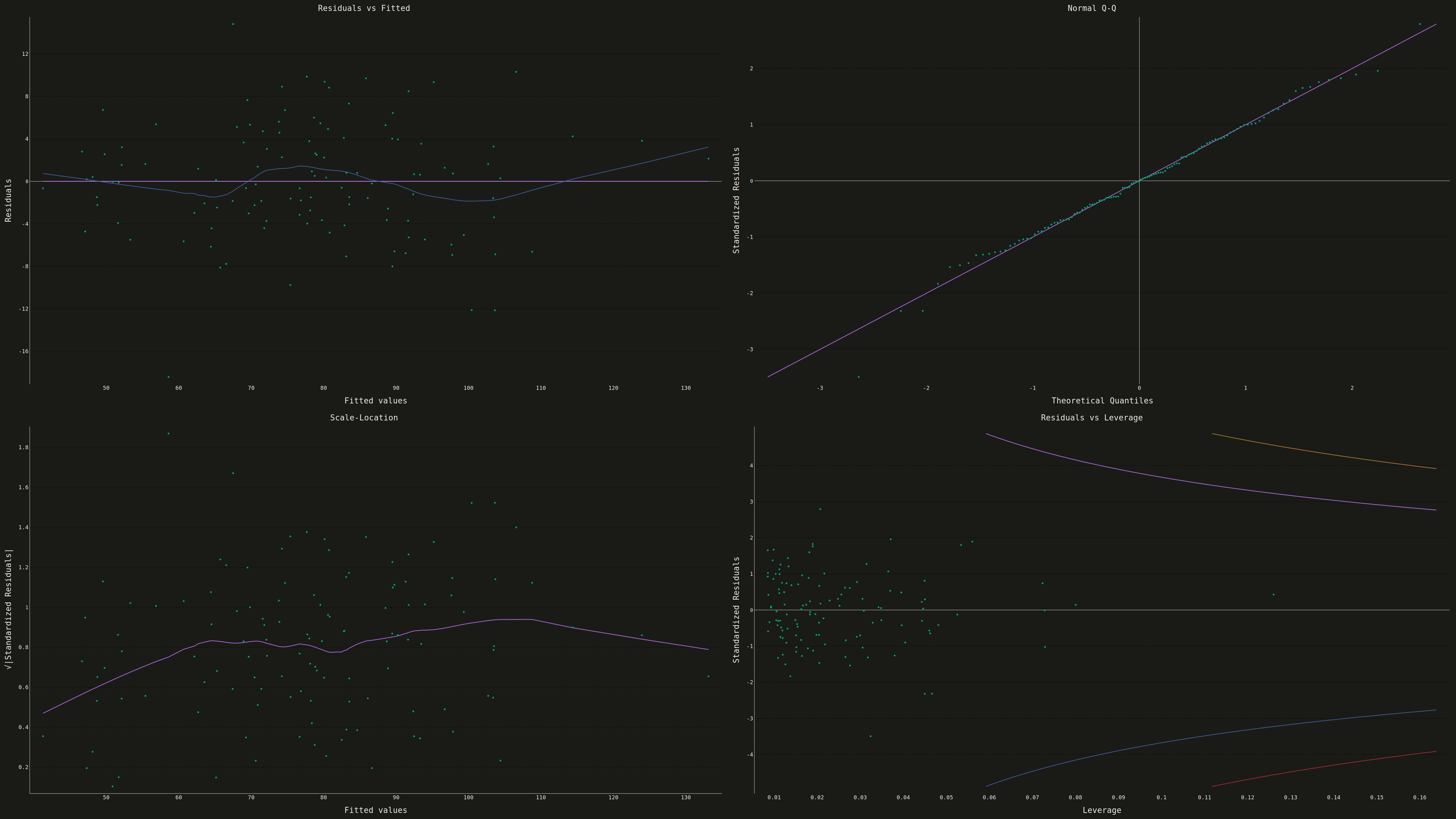

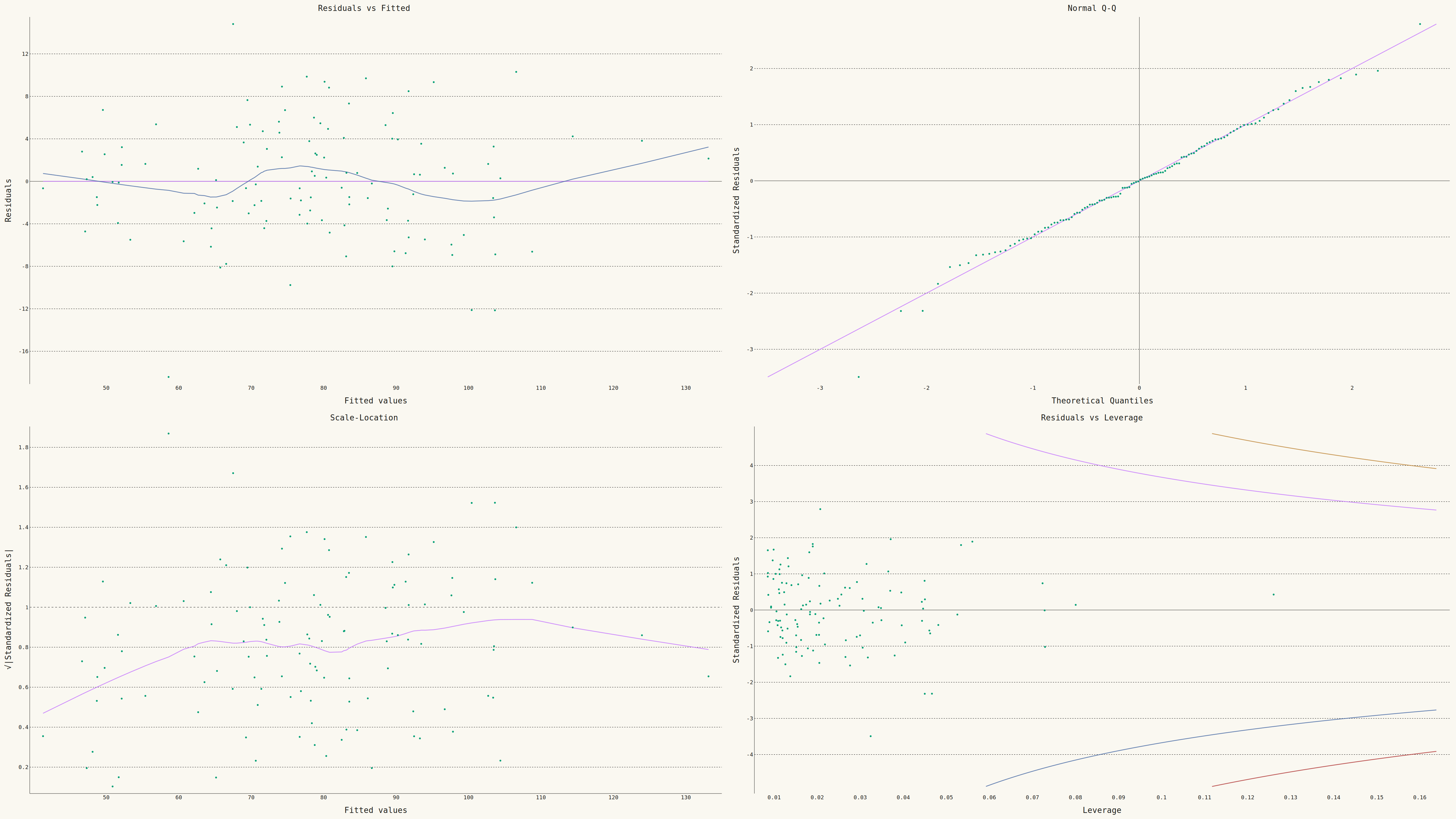

A 2x2 panel of diagnostic plots for evaluating linear regression model assumptions, replicating the classic output of R's `plot(lm)`. The four subplots are: (1) Residuals vs Fitted values to detect non-linearity and heteroscedasticity, (2) Normal Q-Q plot of standardized residuals to assess normality, (3) Scale-Location plot (square root of standardized residuals vs fitted values) to check homoscedasticity, and (4) Residuals vs Leverage with Cook's distance contours to identify influential observations. This composite display is the standard first step in regression model validation across statistics, academia, and regulated industries.
""" anyplot.ai
diagnostic-regression-panel: Regression Diagnostic Panel (Four-Plot Display)
Library: pygal 3.1.0 | Python 3.13.13
Quality: 80/100 | Created: 2026-05-13
"""
import os
import sys
# Remove this script's directory from sys.path so "pygal" resolves to the installed package
_this_dir = os.path.dirname(os.path.abspath(__file__))
sys.path = [p for p in sys.path if os.path.abspath(p) != _this_dir]
import io
import cairosvg
import numpy as np
import pygal
from PIL import Image
from pygal.style import Style
from scipy import stats
from statsmodels.nonparametric.smoothers_lowess import lowess
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
IMPRINT = ("#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477")
# Data — two-predictor regression with mild heteroscedasticity
np.random.seed(42)
n = 120
x1 = np.random.normal(50, 15, n)
x2 = np.random.normal(30, 10, n)
noise = np.random.normal(0, np.abs(x1) * 0.12, n)
y = 2.5 + 0.8 * x1 + 1.2 * x2 + noise
X_mat = np.column_stack([np.ones(n), x1, x2])
beta = np.linalg.lstsq(X_mat, y, rcond=None)[0]
fitted = X_mat @ beta
residuals = y - fitted
H_hat = X_mat @ np.linalg.inv(X_mat.T @ X_mat) @ X_mat.T
leverage = np.diag(H_hat)
p_params = 3
mse = np.sum(residuals**2) / (n - p_params)
std_residuals = residuals / np.sqrt(mse * (1 - leverage))
sqrt_abs_std_res = np.sqrt(np.abs(std_residuals))
cooks_d = (std_residuals**2 * leverage) / (p_params * (1 - leverage))
# Q-Q theoretical quantiles
sorted_std_res = np.sort(std_residuals)
probs = np.linspace(0.5 / n, 1 - 0.5 / n, n)
theoretical_q = stats.norm.ppf(probs)
# LOWESS smoothers
lowess_res_fit = lowess(residuals, fitted, frac=0.4, return_sorted=True)
lowess_scale = lowess(sqrt_abs_std_res, fitted, frac=0.4, return_sorted=True)
# Cook's distance contour prep
h_range = np.linspace(1e-4, float(np.max(leverage)) * 1.3, 400)
y_clip = float(np.max(np.abs(std_residuals))) * 1.4
cook_levels = [0.5, 1.0]
def make_style():
return Style(
background=PAGE_BG,
plot_background=PAGE_BG,
foreground=INK,
foreground_strong=INK,
foreground_subtle=INK_MUTED,
colors=IMPRINT,
title_font_size=26,
label_font_size=18,
major_label_font_size=16,
legend_font_size=14,
value_font_size=12,
stroke_width=2.5,
)
W, H_SUB = 2400, 1350
# Chart 1: Residuals vs Fitted
chart1 = pygal.XY(
style=make_style(),
width=W,
height=H_SUB,
title="Residuals vs Fitted",
x_title="Fitted values",
y_title="Residuals",
show_legend=False,
dots_size=2.5,
stroke=False,
)
chart1.add("Residuals", [(float(f), float(r)) for f, r in zip(fitted, residuals, strict=True)])
chart1.add("Zero", [(float(fitted.min()), 0.0), (float(fitted.max()), 0.0)], stroke=True, dots_size=0)
chart1.add("LOWESS", [(float(row[0]), float(row[1])) for row in lowess_res_fit], stroke=True, dots_size=0)
# Chart 2: Normal Q-Q
chart2 = pygal.XY(
style=make_style(),
width=W,
height=H_SUB,
title="Normal Q-Q",
x_title="Theoretical Quantiles",
y_title="Standardized Residuals",
show_legend=False,
dots_size=2.5,
stroke=False,
)
chart2.add("Q-Q", [(float(t), float(s)) for t, s in zip(theoretical_q, sorted_std_res, strict=True)])
ref_lo = float(min(theoretical_q.min(), sorted_std_res.min()))
ref_hi = float(max(theoretical_q.max(), sorted_std_res.max()))
chart2.add("45° line", [(ref_lo, ref_lo), (ref_hi, ref_hi)], stroke=True, dots_size=0)
# Chart 3: Scale-Location
chart3 = pygal.XY(
style=make_style(),
width=W,
height=H_SUB,
title="Scale-Location",
x_title="Fitted values",
y_title="√|Standardized Residuals|",
show_legend=False,
dots_size=2.5,
stroke=False,
)
chart3.add("Scale-Loc", [(float(f), float(s)) for f, s in zip(fitted, sqrt_abs_std_res, strict=True)])
chart3.add("LOWESS", [(float(row[0]), float(row[1])) for row in lowess_scale], stroke=True, dots_size=0)
# Chart 4: Residuals vs Leverage
chart4 = pygal.XY(
style=make_style(),
width=W,
height=H_SUB,
title="Residuals vs Leverage",
x_title="Leverage",
y_title="Standardized Residuals",
show_legend=False,
dots_size=2.5,
stroke=False,
)
chart4.add("Residuals", [(float(lv), float(sr)) for lv, sr in zip(leverage, std_residuals, strict=True)])
for lvl in cook_levels:
upper = [
(float(h), float(np.sqrt(lvl * p_params * (1 - h) / h)))
for h in h_range
if np.sqrt(lvl * p_params * (1 - h) / h) <= y_clip
]
lower = [
(float(h), -float(np.sqrt(lvl * p_params * (1 - h) / h)))
for h in h_range
if np.sqrt(lvl * p_params * (1 - h) / h) <= y_clip
]
if upper:
chart4.add(f"Cook {lvl}+", upper, stroke=True, dots_size=0)
if lower:
chart4.add(f"Cook {lvl}-", lower, stroke=True, dots_size=0)
# Save HTML — four SVGs in a 2x2 grid
charts = [chart1, chart2, chart3, chart4]
svg_parts = []
for c in charts:
raw = c.render()
svg_parts.append(raw.decode("utf-8") if isinstance(raw, bytes) else raw)
html = f"""<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>diagnostic-regression-panel · pygal · anyplot.ai</title>
<style>
body {{ margin: 0; background: {PAGE_BG}; font-family: sans-serif; }}
h1 {{ text-align: center; color: {INK}; font-size: 28px; margin: 20px 0 10px; font-weight: 500; }}
.grid {{ display: grid; grid-template-columns: 50% 50%; width: 100%; }}
.cell svg {{ width: 100%; height: auto; display: block; }}
</style>
</head>
<body>
<h1>diagnostic-regression-panel · pygal · anyplot.ai</h1>
<div class="grid">
<div class="cell">{svg_parts[0]}</div>
<div class="cell">{svg_parts[1]}</div>
<div class="cell">{svg_parts[2]}</div>
<div class="cell">{svg_parts[3]}</div>
</div>
</body>
</html>"""
with open(f"plot-{THEME}.html", "w", encoding="utf-8") as f:
f.write(html)
# Save PNG — render each chart and combine into 2x2 grid
def chart_to_pil(chart):
svg_bytes = chart.render()
png_bytes = cairosvg.svg2png(bytestring=svg_bytes, output_width=W, output_height=H_SUB)
return Image.open(io.BytesIO(png_bytes)).convert("RGB")
imgs = [chart_to_pil(c) for c in charts]
combined = Image.new("RGB", (W * 2, H_SUB * 2))
combined.paste(imgs[0], (0, 0))
combined.paste(imgs[1], (W, 0))
combined.paste(imgs[2], (0, H_SUB))
combined.paste(imgs[3], (W, H_SUB))
combined.save(f"plot-{THEME}.png")
Part of Regression Diagnostic Panel (Four-Plot Display) on anyplot.ai.
