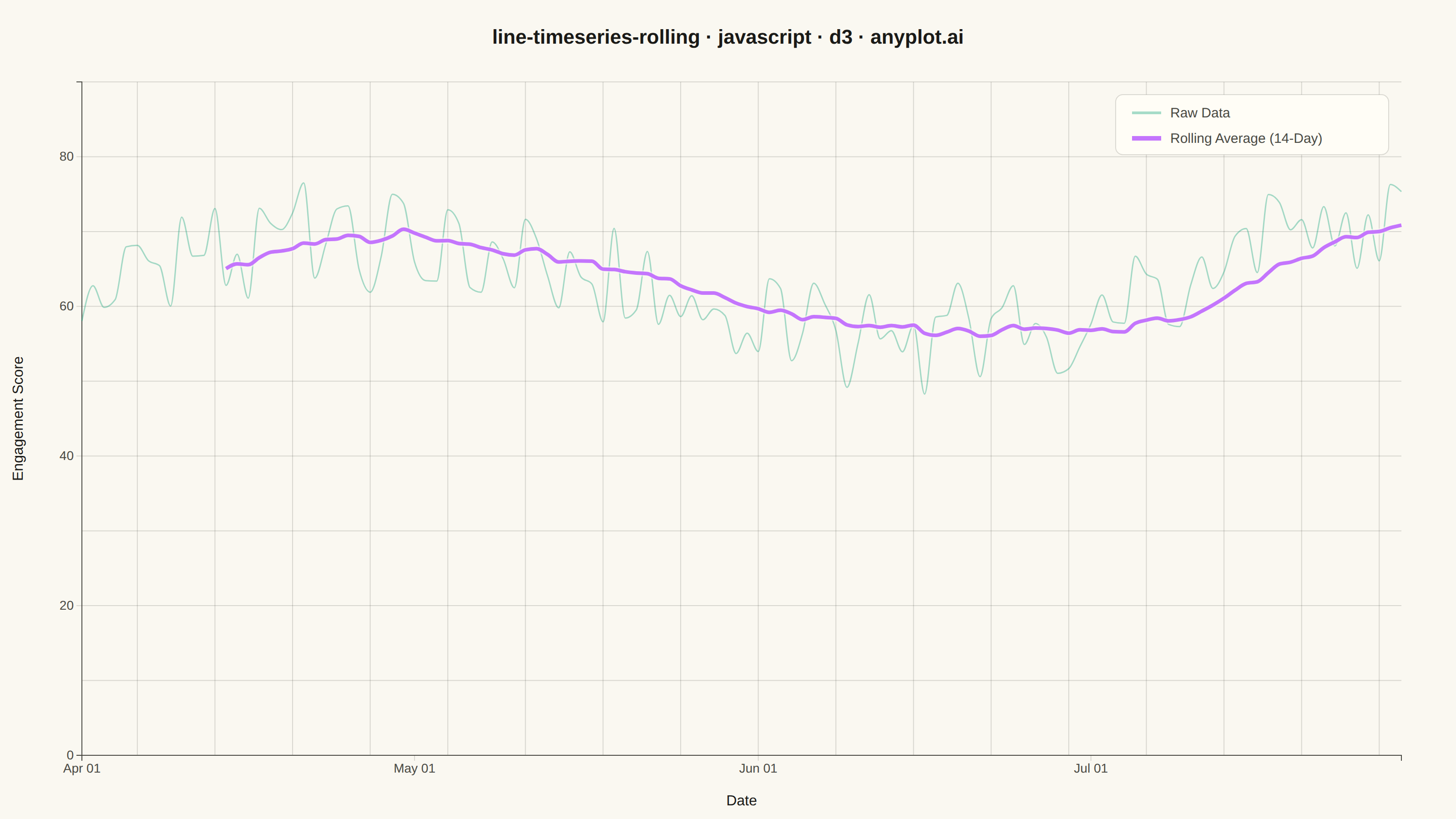

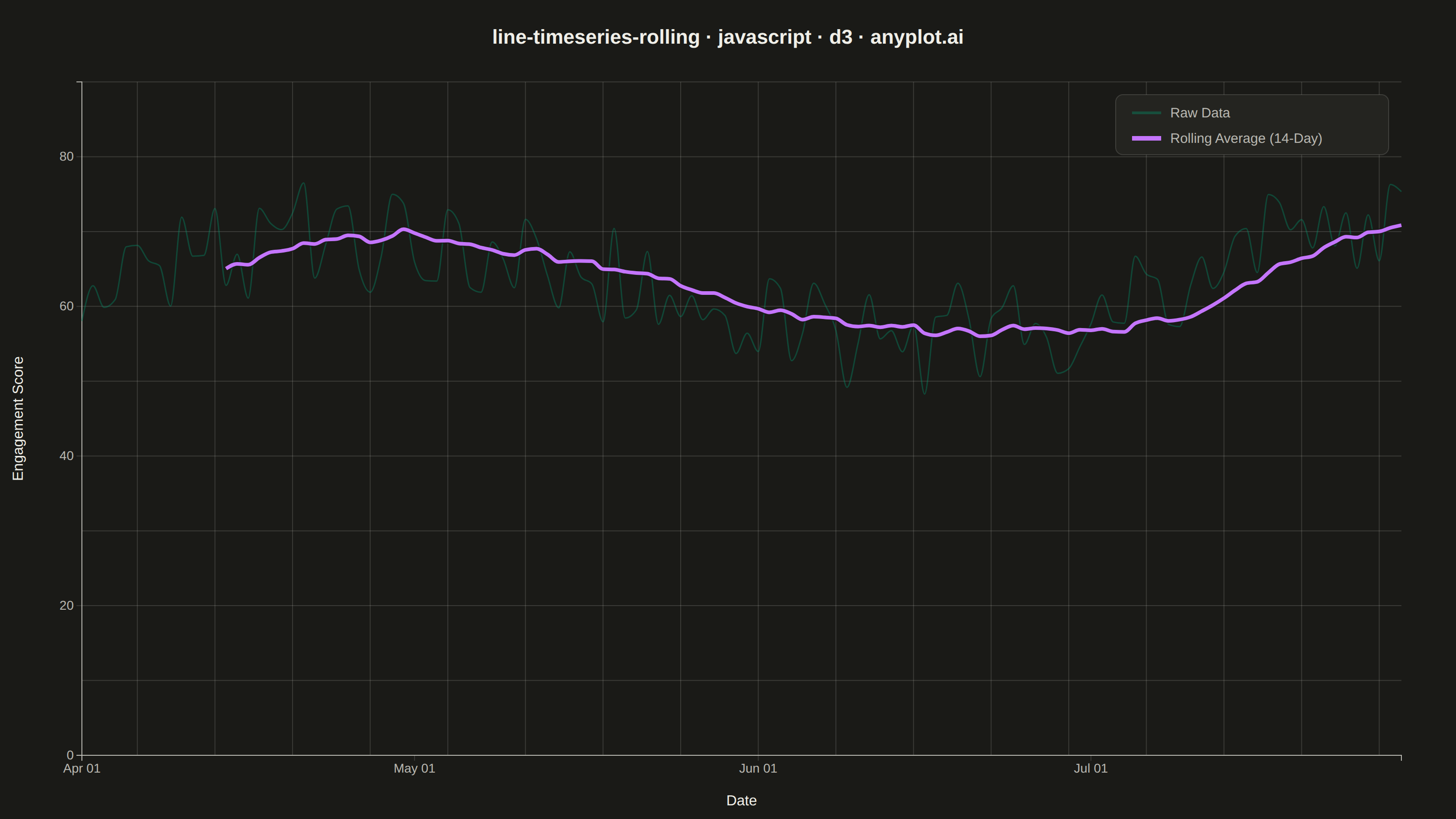

A time series plot that displays raw data points alongside a smoothed rolling average (moving average) line. The raw data shows actual observations while the rolling average reveals underlying trends by reducing noise and short-term fluctuations. This dual-layer visualization is essential for trend identification, making patterns visible that might be obscured by day-to-day volatility.
// anyplot.ai
// line-timeseries-rolling: Time Series with Rolling Average Overlay
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 93/100 | Created: 2026-09-05
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 90, right: 60, bottom: 70, left: 90 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// --- Data (in-memory, deterministic) ----------------------------------------
// Daily website engagement score over ~120 days with a 14-day rolling average.
function lcg(seed) {
let s = seed;
return () => {
s = (s * 1664525 + 1013904223) % 4294967296;
return s / 4294967296;
};
}
const rand = lcg(42);
const numDays = 120;
const windowSize = 14;
const startDate = new Date(2025, 3, 1);
const rawSeries = [];
let level = 62;
for (let i = 0; i < numDays; i++) {
const seasonal = 8 * Math.sin((i / numDays) * Math.PI * 2.4);
const noise = (rand() - 0.5) * 14;
level += (rand() - 0.5) * 1.2;
const value = Math.max(5, level + seasonal + noise);
const date = new Date(startDate);
date.setDate(date.getDate() + i);
rawSeries.push({ date, value });
}
const rollingSeries = [];
for (let i = windowSize - 1; i < rawSeries.length; i++) {
let sum = 0;
for (let j = i - windowSize + 1; j <= i; j++) sum += rawSeries[j].value;
rollingSeries.push({ date: rawSeries[i].date, value: sum / windowSize });
}
// --- SVG mount ----------------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);
// --- Scales ---------------------------------------------------------------
const x = d3
.scaleTime()
.domain(d3.extent(rawSeries, (d) => d.date))
.range([0, iw]);
const y = d3
.scaleLinear()
.domain([0, d3.max(rawSeries, (d) => d.value) * 1.08])
.nice()
.range([ih, 0]);
// --- Gridlines (both axes) ---------------------------------------------------
g.append("g")
.attr("class", "grid grid-y")
.call(d3.axisLeft(y).tickSize(-iw).tickFormat(""))
.selectAll("line")
.attr("stroke", t.grid);
g.select(".grid-y .domain").remove();
g.append("g")
.attr("class", "grid grid-x")
.attr("transform", `translate(0,${ih})`)
.call(d3.axisBottom(x).tickSize(-ih).tickFormat(""))
.selectAll("line")
.attr("stroke", t.grid);
g.select(".grid-x .domain").remove();
// --- Axes -------------------------------------------------------------------
const xAxis = g
.append("g")
.attr("transform", `translate(0,${ih})`)
.call(d3.axisBottom(x).ticks(8).tickFormat(d3.timeFormat("%b %d")));
const yAxis = g.append("g").call(d3.axisLeft(y).ticks(6));
for (const ax of [xAxis, yAxis]) {
ax.selectAll("text").attr("fill", t.inkSoft).style("font-size", "14px");
ax.selectAll("line").attr("stroke", t.grid);
ax.select(".domain").attr("stroke", t.inkSoft);
}
// --- Raw data: thin, semi-transparent line -----------------------------------
const rawLine = d3
.line()
.x((d) => x(d.date))
.y((d) => y(d.value))
.curve(d3.curveMonotoneX);
g.append("path")
.datum(rawSeries)
.attr("fill", "none")
.attr("stroke", t.palette[0])
.attr("stroke-width", 1.5)
.attr("stroke-opacity", 0.35)
.attr("d", rawLine);
// --- Rolling average: prominent, smooth, contrasting color -------------------
const rollingLine = d3
.line()
.x((d) => x(d.date))
.y((d) => y(d.value))
.curve(d3.curveMonotoneX);
// Subtle halo behind the rolling-average line to lift it further above the noisy raw data.
g.append("path")
.datum(rollingSeries)
.attr("fill", "none")
.attr("stroke", t.pageBg)
.attr("stroke-width", 7)
.attr("stroke-opacity", 0.6)
.attr("d", rollingLine);
g.append("path")
.datum(rollingSeries)
.attr("fill", "none")
.attr("stroke", t.palette[1])
.attr("stroke-width", 4)
.attr("d", rollingLine);
// --- Legend -------------------------------------------------------------------
const legendData = [
{ label: "Raw Data", color: t.palette[0], opacity: 0.35, width: 3 },
{ label: `Rolling Average (${windowSize}-Day)`, color: t.palette[1], opacity: 1, width: 5 },
];
const legendBoxWidth = 300;
const legendBoxHeight = 66;
const legend = g.append("g").attr("transform", `translate(${iw - legendBoxWidth - 14}, 14)`);
legend
.append("rect")
.attr("width", legendBoxWidth)
.attr("height", legendBoxHeight)
.attr("rx", 8)
.attr("fill", t.elevatedBg)
.attr("stroke", t.grid);
legendData.forEach((d, i) => {
const row = legend.append("g").attr("transform", `translate(18, ${20 + i * 28})`);
row
.append("line")
.attr("x1", 0)
.attr("x2", 32)
.attr("y1", 0)
.attr("y2", 0)
.attr("stroke", d.color)
.attr("stroke-opacity", d.opacity)
.attr("stroke-width", d.width);
row
.append("text")
.attr("x", 42)
.attr("y", 5)
.attr("fill", t.inkSoft)
.style("font-size", "15px")
.text(d.label);
});
// --- Labels -------------------------------------------------------------------
g.append("text")
.attr("x", iw / 2)
.attr("y", ih + 55)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.text("Date");
g.append("text")
.attr("transform", "rotate(-90)")
.attr("x", -ih / 2)
.attr("y", -65)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.text("Engagement Score");
// --- Title --------------------------------------------------------------------
svg
.append("text")
.attr("x", width / 2)
.attr("y", 48)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text("line-timeseries-rolling · javascript · d3 · anyplot.ai");
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/line-timeseries-rolling/d3/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "line-timeseries-rolling",
"language": "javascript",
"library": "d3",
"page": "https://anyplot.ai/line-timeseries-rolling/javascript/d3",
"hub": "https://anyplot.ai/line-timeseries-rolling",
"code_json": "https://api.anyplot.ai/specs/line-timeseries-rolling/d3/code",
"spec_json": "https://api.anyplot.ai/specs/line-timeseries-rolling",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries-rolling/javascript/d3/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries-rolling/javascript/d3/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries-rolling/javascript/d3/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries-rolling/javascript/d3/plot-dark.html",
"quality_score": 93.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Time Series with Rolling Average Overlay on anyplot.ai.
