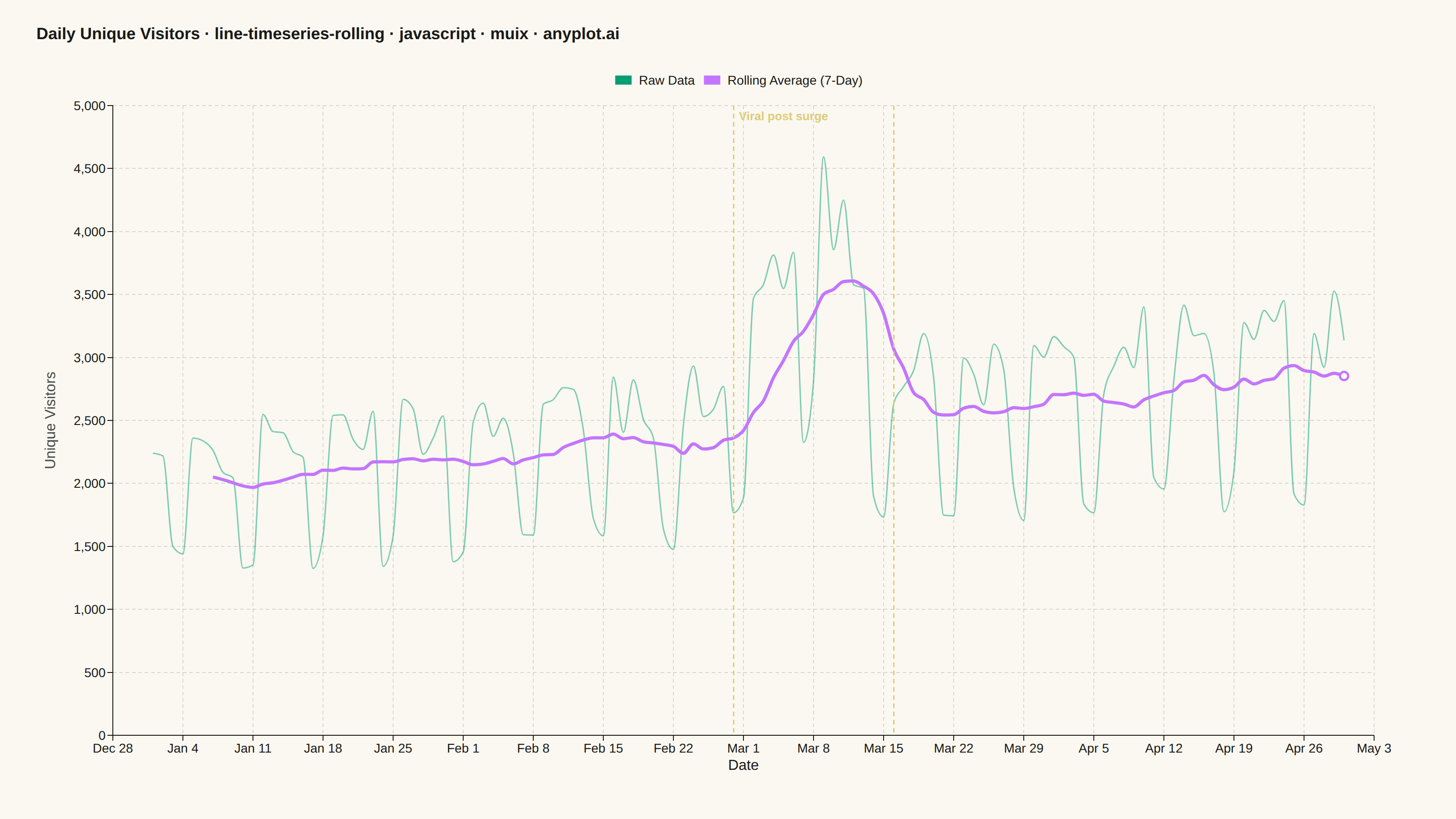

A time series plot that displays raw data points alongside a smoothed rolling average (moving average) line. The raw data shows actual observations while the rolling average reveals underlying trends by reducing noise and short-term fluctuations. This dual-layer visualization is essential for trend identification, making patterns visible that might be obscured by day-to-day volatility.
// anyplot.ai
// line-timeseries-rolling: Time Series with Rolling Average Overlay
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 94/100 | Created: 2026-09-05
import { LineChart } from "@mui/x-charts/LineChart";
import { ChartsReferenceLine } from "@mui/x-charts/ChartsReferenceLine";
import { Box, Typography } from "@mui/material";
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic LCG PRNG — no fetch, no Math.random) ----
let seed = 42;
function rand() {
seed = (seed * 1103515245 + 12345) & 0x7fffffff;
return seed / 0x7fffffff;
}
const NUM_DAYS = 120;
const WINDOW = 7;
const START_DATE = new Date(2026, 0, 1);
const dates = Array.from({ length: NUM_DAYS }, (_, day) => {
const d = new Date(START_DATE);
d.setDate(d.getDate() + day);
return d;
});
// Daily unique visitors to a blog: weekday/weekend seasonality, a slow
// baseline climb, a two-week traffic surge around a viral post, plus
// day-to-day noise — exactly the volatility a rolling average smooths.
const SURGE_START_DAY = 58;
const SURGE_END_DAY = 74;
const rawVisitors = dates.map((date, day) => {
const weekday = date.getDay();
const weekendDip = weekday === 0 || weekday === 6 ? 0.62 : 1;
const trend = 1 + day * 0.004;
const surge =
day >= SURGE_START_DAY && day <= SURGE_END_DAY
? 1 + 0.5 * Math.sin(((day - SURGE_START_DAY) / (SURGE_END_DAY - SURGE_START_DAY)) * Math.PI)
: 1;
const noise = 1 + (rand() - 0.5) * 0.22;
const baseline = 2200;
return Math.max(300, Math.round(baseline * weekendDip * trend * surge * noise));
});
// Trailing WINDOW-day rolling average — null until a full window of raw data
// is available, so the smoothed line starts WINDOW-1 days after the raw one.
const rollingAvg = rawVisitors.map((_, i) => {
if (i < WINDOW - 1) return null;
let sum = 0;
for (let k = i - WINDOW + 1; k <= i; k += 1) sum += rawVisitors[k];
return Math.round(sum / WINDOW);
});
const TITLE = "Daily Unique Visitors · line-timeseries-rolling · javascript · muix · anyplot.ai";
// --- Chart (default-exported component — the harness mounts it) -----------
export default function Chart() {
const size = window.ANYPLOT_SIZE;
const titleSize = TITLE.length > 67 ? Math.max(14, Math.round((22 * 67) / TITLE.length)) : 22;
const padding = { top: 28, right: 40, bottom: 24, left: 40 };
const titleBlockHeight = 56;
// MUI X's y-axis `label` offsets itself from a hardcoded tickFontSize guess
// rather than the tick labels' real measured width, so a 4-digit visitor
// count collides with it. A hand-rotated label in its own flex column
// sidesteps that and gives predictable, collision-free spacing.
const yLabelWidth = 34;
const chartWidth = size.width - padding.left - padding.right - yLabelWidth;
const chartHeight = size.height - padding.top - padding.bottom - titleBlockHeight;
return (
<Box
sx={{
width: size.width,
height: size.height,
boxSizing: "border-box",
padding: `${padding.top}px ${padding.right}px ${padding.bottom}px ${padding.left}px`,
display: "flex",
flexDirection: "column",
}}
>
<Typography sx={{ fontSize: titleSize, fontWeight: 600, color: "text.primary", mb: "20px", lineHeight: 1 }}>
{TITLE}
</Typography>
<Box sx={{ display: "flex", flexDirection: "row", height: chartHeight }}>
<Box sx={{ width: yLabelWidth, display: "flex", alignItems: "center", justifyContent: "center" }}>
<Typography sx={{ fontSize: 16, color: "text.secondary", whiteSpace: "nowrap", transform: "rotate(-90deg)" }}>
Unique Visitors
</Typography>
</Box>
<LineChart
width={chartWidth}
height={chartHeight}
skipAnimation
series={[
{
id: "raw",
label: "Raw Data",
data: rawVisitors,
showMark: false,
color: t.palette[0],
valueFormatter: (v) => (v == null ? "" : `${v.toLocaleString("en-US")} visitors`),
},
{
id: "rolling",
label: `Rolling Average (${WINDOW}-Day)`,
data: rollingAvg,
// Only mark the latest point — a subtle callout of the current
// trend value without cluttering the smoothed line.
showMark: ({ index }) => index === rollingAvg.length - 1,
color: t.palette[1],
valueFormatter: (v) => (v == null ? "" : `${v.toLocaleString("en-US")} visitors`),
},
]}
xAxis={[
{
data: dates,
scaleType: "time",
label: "Date",
valueFormatter: (date) => date.toLocaleDateString("en-US", { month: "short", day: "numeric" }),
tickLabelStyle: { fontSize: 14 },
labelStyle: { fontSize: 16 },
},
]}
yAxis={[
{
valueFormatter: (value) => value.toLocaleString("en-US"),
tickLabelStyle: { fontSize: 14 },
},
]}
grid={{ vertical: true, horizontal: true }}
slotProps={{
legend: {
direction: "row",
labelStyle: { fontSize: 14 },
itemMarkWidth: 18,
itemMarkHeight: 10,
markGap: 8,
},
}}
sx={{
"& .MuiLineElement-series-raw": { strokeWidth: 1.5, strokeOpacity: 0.5 },
"& .MuiLineElement-series-rolling": { strokeWidth: 3.5 },
"& .MuiMarkElement-series-rolling": { r: 6, strokeWidth: 2.5 },
"& .MuiChartsGrid-line": { strokeDasharray: "4 3" },
}}
>
{/* Call out the viral-post surge — the chart's clearest story beat —
with a bracketed reference-line pair in the amber "caution/notable
event" anchor, distinct from both data-series colors. */}
<ChartsReferenceLine
x={dates[SURGE_START_DAY]}
label="Viral post surge"
labelAlign="start"
lineStyle={{ stroke: t.amber, strokeDasharray: "5 4", strokeWidth: 1.5 }}
labelStyle={{ fontSize: 13, fontWeight: 600, fill: t.amber }}
spacing={{ x: 6, y: 6 }}
/>
<ChartsReferenceLine
x={dates[SURGE_END_DAY]}
lineStyle={{ stroke: t.amber, strokeDasharray: "5 4", strokeWidth: 1.5 }}
/>
</LineChart>
</Box>
</Box>
);
}
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/line-timeseries-rolling/muix/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "line-timeseries-rolling",
"language": "javascript",
"library": "muix",
"page": "https://anyplot.ai/line-timeseries-rolling/javascript/muix",
"hub": "https://anyplot.ai/line-timeseries-rolling",
"code_json": "https://api.anyplot.ai/specs/line-timeseries-rolling/muix/code",
"spec_json": "https://api.anyplot.ai/specs/line-timeseries-rolling",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries-rolling/javascript/muix/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries-rolling/javascript/muix/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries-rolling/javascript/muix/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries-rolling/javascript/muix/plot-dark.html",
"quality_score": 94.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Time Series with Rolling Average Overlay on anyplot.ai.
