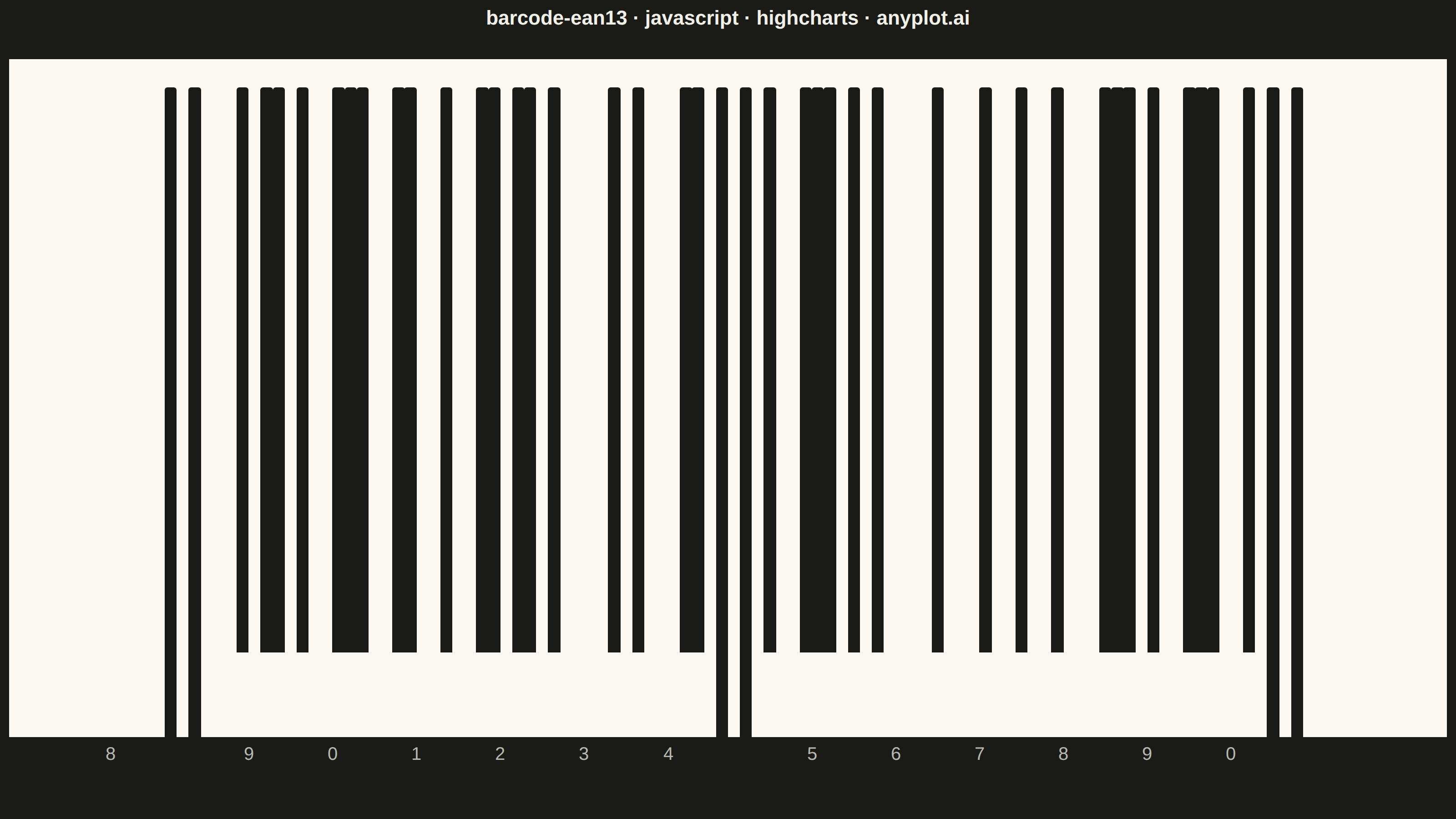

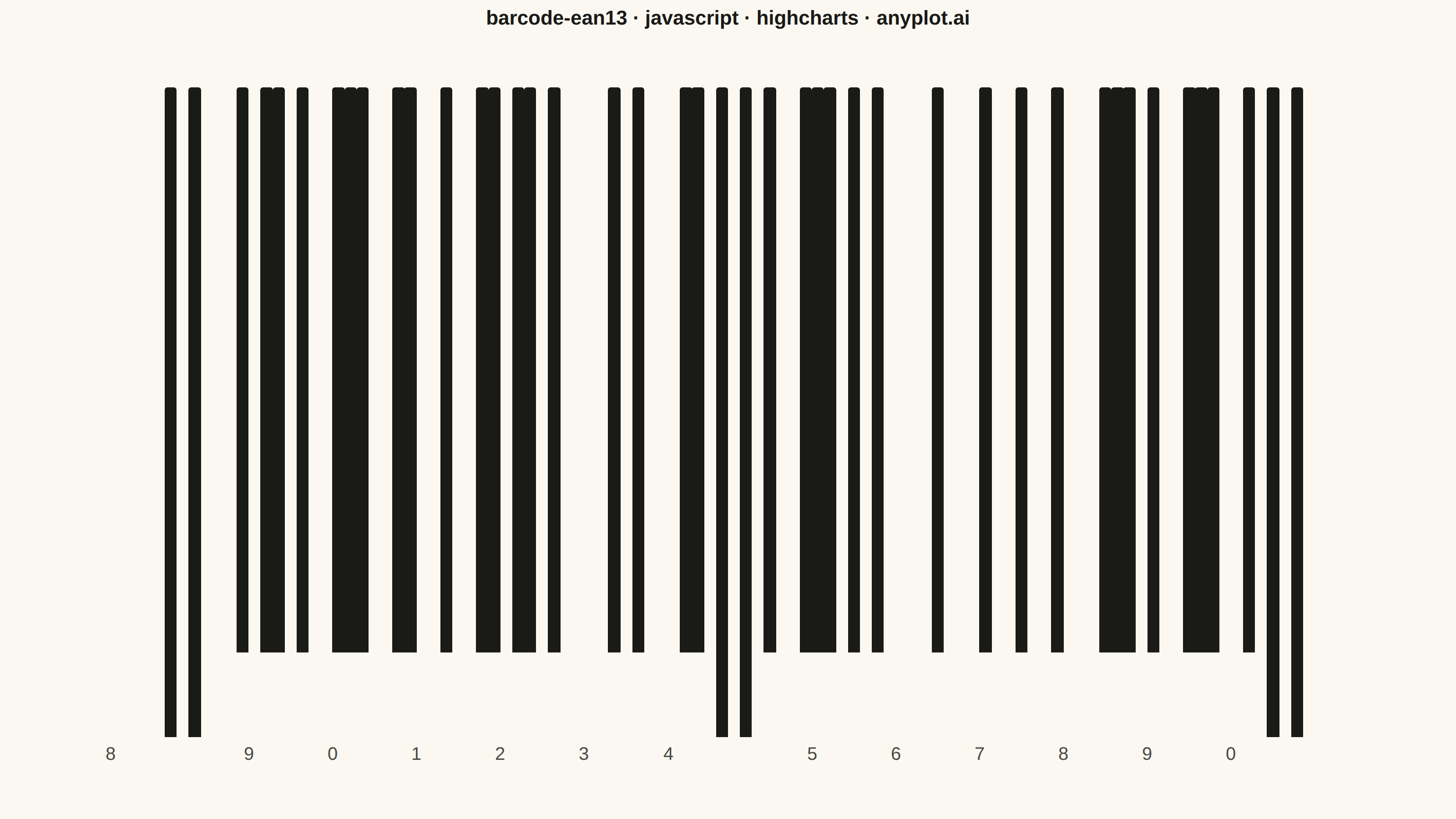

A standard EAN-13 barcode visualization commonly used for retail products worldwide. The plot renders a scannable linear barcode encoding a 13-digit number with proper bar widths, guard patterns, and human-readable digits. This visualization is essential for product identification, inventory management, and point-of-sale systems.
// anyplot.ai
// barcode-ean13: EAN-13 Barcode
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 87/100 | Created: 2026-09-01
const t = window.ANYPLOT_TOKENS;
// A physical barcode's marks must stay dark-on-light regardless of display
// theme to remain machine-scannable — fixed, not theme-adaptive like chrome.
const BARCODE_INK = "#1A1A17";
const BARCODE_CARD = "#FAF8F1";
// --- EAN-13 encoding tables (GS1 standard) ----------------------------------
const L_CODE = [
"0001101", "0011001", "0010011", "0111101", "0100011",
"0110001", "0101111", "0111011", "0110111", "0001011",
];
const G_CODE = [
"0100111", "0110011", "0011011", "0100001", "0011101",
"0111001", "0000101", "0010001", "0001001", "0010111",
];
const R_CODE = L_CODE.map((pattern) => pattern.replace(/[01]/g, (bit) => (bit === "0" ? "1" : "0")));
const PARITY_TABLE = [
"LLLLLL", "LLGLGG", "LLGGLG", "LLGGGL", "LGLLGG",
"LGGLLG", "LGGGLL", "LGLGLG", "LGLGGL", "LGGLGL",
];
function checkDigit(twelveDigits) {
const sum = twelveDigits.reduce((total, digit, i) => total + digit * (i % 2 === 0 ? 1 : 3), 0);
return (10 - (sum % 10)) % 10;
}
function encodeEAN13(digits) {
const parity = PARITY_TABLE[digits[0]];
const leftDigits = digits.slice(1, 7);
const rightDigits = digits.slice(7, 13);
const modules = [1, 0, 1]; // start guard
leftDigits.forEach((digit, i) => {
const pattern = parity[i] === "L" ? L_CODE[digit] : G_CODE[digit];
pattern.split("").forEach((bit) => modules.push(Number(bit)));
});
modules.push(0, 1, 0, 1, 0); // center guard
rightDigits.forEach((digit) => {
R_CODE[digit].split("").forEach((bit) => modules.push(Number(bit)));
});
modules.push(1, 0, 1); // end guard
return modules;
}
// --- Data: a specialty-tea retail product code ------------------------------
const productCode = [8, 9, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9];
const digits = [...productCode, checkDigit(productCode)];
const modules = encodeEAN13(digits);
const START_GUARD = new Set([0, 1, 2]);
const CENTER_GUARD = new Set([45, 46, 47, 48, 49]);
const END_GUARD = new Set([92, 93, 94]);
const DIGIT_HEIGHT = 1.0;
const GUARD_HEIGHT = 1.15;
const MAX_HEIGHT = GUARD_HEIGHT;
const barData = modules.map((bit, i) => {
const isGuard = START_GUARD.has(i) || CENTER_GUARD.has(i) || END_GUARD.has(i);
const height = isGuard ? GUARD_HEIGHT : DIGIT_HEIGHT;
return { x: i, y: bit ? height : 0 };
});
const spacerData = modules.map((bit, i) => {
const isGuard = START_GUARD.has(i) || CENTER_GUARD.has(i) || END_GUARD.has(i);
const height = isGuard ? GUARD_HEIGHT : DIGIT_HEIGHT;
return { x: i, y: bit ? MAX_HEIGHT - height : MAX_HEIGHT };
});
// Human-readable digits: leading digit stands alone in the left quiet zone,
// the remaining 12 digits center under their own 7-module encoding block.
const digitLabels = [{ x: -5, text: String(digits[0]) }];
for (let i = 0; i < 6; i += 1) {
digitLabels.push({ x: 3 + 7 * i + 3.5, text: String(digits[1 + i]) });
}
for (let j = 0; j < 6; j += 1) {
digitLabels.push({ x: 50 + 7 * j + 3.5, text: String(digits[7 + j]) });
}
// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
chart: {
type: "column",
backgroundColor: "transparent",
plotBackgroundColor: BARCODE_CARD,
plotBorderWidth: 0,
plotShadow: false,
animation: false,
marginBottom: 90,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
title: {
text: "barcode-ean13 · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
margin: 30,
},
xAxis: {
min: -13,
max: 106,
visible: false,
},
yAxis: {
min: 0,
max: MAX_HEIGHT,
visible: false,
reversedStacks: false,
},
legend: { enabled: false },
tooltip: { enabled: false },
plotOptions: {
column: {
stacking: "normal",
pointPadding: 0,
groupPadding: 0,
borderWidth: 0,
pointRange: 1,
animation: false,
},
series: { animation: false, enableMouseTracking: false },
},
series: [
{
name: "Quiet space",
type: "column",
data: spacerData,
color: "transparent",
dataLabels: { enabled: false },
},
{
name: "Bars",
type: "column",
data: barData,
color: BARCODE_INK,
dataLabels: { enabled: false },
},
{
name: "Digits",
type: "scatter",
data: digitLabels.map((d) => ({ x: d.x, y: 0, name: d.text })),
marker: { enabled: false },
dataLabels: {
enabled: true,
format: "{point.name}",
crop: false,
overflow: "allow",
verticalAlign: "bottom",
y: 34,
align: "center",
style: {
color: t.inkSoft,
fontSize: "20px",
fontWeight: "500",
textOutline: "none",
},
},
},
],
});
