SHAP Waterfall Plot for Feature Attribution in Bokeh (Python)

The same plot in 14 other libraries — Python: Altair, lets-plot, Matplotlib, Plotly, plotnine, Pygal, Seaborn; R: ggplot2; Julia: Makie.jl; JavaScript: Chart.js, D3.js, Apache ECharts, Highcharts, MUI X Charts. Compare all 15 side by side: SHAP Waterfall Plot for Feature Attribution in Python, R, Julia and JavaScript.

A waterfall-style chart showing how each feature contributes to pushing a model prediction from a base value (expected model output) to the final predicted value. Horizontal bar segments extend right for positive SHAP values and left for negative SHAP values, stacking cumulatively so the viewer can trace the path from baseline to prediction. This is a core ML explainability visualization for explaining individual predictions, complementing the SHAP summary plot which shows feature effects across many samples.

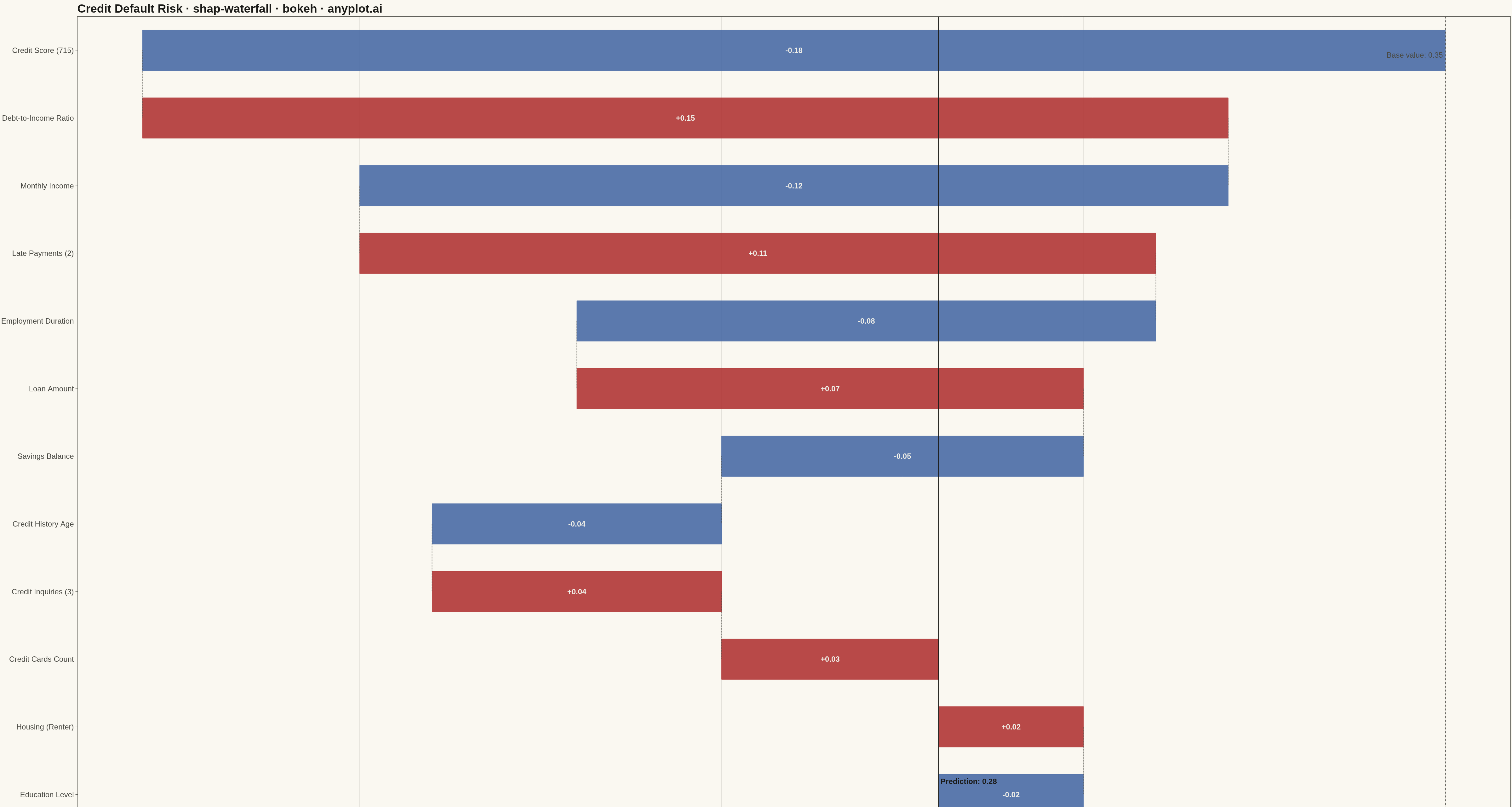

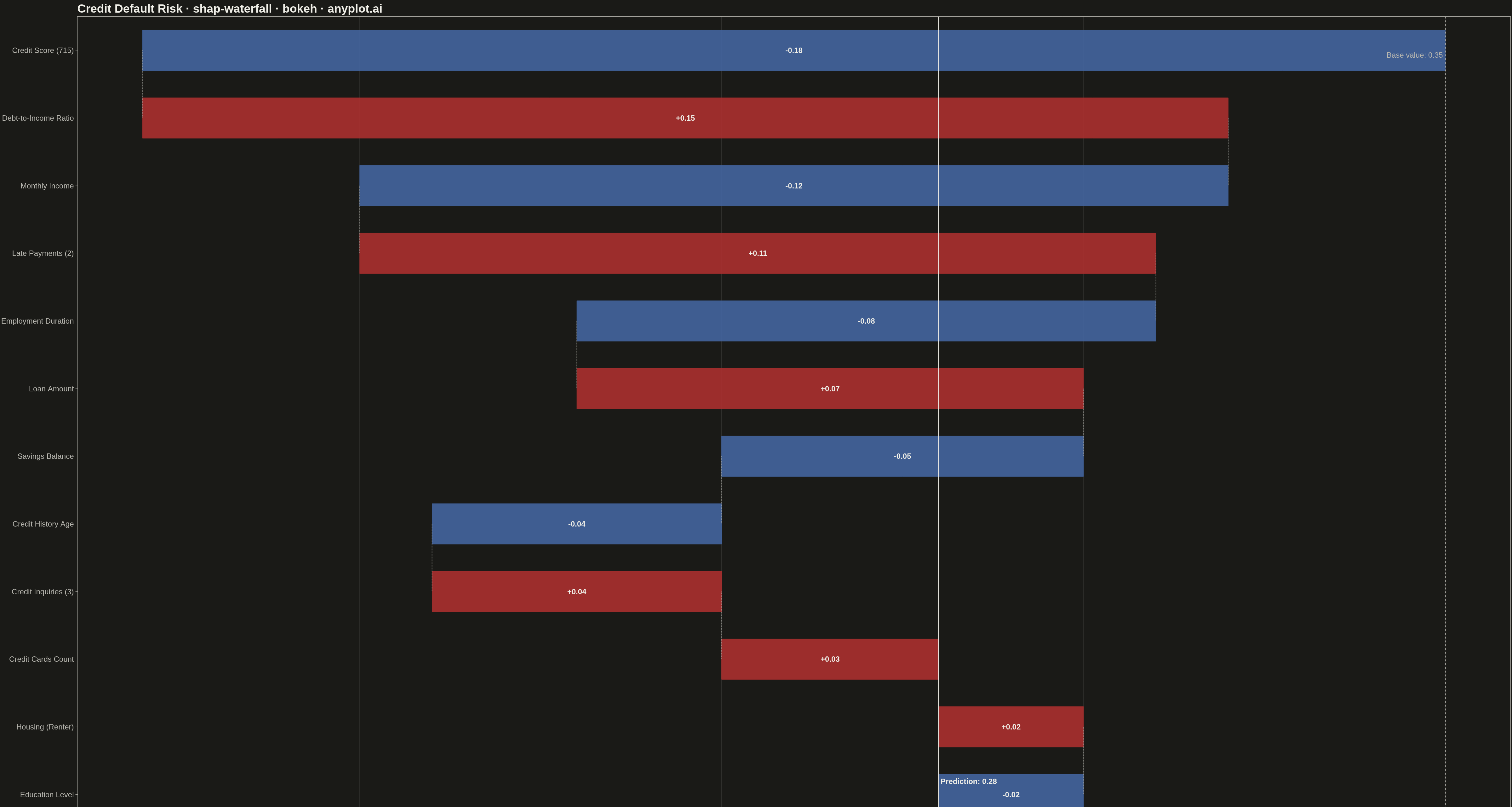

SHAP Waterfall Plot for Feature Attribution rendered with Bokeh

Renders

Python source (Bokeh)

""" anyplot.ai
shap-waterfall: SHAP Waterfall Plot for Feature Attribution
Library: bokeh 3.10.2 | Python 3.14.10
Quality: 85/100 | Updated: 2026-11-13
"""

import os
import sys
import time
from pathlib import Path


# Prevent this file from shadowing the bokeh package
_this_dir = os.path.dirname(os.path.abspath(__file__))
sys.path = [p for p in sys.path if os.path.abspath(p) != _this_dir and p != ""]

import pandas as pd
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, Range1d, Span
from bokeh.plotting import figure
from bokeh.resources import INLINE
from selenium import webdriver
from selenium.webdriver.chrome.options import Options


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Imprint palette, canonical order
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477", "#99B314"]
POS_COLOR = IMPRINT_PALETTE[4]  # red — positive SHAP (pushes prediction up)
NEG_COLOR = IMPRINT_PALETTE[2]  # blue — negative SHAP (pushes prediction down)
LABEL_INK = "#F0EFE8"  # near-white for text on colored bar segments

# Columns: set these to your table's column names
FEATURE = "Feature"  # role: feature
SHAP_VALUE = "SHAP value"  # role: shap_value
BASE_VALUE = "Base value"  # role: base_value

# Data: replace this block with your own table, for example df = pd.read_csv("shap.csv")
# Credit default risk model: explaining one loan applicant's prediction
df = pd.DataFrame(
    {
        FEATURE: [
            "Credit Score (715)",
            "Debt-to-Income Ratio",
            "Monthly Income",
            "Late Payments (2)",
            "Employment Duration",
            "Loan Amount",
            "Savings Balance",
            "Credit History Age",
            "Credit Inquiries (3)",
            "Credit Cards Count",
            "Housing (Renter)",
            "Education Level",
        ],
        SHAP_VALUE: [-0.18, 0.15, -0.12, 0.11, -0.08, 0.07, -0.05, -0.04, 0.04, 0.03, 0.02, -0.02],
        BASE_VALUE: [0.35] * 12,
    }
)

# Plot: reads only df and the constants above
# Features sorted by |SHAP| so the largest contribution sits at the top
df = df.reindex(df[SHAP_VALUE].abs().sort_values(ascending=False, kind="stable").index).reset_index(drop=True)
base_value = df[BASE_VALUE].iloc[0]
ends = base_value + df[SHAP_VALUE].cumsum()
starts = ends.shift(fill_value=base_value)
final_value = ends.iloc[-1]

df["left"] = pd.concat([starts, ends], axis=1).min(axis=1)
df["right"] = pd.concat([starts, ends], axis=1).max(axis=1)
df["mid"] = (df["left"] + df["right"]) / 2
df["end"] = ends
df["color"] = [POS_COLOR if v > 0 else NEG_COLOR for v in df[SHAP_VALUE]]
df["label"] = [f"{v:+.2f}" for v in df[SHAP_VALUE]]
source = ColumnDataSource(df)

features = list(df[FEATURE])
span = df["right"].max() - df["left"].min()
x_low = df["left"].min() - 0.06 * span
x_high = df["right"].max() + 0.30 * span  # room for the base value label right of its line

p = figure(
    width=3200,
    height=1800,
    # Reversed: bokeh puts the first factor at the bottom
    y_range=list(reversed(features)),
    x_range=Range1d(x_low, x_high),
    title="Credit Default Risk · shap-waterfall · python · bokeh · anyplot.ai",
    toolbar_location=None,
    x_axis_label="Cumulative Default Probability",
    min_border_bottom=150,
    min_border_left=40,
    min_border_top=110,
    min_border_right=60,
)
p.y_range.range_padding = 0.25  # headroom above the first bar for the reference labels

# Waterfall bars
p.hbar(y=FEATURE, left="left", right="right", height=0.62, color="color", alpha=0.9, source=source)

# Connector lines: vertical dashed segments from each bar end to the next bar
p.segment(
    x0="end",
    y0=FEATURE,
    x1="end",
    y1="next_feature",
    line_color=INK_SOFT,
    line_dash="dashed",
    line_width=2,
    line_alpha=0.7,
    source=ColumnDataSource(df.iloc[:-1].assign(next_feature=features[1:])),
)

# SHAP value labels centered on the bars
p.text(
    x="mid",
    y=FEATURE,
    text="label",
    text_align="center",
    text_baseline="middle",
    text_font_size="28pt",
    text_color=LABEL_INK,
    text_font_style="bold",
    source=source,
)

# Reference lines for base value and final prediction
p.add_layout(
    Span(location=base_value, dimension="height", line_color=INK_SOFT, line_dash="dashed", line_width=4, line_alpha=0.8)
)
p.add_layout(Span(location=final_value, dimension="height", line_color=INK, line_dash="solid", line_width=4))

# Reference labels in the empty headroom above the first bar: base to the right of its line,
# final prediction to the left of its line (bokeh y_offset: negative moves up)
p.text(
    x=[base_value],
    y=[features[0]],
    text=[f"Base value: {base_value:.2f}"],
    x_offset=12,
    y_offset=-70,
    text_align="left",
    text_font_size="28pt",
    text_color=INK_SOFT,
)
p.text(
    x=[final_value],
    y=[features[0]],
    text=[f"Prediction: {final_value:.2f}"],
    x_offset=-12,
    y_offset=-70,
    text_align="right",
    text_font_size="28pt",
    text_color=INK,
    text_font_style="bold",
)

# Theme-adaptive chrome
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = None

p.title.text_font_size = "50pt"
p.title.text_color = INK
p.title.text_font_style = "bold"

p.xaxis.axis_label_text_font_size = "42pt"
p.xaxis.axis_label_text_color = INK
p.xaxis.major_label_text_font_size = "34pt"
p.xaxis.major_label_text_color = INK_SOFT
p.xaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.xaxis.minor_tick_line_color = None

p.yaxis.major_label_text_font_size = "30pt"
p.yaxis.major_label_text_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.yaxis.major_tick_line_color = None

p.xgrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.10
p.ygrid.grid_line_color = None

# Save HTML and take PNG screenshot with headless Chrome
output_file(f"plot-{THEME}.html")
save(p, resources=INLINE)

W, H = 3200, 1800
opts = Options()
for arg in (
    "--headless=new",
    "--no-sandbox",
    "--disable-dev-shm-usage",
    "--disable-gpu",
    f"--window-size={W},{H}",
    "--hide-scrollbars",
):
    opts.add_argument(arg)

driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
driver.execute_cdp_cmd(
    "Emulation.setDeviceMetricsOverride", {"width": W, "height": H, "deviceScaleFactor": 1, "mobile": False}
)
time.sleep(4)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
