SHAP Waterfall Plot for Feature Attribution in lets-plot (Python)

The same plot in 14 other libraries — Python: Altair, Bokeh, Matplotlib, Plotly, plotnine, Pygal, Seaborn; R: ggplot2; Julia: Makie.jl; JavaScript: Chart.js, D3.js, Apache ECharts, Highcharts, MUI X Charts. Compare all 15 side by side: SHAP Waterfall Plot for Feature Attribution in Python, R, Julia and JavaScript.

A waterfall-style chart showing how each feature contributes to pushing a model prediction from a base value (expected model output) to the final predicted value. Horizontal bar segments extend right for positive SHAP values and left for negative SHAP values, stacking cumulatively so the viewer can trace the path from baseline to prediction. This is a core ML explainability visualization for explaining individual predictions, complementing the SHAP summary plot which shows feature effects across many samples.

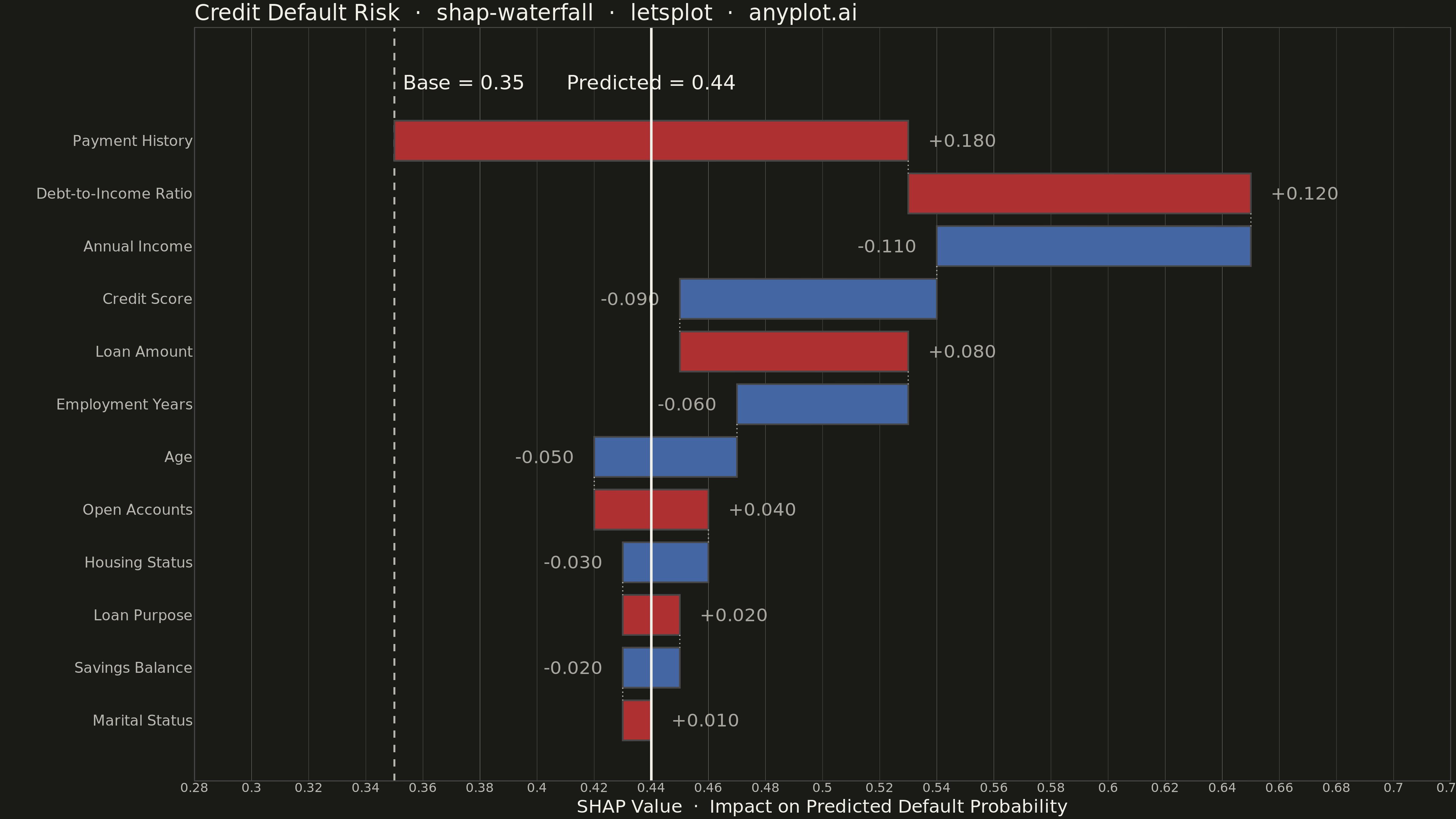

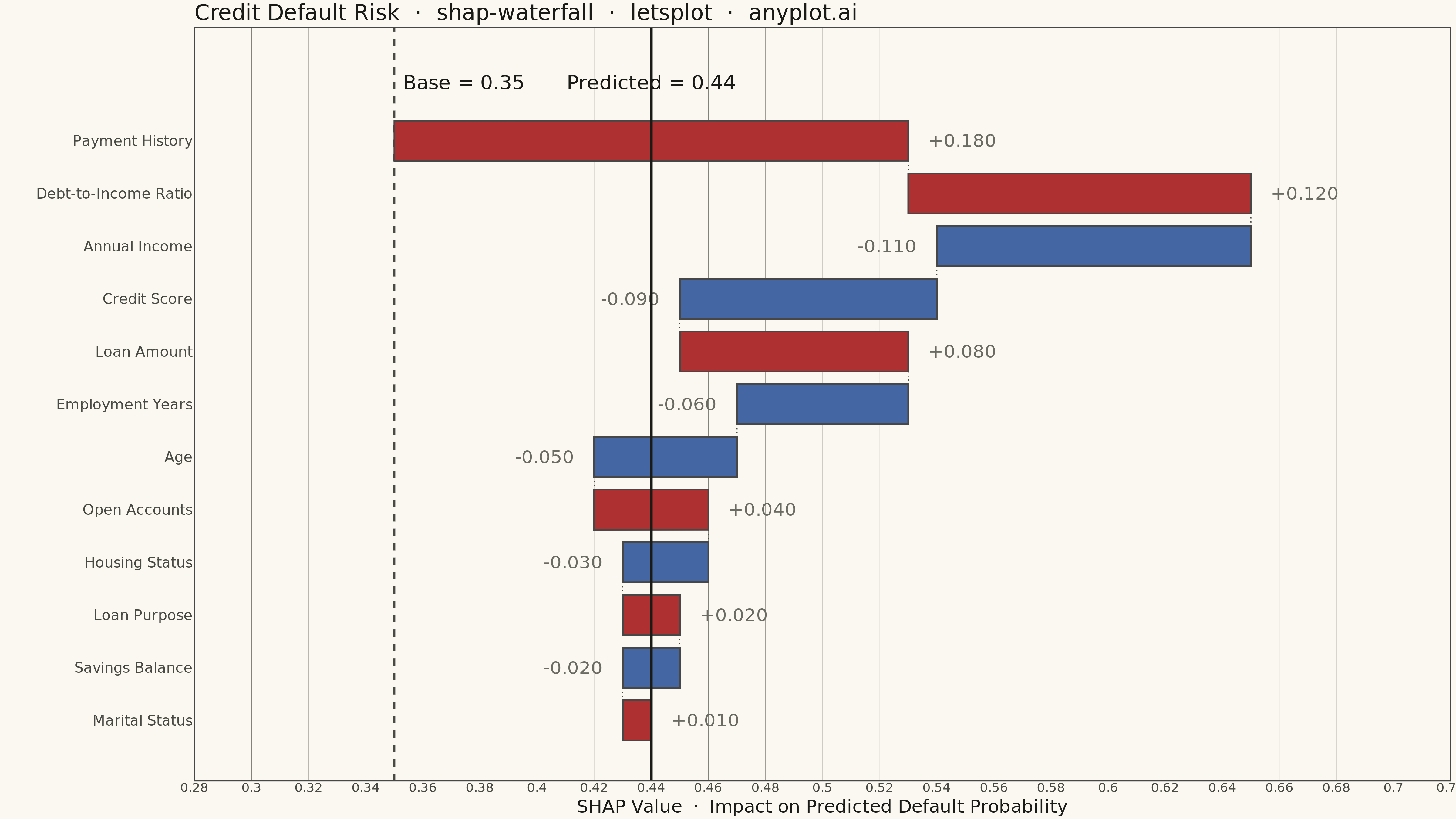

SHAP Waterfall Plot for Feature Attribution rendered with lets-plot

Renders

Python source (lets-plot)

""" anyplot.ai
shap-waterfall: SHAP Waterfall Plot for Feature Attribution
Library: letsplot 4.11.0 | Python 3.14.10
Quality: 78/100 | Updated: 2026-11-13
"""

import os

import numpy as np
import pandas as pd
from lets_plot import *


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"

# Imprint palette: red for positive SHAP (raises risk), blue for negative (lowers risk)
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477", "#99B314"]
POS_COLOR = IMPRINT_PALETTE[4]
NEG_COLOR = IMPRINT_PALETTE[2]

# Columns: set these to your table's column names
FEATURE = "Feature"  # role: feature
SHAP_VALUE = "SHAP value (change in readmission probability)"  # role: shap_value
BASE_VALUE = "Base value"  # role: base_value

# Data: replace this block with your own table, for example df = pd.read_csv("shap.csv")
# One patient's 30-day hospital readmission risk, explained feature by feature
df = pd.DataFrame(
    {
        FEATURE: [
            "Prior Admissions (12 mo)",
            "Home Care Arranged",
            "Age",
            "Comorbidity Count",
            "Length of Stay",
            "Medication Count",
            "Discharge Weekday",
            "Hemoglobin Level",
            "Insurance Type",
            "Emergency Admission",
            "Distance to Hospital",
            "Smoking Status",
        ],
        SHAP_VALUE: [0.09, -0.07, 0.06, 0.05, -0.04, 0.04, -0.03, 0.03, -0.02, 0.02, -0.01, 0.01],
        BASE_VALUE: 0.15,
    }
)

# Plot: reads only df and the constants above
table = df.reindex(df[SHAP_VALUE].abs().sort_values(ascending=False, kind="stable").index).reset_index(drop=True)
n = len(table)
base_value = float(table[BASE_VALUE].iloc[0])
final_value = base_value + float(table[SHAP_VALUE].sum())

# Cumulative waterfall positions; the largest contributor sits at the top
ends = base_value + table[SHAP_VALUE].cumsum()
starts = ends - table[SHAP_VALUE]
chain = np.concatenate([[base_value], ends.to_numpy()])
span = chain.max() - chain.min()

half = 0.38
table["y"] = np.arange(n, 0, -1)
table["ymin"] = table["y"] - half
table["ymax"] = table["y"] + half
table["xmin"] = np.minimum(starts, ends)
table["xmax"] = np.maximum(starts, ends)
table["direction"] = np.where(table[SHAP_VALUE] >= 0, "positive", "negative")
table["label"] = table[SHAP_VALUE].map(lambda v: f"{v:+.2f}")
table["text_x"] = np.where(table[SHAP_VALUE] >= 0, table["xmax"] + 0.02 * span, table["xmin"] - 0.02 * span)
df_pos = table[table[SHAP_VALUE] >= 0]
df_neg = table[table[SHAP_VALUE] < 0]

# Dotted connectors in the gap between consecutive bars
df_conn = pd.DataFrame(
    {"x": ends.to_numpy()[:-1], "y": table["y"].to_numpy()[:-1] - half, "yend": table["y"].to_numpy()[1:] + half}
)

# Reference-line labels above the top bar
label_y = n + 1.0
df_ref_base = pd.DataFrame({"x": [base_value - 0.02 * span], "y": [label_y], "label": [f"Base = {base_value:.2f}"]})
df_ref_pred = pd.DataFrame(
    {"x": [final_value + 0.02 * span], "y": [label_y], "label": [f"Predicted = {final_value:.2f}"]}
)

title = "Hospital Readmission Risk  ·  shap-waterfall  ·  python  ·  letsplot  ·  anyplot.ai"
title_size = round(16 * min(1.0, 67 / len(title)))

anyplot_theme = theme(
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG),
    panel_border=element_blank(),
    panel_grid_major_x=element_line(color=INK_MUTED, size=0.15),
    panel_grid_major_y=element_blank(),
    panel_grid_minor=element_blank(),
    axis_title=element_text(color=INK, size=12),
    axis_text_y=element_text(color=INK_SOFT, size=11),
    axis_text_x=element_text(color=INK_SOFT, size=10),
    axis_line_x=element_line(color=INK_SOFT, size=0.5),
    axis_line_y=element_blank(),
    axis_ticks=element_blank(),
    plot_title=element_text(color=INK, size=title_size),
    legend_position="none",
)

plot = (
    ggplot()
    + geom_vline(xintercept=base_value, color=INK_SOFT, size=0.5, linetype="dashed")
    + geom_rect(data=table, mapping=aes(xmin="xmin", xmax="xmax", ymin="ymin", ymax="ymax", fill="direction"))
    + geom_segment(
        data=df_conn, mapping=aes(x="x", xend="x", y="y", yend="yend"), color=INK_SOFT, size=0.4, linetype="dotted"
    )
    + geom_text(data=df_pos, mapping=aes(x="text_x", y="y", label="label"), color=INK_SOFT, size=4.5, hjust=0)
    + geom_text(data=df_neg, mapping=aes(x="text_x", y="y", label="label"), color=INK_SOFT, size=4.5, hjust=1)
    + geom_text(data=df_ref_base, mapping=aes(x="x", y="y", label="label"), color=INK, size=5, hjust=1)
    + geom_text(data=df_ref_pred, mapping=aes(x="x", y="y", label="label"), color=INK, size=5, hjust=0)
    + geom_vline(xintercept=final_value, color=INK, size=0.7)
    + scale_fill_manual(values={"positive": POS_COLOR, "negative": NEG_COLOR})
    + scale_x_continuous(limits=[chain.min() - 0.45 * span, chain.max() + 0.45 * span], expand=[0, 0])
    + scale_y_continuous(breaks=table["y"].tolist(), labels=table[FEATURE].tolist(), limits=[0.5, n + 1.5])
    + labs(x=SHAP_VALUE, y="", title=title)
    + ggsize(800, 450)
    + theme_minimal()
    + anyplot_theme
)

ggsave(plot, f"plot-{THEME}.png", scale=4, path=".")
ggsave(plot, f"plot-{THEME}.html", path=".")

Retrieve this implementation
