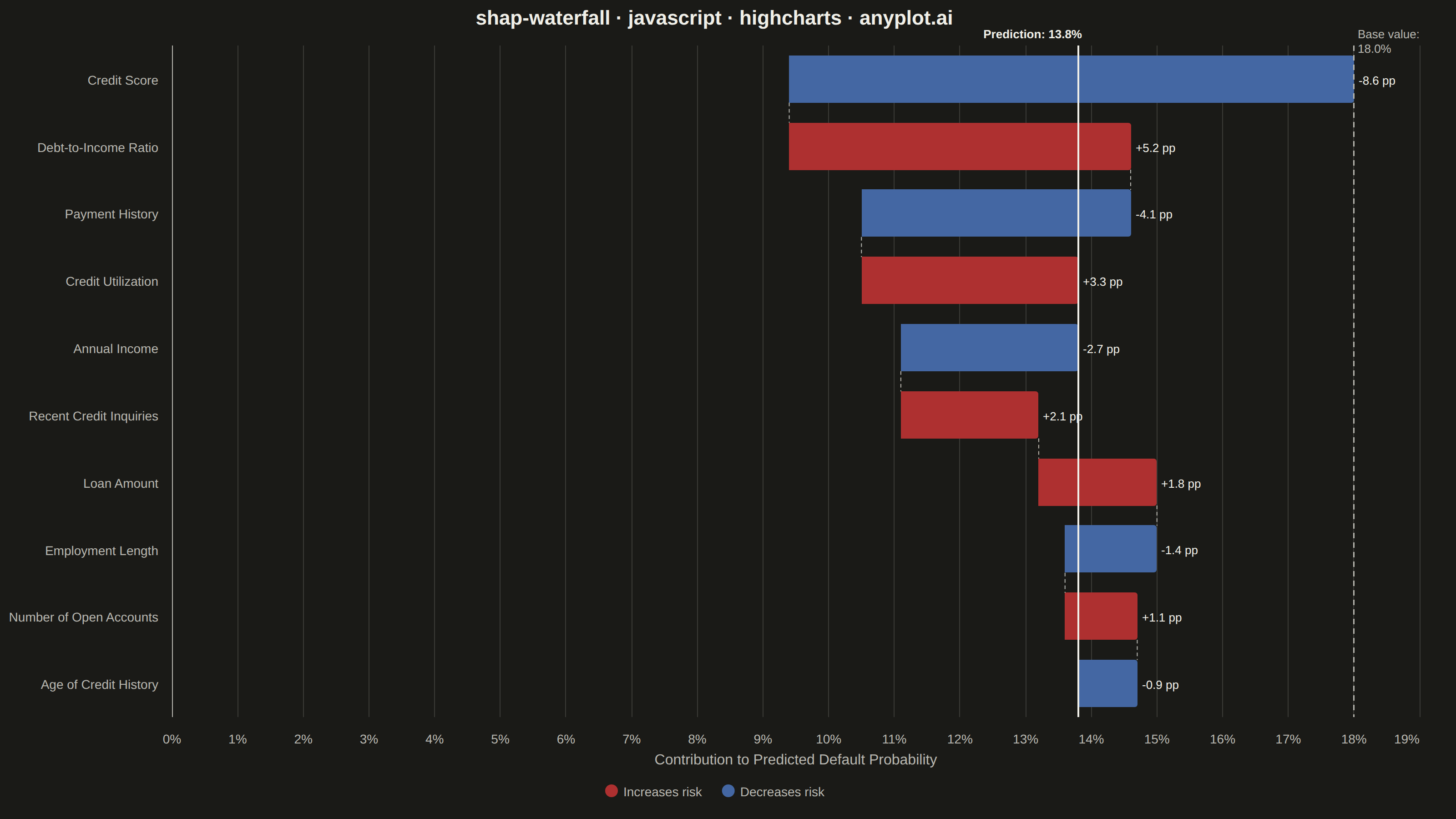

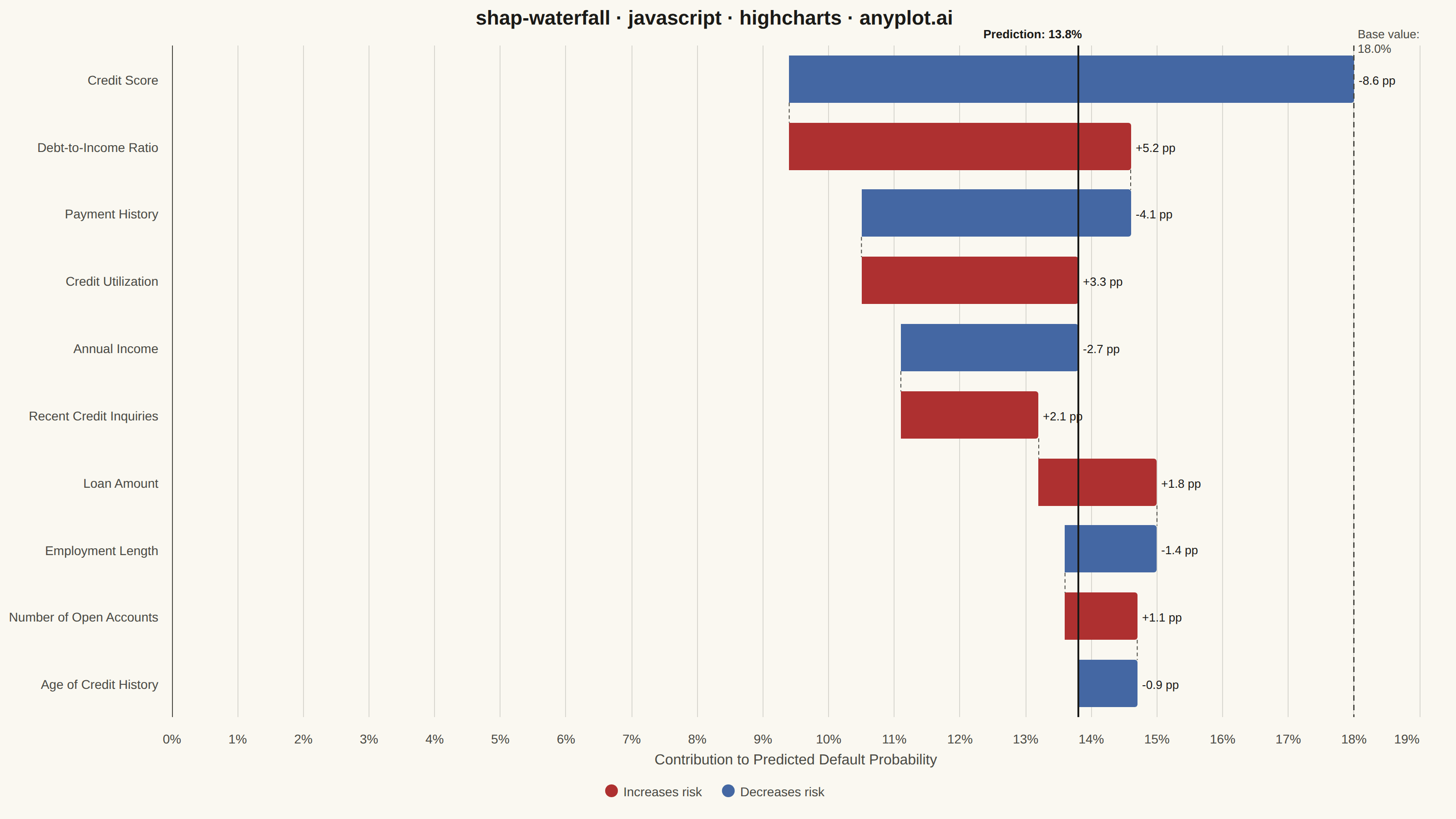

A waterfall-style chart showing how each feature contributes to pushing a model prediction from a base value (expected model output) to the final predicted value. Horizontal bar segments extend right for positive SHAP values and left for negative SHAP values, stacking cumulatively so the viewer can trace the path from baseline to prediction. This is a core ML explainability visualization for explaining individual predictions, complementing the SHAP summary plot which shows feature effects across many samples.
// anyplot.ai
// shap-waterfall: SHAP Waterfall Plot for Feature Attribution
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-09
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Credit-risk model: SHAP contributions to the predicted probability of default
// for a single loan applicant, ordered by absolute contribution magnitude.
const baseValue = 0.18; // E[f(x)] — mean predicted default probability across training data
const features = [
"Credit Score",
"Debt-to-Income Ratio",
"Payment History",
"Credit Utilization",
"Annual Income",
"Recent Credit Inquiries",
"Loan Amount",
"Employment Length",
"Number of Open Accounts",
"Age of Credit History",
];
const shapValues = [-0.086, 0.052, -0.041, 0.033, -0.027, 0.021, 0.018, -0.014, 0.011, -0.009];
let running = baseValue;
const segments = shapValues.map((shap) => {
const start = running;
const end = start + shap;
running = end;
return { low: Math.min(start, end), high: Math.max(start, end), start, end, shap };
});
const finalValue = running;
const positiveColor = t.palette[4]; // matte red — pushes predicted risk up
const negativeColor = t.palette[2]; // blue — pushes predicted risk down
// --- Chart -------------------------------------------------------------------
const chart = Highcharts.chart("container", {
chart: {
type: "bar",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
spacingRight: 40,
},
credits: { enabled: false },
title: {
text: "shap-waterfall · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
xAxis: {
categories: features,
reversed: true,
lineColor: t.inkSoft,
tickColor: t.inkSoft,
gridLineWidth: 0,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
},
yAxis: {
title: {
text: "Contribution to Predicted Default Probability",
style: { color: t.inkSoft, fontSize: "16px" },
},
gridLineColor: t.grid,
labels: {
style: { color: t.inkSoft, fontSize: "14px" },
formatter() {
return `${Math.round(this.value * 100)}%`;
},
},
plotLines: [
{
value: baseValue,
color: t.inkSoft,
width: 1.5,
dashStyle: "Dash",
zIndex: 5,
label: {
text: `Base value: ${(baseValue * 100).toFixed(1)}%`,
style: { color: t.inkSoft, fontSize: "13px" },
rotation: 0,
y: -8,
},
},
{
value: finalValue,
color: t.ink,
width: 2,
dashStyle: "Solid",
zIndex: 5,
label: {
text: `Prediction: ${(finalValue * 100).toFixed(1)}%`,
style: { color: t.ink, fontSize: "13px", fontWeight: "600" },
rotation: 0,
y: -8,
align: "right",
},
},
],
},
legend: {
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink },
},
plotOptions: {
series: { animation: false, pointPadding: 0.15, groupPadding: 0, stacking: "normal" },
bar: { borderWidth: 0 },
},
series: [
{
// Highcharts stacks bar/column series in reverse declaration order (the
// first series lands on TOP of the stack) — declare the visible segment
// first so it occupies [low, high], and the invisible spacer last so it
// occupies [0, low] and pushes the visible segment into position.
name: "SHAP contribution",
data: segments.map((s) => ({
y: s.high - s.low,
color: s.shap >= 0 ? positiveColor : negativeColor,
custom: { shap: s.shap },
})),
showInLegend: false,
dataLabels: {
enabled: true,
inside: false,
crop: false,
overflow: "allow",
style: { color: t.ink, fontSize: "13px", fontWeight: "500", textOutline: "none" },
formatter() {
const pp = this.point.custom.shap * 100;
return `${pp >= 0 ? "+" : ""}${pp.toFixed(1)} pp`;
},
},
},
{
name: "base",
data: segments.map((s) => s.low),
color: "rgba(0,0,0,0)",
enableMouseTracking: false,
showInLegend: false,
dataLabels: { enabled: false },
},
{
name: "Increases risk",
data: [],
color: positiveColor,
showInLegend: true,
},
{
name: "Decreases risk",
data: [],
color: negativeColor,
showInLegend: true,
},
],
});
// --- Connector lines between cumulative segments -----------------------------
const catAxis = chart.xAxis[0];
const valAxis = chart.yAxis[0];
const half = 0.5 - 0.15; // matches plotOptions.series.pointPadding
segments.slice(0, -1).forEach((seg, i) => {
const xPixel = valAxis.toPixels(seg.end, false);
const y1 = catAxis.toPixels(i + half, false);
const y2 = catAxis.toPixels(i + 1 - half, false);
chart.renderer
.path(["M", xPixel, y1, "L", xPixel, y2])
.attr({ stroke: t.inkSoft, "stroke-width": 1, dashstyle: "Dash", zIndex: 4 })
.add();
});
