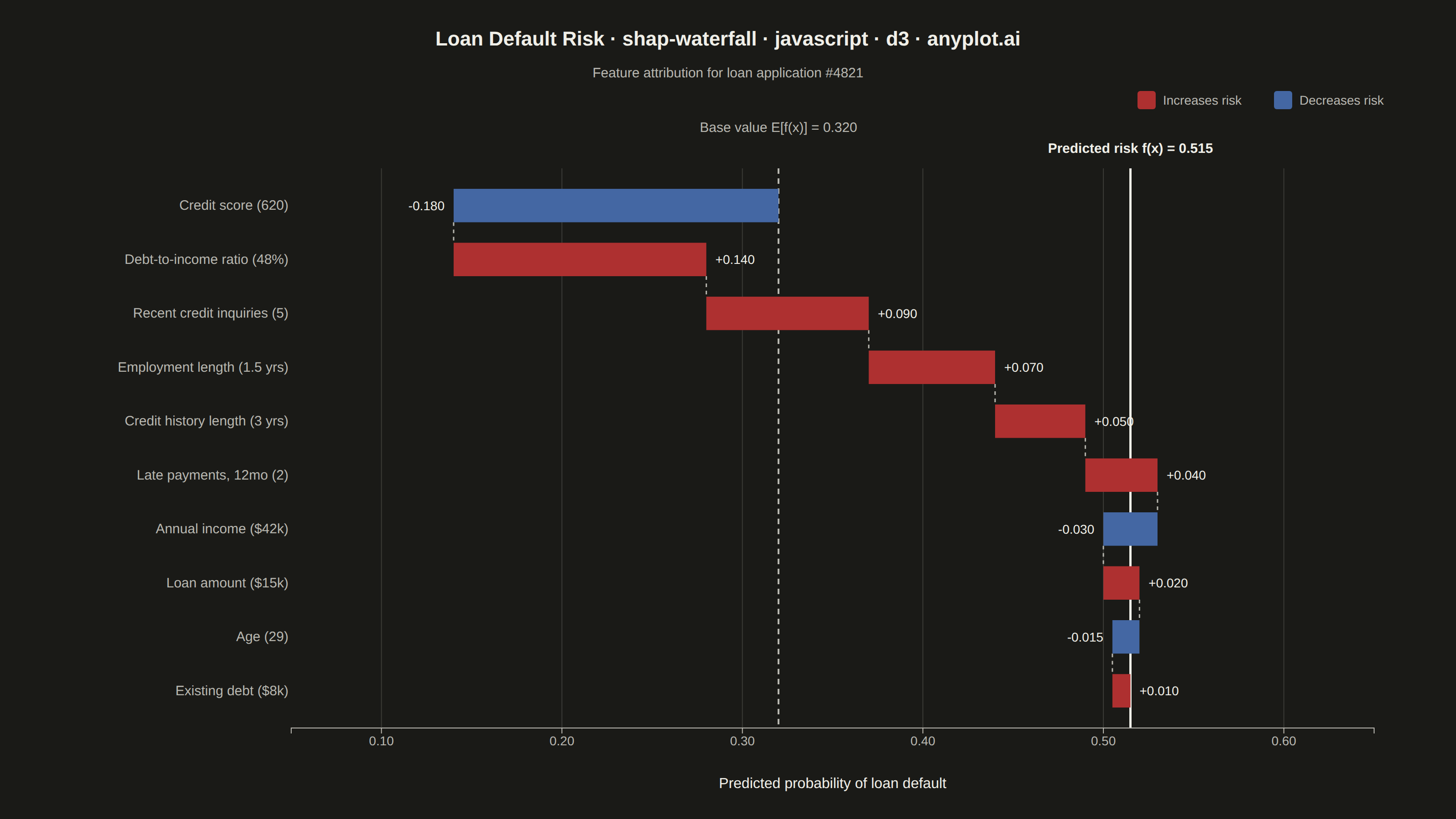

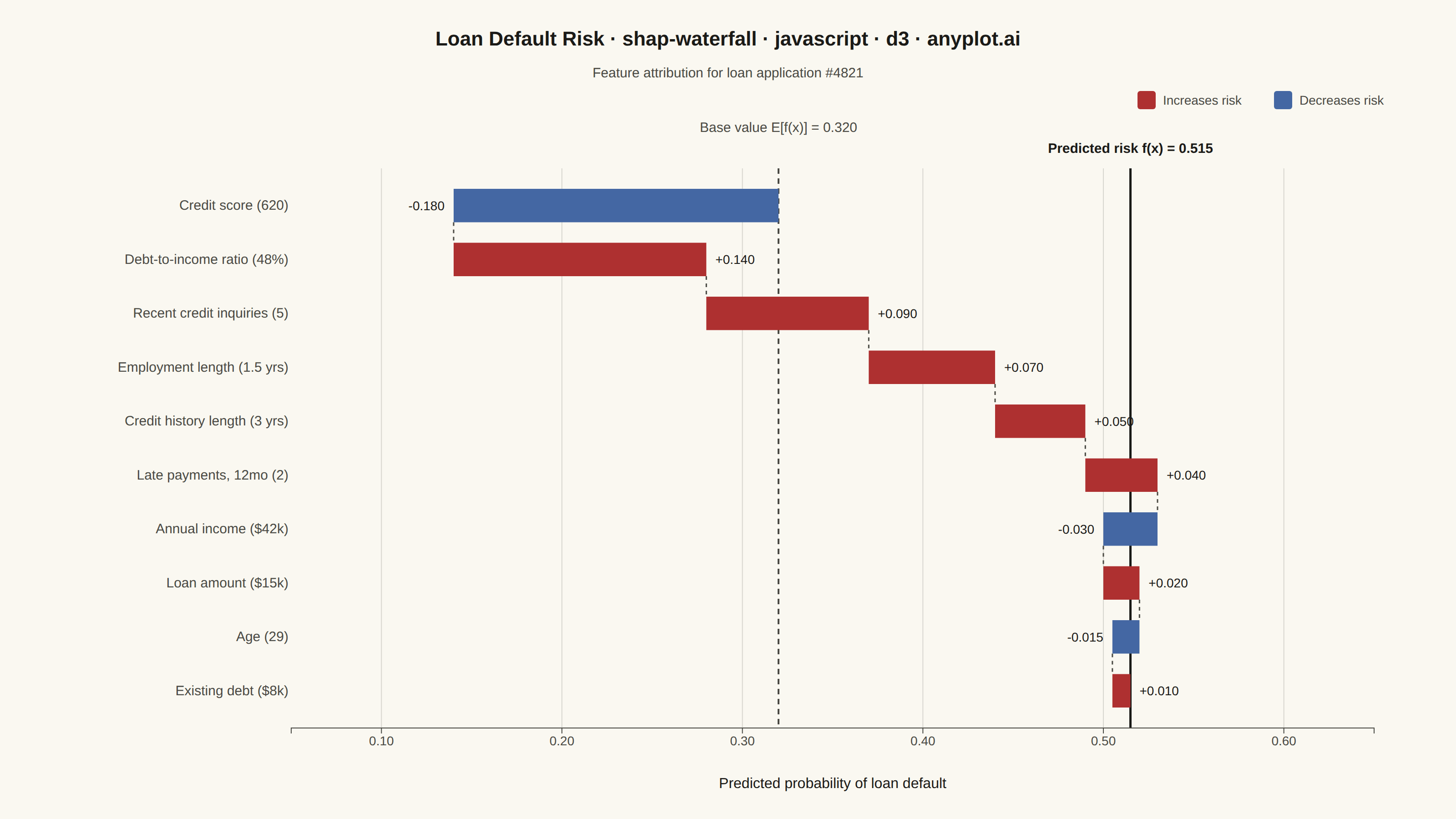

A waterfall-style chart showing how each feature contributes to pushing a model prediction from a base value (expected model output) to the final predicted value. Horizontal bar segments extend right for positive SHAP values and left for negative SHAP values, stacking cumulatively so the viewer can trace the path from baseline to prediction. This is a core ML explainability visualization for explaining individual predictions, complementing the SHAP summary plot which shows feature effects across many samples.
// anyplot.ai
// shap-waterfall: SHAP Waterfall Plot for Feature Attribution
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 94/100 | Created: 2026-09-09
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
// Data — SHAP contributions for a single loan-default-risk prediction,
// ordered by absolute magnitude (largest contribution first / at top).
const baseValue = 0.32;
const contributions = [
{ feature: "Credit score (620)", shapValue: -0.18 },
{ feature: "Debt-to-income ratio (48%)", shapValue: 0.14 },
{ feature: "Recent credit inquiries (5)", shapValue: 0.09 },
{ feature: "Employment length (1.5 yrs)", shapValue: 0.07 },
{ feature: "Credit history length (3 yrs)", shapValue: 0.05 },
{ feature: "Late payments, 12mo (2)", shapValue: 0.04 },
{ feature: "Annual income ($42k)", shapValue: -0.03 },
{ feature: "Loan amount ($15k)", shapValue: 0.02 },
{ feature: "Age (29)", shapValue: -0.015 },
{ feature: "Existing debt ($8k)", shapValue: 0.01 },
];
let cursor = baseValue;
const rows = contributions.map((d) => {
const start = cursor;
const end = cursor + d.shapValue;
cursor = end;
return { ...d, start, end };
});
const finalValue = cursor;
// Plot
const margin = { top: 185, right: 90, bottom: 100, left: 320 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);
const allValues = [baseValue, finalValue, ...rows.flatMap((r) => [r.start, r.end])];
const domainMin = d3.min(allValues);
const domainMax = d3.max(allValues);
const domainPad = (domainMax - domainMin) * 0.18;
const x = d3.scaleLinear()
.domain([domainMin - domainPad, domainMax + domainPad])
.nice()
.range([0, iw]);
const y = d3.scaleBand()
.domain(rows.map((d) => d.feature))
.range([0, ih])
.padding(0.38);
const POSITIVE = t.palette[4]; // matte red — increases predicted risk
const NEGATIVE = t.palette[2]; // blue — decreases predicted risk
// Style — vertical gridlines aligned to the x-axis ticks
g.append("g")
.attr("transform", `translate(0,${ih})`)
.call(d3.axisBottom(x).ticks(6).tickSize(-ih).tickFormat(""))
.call((sel) => sel.select(".domain").remove())
.selectAll("line")
.attr("stroke", t.grid);
// Connector lines linking each bar's end to the next bar's start
for (let i = 0; i < rows.length - 1; i++) {
g.append("line")
.attr("x1", x(rows[i].end))
.attr("x2", x(rows[i].end))
.attr("y1", y(rows[i].feature) + y.bandwidth())
.attr("y2", y(rows[i + 1].feature))
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1.5)
.attr("stroke-dasharray", "4,4");
}
// Base-value and final-prediction reference lines
g.append("line")
.attr("x1", x(baseValue)).attr("x2", x(baseValue))
.attr("y1", 0).attr("y2", ih)
.attr("stroke", t.inkSoft).attr("stroke-width", 2).attr("stroke-dasharray", "6,5");
g.append("line")
.attr("x1", x(finalValue)).attr("x2", x(finalValue))
.attr("y1", 0).attr("y2", ih)
.attr("stroke", t.ink).attr("stroke-width", 2.5);
svg.append("text")
.attr("x", margin.left + x(baseValue)).attr("y", 145)
.attr("text-anchor", "middle").attr("fill", t.inkSoft)
.style("font-size", "15px")
.text(`Base value E[f(x)] = ${baseValue.toFixed(3)}`);
svg.append("text")
.attr("x", margin.left + x(finalValue)).attr("y", 168)
.attr("text-anchor", "middle").attr("fill", t.ink).style("font-weight", "600")
.style("font-size", "15px")
.text(`Predicted risk f(x) = ${finalValue.toFixed(3)}`);
// Waterfall bars
g.selectAll("rect.bar").data(rows).join("rect").attr("class", "bar")
.attr("x", (d) => x(Math.min(d.start, d.end)))
.attr("y", (d) => y(d.feature))
.attr("width", (d) => Math.abs(x(d.end) - x(d.start)))
.attr("height", y.bandwidth())
.attr("fill", (d) => (d.shapValue >= 0 ? POSITIVE : NEGATIVE));
// Numeric SHAP value beside each bar segment
g.selectAll("text.value").data(rows).join("text").attr("class", "value")
.attr("x", (d) => x(d.end) + (d.shapValue >= 0 ? 10 : -10))
.attr("y", (d) => y(d.feature) + y.bandwidth() / 2)
.attr("dy", "0.35em")
.attr("text-anchor", (d) => (d.shapValue >= 0 ? "start" : "end"))
.attr("fill", t.ink)
.style("font-size", "14px")
.text((d) => `${d.shapValue >= 0 ? "+" : ""}${d.shapValue.toFixed(3)}`);
// Axes
const xAxis = g.append("g")
.attr("transform", `translate(0,${ih})`)
.call(d3.axisBottom(x).ticks(6).tickFormat(d3.format(".2f")));
xAxis.selectAll("text").attr("fill", t.inkSoft).style("font-size", "14px");
xAxis.selectAll("line").attr("stroke", t.inkSoft);
xAxis.select(".domain").attr("stroke", t.inkSoft);
const yAxis = g.append("g").call(d3.axisLeft(y).tickSize(0));
yAxis.selectAll("text").attr("fill", t.inkSoft).style("font-size", "15px");
yAxis.select(".domain").remove();
svg.append("text")
.attr("x", margin.left + iw / 2).attr("y", height - 34)
.attr("text-anchor", "middle").attr("fill", t.ink)
.style("font-size", "16px")
.text("Predicted probability of loan default");
// Legend
const legendItems = [
{ label: "Increases risk", color: POSITIVE },
{ label: "Decreases risk", color: NEGATIVE },
];
const legend = svg.append("g")
.attr("transform", `translate(${width - margin.right - 260},${100})`);
legendItems.forEach((item, i) => {
const row = legend.append("g").attr("transform", `translate(${i * 150},0)`);
row.append("rect").attr("width", 20).attr("height", 20).attr("rx", 3).attr("fill", item.color);
row.append("text").attr("x", 28).attr("y", 15).attr("fill", t.inkSoft)
.style("font-size", "14px").text(item.label);
});
// Title
svg.append("text")
.attr("x", width / 2).attr("y", 50)
.attr("text-anchor", "middle").attr("fill", t.ink)
.style("font-size", "22px").style("font-weight", "600")
.text("Loan Default Risk · shap-waterfall · javascript · d3 · anyplot.ai");
svg.append("text")
.attr("x", width / 2).attr("y", 85)
.attr("text-anchor", "middle").attr("fill", t.inkSoft)
.style("font-size", "15px")
.text("Feature attribution for loan application #4821");
