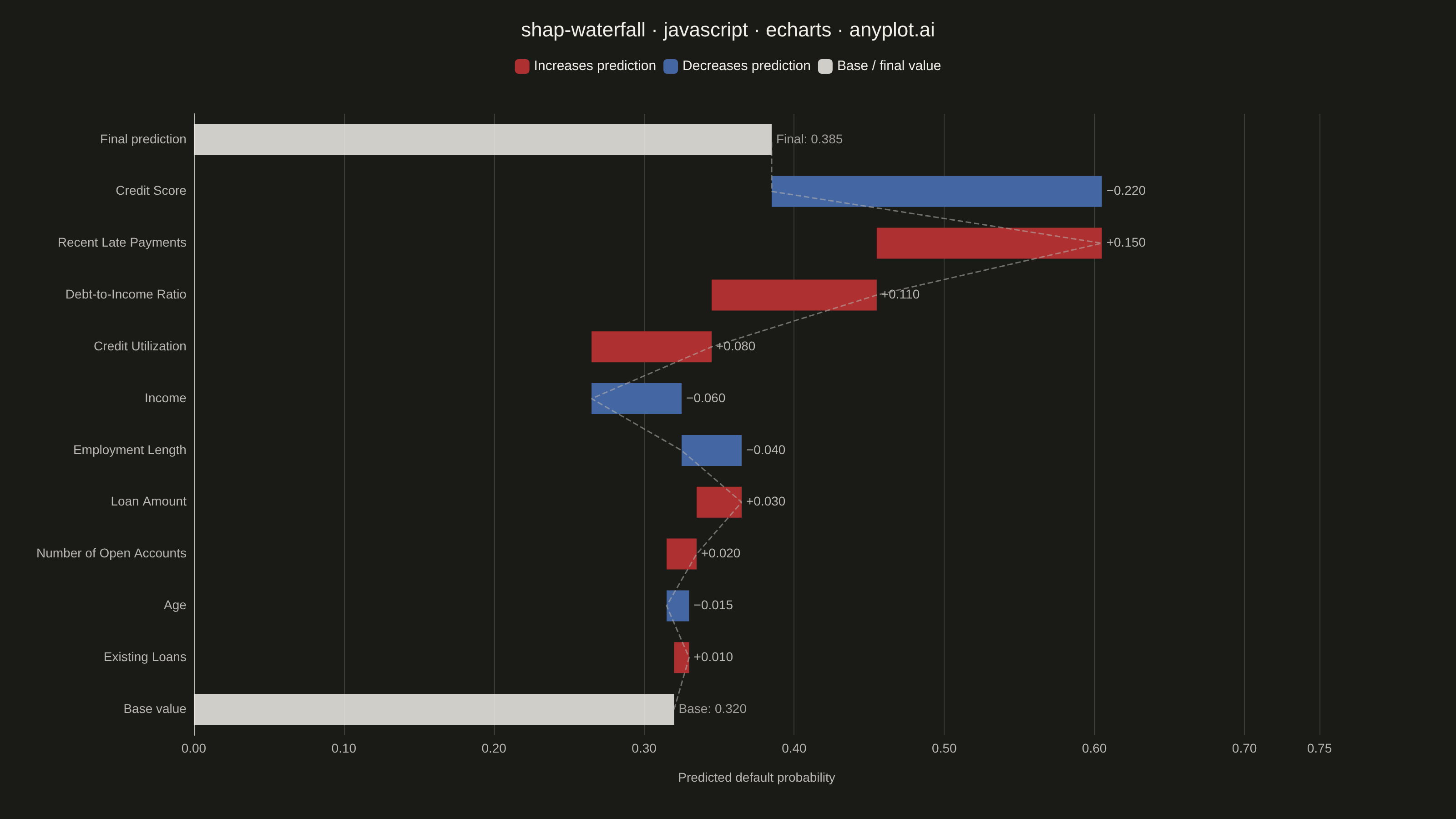

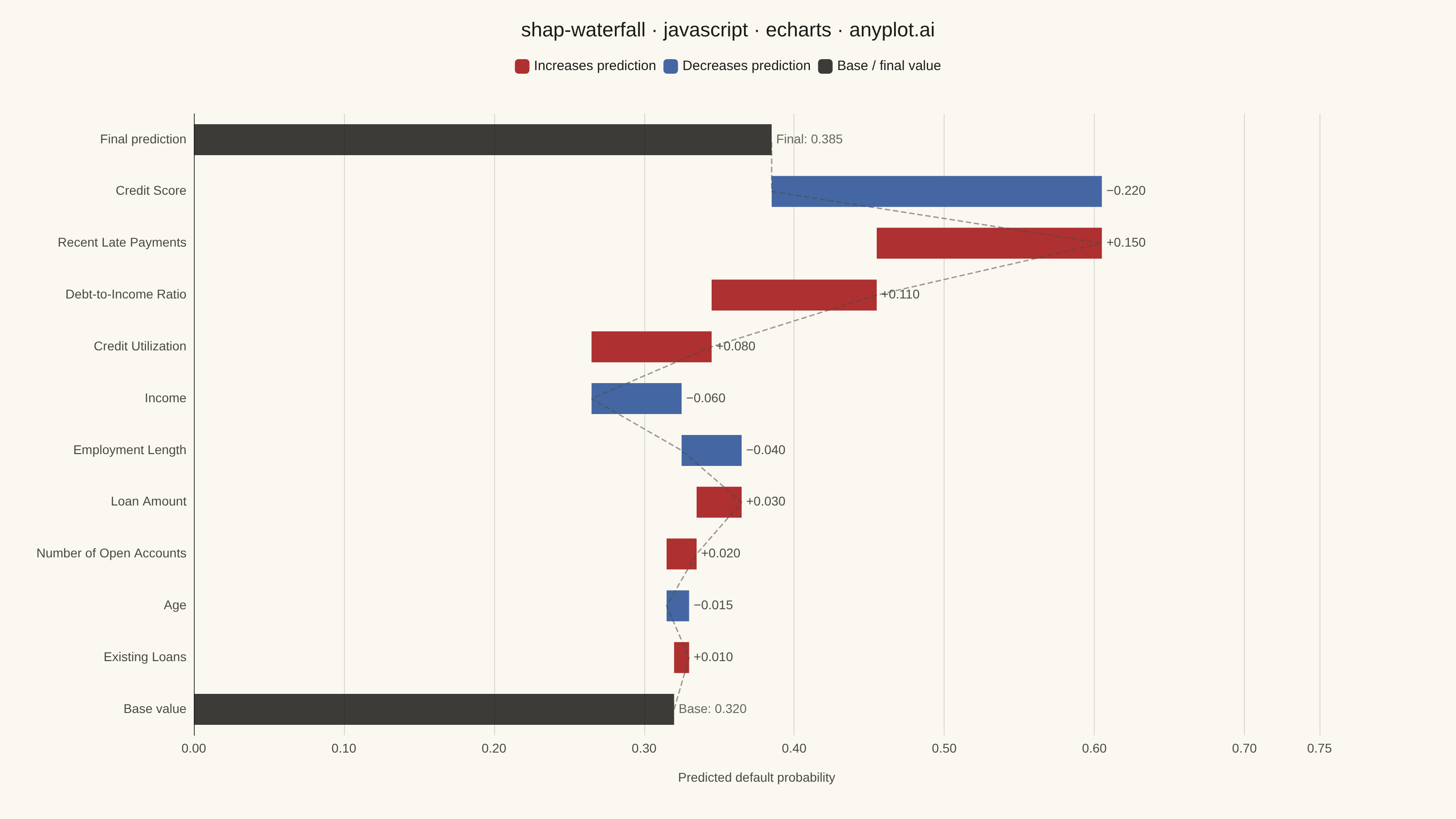

A waterfall-style chart showing how each feature contributes to pushing a model prediction from a base value (expected model output) to the final predicted value. Horizontal bar segments extend right for positive SHAP values and left for negative SHAP values, stacking cumulatively so the viewer can trace the path from baseline to prediction. This is a core ML explainability visualization for explaining individual predictions, complementing the SHAP summary plot which shows feature effects across many samples.
// anyplot.ai
// shap-waterfall: SHAP Waterfall Plot for Feature Attribution
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-09
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ---------------------------------------
// Credit-scoring model explaining one applicant's predicted default probability.
const baseValue = 0.32;
const finalValue = 0.385;
const featureContributions = [
{ feature: "Credit Score", shap: -0.22 },
{ feature: "Recent Late Payments", shap: 0.15 },
{ feature: "Debt-to-Income Ratio", shap: 0.11 },
{ feature: "Credit Utilization", shap: 0.08 },
{ feature: "Income", shap: -0.06 },
{ feature: "Employment Length", shap: -0.04 },
{ feature: "Loan Amount", shap: 0.03 },
{ feature: "Number of Open Accounts", shap: 0.02 },
{ feature: "Age", shap: -0.015 },
{ feature: "Existing Loans", shap: 0.01 },
];
// Smallest |SHAP| first so the largest contribution sits nearest the top,
// right below the final-prediction bar (categories plot bottom-to-top).
const orderedFeatures = [...featureContributions].sort(
(a, b) => Math.abs(a.shap) - Math.abs(b.shap)
);
// Build the cumulative waterfall: each row knows the invisible "placeholder"
// offset it stacks on top of, its own visible bar length, and the running
// total once it has been applied (used to draw the connecting flow line).
const rows = [
{
name: "Base value",
placeholder: 0,
value: baseValue,
after: baseValue,
kind: "anchor",
label: `Base: ${baseValue.toFixed(3)}`,
},
];
let running = baseValue;
orderedFeatures.forEach(({ feature, shap }) => {
const start = running;
const end = running + shap;
rows.push({
name: feature,
placeholder: Math.min(start, end),
value: Math.abs(shap),
after: end,
kind: shap >= 0 ? "increase" : "decrease",
label: `${shap >= 0 ? "+" : "−"}${Math.abs(shap).toFixed(3)}`,
});
running = end;
});
rows.push({
name: "Final prediction",
placeholder: 0,
value: finalValue,
after: finalValue,
kind: "anchor",
label: `Final: ${finalValue.toFixed(3)}`,
});
const categories = rows.map((r) => r.name);
const placeholderData = rows.map((r) => r.placeholder);
const increaseData = rows.map((r) => (r.kind === "increase" ? r.value : "-"));
const decreaseData = rows.map((r) => (r.kind === "decrease" ? r.value : "-"));
const anchorData = rows.map((r) => (r.kind === "anchor" ? r.value : "-"));
const flowData = rows.map((r) => r.after);
const barLabel = {
show: true,
position: "right",
color: t.inkSoft,
fontSize: 14,
formatter: (params) => rows[params.dataIndex].label,
};
// --- Init -------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option -----------------------------------------------------------------
chart.setOption({
animation: false,
backgroundColor: "transparent",
title: {
text: "shap-waterfall · javascript · echarts · anyplot.ai",
left: "center",
top: 18,
textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
},
legend: {
data: ["Increases prediction", "Decreases prediction", "Base / final value"],
top: 60,
left: "center",
itemWidth: 16,
itemHeight: 16,
textStyle: { color: t.ink, fontSize: 15 },
},
grid: { left: 40, right: 150, top: 125, bottom: 70, containLabel: true },
xAxis: {
type: "value",
min: 0,
max: 0.75,
name: "Predicted default probability",
nameLocation: "middle",
nameGap: 40,
nameTextStyle: { color: t.inkSoft, fontSize: 14 },
axisLabel: { color: t.inkSoft, fontSize: 14, formatter: (v) => v.toFixed(2) },
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
},
yAxis: {
type: "category",
data: categories,
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false },
},
series: [
{
name: "placeholder",
type: "bar",
stack: "flow",
silent: true,
barWidth: 34,
itemStyle: { color: "transparent" },
data: placeholderData,
tooltip: { show: false },
},
{
name: "Increases prediction",
type: "bar",
stack: "flow",
barWidth: 34,
itemStyle: { color: t.palette[4] },
label: barLabel,
data: increaseData,
},
{
name: "Decreases prediction",
type: "bar",
stack: "flow",
barWidth: 34,
itemStyle: { color: t.palette[2] },
label: barLabel,
data: decreaseData,
},
{
name: "Base / final value",
type: "bar",
stack: "flow",
barWidth: 34,
itemStyle: { color: t.ink, opacity: 0.85 },
label: barLabel,
data: anchorData,
},
{
name: "flow",
type: "line",
data: flowData,
symbol: "none",
silent: true,
z: 3,
lineStyle: { type: "dashed", width: 1.5, color: t.inkSoft, opacity: 0.55 },
tooltip: { show: false },
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/shap-waterfall/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "shap-waterfall",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/shap-waterfall/javascript/echarts",
"hub": "https://anyplot.ai/shap-waterfall",
"code_json": "https://api.anyplot.ai/specs/shap-waterfall/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/shap-waterfall",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/shap-waterfall/javascript/echarts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/shap-waterfall/javascript/echarts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/shap-waterfall/javascript/echarts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/shap-waterfall/javascript/echarts/plot-dark.html",
"quality_score": 91.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of SHAP Waterfall Plot for Feature Attribution on anyplot.ai.
