SHAP Waterfall Plot for Feature Attribution in Matplotlib (Python)

The same plot in 14 other libraries — Python: Altair, Bokeh, lets-plot, Plotly, plotnine, Pygal, Seaborn; R: ggplot2; Julia: Makie.jl; JavaScript: Chart.js, D3.js, Apache ECharts, Highcharts, MUI X Charts. Compare all 15 side by side: SHAP Waterfall Plot for Feature Attribution in Python, R, Julia and JavaScript.

A waterfall-style chart showing how each feature contributes to pushing a model prediction from a base value (expected model output) to the final predicted value. Horizontal bar segments extend right for positive SHAP values and left for negative SHAP values, stacking cumulatively so the viewer can trace the path from baseline to prediction. This is a core ML explainability visualization for explaining individual predictions, complementing the SHAP summary plot which shows feature effects across many samples.

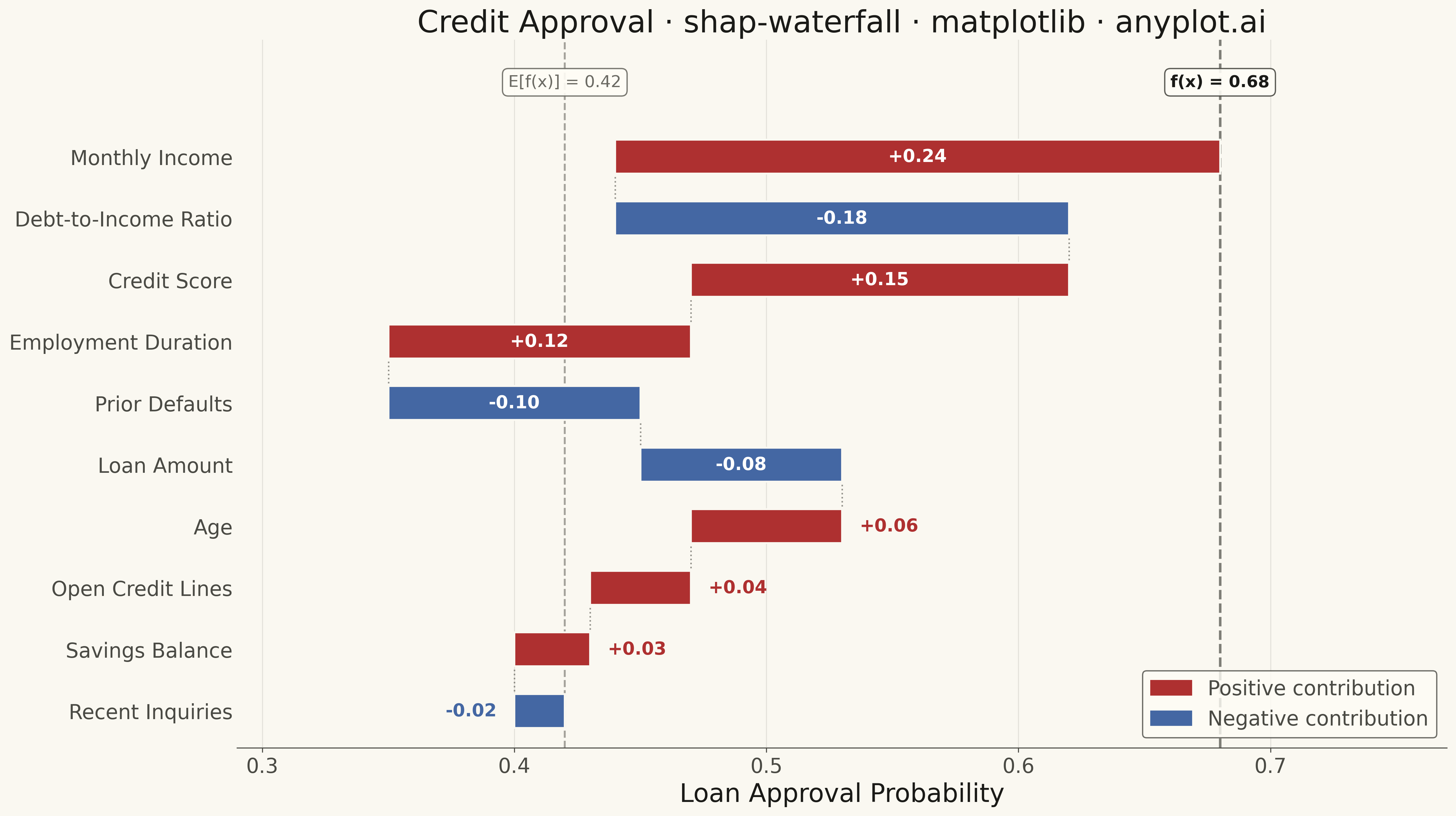

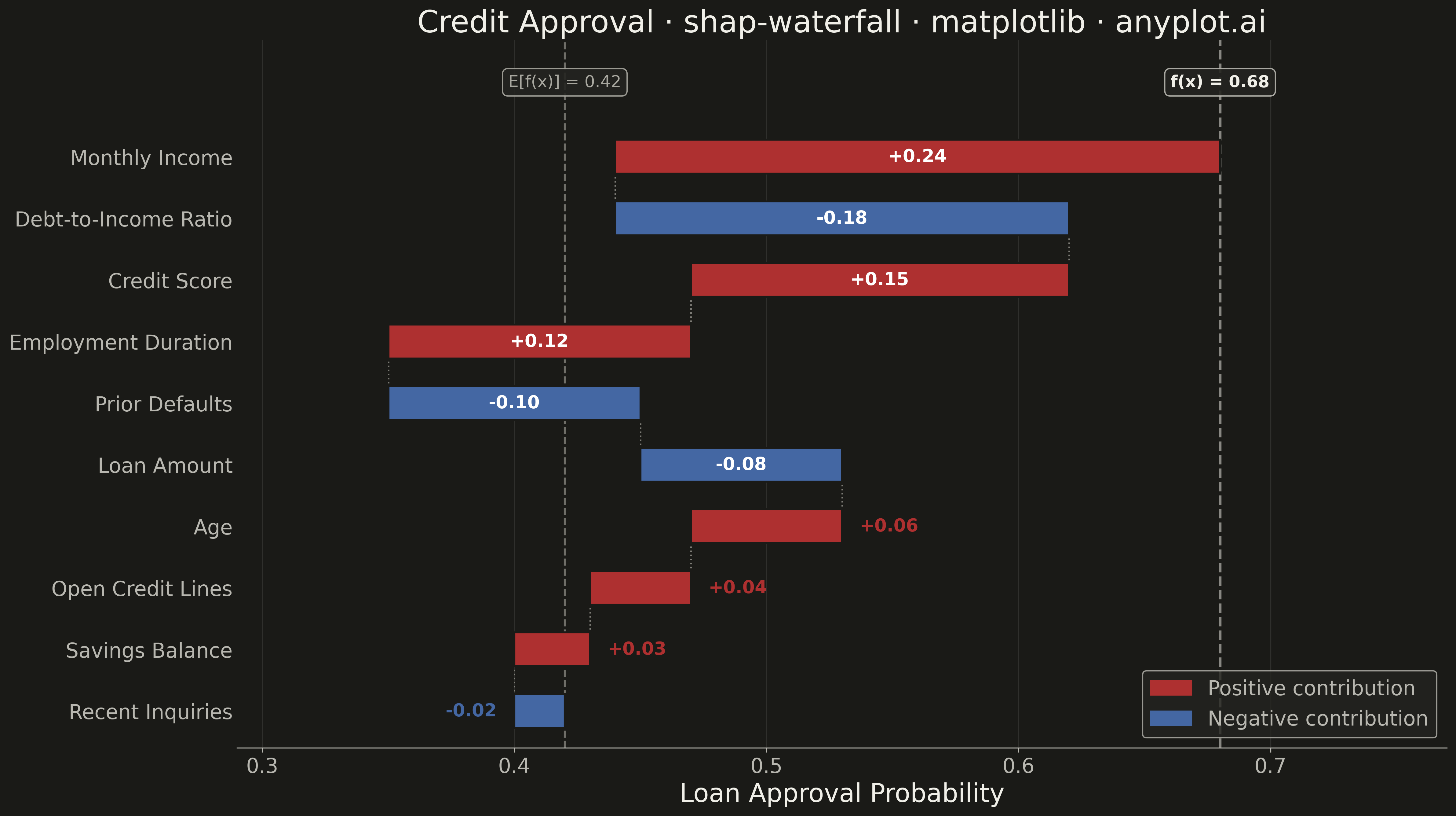

SHAP Waterfall Plot for Feature Attribution rendered with Matplotlib

Renders

Python source (Matplotlib)

""" anyplot.ai
shap-waterfall: SHAP Waterfall Plot for Feature Attribution
Library: matplotlib 3.11.2 | Python 3.14.10
Quality: 86/100 | Updated: 2026-11-12
"""

import os

import matplotlib.patches as mpatches
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"

# Imprint palette (full list, canonical order)
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477", "#99B314"]

# Constants
COLOR_POS = "#AE3030"  # Imprint red: positive SHAP (pushes prediction up)
COLOR_NEG = "#4467A3"  # Imprint blue: negative SHAP (pushes prediction down)
LABEL_SHARE = 0.11  # a bar shorter than this share of the largest |SHAP| carries its label outside

# Columns: set these to your table's column names
FEATURE = "Feature"  # role: feature
SHAP_VALUE = "SHAP value"  # role: shap_value
BASE_VALUE = "Base value E[f(x)]"  # role: base_value

# Data: replace this block with your own table, for example df = pd.read_csv("shap.csv")
# Credit loan approval model, one applicant's explanation; the base value repeats on every row
df = pd.DataFrame(
    {
        FEATURE: [
            "Monthly Income",
            "Debt-to-Income Ratio",
            "Credit Score",
            "Employment Duration",
            "Prior Defaults",
            "Loan Amount",
            "Age",
            "Open Credit Lines",
            "Savings Balance",
            "Recent Inquiries",
        ],
        SHAP_VALUE: [0.24, -0.18, 0.15, 0.12, -0.10, -0.08, 0.06, 0.04, 0.03, -0.02],
        BASE_VALUE: [0.42] * 10,
    }
)

# Plot: reads only df and the constants above
# Largest |SHAP| at the top; matplotlib draws y from the bottom, so sort ascending
# A feature without a SHAP value has no segment in the chain, so it is skipped
table = df.dropna(subset=[SHAP_VALUE])
table = table.reindex(table[SHAP_VALUE].abs().sort_values(kind="stable").index).reset_index(drop=True)
shap_values = table[SHAP_VALUE].to_numpy(dtype=float)
base_value = float(df[BASE_VALUE].dropna().iloc[0])
final_value = base_value + float(shap_values.sum())
n = len(table)
y_pos = np.arange(n)

# Running totals from the bottom bar upwards, starting at the base value
cum_after = base_value + np.cumsum(shap_values)
cum_before = cum_after - shap_values
bar_lefts = np.minimum(cum_before, cum_after)
bar_widths = np.abs(shap_values)
bar_colors = [COLOR_POS if sv >= 0 else COLOR_NEG for sv in shap_values]

title = "Credit Approval · shap-waterfall · python · matplotlib · anyplot.ai"
title_fontsize = max(8, round(12 * 67 / len(title))) if len(title) > 67 else 12

fig, ax = plt.subplots(figsize=(8, 4.5), dpi=400, facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)
ax.set_axisbelow(True)

ax.barh(y_pos, bar_widths, left=bar_lefts, color=bar_colors, height=0.55, edgecolor=PAGE_BG, linewidth=0.8, zorder=3)

# Connectors: a dotted segment at each running total, bridging the gap to the next bar
for i in range(n - 1):
    ax.plot(
        [cum_after[i], cum_after[i]],
        [y_pos[i] + 0.32, y_pos[i + 1] - 0.32],
        color=INK_MUTED,
        linewidth=0.7,
        linestyle="dotted",
        alpha=0.7,
        zorder=2,
    )

# Reference lines for base value and final prediction
ax.axvline(base_value, color=INK_MUTED, linewidth=0.8, linestyle="--", alpha=0.6)
ax.axvline(final_value, color=INK_SOFT, linewidth=1.0, linestyle="--", alpha=0.7)

# SHAP value labels: inside wide bars, beside narrow ones
x_span = float(max(cum_after.max(), cum_before.max()) - bar_lefts.min())
label_gap = 0.012 * x_span
label_threshold = LABEL_SHARE * bar_widths.max()
for i, (sv, left, width) in enumerate(zip(shap_values, bar_lefts, bar_widths, strict=True)):
    txt = f"+{sv:.2f}" if sv > 0 else f"{sv:.2f}"
    if width >= label_threshold:
        ax.text(
            left + width / 2,
            y_pos[i],
            txt,
            ha="center",
            va="center",
            fontsize=7,
            fontweight="bold",
            color="white",
            zorder=5,
        )
    else:
        positive = sv > 0
        ax.text(
            left + width + label_gap if positive else left - label_gap,
            y_pos[i],
            txt,
            ha="left" if positive else "right",
            va="center",
            fontsize=7,
            fontweight="bold",
            color=COLOR_POS if positive else COLOR_NEG,
            zorder=5,
        )

# Annotations for base value and final prediction above the top bar
top_y = n + 0.08
ax.text(
    base_value,
    top_y,
    f"E[f(x)] = {base_value:.2f}",
    ha="center",
    va="bottom",
    fontsize=7,
    color=INK_MUTED,
    bbox={
        "facecolor": ELEVATED_BG,
        "edgecolor": INK_MUTED,
        "boxstyle": "round,pad=0.35",
        "alpha": 0.9,
        "linewidth": 0.6,
    },
)
ax.text(
    final_value,
    top_y,
    f"f(x) = {final_value:.2f}",
    ha="center",
    va="bottom",
    fontsize=7,
    fontweight="bold",
    color=INK,
    bbox={
        "facecolor": ELEVATED_BG,
        "edgecolor": INK_SOFT,
        "boxstyle": "round,pad=0.35",
        "alpha": 0.9,
        "linewidth": 0.6,
    },
)

# Style
ax.set_yticks(y_pos, table[FEATURE])
ax.set_xlabel("Loan Approval Probability", fontsize=10, color=INK)
ax.set_title(title, fontsize=title_fontsize, fontweight="medium", color=INK)

all_x = np.concatenate([bar_lefts, bar_lefts + bar_widths, [base_value, final_value]])
ax.set_xlim(all_x.min() - 0.1 * x_span, all_x.max() + 0.15 * x_span)
ax.set_ylim(-0.6, n + 0.9)

ax.tick_params(axis="x", labelsize=8, colors=INK_SOFT)
ax.tick_params(axis="y", labelsize=8, colors=INK_SOFT, length=0)

ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
ax.spines["left"].set_visible(False)
ax.spines["bottom"].set_color(INK_SOFT)

ax.xaxis.grid(True, alpha=0.10, linewidth=0.5, color=INK)

# Legend
pos_patch = mpatches.Patch(color=COLOR_POS, label="Positive contribution")
neg_patch = mpatches.Patch(color=COLOR_NEG, label="Negative contribution")
leg = ax.legend(handles=[pos_patch, neg_patch], fontsize=8, loc="lower right", frameon=True)
leg.get_frame().set_facecolor(ELEVATED_BG)
leg.get_frame().set_edgecolor(INK_SOFT)
plt.setp(leg.get_texts(), color=INK_SOFT)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=400, facecolor=PAGE_BG)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/shap-waterfall/matplotlib/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "shap-waterfall",
  "language": "python",
  "library": "matplotlib",
  "page": "https://anyplot.ai/shap-waterfall/python/matplotlib",
  "hub": "https://anyplot.ai/shap-waterfall",
  "code_json": "https://api.anyplot.ai/specs/shap-waterfall/matplotlib/code",
  "spec_json": "https://api.anyplot.ai/specs/shap-waterfall",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/shap-waterfall/python/matplotlib/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/shap-waterfall/python/matplotlib/plot-dark.png",
  "quality_score": 86.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of SHAP Waterfall Plot for Feature Attribution on anyplot.ai.
