A chess board visualization with pieces that can be positioned programmatically to display specific game positions, puzzles, or notable games. Pieces are defined using a dictionary mapping squares (e.g., 'e4': 'K') to standard chess notation where uppercase letters represent white pieces (K/Q/R/B/N/P) and lowercase represent black pieces (k/q/r/b/n/p). Unicode chess symbols provide clean, recognizable piece rendering.
// anyplot.ai
// chessboard-pieces: Chess Board with Pieces for Position Diagrams
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-01
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
// --- Data: Scholar's Mate, final position after 4. Qxf7# --------------------
// Uppercase = white (K/Q/R/B/N/P), lowercase = black (k/q/r/b/n/p).
const pieces = {
e1: "K",
a1: "R",
h1: "R",
c1: "B",
c4: "B",
b1: "N",
g1: "N",
f7: "Q",
a2: "P",
b2: "P",
c2: "P",
d2: "P",
e4: "P",
f2: "P",
g2: "P",
h2: "P",
e8: "k",
d8: "q",
a8: "r",
h8: "r",
c8: "b",
f8: "b",
c6: "n",
f6: "n",
a7: "p",
b7: "p",
c7: "p",
d7: "p",
e5: "p",
g7: "p",
h7: "p",
};
const GLYPHS = {
K: "♔",
Q: "♕",
R: "♖",
B: "♗",
N: "♘",
P: "♙",
k: "♚",
q: "♛",
r: "♜",
b: "♝",
n: "♞",
p: "♟",
};
// Piece identity (white/black) is fixed across themes, like the game itself —
// only the board and chrome follow ANYPLOT_THEME.
const PIECE_LIGHT = "#F2ECDA";
const PIECE_DARK = "#2A2822";
// --- Layout -------------------------------------------------------------
const margin = { top: 130, right: 60, bottom: 90, left: 90 };
const availW = width - margin.left - margin.right;
const availH = height - margin.top - margin.bottom;
const boardSize = Math.min(availW, availH);
const cell = boardSize / 8;
const boardX = margin.left + (availW - boardSize) / 2;
const boardY = margin.top + (availH - boardSize) / 2;
const files = ["a", "b", "c", "d", "e", "f", "g", "h"];
// --- SVG mount ------------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const board = svg.append("g").attr("transform", `translate(${boardX},${boardY})`);
// Column/row -> pixel placement via d3-scale bands (rank 8 at the top, rank 1
// at the bottom — white-at-bottom board orientation).
const xScale = d3.scaleBand().domain(d3.range(8)).range([0, boardSize]);
const yScale = d3.scaleBand().domain(d3.range(8)).range([boardSize, 0]);
// --- Squares (light square on h1, per standard chess convention) ----------
// Explicit per-theme board tones (not a pageBg/ink blend) so the light square
// is always the higher-luminance one in both themes. The previous
// `d3.interpolateRgb(t.pageBg, t.ink)` approach inverted in dark mode because
// `t.ink` flips from dark to light between themes, flipping the blend
// direction along with it.
const boardTones =
t.theme === "dark" ? { light: "#403F38", dark: t.elevatedBg } : { light: t.elevatedBg, dark: "#C9C7C1" };
const squares = [];
for (let row = 0; row < 8; row++) {
for (let col = 0; col < 8; col++) {
squares.push({ col, row, light: (col + row) % 2 === 1 });
}
}
board
.selectAll("rect.square")
.data(squares)
.join("rect")
.attr("class", "square")
.attr("x", (d) => xScale(d.col))
.attr("y", (d) => yScale(d.row))
.attr("width", xScale.bandwidth())
.attr("height", yScale.bandwidth())
.attr("fill", (d) => (d.light ? boardTones.light : boardTones.dark));
board
.append("rect")
.attr("x", 0)
.attr("y", 0)
.attr("width", boardSize)
.attr("height", boardSize)
.attr("fill", "none")
.attr("stroke", t.inkSoft)
.attr("stroke-width", 2);
// --- Pieces (white glyphs get a light fill + dark stroke, black glyphs the
// reverse, so identity reads clearly on either square color or theme) ------
const pieceData = Object.entries(pieces).map(([square, code]) => {
const col = files.indexOf(square[0]);
const row = Number(square[1]) - 1;
return { square, code, col, row, isWhite: code === code.toUpperCase() };
});
board
.selectAll("text.piece")
.data(pieceData)
.join("text")
.attr("class", "piece")
.attr("x", (d) => xScale(d.col) + xScale.bandwidth() / 2)
.attr("y", (d) => yScale(d.row) + yScale.bandwidth() / 2)
.attr("text-anchor", "middle")
.attr("dominant-baseline", "central")
.style("font-family", "'DejaVu Sans', sans-serif")
.style("font-size", `${cell * 0.72}px`)
.style("paint-order", "stroke fill")
.attr("fill", (d) => (d.isWhite ? PIECE_LIGHT : PIECE_DARK))
.attr("stroke", (d) => (d.isWhite ? PIECE_DARK : PIECE_LIGHT))
.attr("stroke-width", (d) => (d.isWhite ? cell * 0.02 : cell * 0.015))
.text((d) => GLYPHS[d.code]);
// --- Coordinate labels (files below, ranks along the left) ----------------
board
.selectAll("text.file-label")
.data(files)
.join("text")
.attr("class", "file-label")
.attr("x", (_, i) => xScale(i) + xScale.bandwidth() / 2)
.attr("y", boardSize + 34)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "20px")
.text((f) => f);
board
.selectAll("text.rank-label")
.data(d3.range(1, 9))
.join("text")
.attr("class", "rank-label")
.attr("x", -26)
.attr("y", (r) => yScale(r - 1) + yScale.bandwidth() / 2)
.attr("text-anchor", "middle")
.attr("dominant-baseline", "central")
.attr("fill", t.inkSoft)
.style("font-size", "20px")
.text((r) => r);
// --- Title ------------------------------------------------------------------
const title = "Scholar's Mate, Move 4 · chessboard-pieces · javascript · d3 · anyplot.ai";
const titleRatio = title.length > 67 ? 67 / title.length : 1.0;
const titleSize = Math.max(16, Math.round(22 * titleRatio));
svg
.append("text")
.attr("x", width / 2)
.attr("y", 56)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", `${titleSize}px`)
.style("font-weight", "600")
.text(title);
svg
.append("text")
.attr("x", width / 2)
.attr("y", 88)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "18px")

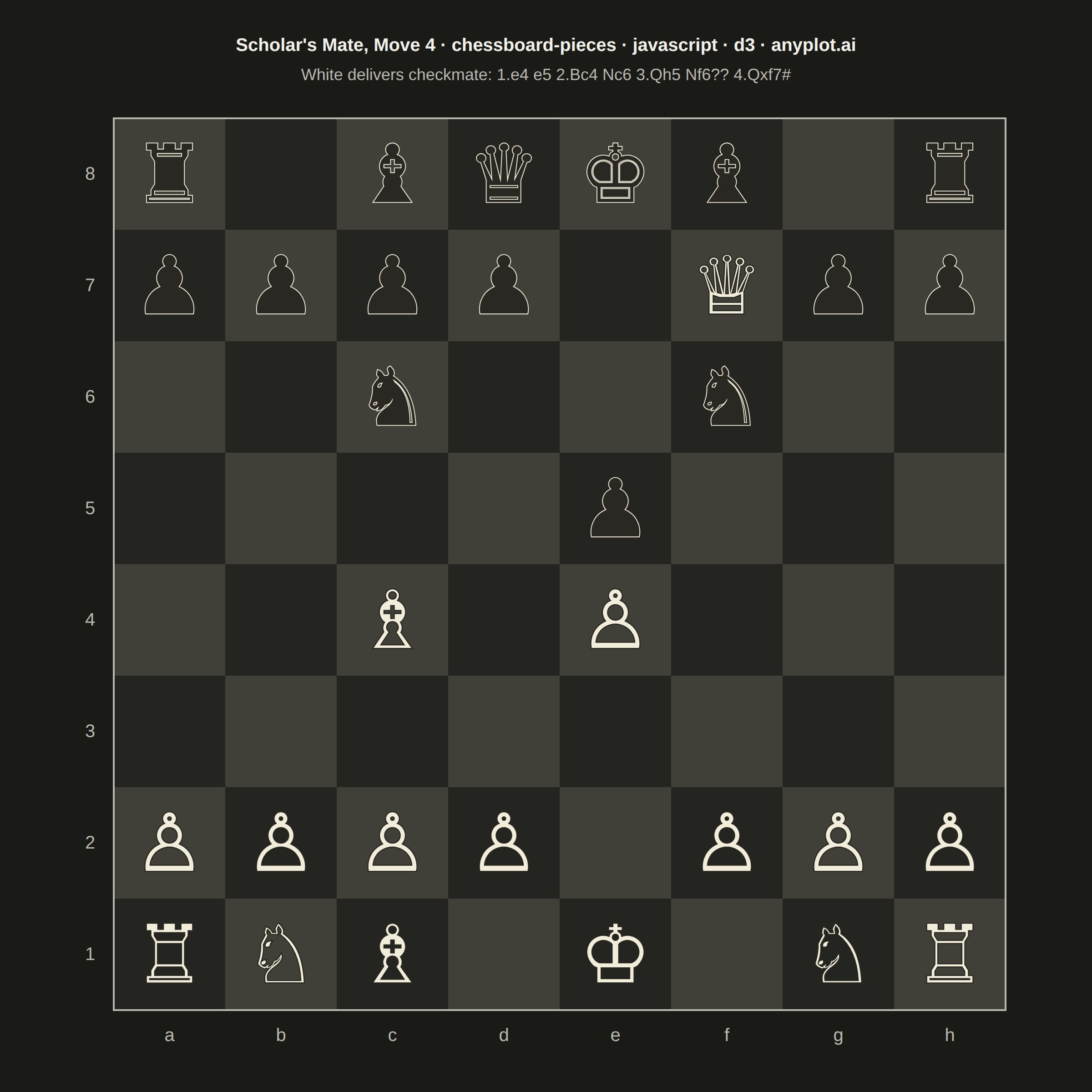

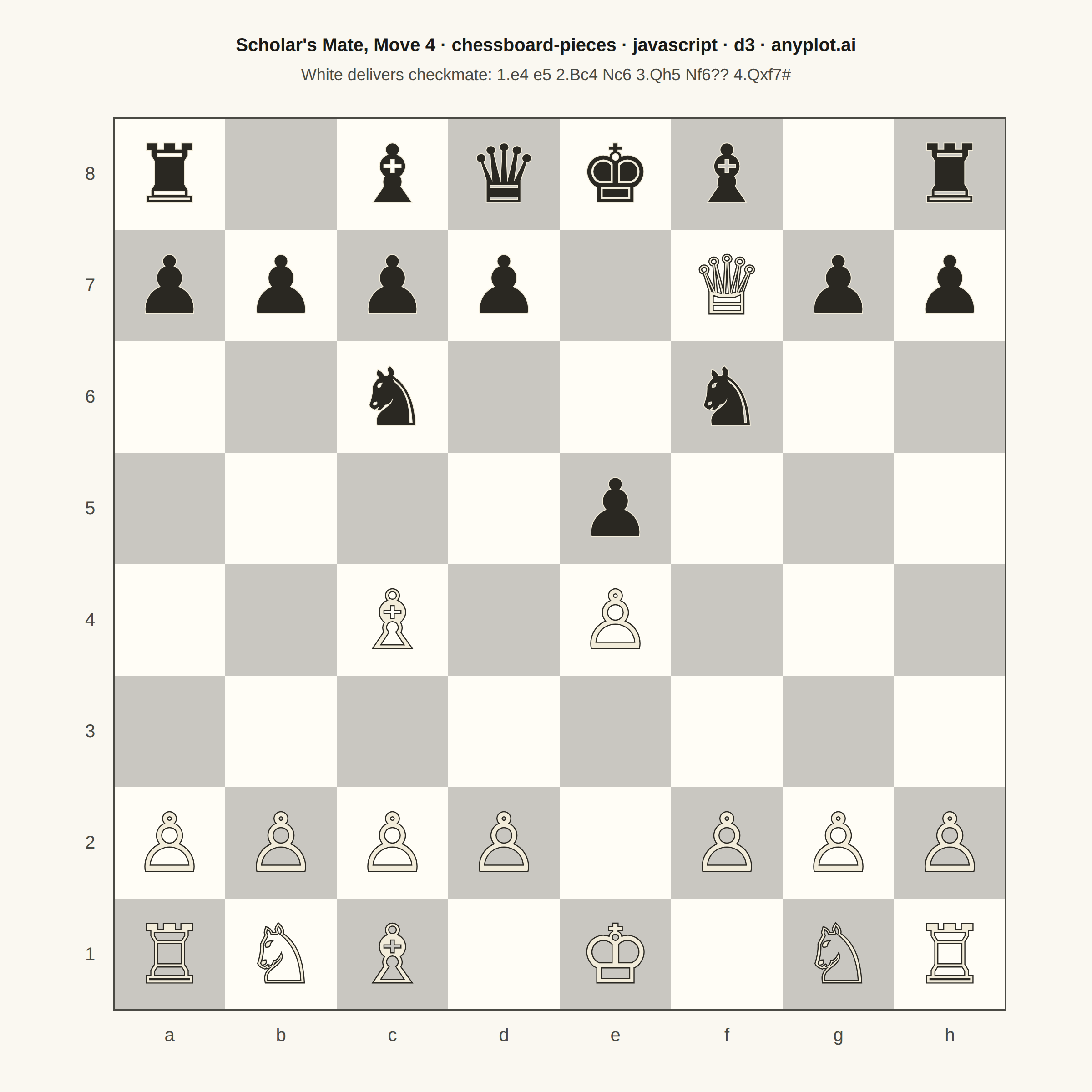

.text("White delivers checkmate: 1.e4 e5 2.Bc4 Nc6 3.Qh5 Nf6?? 4.Qxf7#");
