A chess board visualization with pieces that can be positioned programmatically to display specific game positions, puzzles, or notable games. Pieces are defined using a dictionary mapping squares (e.g., 'e4': 'K') to standard chess notation where uppercase letters represent white pieces (K/Q/R/B/N/P) and lowercase represent black pieces (k/q/r/b/n/p). Unicode chess symbols provide clean, recognizable piece rendering.
// anyplot.ai
// chessboard-pieces: Chess Board with Pieces for Position Diagrams
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 94/100 | Created: 2026-09-01
//# anyplot-orientation: square
// anyplot.ai
// chessboard-pieces: Chess Board with Pieces for Position Diagrams
// Library: MUI X Charts | React | Node 22
// License: @mui/x-charts — MIT (community). Pro/Premium are out of scope.
// Quality: pending | Created: 2026-09-01
import Box from "@mui/material/Box";
import Typography from "@mui/material/Typography";
import { ScatterChart } from "@mui/x-charts/ScatterChart";
const t = window.ANYPLOT_TOKENS;
const FILES = ["a", "b", "c", "d", "e", "f", "g", "h"];
const RANKS = ["8", "7", "6", "5", "4", "3", "2", "1"]; // top -> bottom, white sits on ranks 1-2

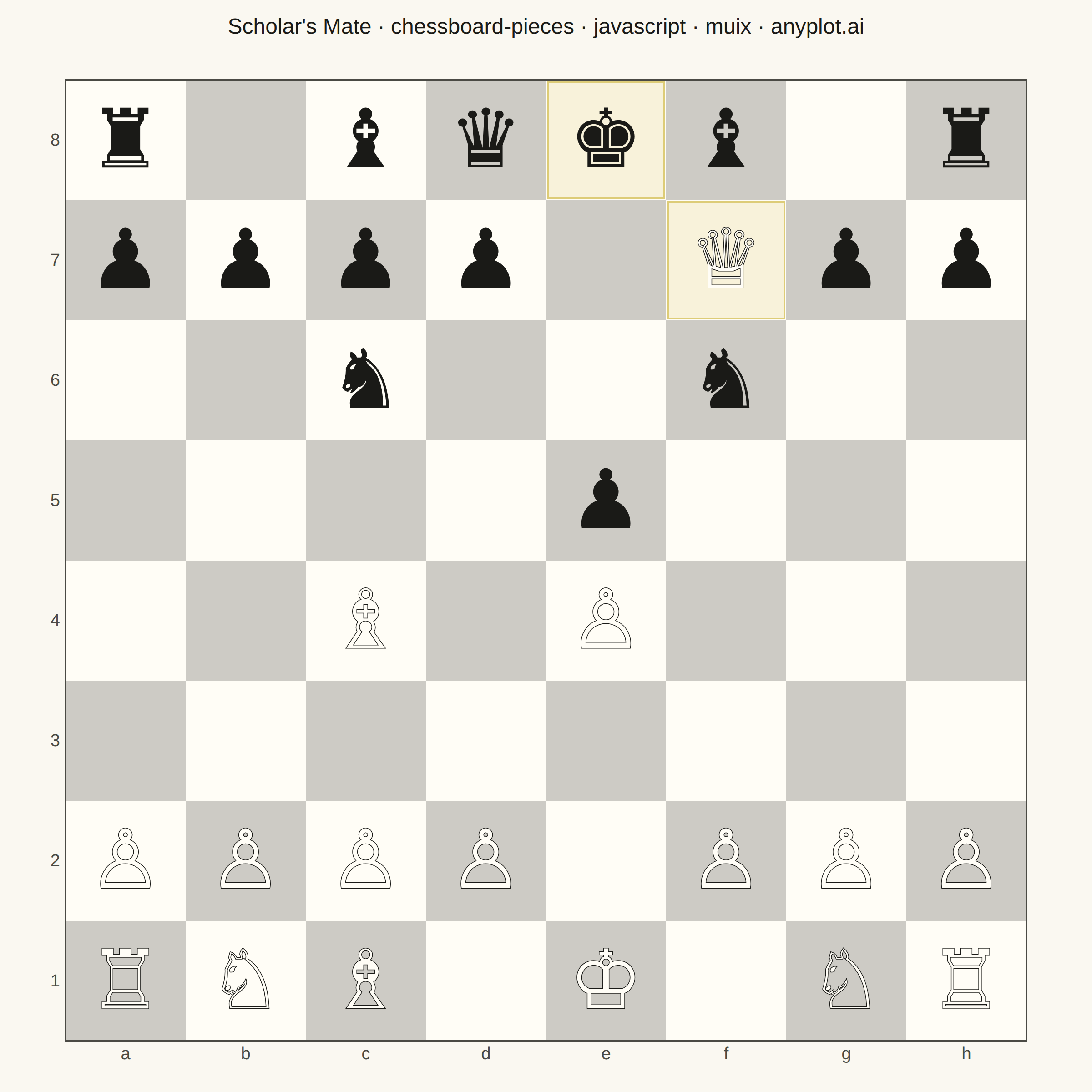

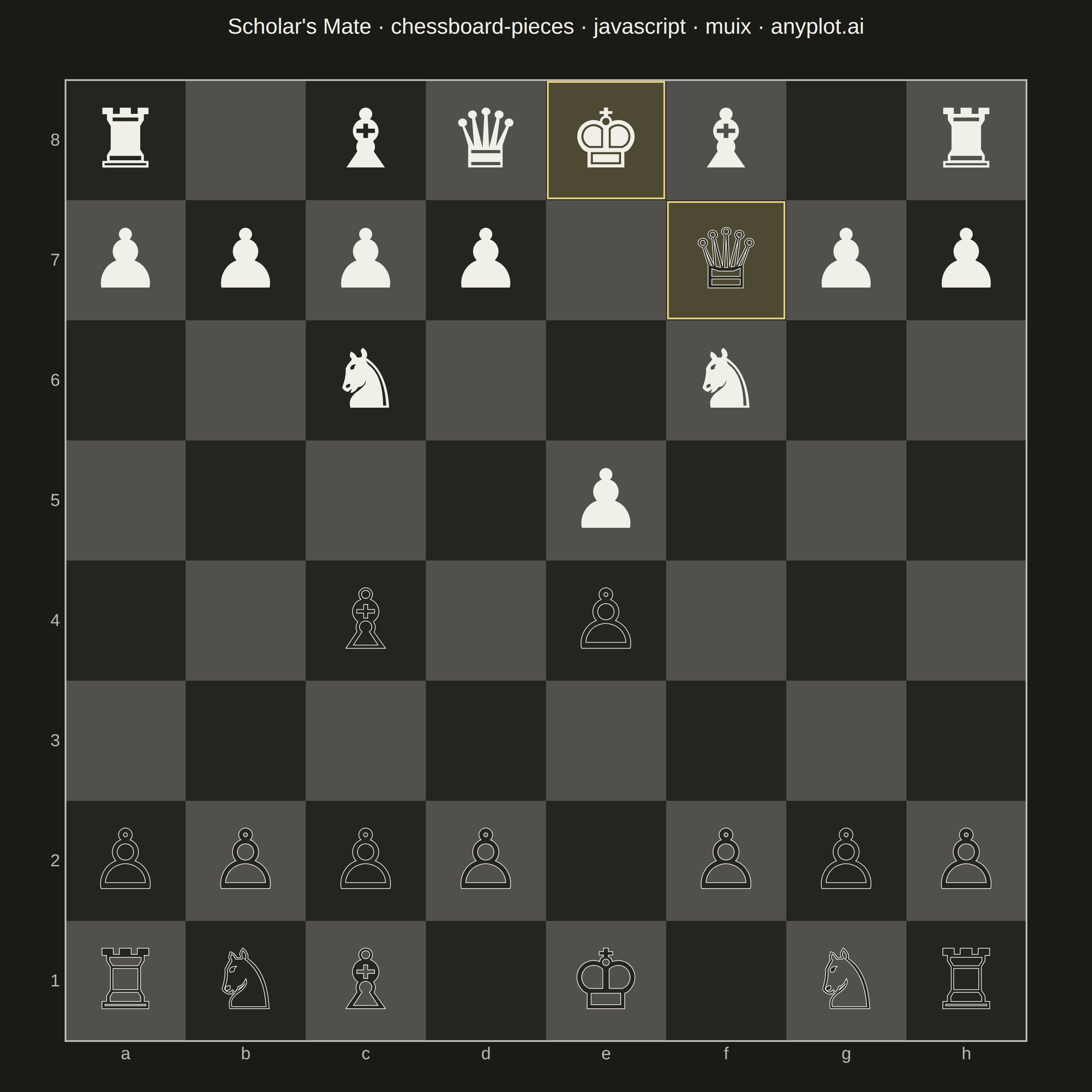

// Position after the "Scholar's Mate" tactic (1.e4 e5 2.Qh5 Nc6 3.Bc4 Nf6??
// 4.Qxf7#) — the white queen has just captured on f7, delivering checkmate.
// Uppercase = white, lowercase = black, per the spec's notation convention.
const PIECES = {
e1: "K", f7: "Q", a1: "R", h1: "R", c1: "B", c4: "B", b1: "N", g1: "N",
a2: "P", b2: "P", c2: "P", d2: "P", e4: "P", f2: "P", g2: "P", h2: "P",
e8: "k", d8: "q", a8: "r", h8: "r", c8: "b", f8: "b", c6: "n", f6: "n",
a7: "p", b7: "p", c7: "p", d7: "p", e5: "p", g7: "p", h7: "p",
};
const GLYPHS = {
K: "♔", Q: "♕", R: "♖", B: "♗", N: "♘", P: "♙",
k: "♚", q: "♛", r: "♜", b: "♝", n: "♞", p: "♟",
};
// The mating queen (f7) and the checkmated king (e8) — highlighted on the
// board itself so the "Scholar's Mate" title has a visual anchor.
const MATE_SQUARES = new Set(["f7", "e8"]);
// Every square, so the checkerboard pattern renders as one scatter series.
const squarePoints = FILES.flatMap((file) =>
RANKS.map((rank) => ({ id: `sq-${file}${rank}`, x: file, y: rank })),
);
// Only occupied squares, as a second scatter series sharing the same axes.
const piecePoints = Object.entries(PIECES).map(([square, code]) => ({
id: `pc-${square}`,
x: square[0],
y: square[1],
symbol: GLYPHS[code],
isWhite: code === code.toUpperCase(),
}));
// Custom marker: the same slot renders either the checkerboard squares (plus
// the board frame) or the piece glyphs, keyed off which series it's drawing.
// White pieces get a light fill with an ink outline so they read clearly on
// dark squares; black pieces are a solid ink fill.
function BoardMark(props) {
const { series, xScale, yScale } = props;
const cellW = xScale.bandwidth();
const cellH = yScale.bandwidth();
if (series.id === "squares") {
return (
<g>
{series.data.map((pt) => {
const fileIdx = FILES.indexOf(pt.x);
const rankIdx = Number(pt.y) - 1;
const dark = (fileIdx + rankIdx) % 2 === 0;
const cx = xScale(pt.x) ?? 0;
const cy = yScale(pt.y) ?? 0;
const isMateSquare = MATE_SQUARES.has(`${pt.x}${pt.y}`);
return (
<g key={pt.id}>
<rect x={cx} y={cy} width={cellW} height={cellH} fill={t.elevatedBg} />
{dark && (
<rect x={cx} y={cy} width={cellW} height={cellH} fill={t.ink} fillOpacity={0.22} />
)}
{isMateSquare && (
<rect
x={cx + 2}
y={cy + 2}
width={cellW - 4}
height={cellH - 4}
fill={t.amber}
fillOpacity={0.22}
stroke={t.amber}
strokeWidth={2}
/>
)}
</g>
);
})}
<rect
x={xScale("a") ?? 0}
y={yScale("8") ?? 0}
width={cellW * FILES.length}
height={cellH * RANKS.length}
fill="none"
stroke={t.inkSoft}
strokeWidth={2}
/>
</g>
);
}
return (
<g>
{series.data.map((pt) => {
const cx = (xScale(pt.x) ?? 0) + cellW / 2;
const cy = (yScale(pt.y) ?? 0) + cellH / 2;
return (
<text
key={pt.id}
x={cx}
y={cy}
textAnchor="middle"
dominantBaseline="central"
fontSize={cellW * 0.68}
fill={pt.isWhite ? t.elevatedBg : t.ink}
stroke={pt.isWhite ? t.ink : "none"}
strokeWidth={pt.isWhite ? 1.5 : 0}
paintOrder="stroke"
>
{pt.symbol}
</text>
);
})}
</g>
);
}
const TITLE = "Scholar's Mate · chessboard-pieces · javascript · muix · anyplot.ai";
const TITLE_HEIGHT = 64;
export default function Chart() {
const { width, height } = window.ANYPLOT_SIZE;
const chartHeight = height - TITLE_HEIGHT;
// Keep every square perfectly square: pick vertical margins first (room for
// the file labels below the board), derive the board size from what's left,
// then split the width minus that board size into left/right margins (room
// for the rank labels on the left).
const TOP = 24;
const BOTTOM = 56;
const boardSize = chartHeight - TOP - BOTTOM;
const LEFT = 72;
const RIGHT = width - boardSize - LEFT;
return (
<Box sx={{ width, height, bgcolor: t.pageBg, display: "flex", flexDirection: "column" }}>
<Typography
sx={{
color: t.ink,
fontSize: 24,
fontWeight: 500,
textAlign: "center",
lineHeight: 1.2,
pt: "16px",
height: TITLE_HEIGHT,
fontFamily: "inherit",
}}
>
{TITLE}
</Typography>
<Box sx={{ flex: 1, display: "flex", alignItems: "center", justifyContent: "center" }}>
<ScatterChart
width={width}
height={chartHeight}
skipAnimation
disableVoronoi
series={[
{ id: "squares", type: "scatter", data: squarePoints, xAxisId: "file", yAxisId: "rank" },
{ id: "pieces", type: "scatter", data: piecePoints, xAxisId: "file", yAxisId: "rank" },
]}
xAxis={[
{
id: "file",
scaleType: "band",
data: FILES,
categoryGapRatio: 0,
tickLabelStyle: { fontSize: 19, fill: t.inkSoft },
disableTicks: true,
disableLine: true,
},
]}
yAxis={[
{
id: "rank",
scaleType: "band",
data: RANKS,
categoryGapRatio: 0,
tickLabelStyle: { fontSize: 19, fill: t.inkSoft },
disableTicks: true,
disableLine: true,
},
]}
topAxis={null}
bottomAxis="file"
leftAxis="rank"
rightAxis={null}
margin={{ top: TOP, bottom: BOTTOM, left: LEFT, right: RIGHT }}
slots={{ scatter: BoardMark }}
slotProps={{ legend: { hidden: true } }}
/>
</Box>
</Box>
);
}
