Dot Matrix Chart for Proportional Counts in Altair (Python)

The same plot in 14 other libraries — Python: Bokeh, lets-plot, Matplotlib, Plotly, plotnine, Pygal, Seaborn; R: ggplot2; Julia: Makie.jl; JavaScript: Chart.js, D3.js, Apache ECharts, Highcharts, MUI X Charts. Compare all 15 side by side: Dot Matrix Chart for Proportional Counts in Python, R, Julia and JavaScript.

A dot matrix chart displays proportions using a grid of equally-sized dots where filled or colored dots represent counts out of a total. Each dot corresponds to one unit, making it intuitive to read "X out of N" statistics at a glance. Unlike waffle charts that use percentage-based squares, dot matrix charts emphasize absolute counts with variable grid sizes, excelling at risk communication and survey result visualization.

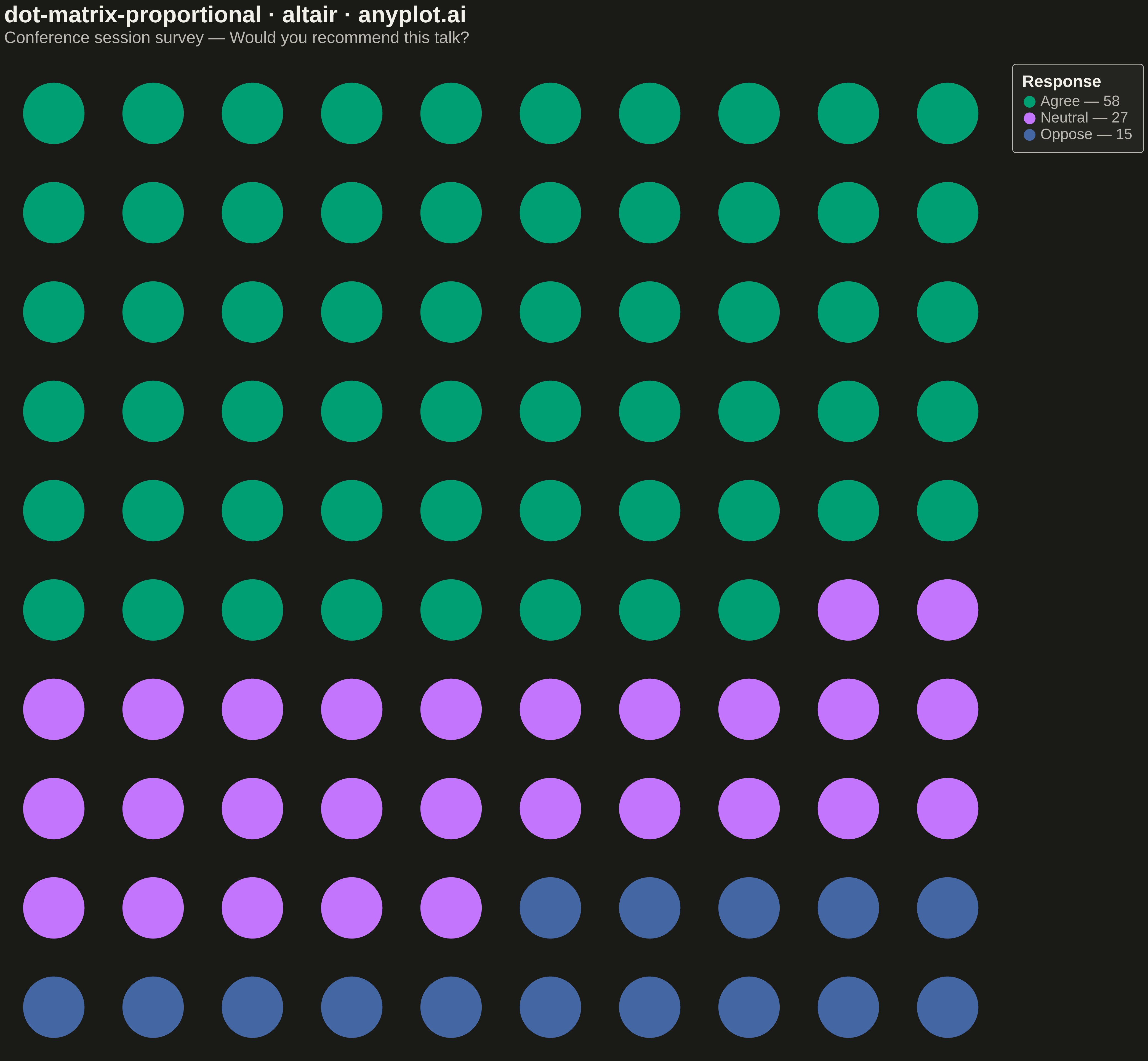

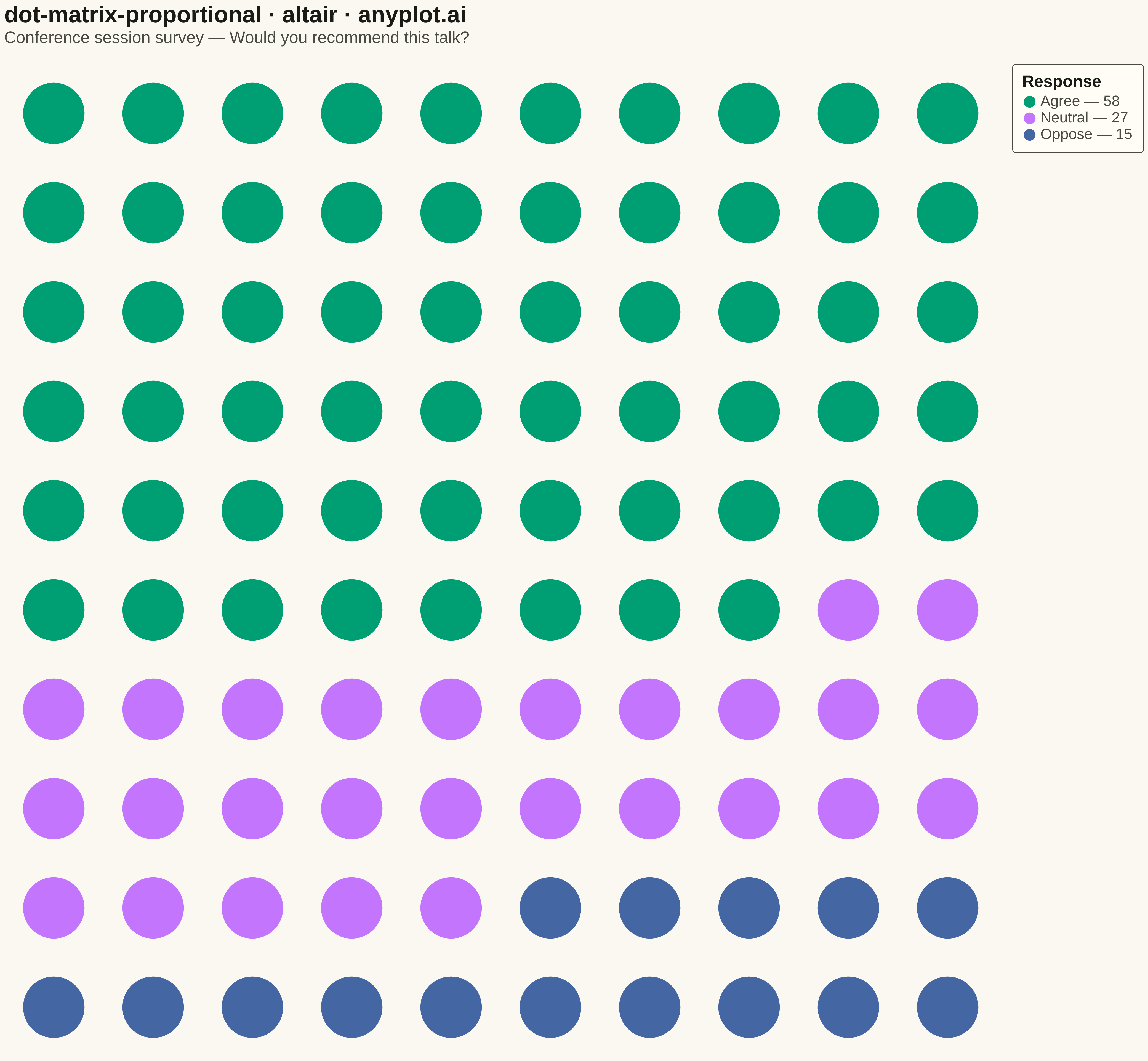

Dot Matrix Chart for Proportional Counts rendered with Altair

Renders

Python source (Altair)

""" anyplot.ai
dot-matrix-proportional: Dot Matrix Chart for Proportional Counts
Library: altair 6.3.0 | Python 3.14.10
Quality: 84/100 | Updated: 2026-11-19
"""

import importlib
import math
import os
import sys


# Remove the script's own directory from sys.path so "import altair" resolves
# the library, not this file (which shares the library's name).
_this_dir = os.path.dirname(os.path.abspath(__file__))
sys.path = [p for p in sys.path if not (p and os.path.abspath(p) == _this_dir)]

alt = importlib.import_module("altair")
pd = importlib.import_module("pandas")
Image = importlib.import_module("PIL.Image")

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

NEUTRAL = "#8C8B84"  # remainder dots that belong to no listed category

# Imprint palette: all eight positions, one per category in order
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477", "#99B314"]

# Columns: set this to your table's column name
RESPONSE = "Response"  # role: category
COUNT = "Attendees"  # role: count
TOTAL = "Total attendees"  # role: total

# Data: replace this block with your own table, one row per category in fill order,
# for example df = pd.read_csv("survey.csv")
# Conference session survey: 100 attendees answering "Would you recommend this talk?"
df = pd.DataFrame({RESPONSE: ["Agree", "Neutral", "Oppose"], COUNT: [58, 27, 15]})
df[TOTAL] = df[COUNT].sum()

# Plot: reads only df and the constants above
counts = pd.to_numeric(df[COUNT], errors="coerce").fillna(0).astype(int)
listed = list(zip(df[RESPONSE].astype(str), counts, strict=True))
legend_label = {r: f"{r} — {n}" for r, n in listed}

# One row per unit, filled left to right, top to bottom
units = [r for r, n in listed for _ in range(n)]
# Units of the total that belong to no listed category stay in the grid as a neutral remainder
total = max(int(pd.to_numeric(df[TOTAL], errors="coerce").max()), len(units))
if total > len(units):
    legend_label["Other"] = f"Other — {total - len(units)}"
    units += ["Other"] * (total - len(units))
grid_cols = math.ceil(math.sqrt(total))
dots = pd.DataFrame(
    {"unit": units, "col": [i % grid_cols for i in range(total)], "row": [i // grid_cols for i in range(total)]}
)
dots["label"] = dots["unit"].map(legend_label)

title = "dot-matrix-proportional · python · altair · anyplot.ai"
ratio = 67 / len(title) if len(title) > 67 else 1.0

chart = (
    alt.Chart(dots)
    .mark_circle(size=1000, opacity=1.0)
    .encode(
        x=alt.X("col", type="ordinal", axis=None),
        y=alt.Y("row", type="ordinal", axis=None, sort="ascending"),
        color=alt.Color(
            "label",
            type="nominal",
            title=RESPONSE,
            sort=None,
            scale=alt.Scale(
                domain=list(legend_label.values()),
                range=[NEUTRAL if k == "Other" else IMPRINT_PALETTE[i] for i, k in enumerate(legend_label)],
            ),
            legend=alt.Legend(
                orient="bottom",
                direction="horizontal",
                titleFontSize=20,
                labelFontSize=18,
                symbolSize=500,
                symbolType="circle",
                columnPadding=30,
                columns=2,
                titleLimit=300,
                labelLimit=200,
            ),
        ),
        tooltip=[alt.Tooltip("label", type="nominal", title=RESPONSE)],
    )
    .properties(
        width=400,
        height=400,
        background=PAGE_BG,
        title=alt.TitleParams(
            text=title,
            subtitle="Would you recommend this talk? 1 dot = 1 attendee",
            fontSize=round(22 * ratio),
            subtitleFontSize=16,
            color=INK,
            subtitleColor=INK_SOFT,
            anchor="start",
            offset=16,
        ),
    )
    .configure_view(fill=PAGE_BG, stroke=None)
    .configure_legend(
        fillColor=ELEVATED_BG, strokeColor=INK_SOFT, labelColor=INK_SOFT, titleColor=INK, padding=12, cornerRadius=4
    )
    .configure_title(color=INK)
)

chart.save(f"plot-{THEME}.png", scale_factor=4.0)
chart.save(f"plot-{THEME}.html")

# Pad (never crop) to the canonical square canvas
TARGET = 2400
img = Image.open(f"plot-{THEME}.png").convert("RGB")
if img.width > TARGET or img.height > TARGET:
    raise SystemExit(f"altair produced {img.width}x{img.height}, exceeds {TARGET}x{TARGET}; shrink width/height")
canvas = Image.new("RGB", (TARGET, TARGET), PAGE_BG)
canvas.paste(img, ((TARGET - img.width) // 2, (TARGET - img.height) // 2))
canvas.save(f"plot-{THEME}.png")

Retrieve this implementation
