Dot Matrix Chart for Proportional Counts in plotnine (Python)

The same plot in 14 other libraries — Python: Altair, Bokeh, lets-plot, Matplotlib, Plotly, Pygal, Seaborn; R: ggplot2; Julia: Makie.jl; JavaScript: Chart.js, D3.js, Apache ECharts, Highcharts, MUI X Charts. Compare all 15 side by side: Dot Matrix Chart for Proportional Counts in Python, R, Julia and JavaScript.

A dot matrix chart displays proportions using a grid of equally-sized dots where filled or colored dots represent counts out of a total. Each dot corresponds to one unit, making it intuitive to read "X out of N" statistics at a glance. Unlike waffle charts that use percentage-based squares, dot matrix charts emphasize absolute counts with variable grid sizes, excelling at risk communication and survey result visualization.

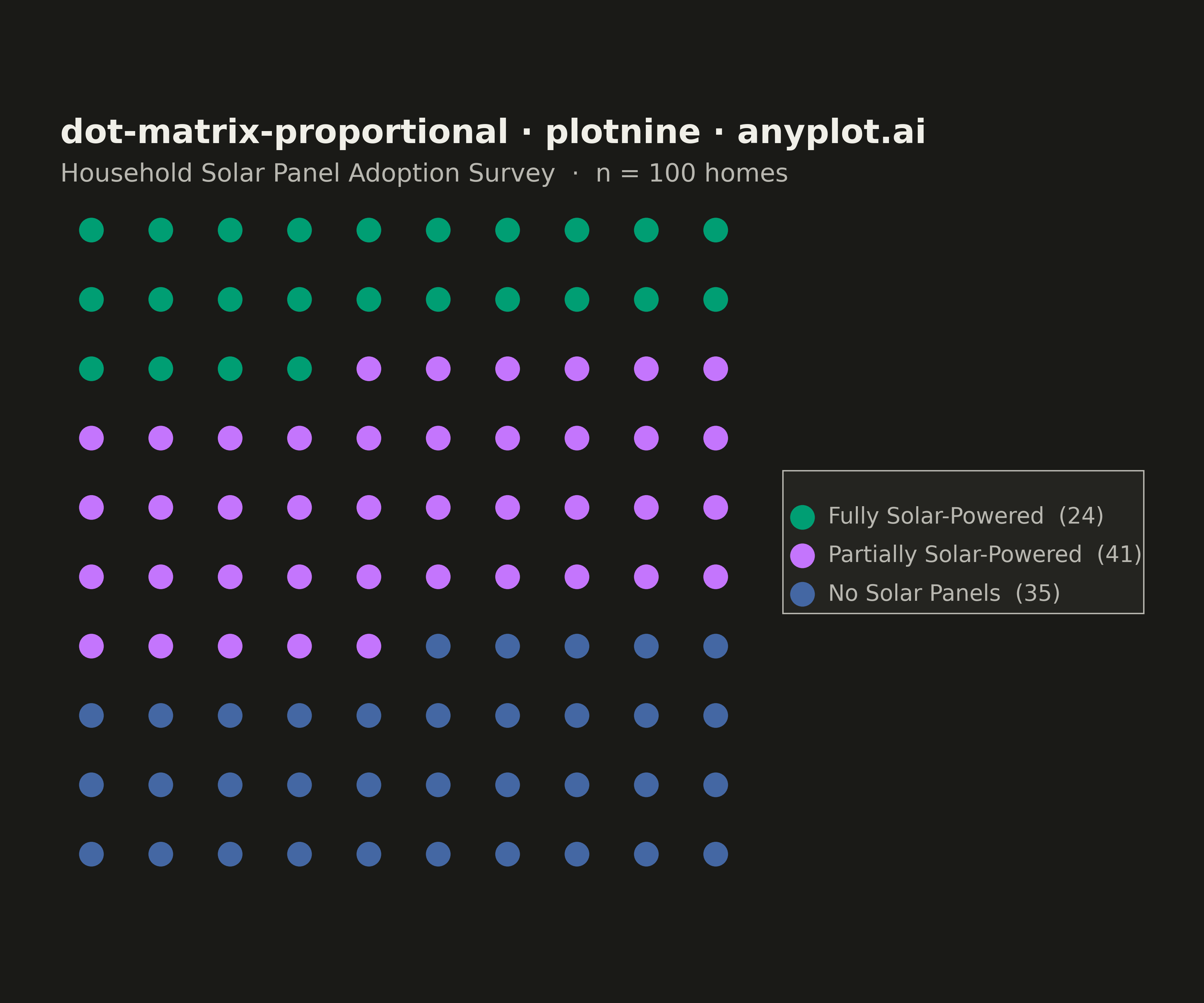

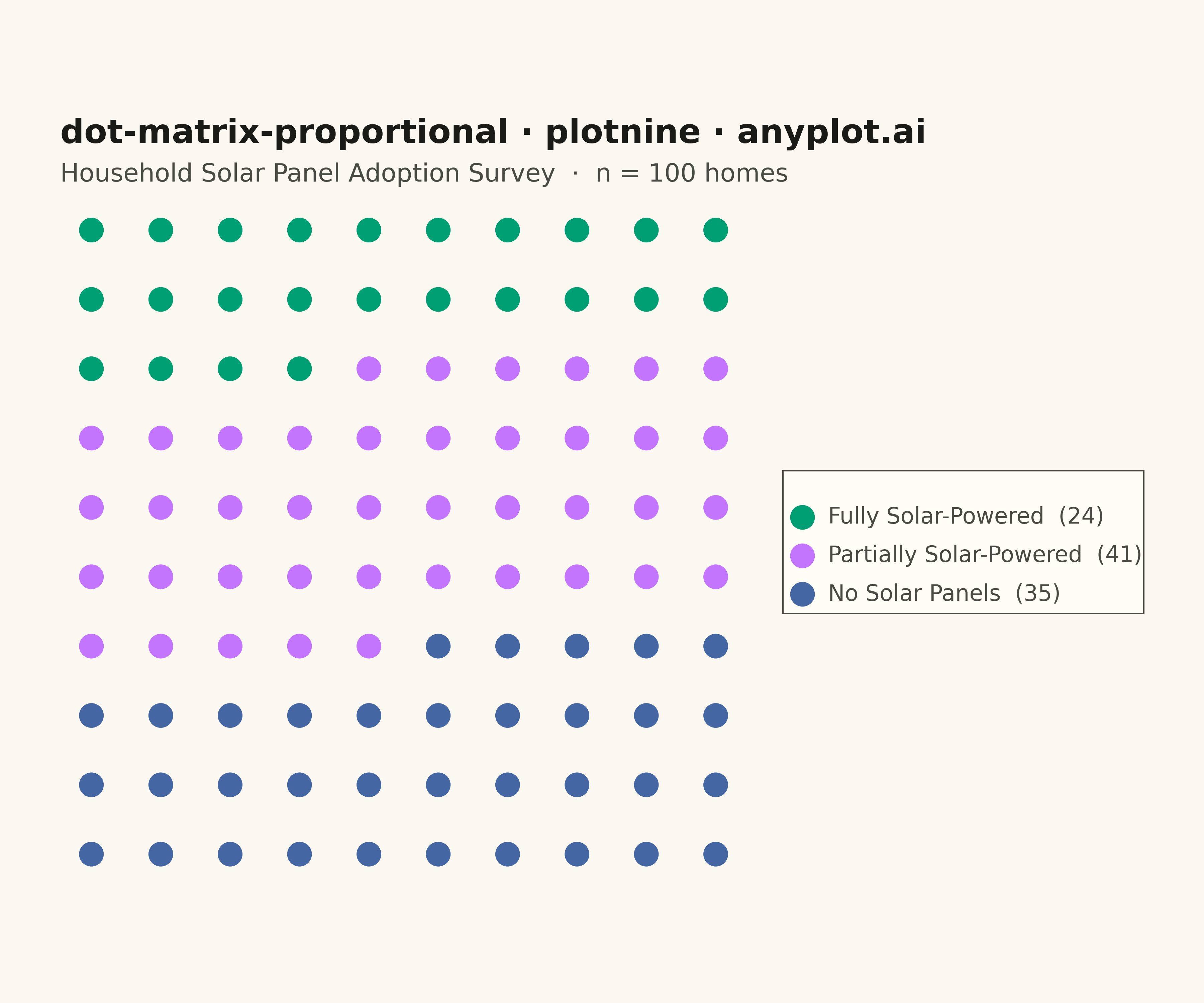

Dot Matrix Chart for Proportional Counts rendered with plotnine

Renders

Python source (plotnine)

""" anyplot.ai
dot-matrix-proportional: Dot Matrix Chart for Proportional Counts
Library: plotnine 0.15.9 | Python 3.14.10
Quality: 85/100 | Updated: 2026-11-18
"""

import os

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    coord_fixed,
    element_rect,
    element_text,
    geom_point,
    ggplot,
    ggsave,
    guide_legend,
    guides,
    labs,
    scale_color_manual,
    theme,
    theme_void,
)


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Imprint palette: all eight positions, one per category in order
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477", "#99B314"]

# Constants
REMAINDER = "Other"  # label for units that belong to no listed category

# Columns: set these to your table's column names
CATEGORY = "Household solar status"  # role: category
COUNT = "Homes"  # role: count
TOTAL = "Survey size"  # role: total

# Data: replace this block with your own table, for example df = pd.read_csv("survey.csv")
df = pd.DataFrame(
    {
        CATEGORY: ["Fully Solar-Powered", "Partially Solar-Powered", "No Solar Panels"],
        COUNT: [24, 41, 35],
        TOTAL: [100, 100, 100],
    }
)

# Plot: reads only df and the constants above
table = df.dropna(subset=[CATEGORY]).astype({CATEGORY: str})
runs = table.groupby(CATEGORY, sort=False)[COUNT].sum().astype(float).fillna(0).astype(int)
categories = runs.index.tolist()
listed = len(categories)
total = max(int(runs.sum()), int(df[TOTAL].astype(float).max(skipna=True) or 0))
remainder = total - int(runs.sum())
if remainder > 0:  # units that belong to no listed category stay in the grid as a neutral remainder
    runs[REMAINDER] = remainder
    categories.append(REMAINDER)

# One dot per unit, filled left to right and top to bottom
cols = int(np.ceil(np.sqrt(total)))
labels = np.repeat(categories, runs.to_numpy())
grid = pd.DataFrame(
    {
        "col": np.arange(total) % cols,
        "row": -(np.arange(total) // cols),
        CATEGORY: pd.Categorical(labels, categories=categories),
    }
)
legend_labels = [f"{cat}  ({n})" for cat, n in runs.items()]
colors = [IMPRINT_PALETTE[i] for i in range(listed)] + [INK_SOFT] * (len(categories) - listed)
title = "dot-matrix-proportional · python · plotnine · anyplot.ai"

plot = (
    ggplot(grid, aes(x="col", y="row", color=CATEGORY))
    + geom_point(size=10)
    + scale_color_manual(values=colors, labels=legend_labels)
    + guides(color=guide_legend(override_aes={"size": 8}))
    + coord_fixed()
    + labs(title=title, subtitle=f"{CATEGORY} · n = {total} homes", color="")
    + theme_void()
    + theme(
        figure_size=(8, 4.5),
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
        plot_title=element_text(color=INK, size=15, ha="left", weight="bold"),
        plot_subtitle=element_text(color=INK_SOFT, size=11, ha="left"),
        legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
        legend_text=element_text(color=INK_SOFT, size=9, margin={"l": 6, "r": 14}),
        legend_key=element_rect(fill=ELEVATED_BG, color="None"),
        legend_position="right",
        plot_margin=0.03,
    )
)

# Save
ggsave(plot, filename=f"plot-{THEME}.png", dpi=400, width=8, height=4.5, units="in")

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/dot-matrix-proportional/plotnine/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "dot-matrix-proportional",
  "language": "python",
  "library": "plotnine",
  "page": "https://anyplot.ai/dot-matrix-proportional/python/plotnine",
  "hub": "https://anyplot.ai/dot-matrix-proportional",
  "code_json": "https://api.anyplot.ai/specs/dot-matrix-proportional/plotnine/code",
  "spec_json": "https://api.anyplot.ai/specs/dot-matrix-proportional",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/dot-matrix-proportional/python/plotnine/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/dot-matrix-proportional/python/plotnine/plot-dark.png",
  "quality_score": 85.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Dot Matrix Chart for Proportional Counts on anyplot.ai.
