Dot Matrix Chart for Proportional Counts in Matplotlib (Python)

The same plot in 14 other libraries — Python: Altair, Bokeh, lets-plot, Plotly, plotnine, Pygal, Seaborn; R: ggplot2; Julia: Makie.jl; JavaScript: Chart.js, D3.js, Apache ECharts, Highcharts, MUI X Charts. Compare all 15 side by side: Dot Matrix Chart for Proportional Counts in Python, R, Julia and JavaScript.

A dot matrix chart displays proportions using a grid of equally-sized dots where filled or colored dots represent counts out of a total. Each dot corresponds to one unit, making it intuitive to read "X out of N" statistics at a glance. Unlike waffle charts that use percentage-based squares, dot matrix charts emphasize absolute counts with variable grid sizes, excelling at risk communication and survey result visualization.

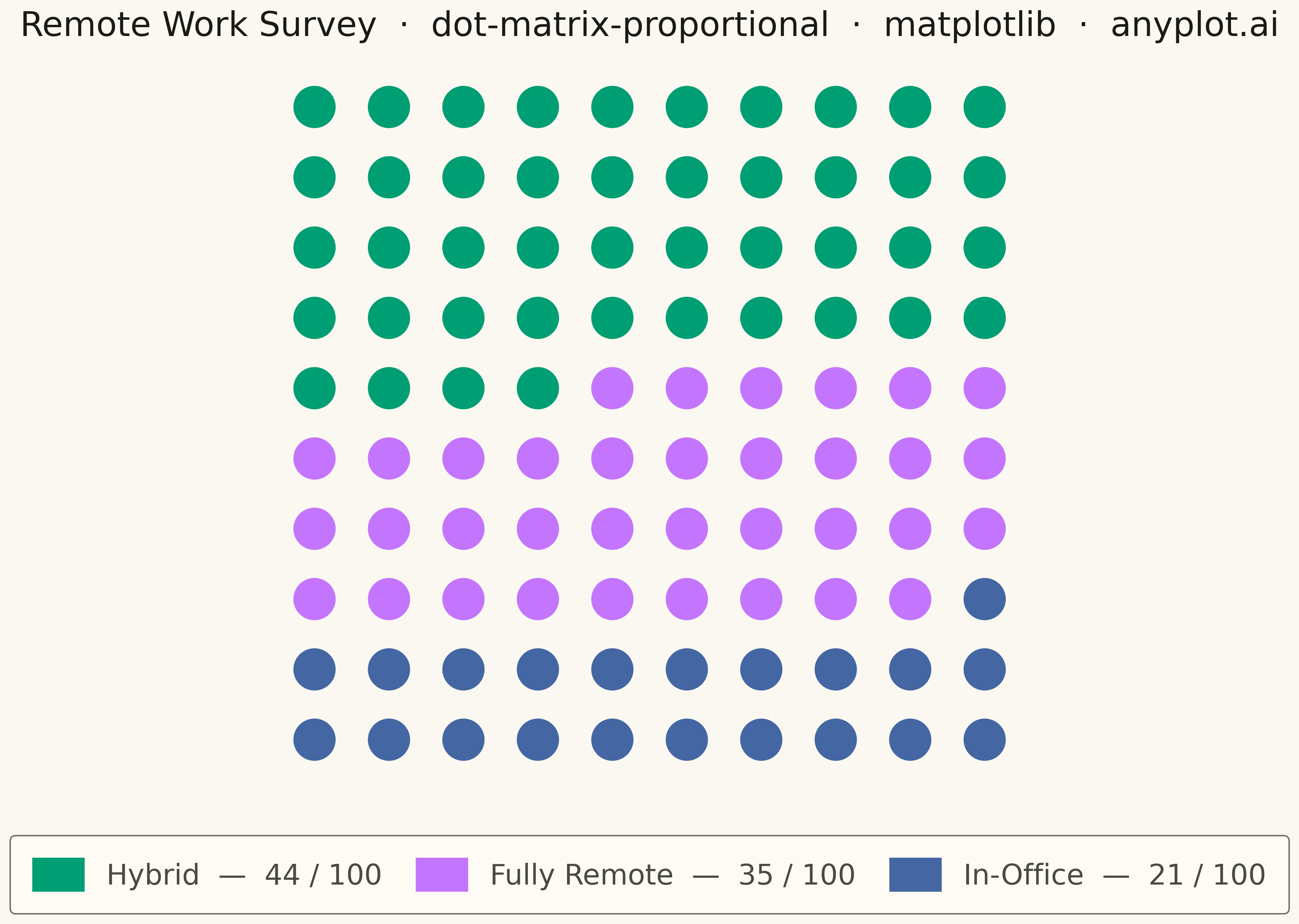

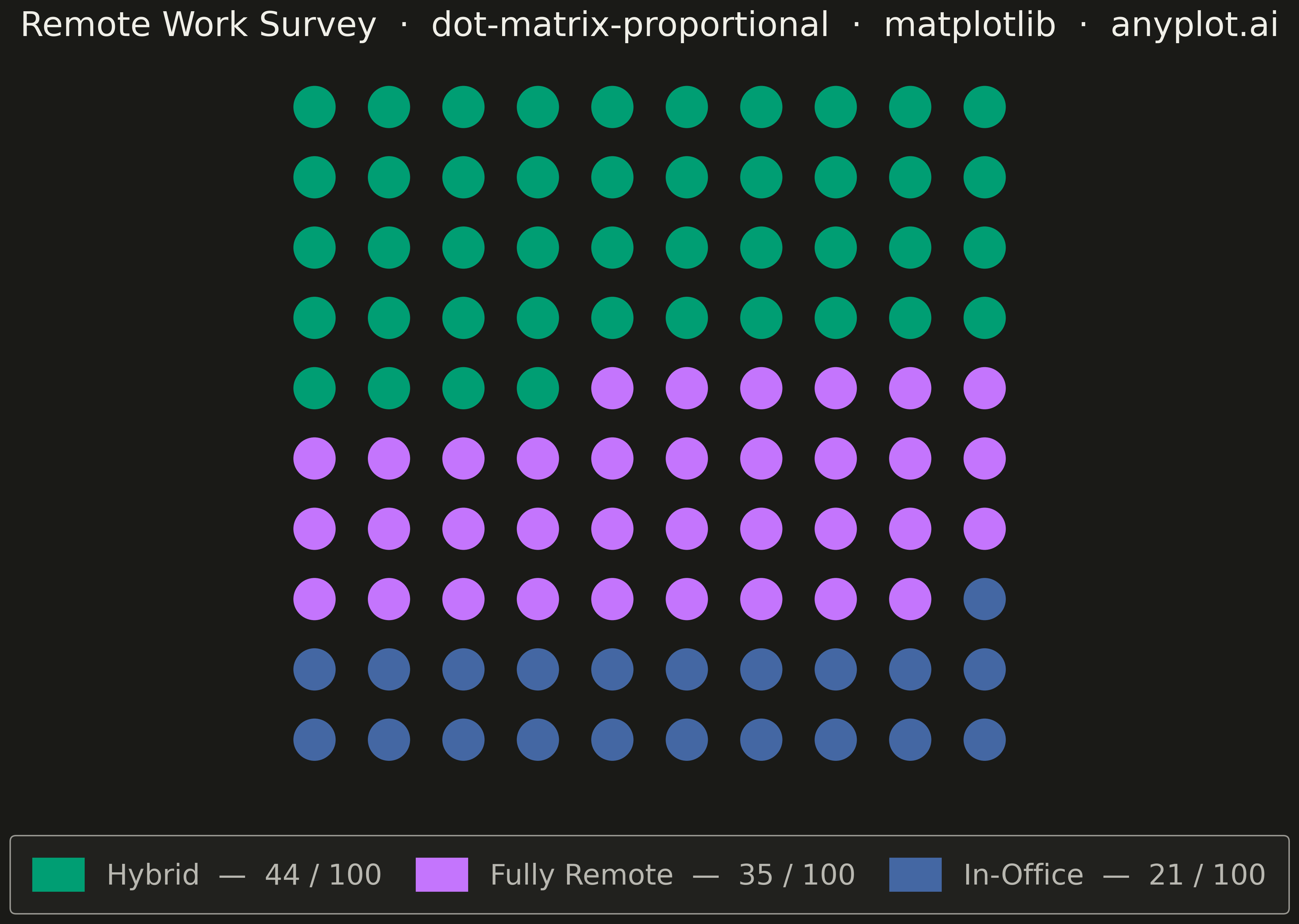

Dot Matrix Chart for Proportional Counts rendered with Matplotlib

Renders

Python source (Matplotlib)

""" anyplot.ai
dot-matrix-proportional: Dot Matrix Chart for Proportional Counts
Library: matplotlib 3.11.2 | Python 3.14.10
Quality: 82/100 | Updated: 2026-11-19
"""

import os

import matplotlib.patches as mpatches
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"

# Imprint palette: all eight positions, one per category in order
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477", "#99B314"]

# Columns: set these to your table's column names
CATEGORY = "Preferred work model"  # role: category
COUNT = "Employees"  # role: count
TOTAL = "Surveyed"  # role: total

# Data: remote work preference survey, replace with your own table, for example df = pd.read_csv("survey.csv")
df = pd.DataFrame({CATEGORY: ["Hybrid", "Fully Remote", "In-Office"], COUNT: [44, 35, 21], TOTAL: [100] * 3})

# Plot: reads only df and the constants above
counts = df[COUNT].fillna(0).round().astype(int).to_numpy()
total = int(df[TOTAL].max())
rest = max(total - int(counts.sum()), 0)  # units in no listed category: neutral remainder
n_cols = int(np.ceil(np.sqrt(total)))
n_rows = int(np.ceil(total / n_cols))

# One dot per unit, filled left to right and top to bottom
dot_cats = np.repeat(np.arange(len(df) + 1), np.append(counts, rest))[:total]
idx = np.arange(total)
xs = idx % n_cols
ys = n_rows - 1 - idx // n_cols
dot_colors = [IMPRINT_PALETTE[c % len(IMPRINT_PALETTE)] if c < len(df) else INK_MUTED for c in dot_cats]

fig, ax = plt.subplots(figsize=(8, 4.5), dpi=400, facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)
fig.subplots_adjust(left=0.2, right=0.8, top=0.84, bottom=0.2)

ax.scatter(xs, ys, c=dot_colors, s=190, edgecolors=PAGE_BG, linewidth=0.8, zorder=2)
ax.set_xlim(-0.65, n_cols - 0.35)
ax.set_ylim(-0.65, n_rows - 0.35)
ax.set_aspect("equal")
ax.axis("off")

# Legend: one item per category with its count, centred below the grid
handles = [
    mpatches.Patch(color=IMPRINT_PALETTE[i % len(IMPRINT_PALETTE)], label=f"{cat}  —  {n} / {total}")
    for i, (cat, n) in enumerate(zip(df[CATEGORY], counts, strict=True))
]
if rest:
    handles.append(mpatches.Patch(color=INK_MUTED, label=f"Other  —  {rest} / {total}"))
leg = ax.legend(
    handles=handles,
    loc="upper center",
    bbox_to_anchor=(0.5, -0.04),
    ncol=len(handles),
    fontsize=9,
    frameon=True,
    handlelength=1.6,
    handleheight=1.2,
    borderpad=0.7,
    columnspacing=1.6,
)
leg.get_frame().set_facecolor(ELEVATED_BG)
leg.get_frame().set_edgecolor(INK_SOFT)
plt.setp(leg.get_texts(), color=INK_SOFT)

# Style
title = "Remote Work Survey  ·  dot-matrix-proportional  ·  python  ·  matplotlib  ·  anyplot.ai"
title_fontsize = max(8, round(12 * 67 / len(title))) if len(title) > 67 else 12
fig.suptitle(title, fontsize=title_fontsize, fontweight="medium", color=INK, y=0.94)

plt.savefig(f"plot-{THEME}.png", dpi=400, facecolor=PAGE_BG)
