A dot matrix chart displays proportions using a grid of equally-sized dots where filled or colored dots represent counts out of a total. Each dot corresponds to one unit, making it intuitive to read "X out of N" statistics at a glance. Unlike waffle charts that use percentage-based squares, dot matrix charts emphasize absolute counts with variable grid sizes, excelling at risk communication and survey result visualization.

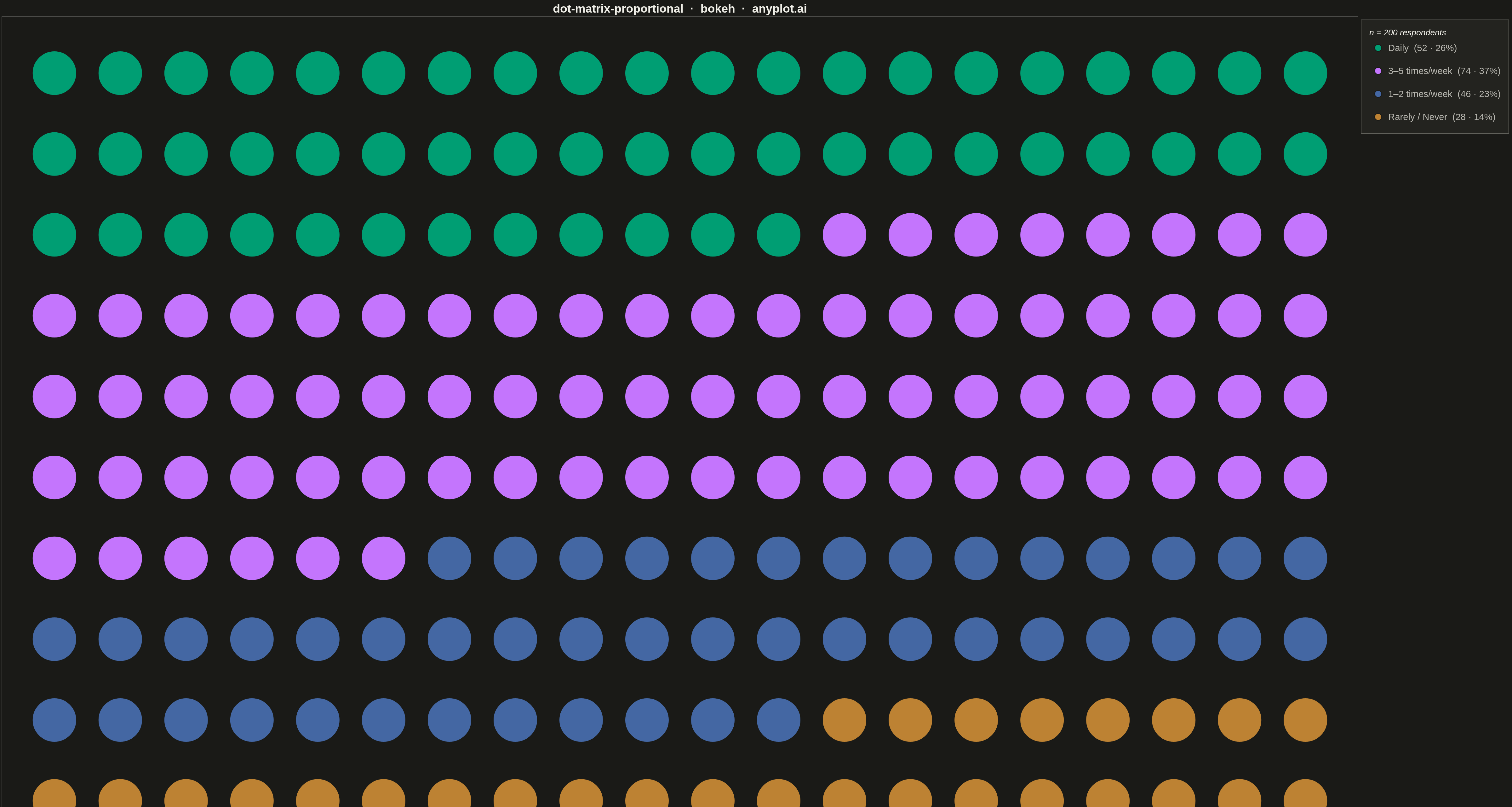

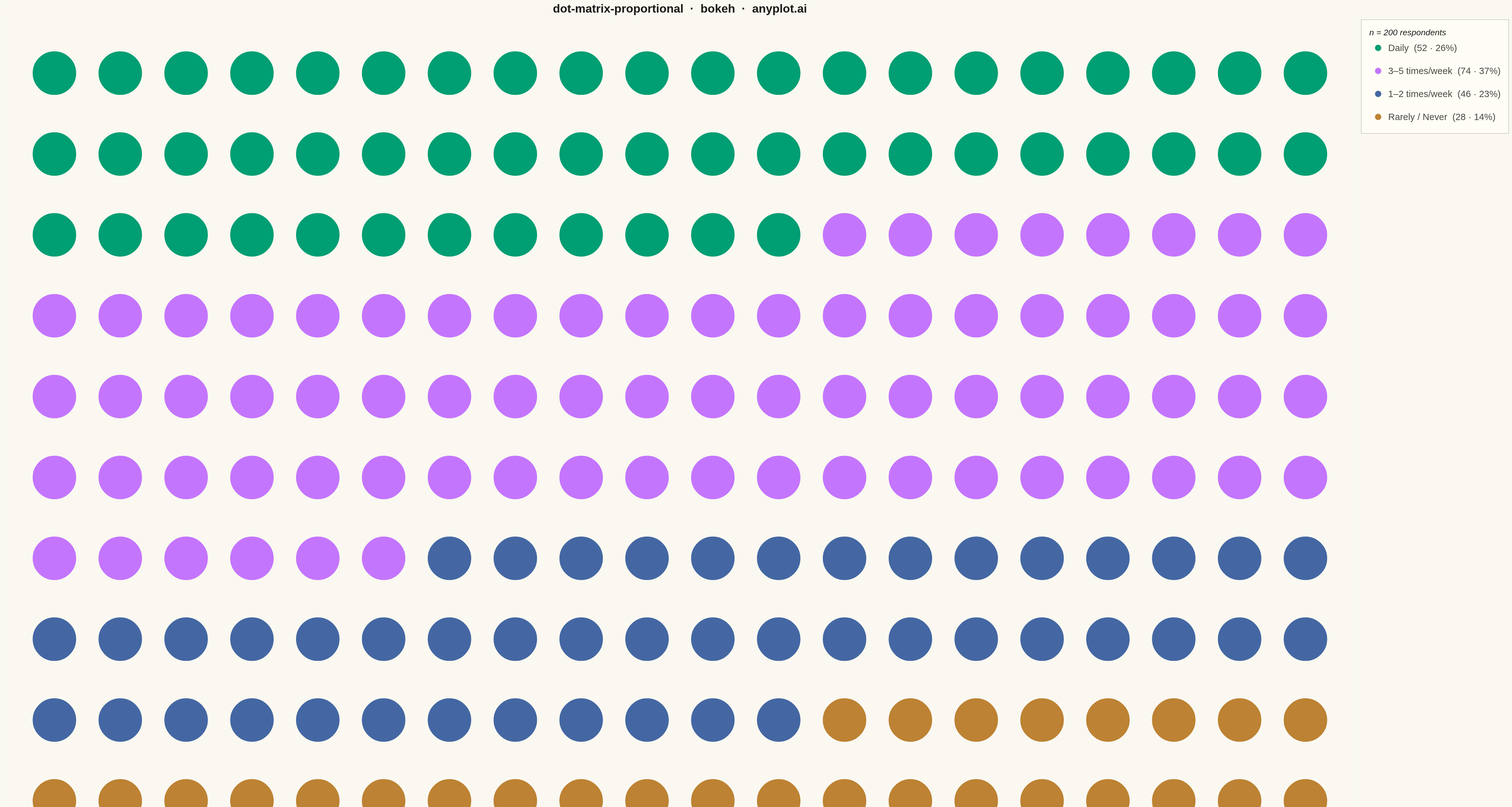

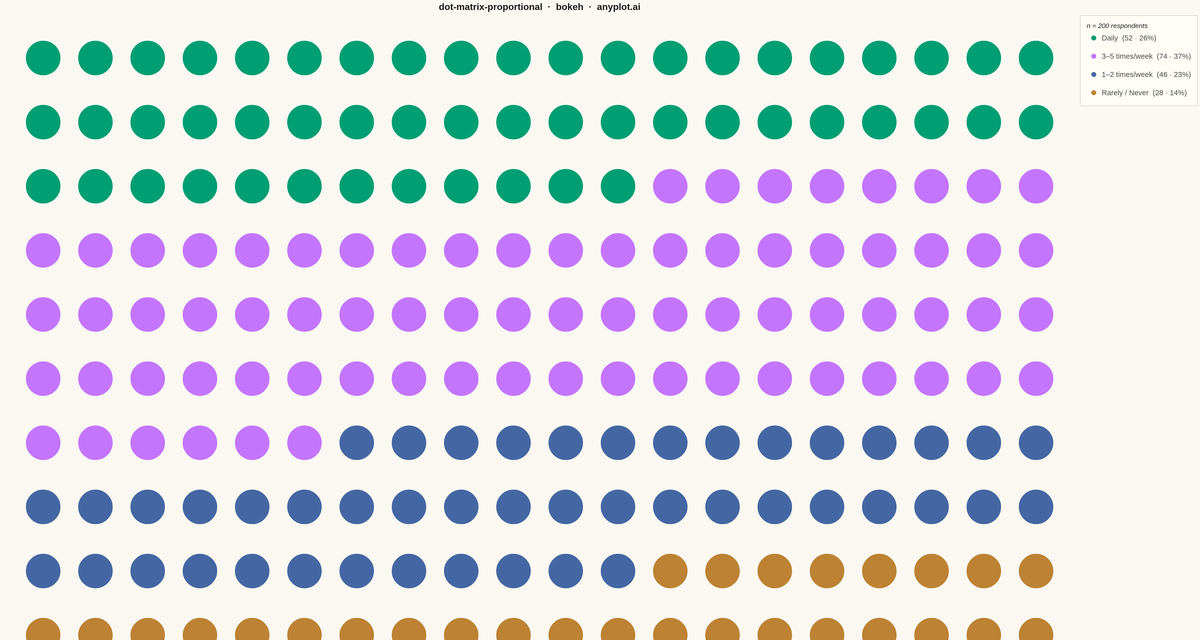

Dot Matrix Chart for Proportional Counts rendered with Bokeh

Renders

Python source (Bokeh)

""" anyplot.ai
dot-matrix-proportional: Dot Matrix Chart for Proportional Counts
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 84/100 | Created: 2026-05-08
"""

import os as _os
import sys


# Prevent this file (bokeh.py) from shadowing the real bokeh package.
# When Python runs a script, it inserts the script's directory into sys.path[0].
# Since this file IS named bokeh.py, that directory entry must be removed first.
_here = _os.path.dirname(_os.path.abspath(__file__))
sys.path = [p for p in sys.path if _os.path.abspath(p) != _here]
del _here, _os

import os
import time
from pathlib import Path

from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, HoverTool, Legend, LegendItem, Range1d
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette (position 1 = brand green, always first series)
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]

# Data: Exercise Frequency Survey, 200 respondents
categories = ["Daily", "3–5 times/week", "1–2 times/week", "Rarely / Never"]
counts = [52, 74, 46, 28]
N_COLS = 20
N_ROWS = 10  # 20 × 10 = 200 total dots

# Build per-dot color list (filled left-to-right, top-to-bottom)
dot_colors = []
for i, cnt in enumerate(counts):
    dot_colors.extend([IMPRINT[i]] * cnt)

# Compute grid coordinates (row 0 displayed at top → y = N_ROWS-1)
xs, ys, colors = [], [], []
idx = 0
for row in range(N_ROWS):
    for col in range(N_COLS):
        xs.append(col)
        ys.append(N_ROWS - 1 - row)
        colors.append(dot_colors[idx])
        idx += 1

# Figure — landscape canvas
p = figure(
    width=4800,
    height=2700,
    title="dot-matrix-proportional  ·  bokeh  ·  anyplot.ai",
    toolbar_location=None,
    x_range=Range1d(-0.8, N_COLS - 0.2),
    y_range=Range1d(-0.6, N_ROWS - 0.3),
)

# Draw one renderer per category; collect legend items manually
legend_items = []
total = sum(counts)
renderers = []
for i, (cat, cnt) in enumerate(zip(categories, counts, strict=True)):
    mask = [j for j, c in enumerate(colors) if c == IMPRINT[i]]
    pct = round(cnt / total * 100)
    src = ColumnDataSource(
        data={
            "x": [xs[j] for j in mask],
            "y": [ys[j] for j in mask],
            "category": [cat] * len(mask),
            "count": [cnt] * len(mask),
            "pct": [pct] * len(mask),
        }
    )
    r = p.scatter("x", "y", source=src, color=IMPRINT[i], size=140, line_color=PAGE_BG, line_width=2)
    renderers.append(r)
    legend_items.append(LegendItem(label=f"{cat}  ({cnt} · {pct}%)", renderers=[r]))

hover = HoverTool(renderers=renderers, tooltips=[("Category", "@category"), ("Count", "@count"), ("Share", "@pct%")])

# Theme-adaptive chrome
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = None

p.title.text_font_size = "28pt"
p.title.text_color = INK
p.title.align = "center"

p.xaxis.visible = False
p.yaxis.visible = False
p.xgrid.grid_line_color = None
p.ygrid.grid_line_color = None
p.add_tools(hover)

# Legend in right panel (outside plot area so no overlap with data)
legend = Legend(
    items=legend_items,
    title=f"n = {total} respondents",
    title_text_font_size="20pt",
    title_text_color=INK,
    background_fill_color=ELEVATED_BG,
    border_line_color=INK_SOFT,
    label_text_color=INK_SOFT,
    label_text_font_size="22pt",
    glyph_height=55,
    glyph_width=55,
    spacing=18,
    padding=25,
)
p.add_layout(legend, "right")

# Save HTML
output_file(f"plot-{THEME}.html")
save(p)

# Screenshot with headless Chrome via Selenium
W, H = 4800, 2700
opts = Options()
for arg in (
    "--headless=new",
    "--no-sandbox",
    "--disable-dev-shm-usage",
    "--disable-gpu",
    f"--window-size={W},{H}",
    "--hide-scrollbars",
):
    opts.add_argument(arg)

driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
