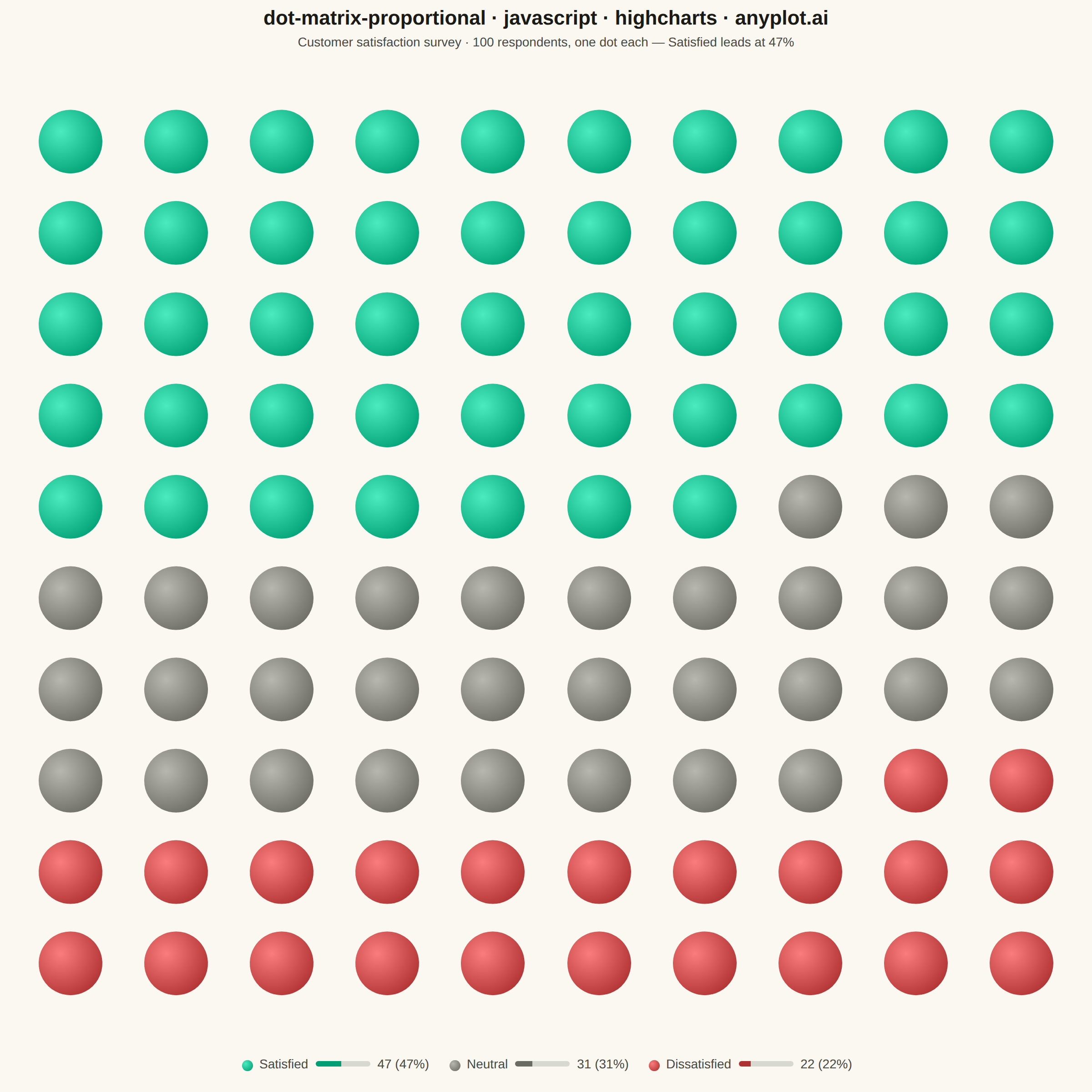

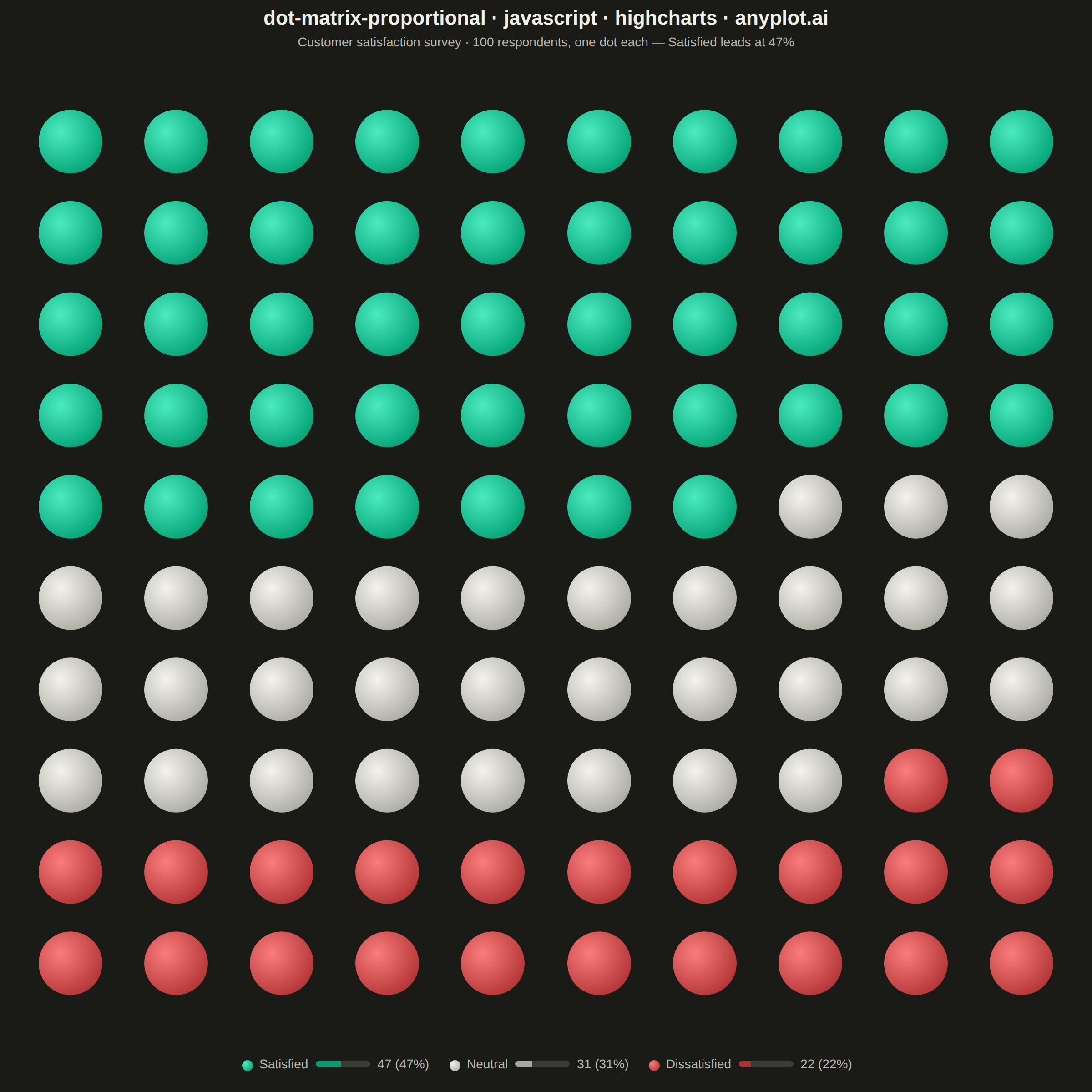

A dot matrix chart displays proportions using a grid of equally-sized dots where filled or colored dots represent counts out of a total. Each dot corresponds to one unit, making it intuitive to read "X out of N" statistics at a glance. Unlike waffle charts that use percentage-based squares, dot matrix charts emphasize absolute counts with variable grid sizes, excelling at risk communication and survey result visualization.
// anyplot.ai
// dot-matrix-proportional: Dot Matrix Chart for Proportional Counts
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 93/100 | Created: 2026-09-05
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
// ANYPLOT_TOKENS has no "muted" field — derive the theme-adaptive muted-ink
// anchor locally (see prompts/default-style-guide.md "Theme-adaptive Chrome").
const inkMuted = t.theme === "dark" ? "#A8A79F" : "#6B6A63";
// --- Data (in-memory, deterministic) ---------------------------------------
const total = 100;
const gridCols = 10;
const gridRows = 10;
// Sentiment/polarity semantic exception: satisfied -> green, dissatisfied ->
// red, neutral -> the theme-adaptive muted anchor (default-style-guide.md
// "Color Philosophy" -> "Semantic exception").
const categories = [
{ name: "Satisfied", count: 47, color: t.palette[0] },
{ name: "Neutral", count: 31, color: inkMuted },
{ name: "Dissatisfied", count: 22, color: t.palette[4] },
];
const majority = categories.reduce((a, b) => (b.count > a.count ? b : a));
const majorityPct = Math.round((majority.count / total) * 100);
// Extra breathing room between dots (uniform size is a spec requirement, so
// the gutter comes from spacing the grid coordinates, not shrinking dots).
const gutter = 1.12;
// Fill dots left-to-right, top-to-bottom, sequentially across categories.
let cursor = 0;
const series = categories.map((cat) => {
const data = [];
for (let i = 0; i < cat.count; i += 1, cursor += 1) {
data.push([
(cursor % gridCols) * gutter,
Math.floor(cursor / gridCols) * gutter,
]);
}
const pct = Math.round((cat.count / total) * 100);
return {
name: cat.name,
color: cat.color,
// Arbitrary user data slot (Highcharts "custom" option) so the legend
// formatter and tooltip below can surface count/pct without re-parsing
// the series name.
custom: { count: cat.count, pct },
// Subtle radial gradient (via Highcharts' own Color.brighten helper)
// gives the flat circles a touch of depth while keeping uniform size.
marker: {
fillColor: {
radialGradient: { cx: 0.35, cy: 0.35, r: 0.75 },
stops: [
[0, Highcharts.color(cat.color).brighten(0.3).get()],
[1, cat.color],
],
},
},
data,
};
});
// --- Chart -------------------------------------------------------------
Highcharts.chart("container", {
chart: {
type: "scatter",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
title: {
text: "dot-matrix-proportional · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
subtitle: {
text: `Customer satisfaction survey · 100 respondents, one dot each — ${majority.name} leads at ${majorityPct}%`,
style: { color: t.inkSoft, fontSize: "14px" },
},
xAxis: {
min: -0.65,
max: (gridCols - 1) * gutter + 0.65,
visible: false,
},
yAxis: {
min: -0.65,
max: (gridRows - 1) * gutter + 0.65,
reversed: true,
title: { text: null },
visible: false,
},
legend: {
align: "center",
verticalAlign: "bottom",
symbolRadius: 6,
useHTML: true,
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink },
// Highcharts-distinctive touch: useHTML legend items with an inline
// mini count-bar next to each label, instead of plain text.
labelFormatter: function () {
const { count, pct } = this.userOptions.custom;
const barWidth = Math.max(4, Math.round((pct / 100) * 60));
return (
`<span style="display:inline-flex;align-items:center;gap:8px;color:${t.inkSoft};font-size:14px;">` +
`<span>${this.name}</span>` +
`<span style="display:inline-block;width:60px;height:6px;border-radius:3px;background:${t.grid};overflow:hidden;">` +
`<span style="display:block;width:${barWidth}px;height:100%;background:${this.color};"></span>` +
`</span>` +
`<span style="font-variant-numeric:tabular-nums;">${count} (${pct}%)</span>` +
`</span>`
);
},
},
tooltip: {
backgroundColor: t.elevatedBg,
borderColor: t.grid,
style: { color: t.ink, fontSize: "13px" },
headerFormat: "",
pointFormatter: function () {
const { count, pct } = this.series.userOptions.custom;
return `${this.series.name}: ${count} (${pct}%)`;
},
},
plotOptions: {
series: {
animation: false,
marker: {
radius: 36,
symbol: "circle",
lineWidth: 2,
lineColor: t.pageBg,
},
shadow: { color: "rgba(0,0,0,0.18)", offsetX: 0, offsetY: 2, width: 4 },
states: { hover: { halo: { size: 0 } } },
},
},
series,
});
