A dot matrix chart displays proportions using a grid of equally-sized dots where filled or colored dots represent counts out of a total. Each dot corresponds to one unit, making it intuitive to read "X out of N" statistics at a glance. Unlike waffle charts that use percentage-based squares, dot matrix charts emphasize absolute counts with variable grid sizes, excelling at risk communication and survey result visualization.

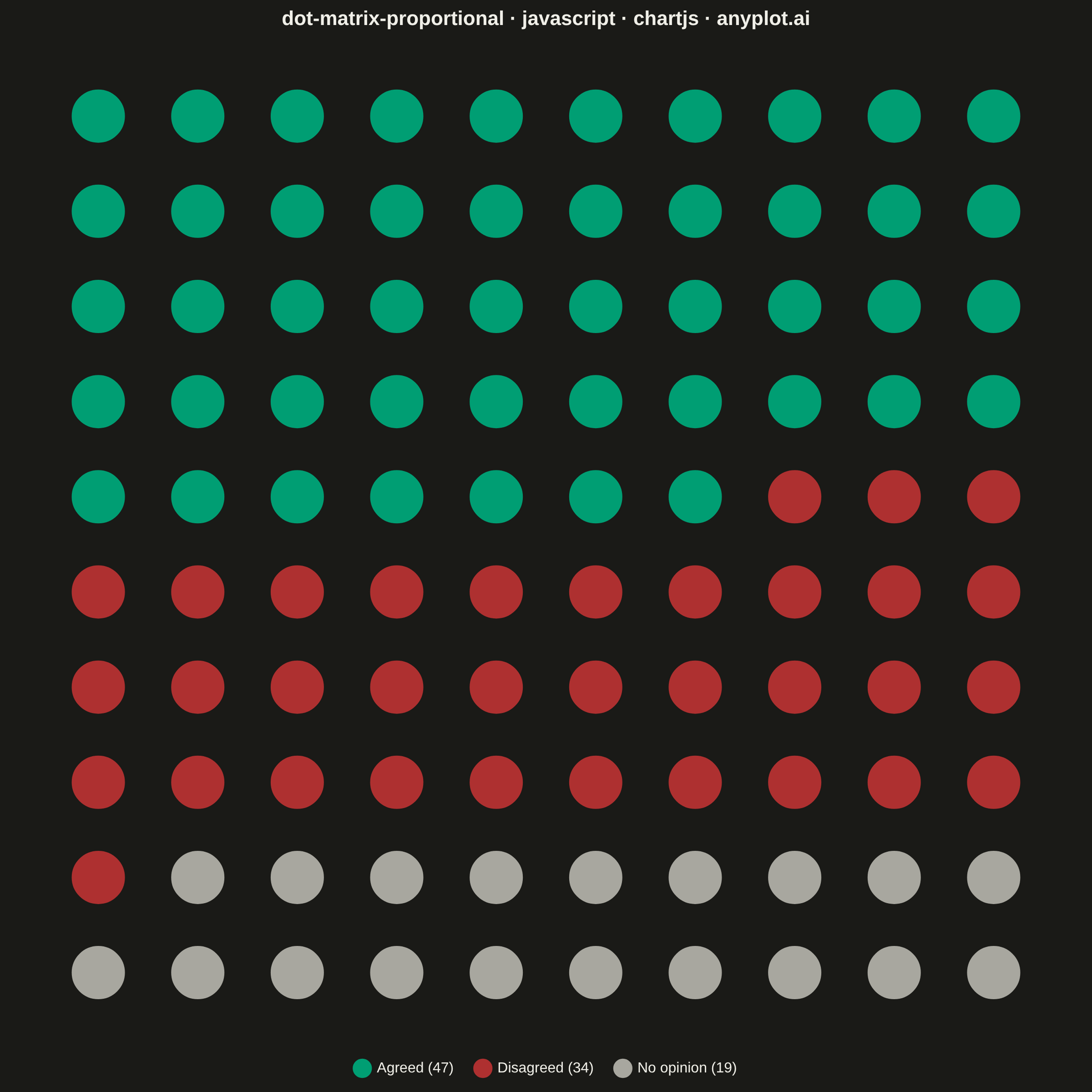

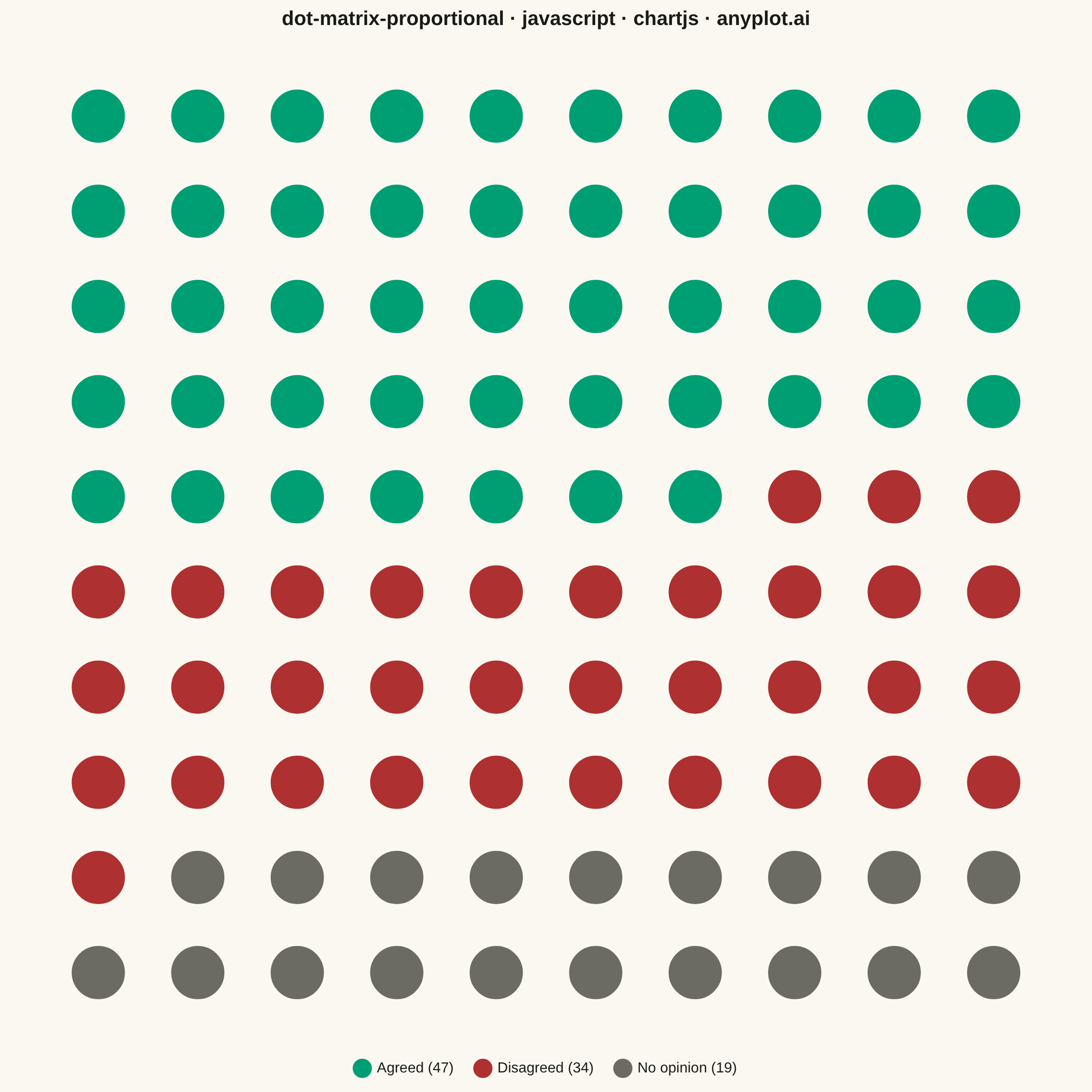

Dot Matrix Chart for Proportional Counts rendered with Chart.js

Renders

JavaScript source (Chart.js)

// anyplot.ai
// dot-matrix-proportional: Dot Matrix Chart for Proportional Counts
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-05

//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
// Theme-adaptive "muted" semantic anchor (default-style-guide.md) — the
// browser harness token set does not expose it, so it is derived here.
const MUTED = t.theme === "light" ? "#6B6A63" : "#A8A79F";

// --- Data (in-memory, deterministic) ----------------------------------------
// Survey: "Should the city expand the downtown bike-lane network?"
const total = 100;
const cols = 10;
const rows = 10;
const categories = [
  { label: "Agreed", count: 47, color: t.palette[0] }, // positive sentiment -> brand green
  { label: "Disagreed", count: 34, color: t.palette[4] }, // negative sentiment -> semantic red
  { label: "No opinion", count: 19, color: MUTED }, // neutral sentiment -> muted anchor
];

// Assign each of the `total` grid cells to a category, filled in category
// order, left-to-right then top-to-bottom.
const dotIndexToCategory = new Array(total);
let cursor = 0;
categories.forEach((cat, catIndex) => {
  for (let i = 0; i < cat.count; i += 1) {
    dotIndexToCategory[cursor] = catIndex;
    cursor += 1;
  }
});

const datasets = categories.map((cat, catIndex) => {
  const points = [];
  for (let i = 0; i < total; i += 1) {
    if (dotIndexToCategory[i] !== catIndex) continue;
    const row = Math.floor(i / cols);
    const col = i % cols;
    points.push({ x: col, y: rows - 1 - row });
  }
  return {
    label: `${cat.label} (${cat.count})`,
    data: points,
    backgroundColor: cat.color,
    borderColor: t.pageBg,
    borderWidth: 1.5,
    pointStyle: "circle",
    pointRadius: 30,
    pointHoverRadius: 30,
  };
});

// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);

// --- Chart ---------------------------------------------------------------
new Chart(canvas, {
  type: "scatter",
  data: { datasets },
  options: {
    responsive: true,
    maintainAspectRatio: false,
    animation: false,
    layout: { padding: { top: 8, bottom: 8, left: 8, right: 8 } },
    plugins: {
      title: {
        display: true,
        text: "dot-matrix-proportional · javascript · chartjs · anyplot.ai",
        color: t.ink,
        font: { size: 22 },
        padding: { bottom: 20 },
      },
      legend: {
        display: true,
        position: "bottom",
        labels: {
          color: t.ink,
          font: { size: 16 },
          usePointStyle: true,
          padding: 24,
        },
      },
      tooltip: { enabled: false },
    },
    scales: {
      x: {
        type: "linear",
        min: -0.7,
        max: cols - 0.3,
        display: false,
      },
      y: {
        type: "linear",
        min: -0.7,
        max: rows - 0.3,
        display: false,
      },
    },
  },
});
