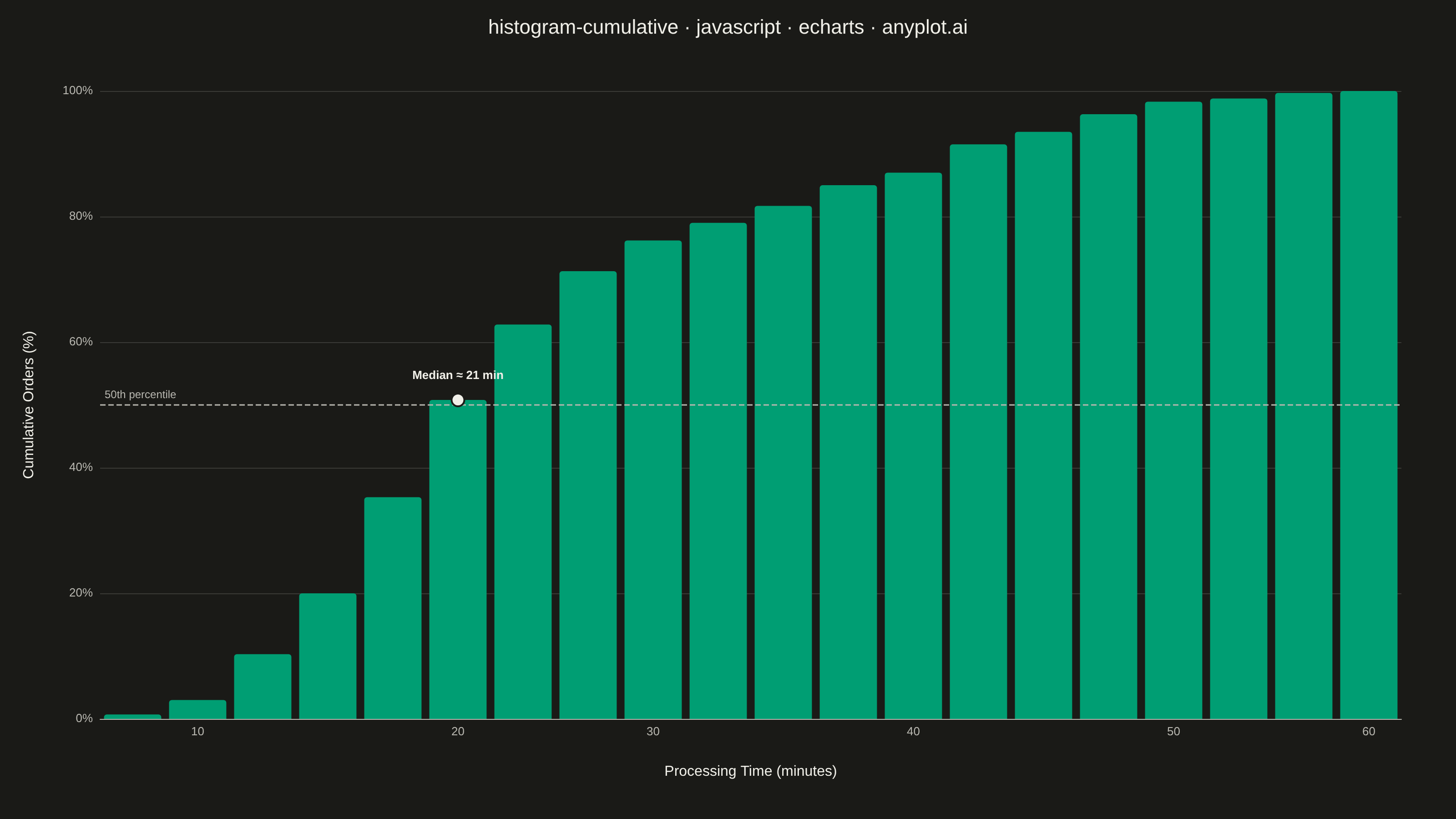

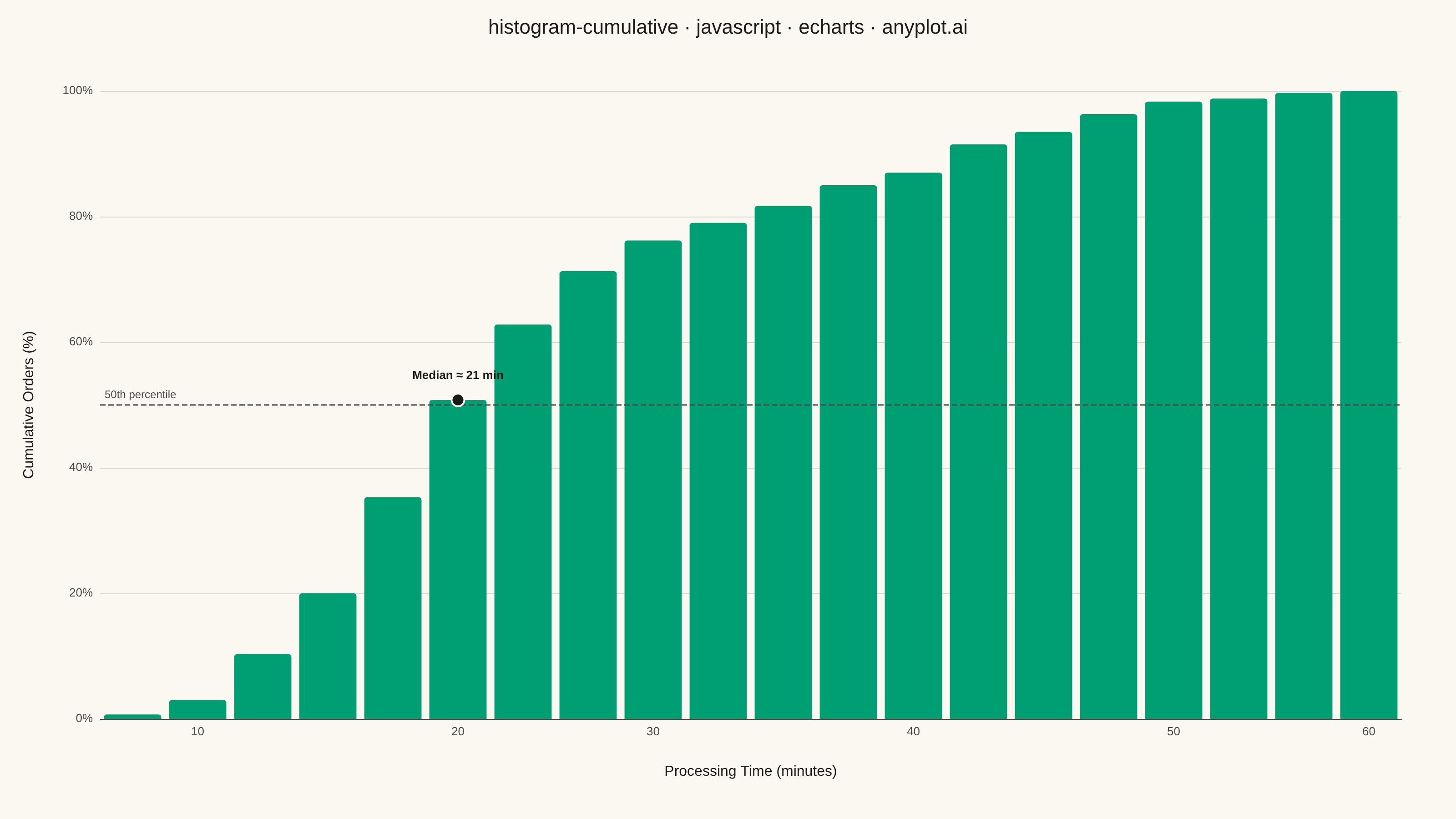

A cumulative histogram (also known as an ogive or cumulative frequency histogram) displays the running total of observations up to each bin boundary. The y-axis shows cumulative count or proportion, creating a monotonically increasing step function that reaches the total sample size (or 1.0 for normalized).
// anyplot.ai
// histogram-cumulative: Cumulative Histogram
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-05
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Data: warehouse order processing times (minutes), deterministic LCG ----
function makeLcg(seed) {
let state = seed >>> 0;
return function () {
state = (state * 1664525 + 1013904223) >>> 0;
return state / 4294967296;
};
}
const rand = makeLcg(42);
function randNormal(mean, std) {
const u1 = Math.max(rand(), 1e-9);
const u2 = rand();
const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
return mean + z * std;
}
// Two processing streams: automated picking (fast) and manual picking (slower)
const processingTimes = [];
for (let i = 0; i < 420; i++) processingTimes.push(randNormal(18, 5));
for (let i = 0; i < 180; i++) processingTimes.push(randNormal(38, 9));
// --- Histogram + cumulative percentage --------------------------------------
const binCount = 20;
const minVal = Math.max(0, Math.min(...processingTimes));
const maxVal = Math.max(...processingTimes);
const binWidth = (maxVal - minVal) / binCount;
const counts = new Array(binCount).fill(0);
processingTimes.forEach((v) => {
let idx = Math.floor((v - minVal) / binWidth);
if (idx >= binCount) idx = binCount - 1;
if (idx < 0) idx = 0;
counts[idx] += 1;
});
const binEdges = [];
for (let i = 0; i <= binCount; i++) binEdges.push(minVal + i * binWidth);
const labels = binEdges.slice(1).map((edge) => edge.toFixed(0));
let running = 0;
const cumulativePct = counts.map((c) => {
running += c;
return Number(((running / processingTimes.length) * 100).toFixed(1));
});
// Evenly spaced round-number tick labels (every 10 minutes) instead of the
// raw, irregular bin-edge values.
const maxRounded = Math.ceil(maxVal / 10) * 10;
const tickLabelByIndex = new Map();
for (let v = 10; v <= maxRounded; v += 10) {
const idx = Math.max(
0,
Math.min(binCount - 1, Math.round((v - minVal) / binWidth) - 1)
);
tickLabelByIndex.set(idx, String(v));
}
// Interpolate the median processing time (the 50th-percentile crossing) so
// it can be called out directly on the curve.
const half = processingTimes.length / 2;
let cumBefore = 0;
let medianBinIndex = binCount - 1;
let medianTime = maxVal;
for (let i = 0; i < binCount; i++) {
const cumAfter = cumBefore + counts[i];
if (cumAfter >= half) {
medianBinIndex = i;
const fraction = counts[i] === 0 ? 0 : (half - cumBefore) / counts[i];
medianTime = minVal + (i + fraction) * binWidth;
break;
}
cumBefore = cumAfter;
}
// --- Init ---------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option ---------------------------------------------------------------------
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: "histogram-cumulative · javascript · echarts · anyplot.ai",
left: "center",
textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
},
grid: { left: 110, right: 60, top: 100, bottom: 110 },
tooltip: {
trigger: "axis",
valueFormatter: (value) => `${value}%`,
},
xAxis: {
type: "category",
data: labels,
name: "Processing Time (minutes)",
nameLocation: "middle",
nameGap: 50,
nameTextStyle: { color: t.ink, fontSize: 16 },
axisLabel: {
color: t.inkSoft,
fontSize: 13,
interval: (index) => tickLabelByIndex.has(index),
formatter: (value, index) => tickLabelByIndex.get(index) ?? "",
},
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false },
},
yAxis: {
type: "value",
min: 0,
max: 100,
name: "Cumulative Orders (%)",
nameLocation: "middle",
nameGap: 70,
nameTextStyle: { color: t.ink, fontSize: 16 },
axisLabel: { color: t.inkSoft, fontSize: 13, formatter: "{value}%" },
axisLine: { show: false },
axisTick: { show: false },
splitLine: { lineStyle: { color: t.grid } },
},
series: [
{
type: "bar",
name: "Cumulative Orders",
data: cumulativePct,
barWidth: "88%",
itemStyle: { color: t.palette[0], borderRadius: [3, 3, 0, 0] },
markLine: {
silent: true,
symbol: "none",
lineStyle: { color: t.inkSoft, type: "dashed", width: 1.5 },
label: {
color: t.inkSoft,
fontSize: 12,
formatter: "50th percentile",
position: "insideStartTop",
},
data: [{ yAxis: 50 }],
},
markPoint: {
symbol: "circle",
symbolSize: 14,
itemStyle: { color: t.ink, borderColor: t.pageBg, borderWidth: 2 },
label: {
show: true,
color: t.ink,
fontSize: 13,
fontWeight: 600,
position: "top",
distance: 12,
formatter: `Median ≈ ${medianTime.toFixed(0)} min`,
},
data: [{ coord: [medianBinIndex, cumulativePct[medianBinIndex]] }],
},
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/histogram-cumulative/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "histogram-cumulative",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/histogram-cumulative/javascript/echarts",
"hub": "https://anyplot.ai/histogram-cumulative",
"code_json": "https://api.anyplot.ai/specs/histogram-cumulative/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/histogram-cumulative",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/histogram-cumulative/javascript/echarts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/histogram-cumulative/javascript/echarts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/histogram-cumulative/javascript/echarts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/histogram-cumulative/javascript/echarts/plot-dark.html",
"quality_score": 91.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Cumulative Histogram on anyplot.ai.
