A Voronoi diagram partitions a plane into regions based on the distance to a set of seed points, where each region contains all points closer to its seed than to any other. This visualization is essential for understanding spatial relationships, proximity analysis, and territorial boundaries. It reveals natural clustering patterns and helps identify areas of influence around data points.
// anyplot.ai
// voronoi-basic: Voronoi Diagram for Spatial Partitioning
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-02
//# anyplot-orientation: square
// anyplot.ai
// voronoi-basic: Voronoi Diagram for Spatial Partitioning
// Library: echarts 6.1.0 | JavaScript 22
// Quality: pending | Created: 2026-09-02
const t = window.ANYPLOT_TOKENS;
// --- Data: retail store locations across a service region (km) -------------
function lcg(seed) {
let state = seed;
return () => {
state = (state * 1664525 + 1013904223) % 4294967296;
return state / 4294967296;
};
}
const rand = lcg(42);
const DOMAIN = 100;
const N_STORES = 14;
const stores = Array.from({ length: N_STORES }, () => ({
x: 6 + rand() * (DOMAIN - 12),
y: 6 + rand() * (DOMAIN - 12),
}));
// --- Voronoi cells: clip the bounding box against each pairwise bisector ---
function clipPolygon(poly, a, b, c) {
const eps = 1e-9;
const out = [];
for (let i = 0; i < poly.length; i++) {
const cur = poly[i];
const nxt = poly[(i + 1) % poly.length];
const fCur = a * cur[0] + b * cur[1] - c;
const fNxt = a * nxt[0] + b * nxt[1] - c;
const curIn = fCur <= eps;
const nxtIn = fNxt <= eps;
if (curIn) out.push(cur);
if (curIn !== nxtIn) {
const tt = fCur / (fCur - fNxt);
out.push([cur[0] + tt * (nxt[0] - cur[0]), cur[1] + tt * (nxt[1] - cur[1])]);
}
}
return out;
}
const BOUNDS = [
[0, 0],
[DOMAIN, 0],
[DOMAIN, DOMAIN],
[0, DOMAIN],
];
const cells = stores.map((p, i) => {
let poly = BOUNDS;
stores.forEach((q, j) => {
if (i === j) return;
const a = q.x - p.x;
const b = q.y - p.y;
const c = (q.x * q.x + q.y * q.y - p.x * p.x - p.y * p.y) / 2;
poly = clipPolygon(poly, a, b, c);
});
return poly;
});
// --- Init ---------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Title (fontsize scaled to the descriptive-prefix length) --------------

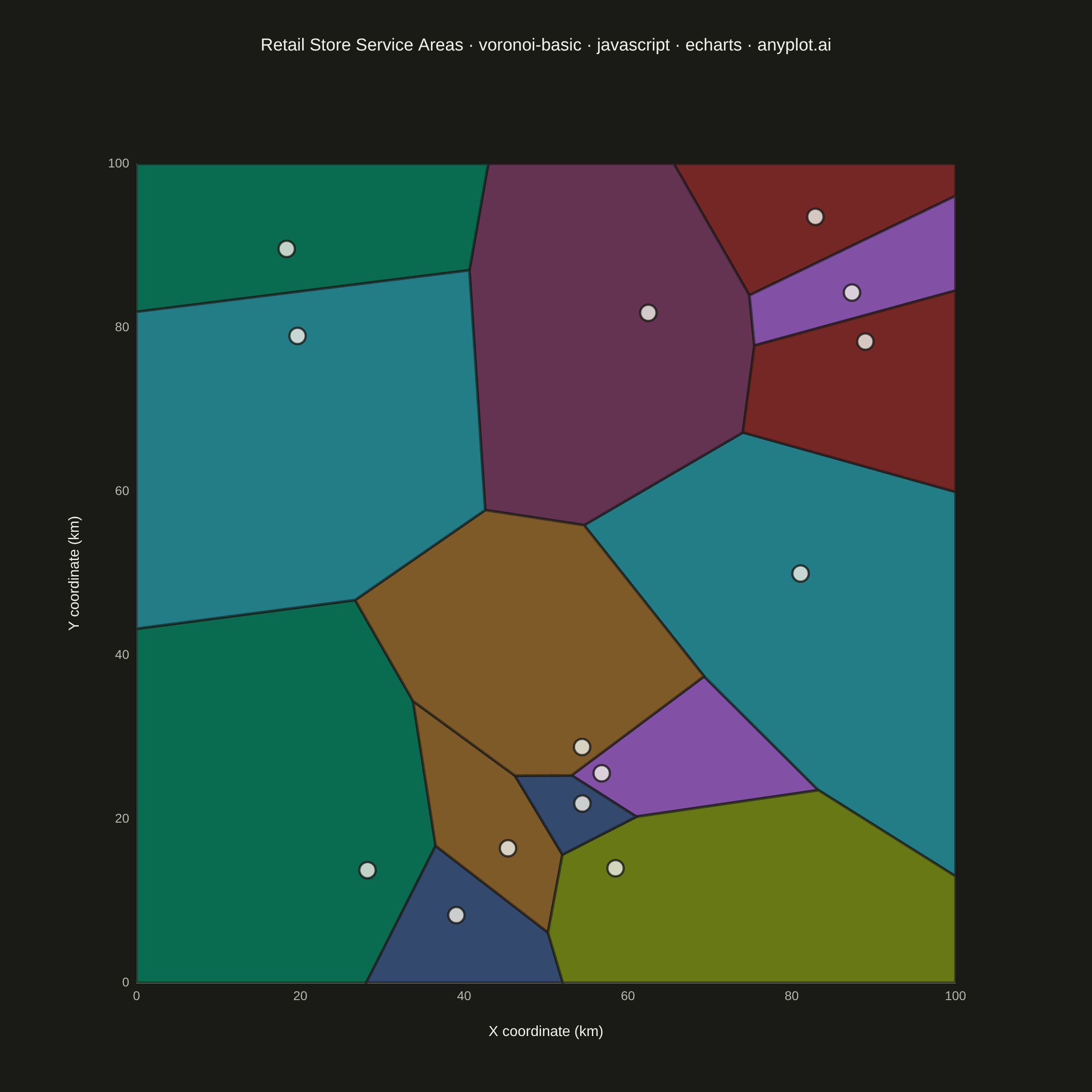

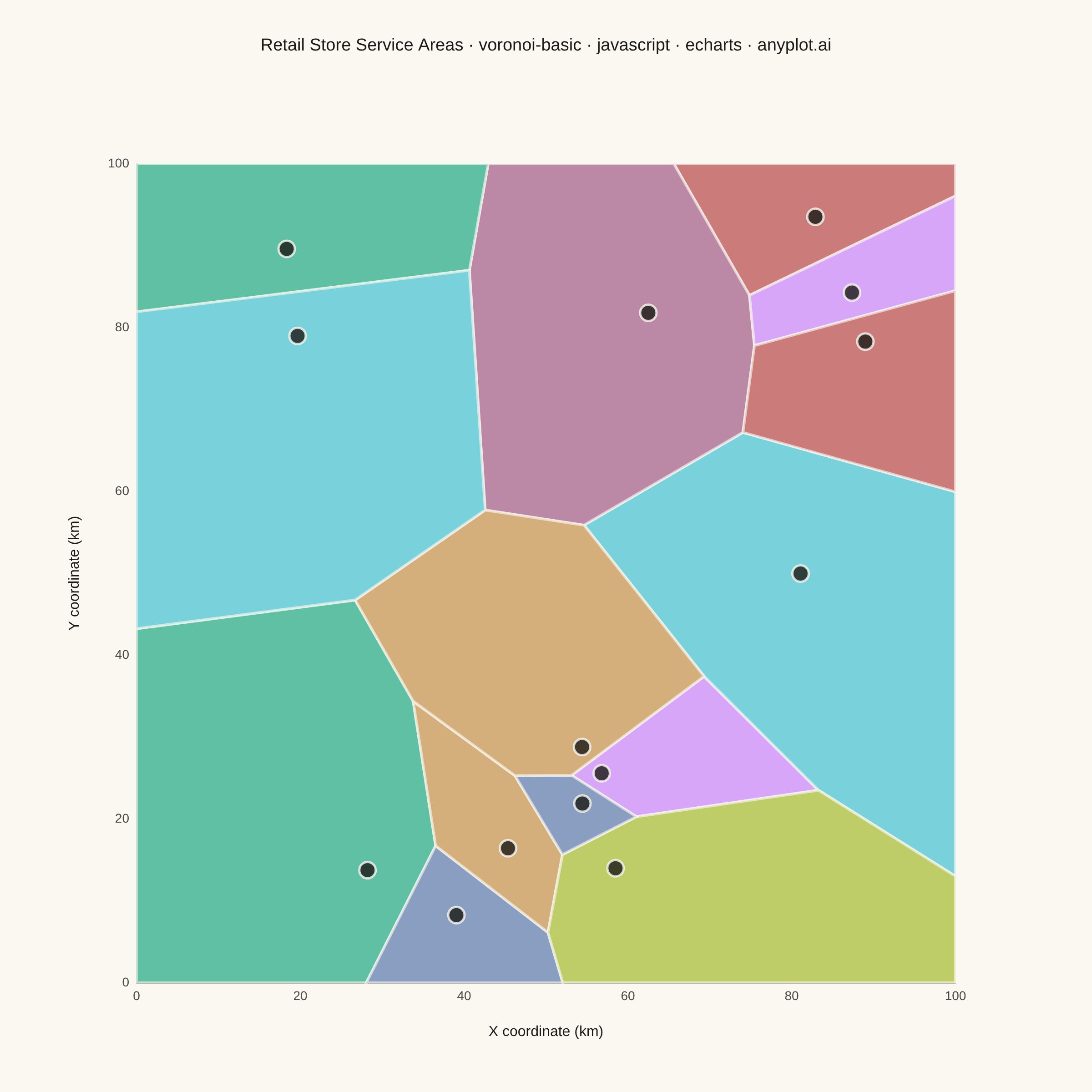

const title = "Retail Store Service Areas · voronoi-basic · javascript · echarts · anyplot.ai";
const titleFontSize = Math.max(15, Math.round(22 * Math.min(1, 67 / title.length)));
// --- Option -----------------------------------------------------------------
chart.setOption({
animation: false,
backgroundColor: "transparent",
title: {
text: title,
left: "center",
top: 36,
textStyle: { color: t.ink, fontSize: titleFontSize, fontWeight: 500 },
},
grid: { left: 150, right: 150, top: 180, bottom: 120 },
xAxis: {
type: "value",
min: 0,
max: DOMAIN,
name: "X coordinate (km)",
nameLocation: "middle",
nameGap: 46,
nameTextStyle: { color: t.ink, fontSize: 16 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false },
},
yAxis: {
type: "value",
min: 0,
max: DOMAIN,
name: "Y coordinate (km)",
nameLocation: "middle",
nameGap: 60,
nameTextStyle: { color: t.ink, fontSize: 16 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false },
},
series: [
{
type: "custom",
coordinateSystem: "cartesian2d",
silent: true,
z: 1,
renderItem: (params, api) => {
const cell = cells[params.dataIndex];
const points = cell.map((pt) => api.coord(pt));
return {
type: "polygon",
shape: { points },
style: {
fill: t.palette[params.dataIndex % t.palette.length],
opacity: 0.62,
stroke: t.pageBg,
lineWidth: 3,
},
};
},
data: stores.map((p) => [p.x, p.y]),
encode: { x: 0, y: 1 },
},
{
type: "scatter",
data: stores.map((p) => [p.x, p.y]),
symbolSize: 18,
itemStyle: { color: t.ink, borderColor: t.pageBg, borderWidth: 2.5 },
z: 3,
silent: true,
},
],
});
