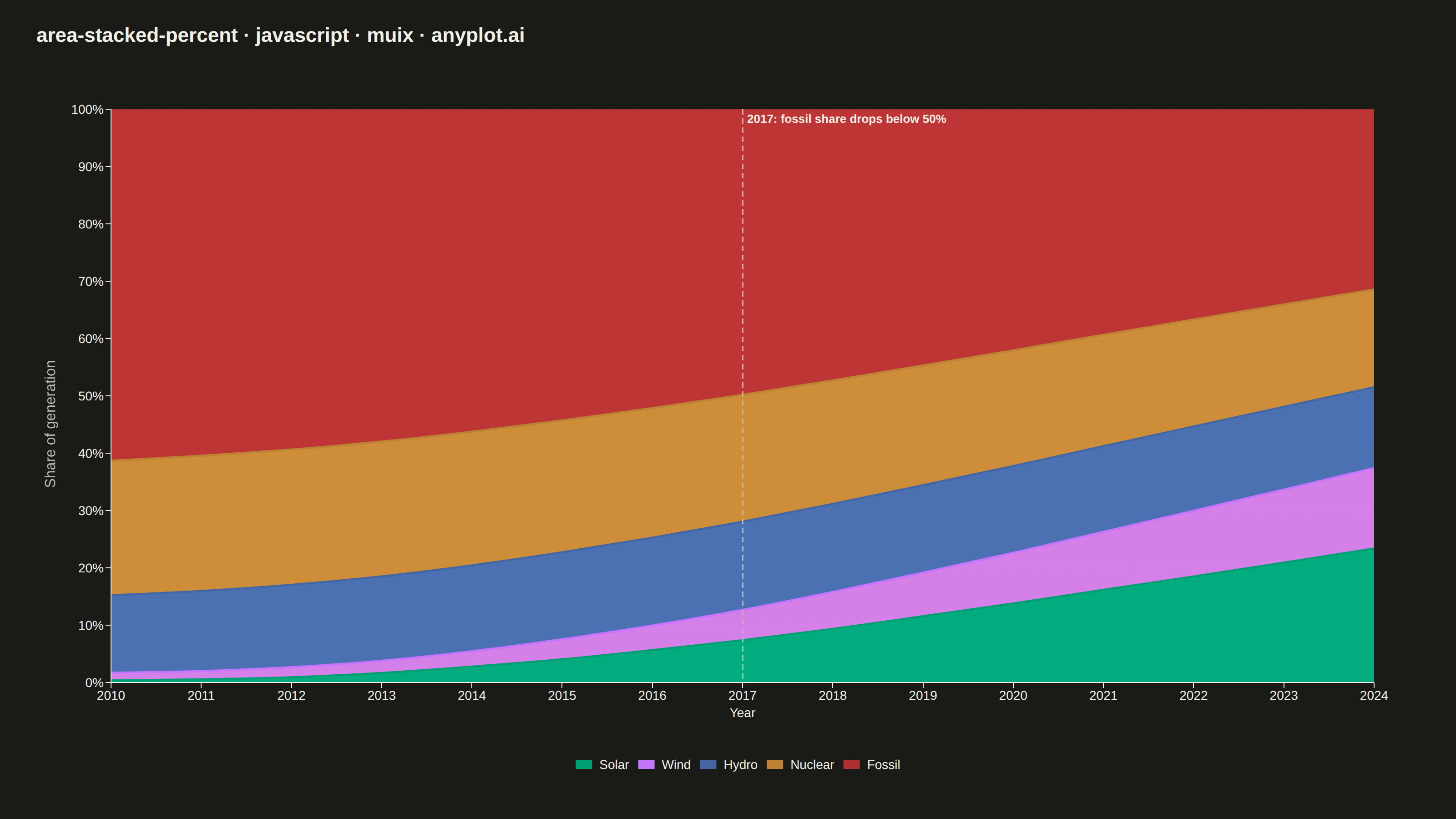

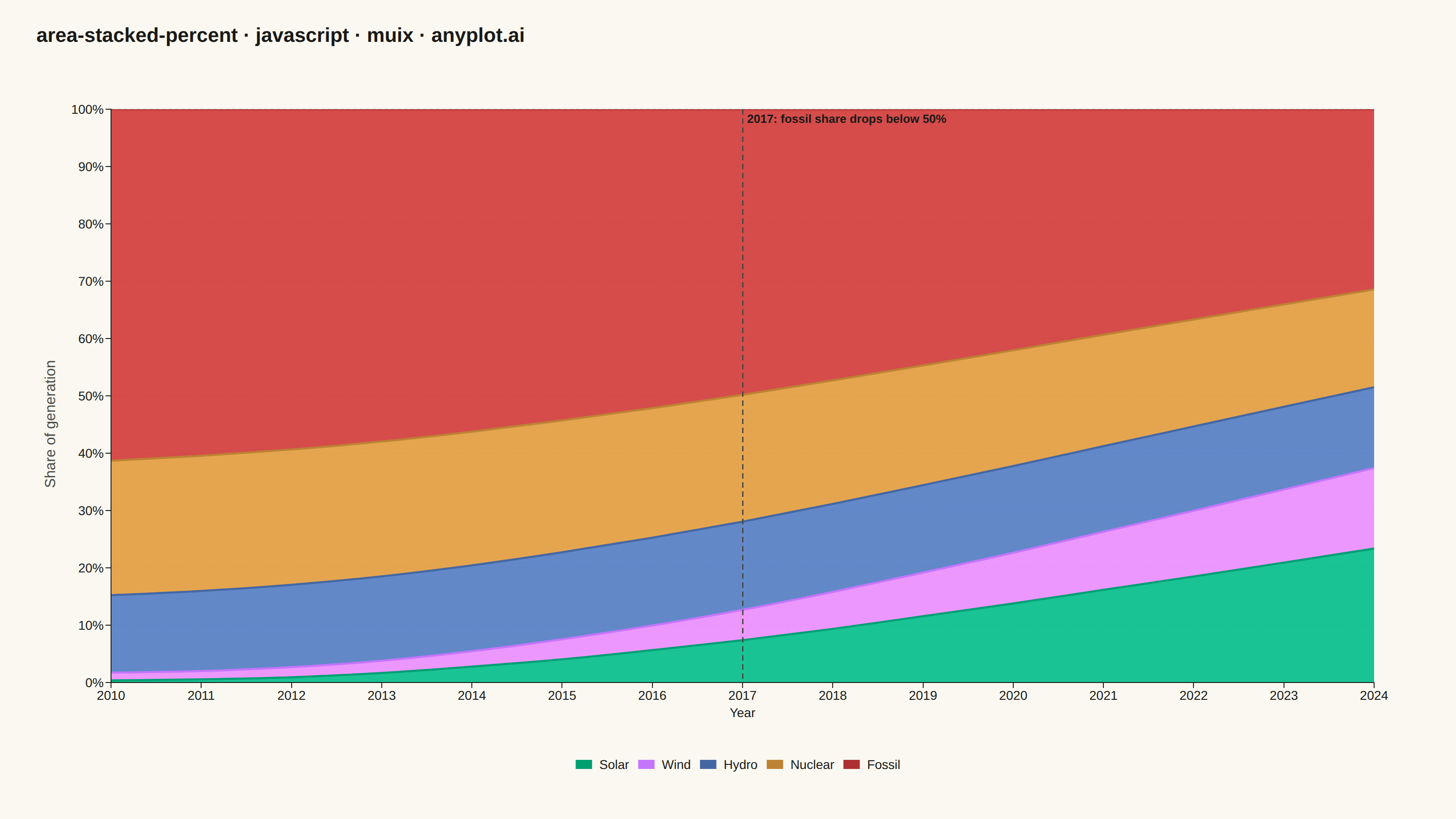

A stacked area chart normalized to 100%, where each area represents the percentage contribution of a category to the total. The combined height always equals 100%, showing proportional changes over time.
// anyplot.ai
// area-stacked-percent: 100% Stacked Area Chart
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 93/100 | Created: 2026-09-02
import { LineChart } from "@mui/x-charts/LineChart";
import { ChartsReferenceLine } from "@mui/x-charts/ChartsReferenceLine";
import { Box, Typography } from "@mui/material";
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Illustrative global electricity generation mix, 2010-2024 (TWh per source).
// Solar and wind grow quadratically (falling technology cost curve), hydro and
// nuclear stay roughly flat, fossil declines linearly — the energy-transition
// story the 100% stacking is meant to surface.
const YEARS = Array.from({ length: 15 }, (_, i) => 2010 + i);
const solarTWh = YEARS.map((_, i) => 4 + Math.round(i * i * 1.6));
const windTWh = YEARS.map((_, i) => 15 + Math.round(i * i * 0.9));
const hydroTWh = YEARS.map((_, i) => 150 + i * 3);
const nuclearTWh = YEARS.map((_, i) => 260 - i * 2);
const fossilTWh = YEARS.map((_, i) => 680 - i * 18);
const totalByYear = YEARS.map(
(_, i) => solarTWh[i] + windTWh[i] + hydroTWh[i] + nuclearTWh[i] + fossilTWh[i],
);
const shareValueFormatter = (value, { dataIndex }) =>
`${Math.round((value / totalByYear[dataIndex]) * 100)}% · ${value.toLocaleString()} TWh`;
// Milestone year where fossil drops below half the generation mix — the
// clearest single moment in the energy-transition story to call out.
const milestoneIndex = fossilTWh.findIndex((v, i) => v / totalByYear[i] < 0.5);
const milestoneYear = YEARS[milestoneIndex];
const TITLE = "area-stacked-percent · javascript · muix · anyplot.ai";
// --- Chart (default-exported component — the harness mounts it) ------------
export default function Chart() {
const size = window.ANYPLOT_SIZE;
const padding = { top: 28, right: 40, bottom: 24, left: 40 };
const titleBlockHeight = 56;
// Hand-rotated axis label in its own flex column avoids MUI X's y-axis
// `label` offset (tuned for a fixed guessed tick width) colliding with the
// 3-character percent tick labels.
const yLabelWidth = 32;
const chartWidth = size.width - padding.left - padding.right - yLabelWidth;
const chartHeight = size.height - padding.top - padding.bottom - titleBlockHeight;
return (
<Box
sx={{
width: size.width,
height: size.height,
boxSizing: "border-box",
padding: `${padding.top}px ${padding.right}px ${padding.bottom}px ${padding.left}px`,
display: "flex",
flexDirection: "column",
}}
>
<Typography sx={{ fontSize: 22, fontWeight: 600, color: "text.primary", mb: "20px", lineHeight: 1 }}>
{TITLE}
</Typography>
<Box sx={{ display: "flex", flexDirection: "row", height: chartHeight }}>
<Box sx={{ width: yLabelWidth, display: "flex", alignItems: "center", justifyContent: "center" }}>
<Typography
sx={{
fontSize: 16,
color: "text.secondary",
whiteSpace: "nowrap",
transform: "rotate(-90deg)",
}}
>
Share of generation
</Typography>
</Box>
<LineChart
width={chartWidth}
height={chartHeight}
skipAnimation
margin={{ bottom: 112 }}
series={[
{
id: "solar",
label: "Solar",
data: solarTWh,
stack: "mix",
stackOffset: "expand",
area: true,
showMark: false,
color: t.palette[0],
valueFormatter: shareValueFormatter,
},
{
id: "wind",
label: "Wind",
data: windTWh,
stack: "mix",
stackOffset: "expand",
area: true,
showMark: false,
color: t.palette[1],
valueFormatter: shareValueFormatter,
},
{
id: "hydro",
label: "Hydro",
data: hydroTWh,
stack: "mix",
stackOffset: "expand",
area: true,
showMark: false,
color: t.palette[2],
valueFormatter: shareValueFormatter,
},
{
id: "nuclear",
label: "Nuclear",
data: nuclearTWh,
stack: "mix",
stackOffset: "expand",
area: true,
showMark: false,
color: t.palette[3],
valueFormatter: shareValueFormatter,
},
{
id: "fossil",
label: "Fossil",
data: fossilTWh,
stack: "mix",
stackOffset: "expand",
area: true,
showMark: false,
color: t.palette[4],
valueFormatter: shareValueFormatter,
},
]}
xAxis={[
{
data: YEARS,
scaleType: "point",
label: "Year",
valueFormatter: (year) => `${year}`,
tickLabelStyle: { fontSize: 14 },
labelStyle: { fontSize: 14 },
},
]}
yAxis={[
{
min: 0,
max: 1,
valueFormatter: (value) => `${Math.round(value * 100)}%`,
tickLabelStyle: { fontSize: 14 },
},
]}
grid={{ horizontal: true }}
slotProps={{
legend: {
direction: "row",
position: { vertical: "bottom", horizontal: "center" },
labelStyle: { fontSize: 14 },
itemMarkWidth: 18,
itemMarkHeight: 10,
markGap: 8,
},
}}
sx={{
"& .MuiLineElement-root": { strokeWidth: 2.25 },
"& .MuiAreaElement-root": { fillOpacity: 0.9 },
"& .MuiChartsGrid-line": { strokeDasharray: "4 3" },
}}
>
<ChartsReferenceLine
x={milestoneYear}
label={`${milestoneYear}: fossil share drops below 50%`}
labelAlign="start"
lineStyle={{ stroke: t.inkSoft, strokeWidth: 1.5, strokeDasharray: "6 4" }}
labelStyle={{ fontSize: 13, fontWeight: 600, fill: t.ink }}
/>
</LineChart>
</Box>
</Box>
);
}
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/area-stacked-percent/muix/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "area-stacked-percent",
"language": "javascript",
"library": "muix",
"page": "https://anyplot.ai/area-stacked-percent/javascript/muix",
"hub": "https://anyplot.ai/area-stacked-percent",
"code_json": "https://api.anyplot.ai/specs/area-stacked-percent/muix/code",
"spec_json": "https://api.anyplot.ai/specs/area-stacked-percent",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/area-stacked-percent/javascript/muix/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/area-stacked-percent/javascript/muix/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/area-stacked-percent/javascript/muix/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/area-stacked-percent/javascript/muix/plot-dark.html",
"quality_score": 93.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of 100% Stacked Area Chart on anyplot.ai.
