Basic Bar Chart — Apache ECharts

A vertical bar chart that displays categorical data with rectangular bars whose heights are proportional to the values they represent. This fundamental visualization is ideal for comparing discrete categories and identifying which categories have the highest or lowest values. Bar charts excel at showing rankings, distributions across categories, and making relative comparisons intuitive.

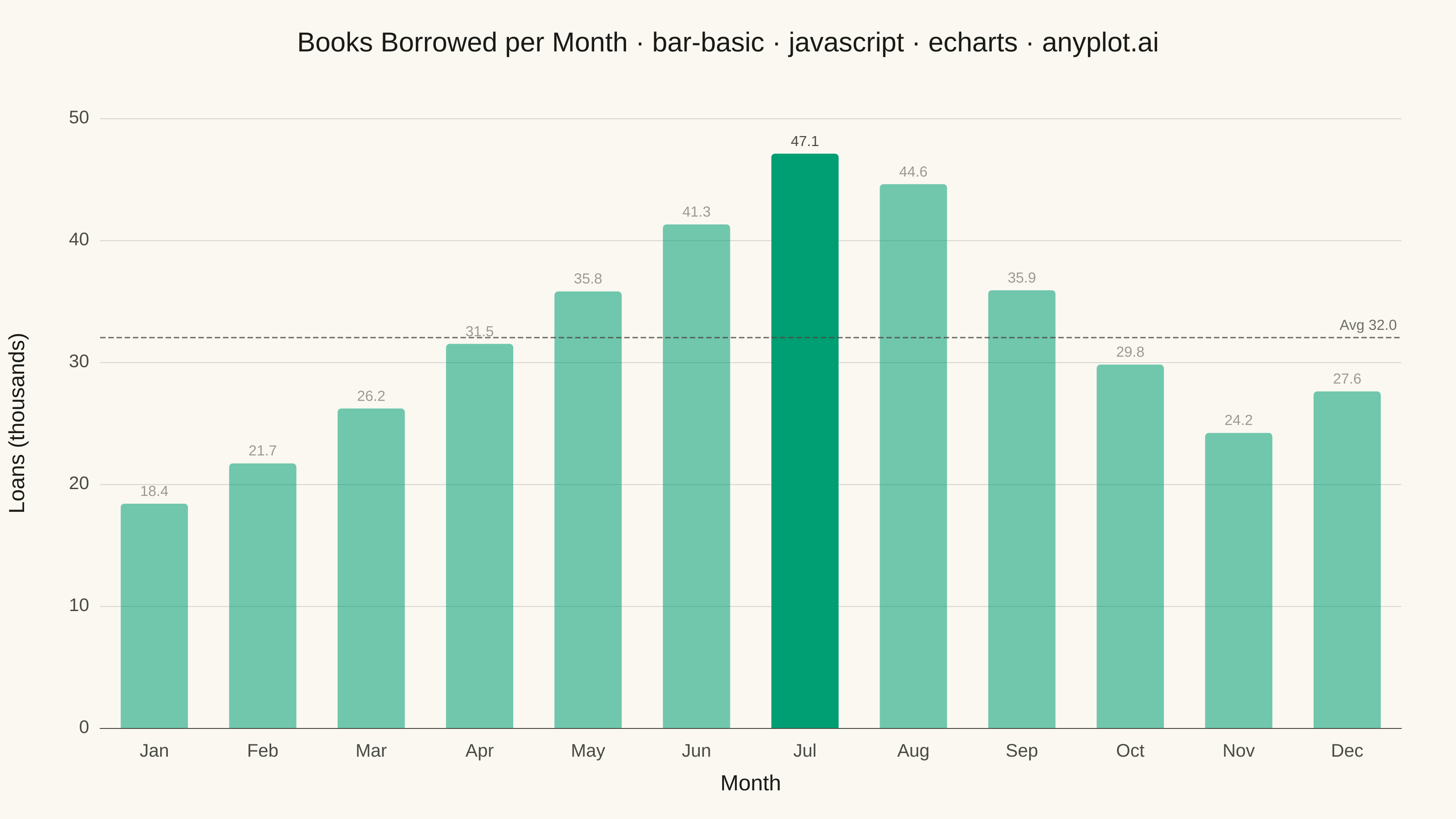

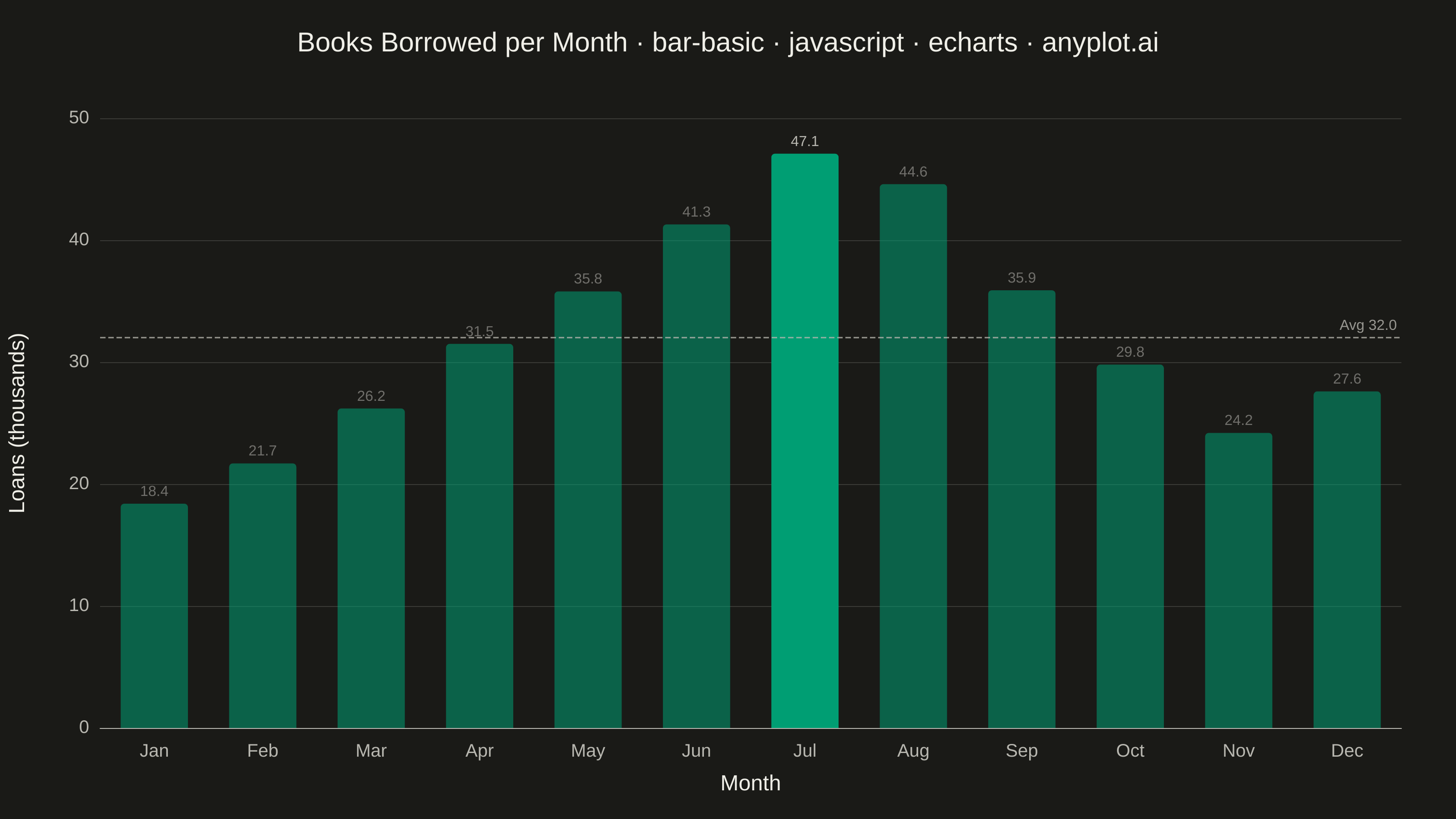

Basic Bar Chart rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// bar-basic: Basic Bar Chart
// Library: echarts 5.5.1 | JavaScript 22.22.3
// Quality: 93/100 | Created: 2026-06-02
//# anyplot-orientation: landscape

const t = window.ANYPLOT_TOKENS;

// Data — monthly book loans at a city library (thousands)
const months = ["Jan", "Feb", "Mar", "Apr", "May", "Jun",
                "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"];
const loans  = [18.4, 21.7, 26.2, 31.5, 35.8, 41.3,
                47.1, 44.6, 35.9, 29.8, 24.2, 27.6];

// Highlight the seasonal peak; fade the rest for hierarchy
const peakIdx = loans.indexOf(Math.max(...loans));
const bars = loans.map((v, i) => ({
  value: v,
  itemStyle: {
    color: t.palette[0],
    opacity: i === peakIdx ? 1 : 0.55,
    borderRadius: [4, 4, 0, 0],
  },
}));

// Init
const chart = echarts.init(document.getElementById("container"));

// Option
chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",
  title: {
    text: "Books Borrowed per Month · bar-basic · javascript · echarts · anyplot.ai",
    left: "center",
    top: 28,
    textStyle: { color: t.ink, fontSize: 30, fontWeight: 500 },
  },
  grid: { left: 110, right: 60, top: 130, bottom: 100, containLabel: false },
  xAxis: {
    type: "category",
    data: months,
    name: "Month",
    nameLocation: "middle",
    nameGap: 50,
    nameTextStyle: { color: t.ink, fontSize: 24 },
    axisLabel: { color: t.inkSoft, fontSize: 20, margin: 16 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { show: false },
    splitLine: { show: false },
  },
  yAxis: {
    type: "value",
    name: "Loans (thousands)",
    nameLocation: "middle",
    nameGap: 78,
    nameTextStyle: { color: t.ink, fontSize: 24 },
    axisLabel: { color: t.inkSoft, fontSize: 20, margin: 12 },
    axisLine: { show: false },
    axisTick: { show: false },
    splitLine: { lineStyle: { color: t.grid, width: 1 } },
  },
  series: [{
    type: "bar",
    data: bars,
    barWidth: "62%",
    label: {
      show: true,
      position: "top",
      color: t.inkSoft,
      fontSize: 16,
      formatter: (p) => p.value.toFixed(1),
    },
    markLine: {
      silent: true,
      symbol: "none",
      data: [{ type: "average", name: "Avg" }],
      lineStyle: { color: t.inkSoft, type: "dashed", width: 1.5, opacity: 0.8 },
      label: {
        color: t.inkSoft,
        fontSize: 16,
        position: "insideEndTop",
        formatter: (p) => `Avg ${p.value.toFixed(1)}`,
      },
    },
  }],
});

window.addEventListener("resize", () => chart.resize());
chart.on("finished", () => { window.__anyplotReady = true; });

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/bar-basic/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "bar-basic",
  "language": "javascript",
  "library": "echarts",
  "page": "https://anyplot.ai/bar-basic/javascript/echarts",
  "hub": "https://anyplot.ai/bar-basic",
  "code_json": "https://api.anyplot.ai/specs/bar-basic/echarts/code",
  "spec_json": "https://api.anyplot.ai/specs/bar-basic",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/bar-basic/javascript/echarts/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/bar-basic/javascript/echarts/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/bar-basic/javascript/echarts/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/bar-basic/javascript/echarts/plot-dark.html",
  "quality_score": 93.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Basic Bar Chart on anyplot.ai.
