Basic Bar Chart — Plotly

A vertical bar chart that displays categorical data with rectangular bars whose heights are proportional to the values they represent. This fundamental visualization is ideal for comparing discrete categories and identifying which categories have the highest or lowest values. Bar charts excel at showing rankings, distributions across categories, and making relative comparisons intuitive.

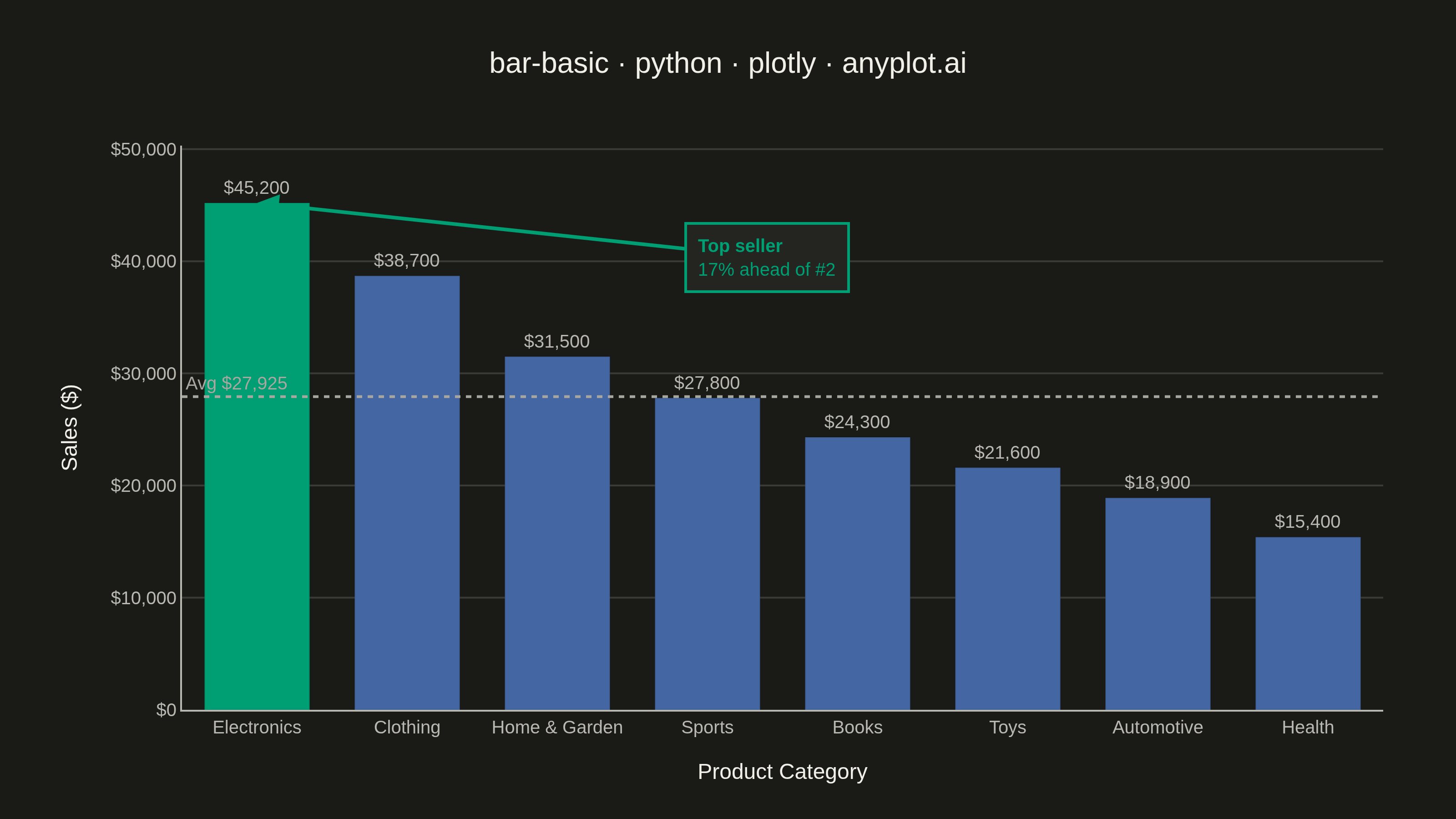

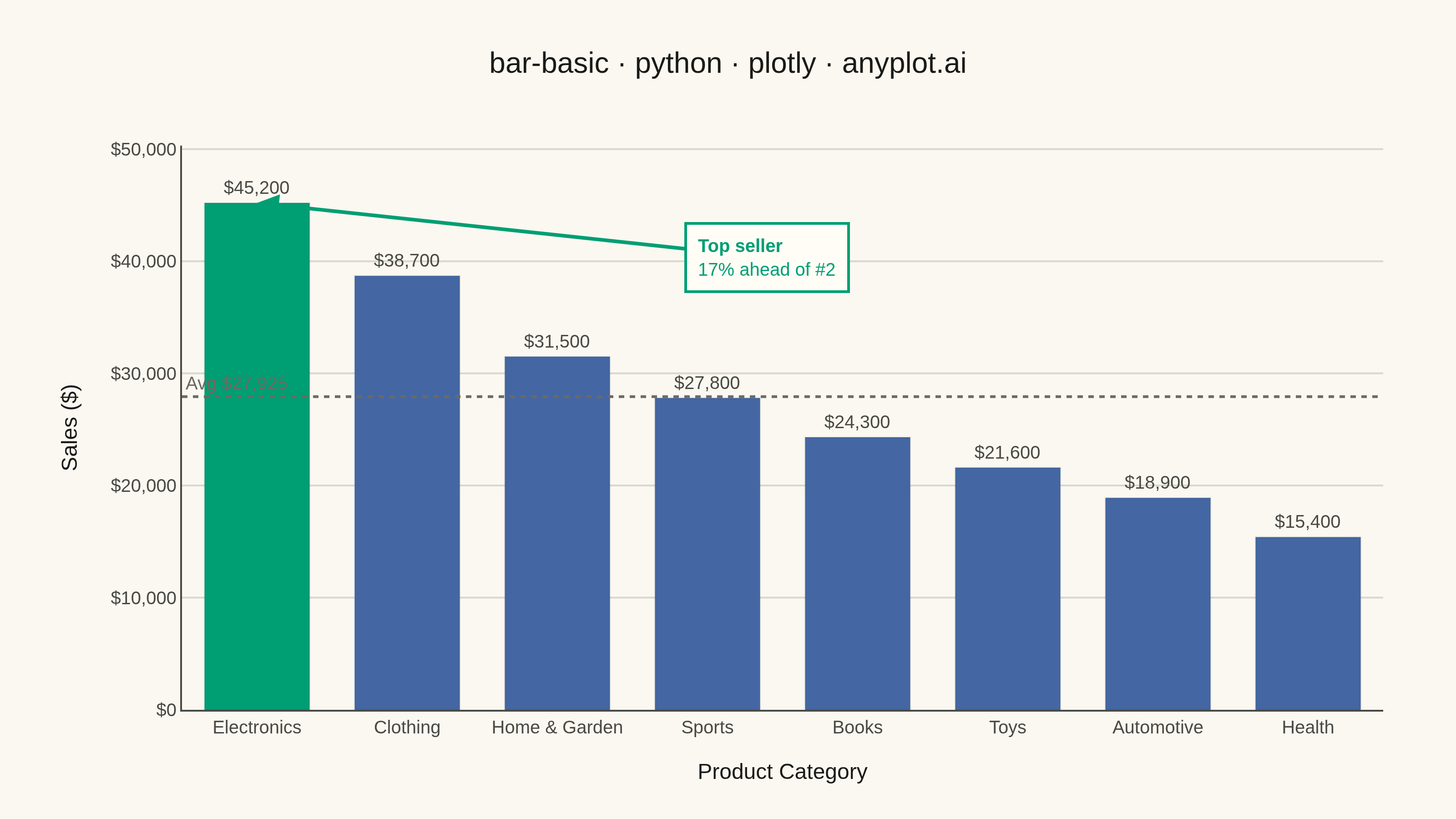

Basic Bar Chart rendered with Plotly

Python source (Plotly)

""" anyplot.ai
bar-basic: Basic Bar Chart
Library: plotly 6.7.0 | Python 3.13.13
Quality: 90/100 | Created: 2026-05-28
"""

import os
import sys


# Prevent self-import: remove this script's own directory from sys.path so that
# "import plotly" resolves to the installed package, not this file.
_here = os.path.dirname(os.path.abspath(__file__))
sys.path = [p for p in sys.path if os.path.abspath(p) != _here]

import plotly.graph_objects as go


THEME = os.getenv("ANYPLOT_THEME", "light")

PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
GRID = "rgba(26,26,23,0.15)" if THEME == "light" else "rgba(240,239,232,0.15)"

# Imprint palette: brand green for top performer, blue for rest
BRAND = "#009E73"
BASE = "#4467A3"

# Data — product sales by department, sorted descending
categories = ["Electronics", "Clothing", "Home & Garden", "Sports", "Books", "Toys", "Automotive", "Health"]
values = [45200, 38700, 31500, 27800, 24300, 21600, 18900, 15400]

bar_colors = [BRAND] + [BASE] * (len(categories) - 1)

fig = go.Figure()

fig.add_trace(
    go.Bar(
        x=categories,
        y=values,
        marker={"color": bar_colors, "line": {"color": "rgba(0,0,0,0.06)", "width": 1}},
        text=values,
        textposition="outside",
        texttemplate="$%{text:,.0f}",
        textfont={"size": 10, "color": INK_SOFT},
        hovertemplate="<b>%{x}</b><br>Sales: $%{y:,.0f}<extra></extra>",
    )
)

# Annotation: arrow from Electronics bar top sweeps right to a callout in clear whitespace;
# the shallow diagonal passes above all shorter bars, avoiding the Clothing value label
fig.add_annotation(
    x="Electronics",
    y=45200,
    text="<b>Top seller</b><br>17% ahead of #2",
    showarrow=True,
    arrowhead=2,
    arrowsize=1.2,
    arrowwidth=2,
    arrowcolor=BRAND,
    ax=280,
    ay=30,
    font={"size": 10, "color": BRAND},
    align="left",
    bordercolor=BRAND,
    borderwidth=1.5,
    borderpad=6,
    bgcolor=ELEVATED_BG,
)

avg_value = sum(values) / len(values)
fig.add_hline(
    y=avg_value,
    line={"color": INK_MUTED, "width": 1.5, "dash": "dot"},
    annotation_text=f"Avg ${avg_value:,.0f}",
    annotation_font_size=10,
    annotation_font_color=INK_MUTED,
    annotation_position="top left",
)

fig.update_layout(
    autosize=False,
    title={
        "text": "bar-basic · python · plotly · anyplot.ai",
        "font": {"size": 16, "color": INK},
        "x": 0.5,
        "xanchor": "center",
    },
    xaxis={
        "title": {"text": "Product Category", "font": {"size": 12, "color": INK}},
        "tickfont": {"size": 10, "color": INK_SOFT},
        "linecolor": INK_SOFT,
        "showgrid": False,
    },
    yaxis={
        "title": {"text": "Sales ($)", "font": {"size": 12, "color": INK}},
        "tickfont": {"size": 10, "color": INK_SOFT},
        "tickprefix": "$",
        "tickformat": ",.0f",
        "gridcolor": GRID,
        "linecolor": INK_SOFT,
        "zeroline": False,
    },
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    font={"color": INK},
    template="plotly_white",
    bargap=0.3,
    margin={"t": 80, "b": 60, "l": 100, "r": 40},
    showlegend=False,
)

fig.write_image(f"plot-{THEME}.png", width=800, height=450, scale=4)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of Basic Bar Chart on anyplot.ai.
