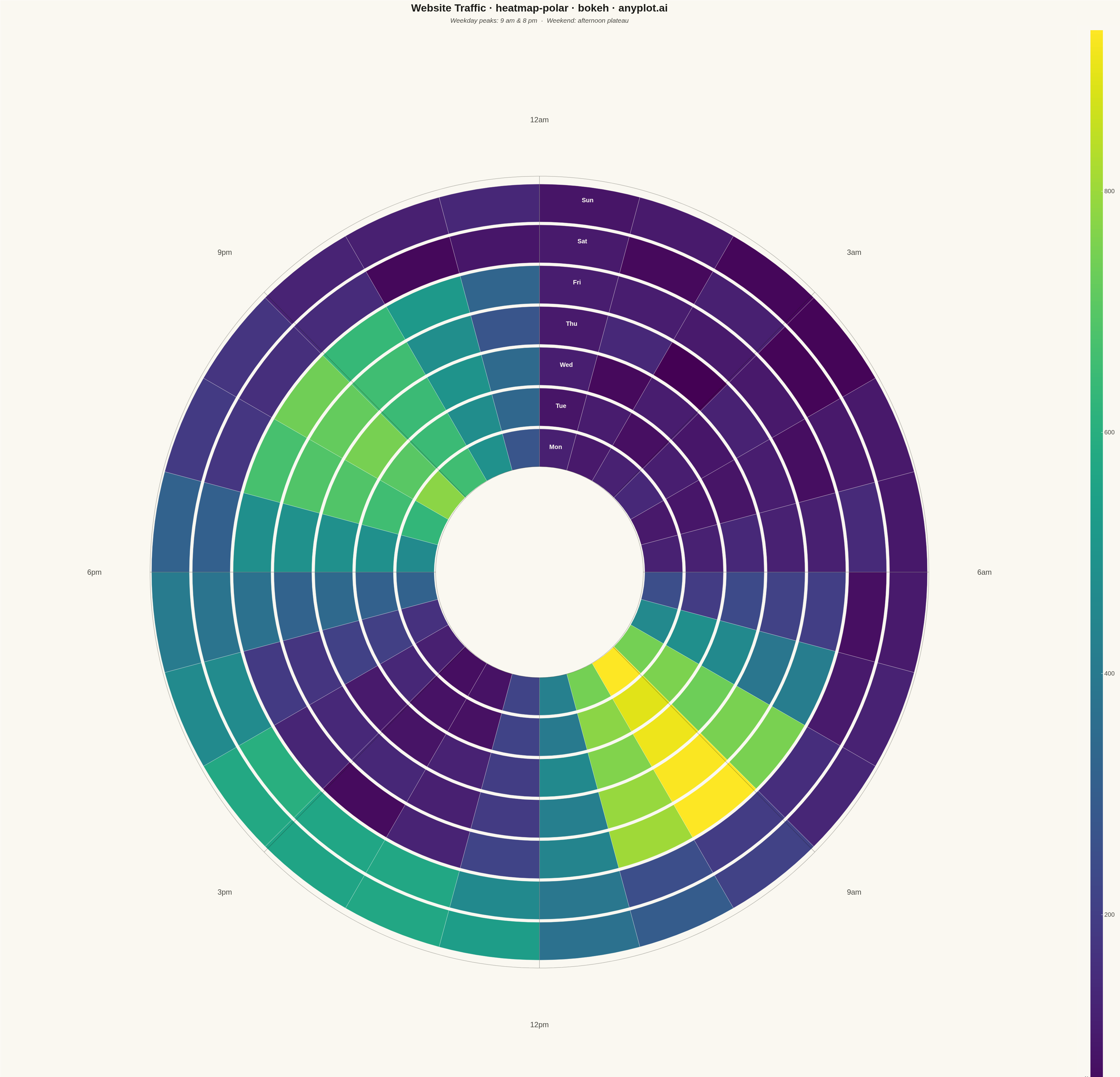

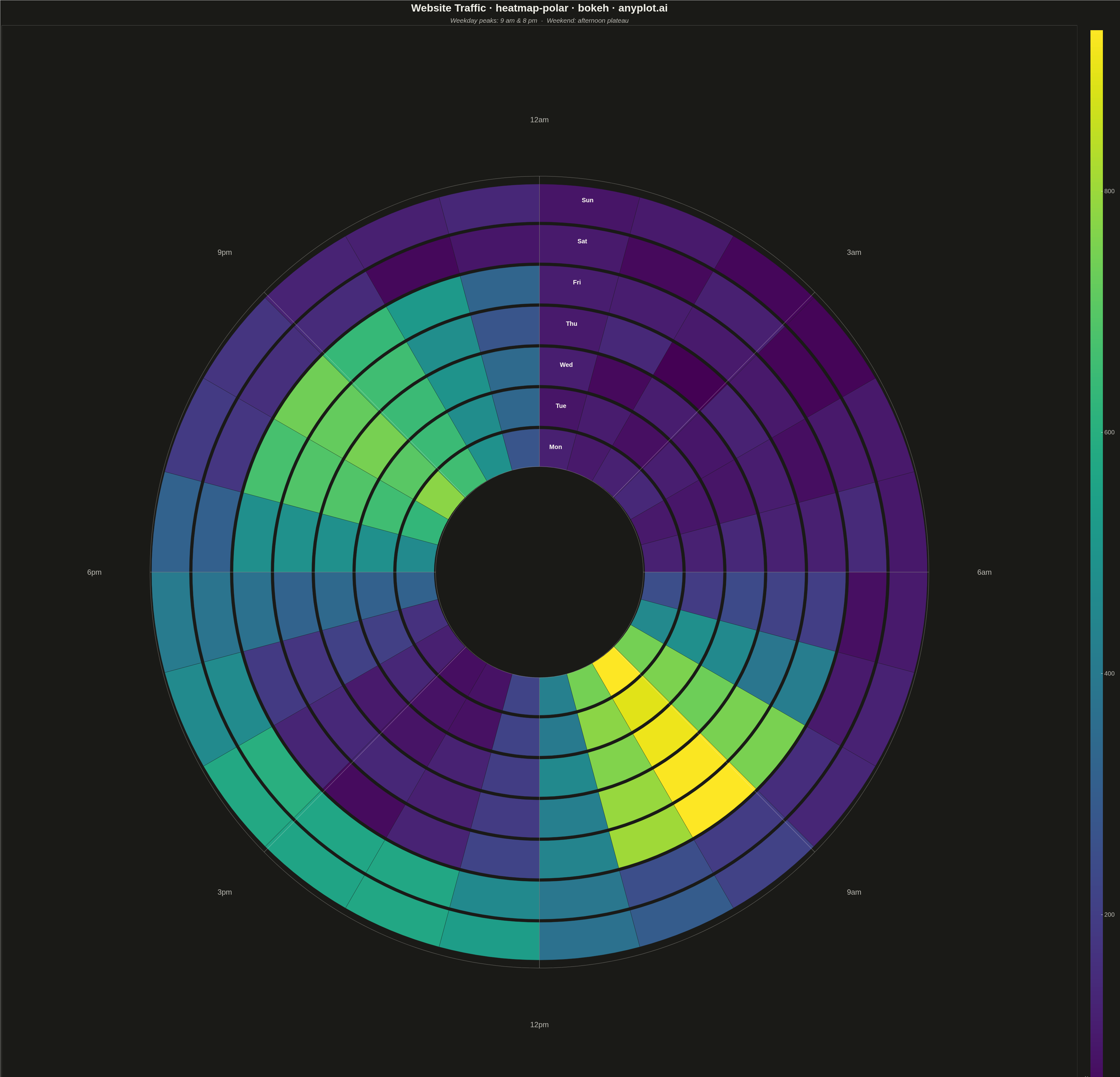

A heatmap wrapped around a circle where the angular axis represents a cyclic variable (e.g., hour of day, month) and the radial axis represents a second categorical or ordinal variable (e.g., day of week, year). Cell color encodes the measured value. This visualization reveals patterns in data with inherent cyclical structure that rectangular heatmaps distort, since the first and last angular bins are visually adjacent rather than separated at opposite ends of a row.
""" anyplot.ai
heatmap-polar: Polar Heatmap for Cyclic Two-Dimensional Data
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 84/100 | Created: 2026-05-13
"""
import os
import time
from pathlib import Path
import numpy as np
from bokeh.io import output_file, save
from bokeh.models import ColorBar, ColumnDataSource, Label, LinearColorMapper
from bokeh.palettes import Viridis256
from bokeh.plotting import figure
from bokeh.transform import transform as bk_transform
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Data: hourly website visits by day of week
np.random.seed(42)
n_hours = 24
n_days = 7
days = ["Mon", "Tue", "Wed", "Thu", "Fri", "Sat", "Sun"]
traffic = np.zeros((n_days, n_hours))
for d in range(n_days):
for h in range(n_hours):
if d < 5:
morning = 820 * np.exp(-0.5 * ((h - 9) / 1.5) ** 2)
evening = 640 * np.exp(-0.5 * ((h - 20) / 2.0) ** 2)
traffic[d, h] = 100 + morning + evening
else:
afternoon = 510 * np.exp(-0.5 * ((h - 14) / 3.0) ** 2)
traffic[d, h] = 80 + afternoon
traffic[d, h] += np.random.normal(0, 25)
traffic[d, h] = max(20, traffic[d, h])
# Build polar heatmap segments
min_r = 0.28
max_r = 1.05
ring_width = (max_r - min_r) / n_days
inner_radii, outer_radii, start_angles, end_angles, cell_values = [], [], [], [], []
for d in range(n_days):
ir = min_r + d * ring_width + 0.004
or_ = min_r + (d + 1) * ring_width - 0.004
for h in range(n_hours):
sa = np.pi / 2 - 2 * np.pi * h / n_hours
ea = np.pi / 2 - 2 * np.pi * (h + 1) / n_hours
inner_radii.append(ir)
outer_radii.append(or_)
start_angles.append(sa)
end_angles.append(ea)
cell_values.append(traffic[d, h])
source = ColumnDataSource(
data={
"inner_radius": inner_radii,
"outer_radius": outer_radii,
"start_angle": start_angles,
"end_angle": end_angles,
"value": cell_values,
}
)
color_mapper = LinearColorMapper(palette=Viridis256, low=min(cell_values), high=max(cell_values))
# Plot
W, H = 3600, 3600
p = figure(
width=W,
height=H,
x_range=(-1.42, 1.42),
y_range=(-1.42, 1.42),
title="Website Traffic · heatmap-polar · bokeh · anyplot.ai",
toolbar_location=None,
)
p.annular_wedge(
x=0,
y=0,
inner_radius="inner_radius",
outer_radius="outer_radius",
start_angle="start_angle",
end_angle="end_angle",
direction="clock",
fill_color=bk_transform("value", color_mapper),
line_color=PAGE_BG,
line_width=0.6,
source=source,
)
# Spoke lines at major hour boundaries (every 3 hours)
for h in range(0, 24, 3):
angle = np.pi / 2 - 2 * np.pi * h / n_hours
cx, cy = np.cos(angle), np.sin(angle)
p.segment(
x0=[min_r * cx],
y0=[min_r * cy],
x1=[max_r * cx],
y1=[max_r * cy],
line_color=PAGE_BG,
line_width=1.5,
line_alpha=0.7,
)
# Hour labels (every 3 hours, clock layout: midnight top, 6am right, noon bottom, 6pm left)
for h in range(0, 24, 3):
angle = np.pi / 2 - 2 * np.pi * h / n_hours
lx = 1.20 * np.cos(angle)
ly = 1.20 * np.sin(angle)
hour_12 = h % 12 or 12
suffix = "am" if h < 12 else "pm"
p.add_layout(
Label(
x=lx,
y=ly,
text=f"{hour_12}{suffix}",
text_align="center",
text_baseline="middle",
text_font_size="24px",
text_color=INK_SOFT,
)
)
# Day labels placed at the centroid of the midnight cell for each ring
cell_angle = np.pi / 2 - np.pi / n_hours # centre of hour-0 wedge (7.5° from top)
for d, day in enumerate(days):
mid_r = min_r + d * ring_width + ring_width / 2
lx = mid_r * np.cos(cell_angle)
ly = mid_r * np.sin(cell_angle)
p.add_layout(
Label(
x=lx,
y=ly,
text=day,
text_align="center",
text_baseline="middle",
text_font_size="20px",
text_color="white",
text_font_style="bold",
)
)
# Colorbar
color_bar = ColorBar(
color_mapper=color_mapper,
width=40,
padding=15,
location=(0, 0),
title="Hourly Visits",
title_text_font_size="22px",
title_text_color=INK,
major_label_text_font_size="20px",
major_label_text_color=INK_SOFT,
background_fill_color=PAGE_BG,
)
p.add_layout(color_bar, "right")
# Chrome
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = None
p.title.text_font_size = "28px"
p.title.text_color = INK
p.title.text_font_style = "normal"
p.title.align = "center"
p.xaxis.visible = False
p.yaxis.visible = False
p.xgrid.grid_line_color = None
p.ygrid.grid_line_color = None
# Save HTML
output_file(f"plot-{THEME}.html")
save(p)
# Screenshot with headless Chrome via Selenium
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
Part of Polar Heatmap for Cyclic Two-Dimensional Data on anyplot.ai.
