Polar Heatmap for Cyclic Two-Dimensional Data — Matplotlib

A heatmap wrapped around a circle where the angular axis represents a cyclic variable (e.g., hour of day, month) and the radial axis represents a second categorical or ordinal variable (e.g., day of week, year). Cell color encodes the measured value. This visualization reveals patterns in data with inherent cyclical structure that rectangular heatmaps distort, since the first and last angular bins are visually adjacent rather than separated at opposite ends of a row.

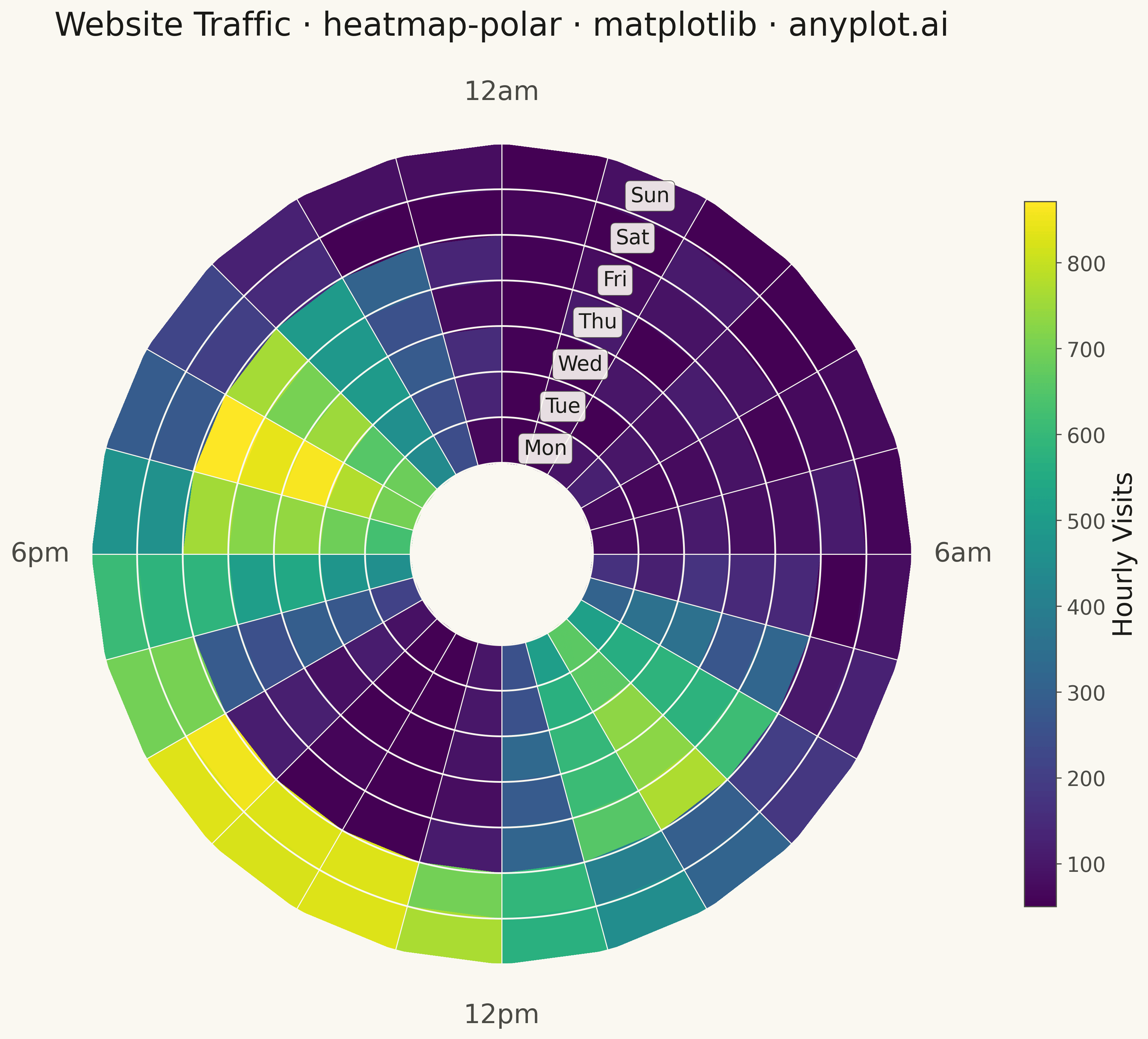

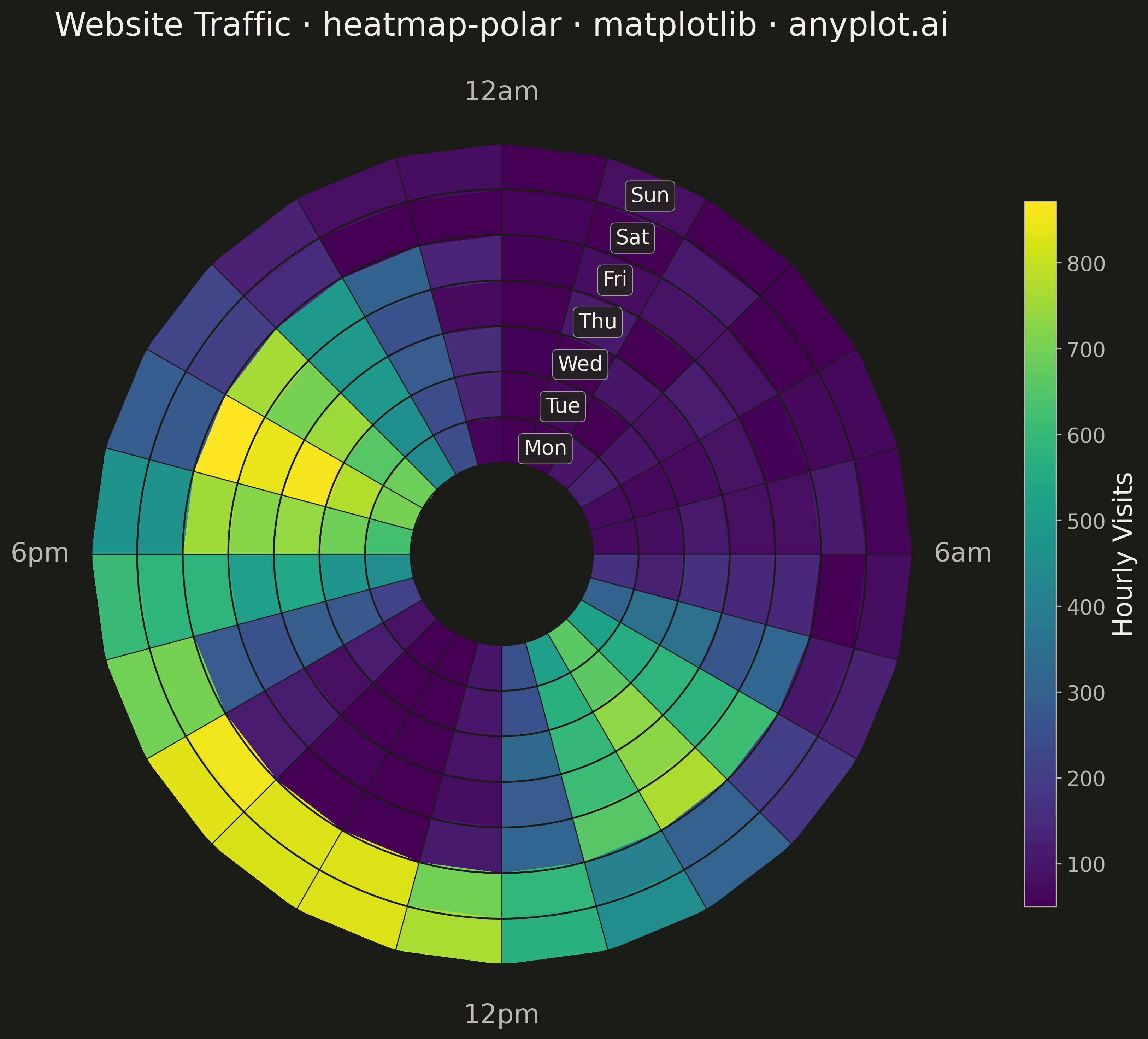

Polar Heatmap for Cyclic Two-Dimensional Data rendered with Matplotlib

Renders

Python source (Matplotlib)

""" anyplot.ai
heatmap-polar: Polar Heatmap for Cyclic Two-Dimensional Data
Library: matplotlib 3.10.9 | Python 3.13.13
Quality: 90/100 | Created: 2026-05-13
"""

import os
import sys


sys.path.pop(0)  # prevent shadowing the matplotlib library with this file

import matplotlib.pyplot as plt
import numpy as np


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"

# Data — hourly website visits by day of week
np.random.seed(42)
days = ["Mon", "Tue", "Wed", "Thu", "Fri", "Sat", "Sun"]
n_days = 7
n_hours = 24
h = np.arange(n_hours, dtype=float)

# Weekday pattern: morning surge (9am) + evening surge (7pm) + late-night tail
wd_factors = [0.92, 0.98, 1.05, 1.02, 1.08]
traffic = np.zeros((n_days, n_hours))
for i in range(5):
    f = wd_factors[i]
    base = (
        700 * np.exp(-0.5 * ((h - 9) / 1.5) ** 2)
        + 800 * np.exp(-0.5 * ((h - 19) / 2.0) ** 2)
        + 90 * np.exp(-0.5 * ((h - 3) / 2.5) ** 2)
    )
    traffic[i] = np.maximum(50, base * f + np.random.normal(0, 25, n_hours))

# Weekend pattern: broad afternoon peak (2pm), quieter mornings
for i in range(5, 7):
    base = 850 * np.exp(-0.5 * ((h - 14) / 3.5) ** 2) + 70 * np.exp(-0.5 * ((h - 2) / 2.0) ** 2)
    traffic[i] = np.maximum(50, base + np.random.normal(0, 25, n_hours))

# Plot
fig = plt.figure(figsize=(12, 12), facecolor=PAGE_BG)
ax = fig.add_subplot(111, projection="polar")
ax.set_facecolor(PAGE_BG)

# Clock orientation: midnight at top, hours run clockwise
ax.set_theta_zero_location("N")
ax.set_theta_direction(-1)

r_inner, r_outer = 2.0, 9.0
theta_edges = np.linspace(0, 2 * np.pi, n_hours + 1)  # 25 edges for 24 hour cells
r_edges = np.linspace(r_inner, r_outer, n_days + 1)  # 8 edges for 7 day rings
r_centers = (r_edges[:-1] + r_edges[1:]) / 2

mesh = ax.pcolormesh(theta_edges, r_edges, traffic, cmap="viridis", shading="flat")

# Cell borders — background-colored lines separate angular and radial cells
circle_theta = np.linspace(0, 2 * np.pi, 300)
for r in r_edges:
    ax.plot(circle_theta, [r] * 300, color=PAGE_BG, linewidth=1.2, zorder=5)
for theta in theta_edges:
    ax.plot([theta, theta], [r_inner, r_outer], color=PAGE_BG, linewidth=0.7, zorder=5)

# Angular axis: label at clock quadrants only
ax.set_xticks([0, np.pi / 2, np.pi, 3 * np.pi / 2])
ax.set_xticklabels(["12am", "6am", "12pm", "6pm"], fontsize=18, color=INK_SOFT)
ax.tick_params(axis="x", pad=15, colors=INK_SOFT)

# Radial axis: day-of-week labels with background box for contrast against dark viridis cells
ax.set_yticks([])
ax.set_yticklabels([])
ax.set_ylim(0, r_outer + 0.3)
label_angle = 2 * np.pi * 1.5 / 24  # 1:30am clockwise from midnight
for r, day in zip(r_centers, days, strict=False):
    ax.text(
        label_angle,
        r,
        day,
        ha="center",
        va="center",
        fontsize=14,
        color=INK,
        fontweight="medium",
        zorder=10,
        bbox={
            "facecolor": ELEVATED_BG,
            "edgecolor": INK_SOFT,
            "alpha": 0.88,
            "boxstyle": "round,pad=0.25",
            "linewidth": 0.5,
        },
    )

ax.grid(False)
ax.spines["polar"].set_visible(False)

# Title
ax.set_title(
    "Website Traffic · heatmap-polar · matplotlib · anyplot.ai", fontsize=22, fontweight="medium", color=INK, pad=30
)

# Colorbar
cbar = fig.colorbar(mesh, ax=ax, fraction=0.04, pad=0.1, shrink=0.72, aspect=22)
cbar.set_label("Hourly Visits", fontsize=18, color=INK)
cbar.ax.tick_params(labelsize=14, labelcolor=INK_SOFT, color=INK_SOFT)
cbar.outline.set_edgecolor(INK_SOFT)

# Save
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Part of Polar Heatmap for Cyclic Two-Dimensional Data on anyplot.ai.
