Polar Heatmap for Cyclic Two-Dimensional Data — lets-plot

A heatmap wrapped around a circle where the angular axis represents a cyclic variable (e.g., hour of day, month) and the radial axis represents a second categorical or ordinal variable (e.g., day of week, year). Cell color encodes the measured value. This visualization reveals patterns in data with inherent cyclical structure that rectangular heatmaps distort, since the first and last angular bins are visually adjacent rather than separated at opposite ends of a row.

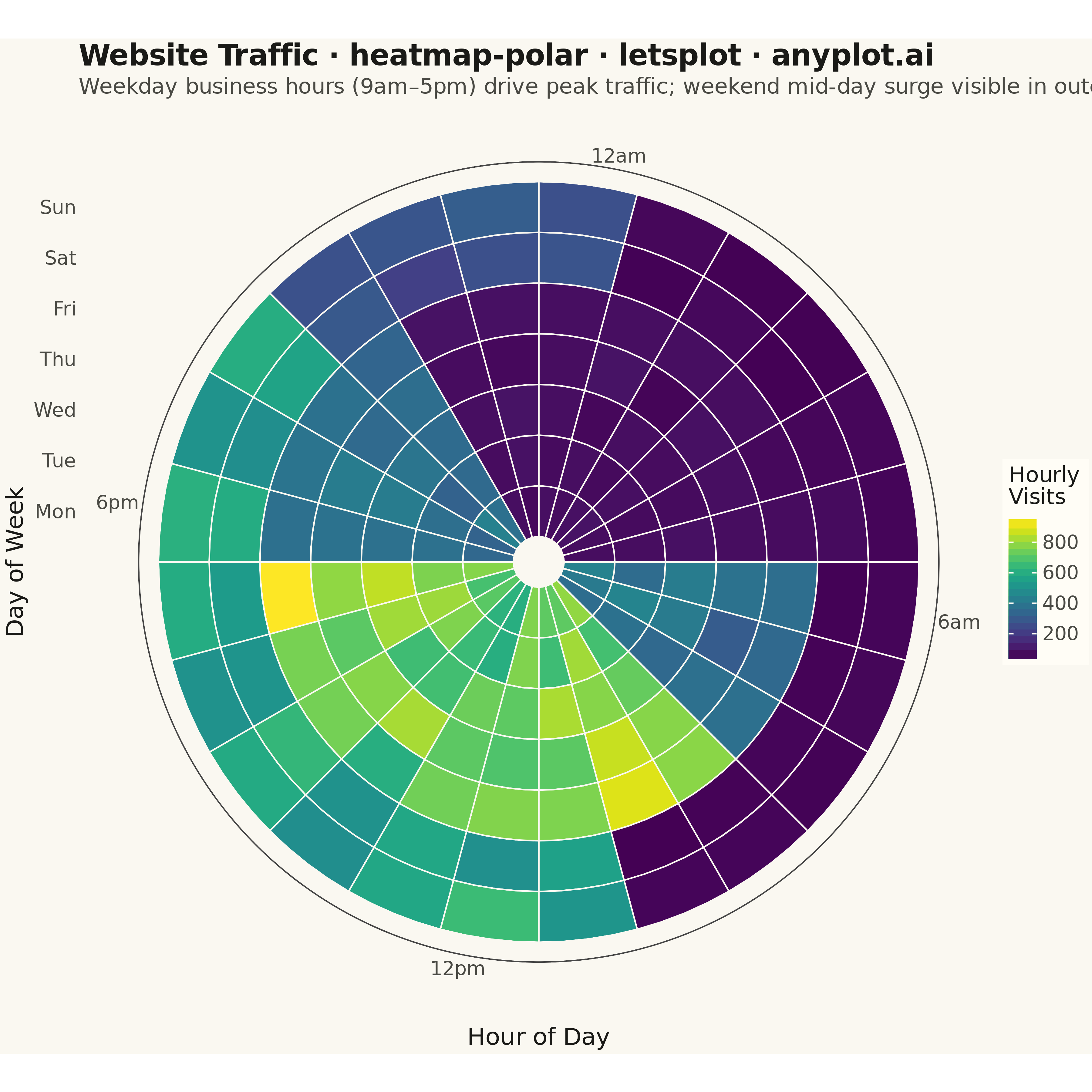

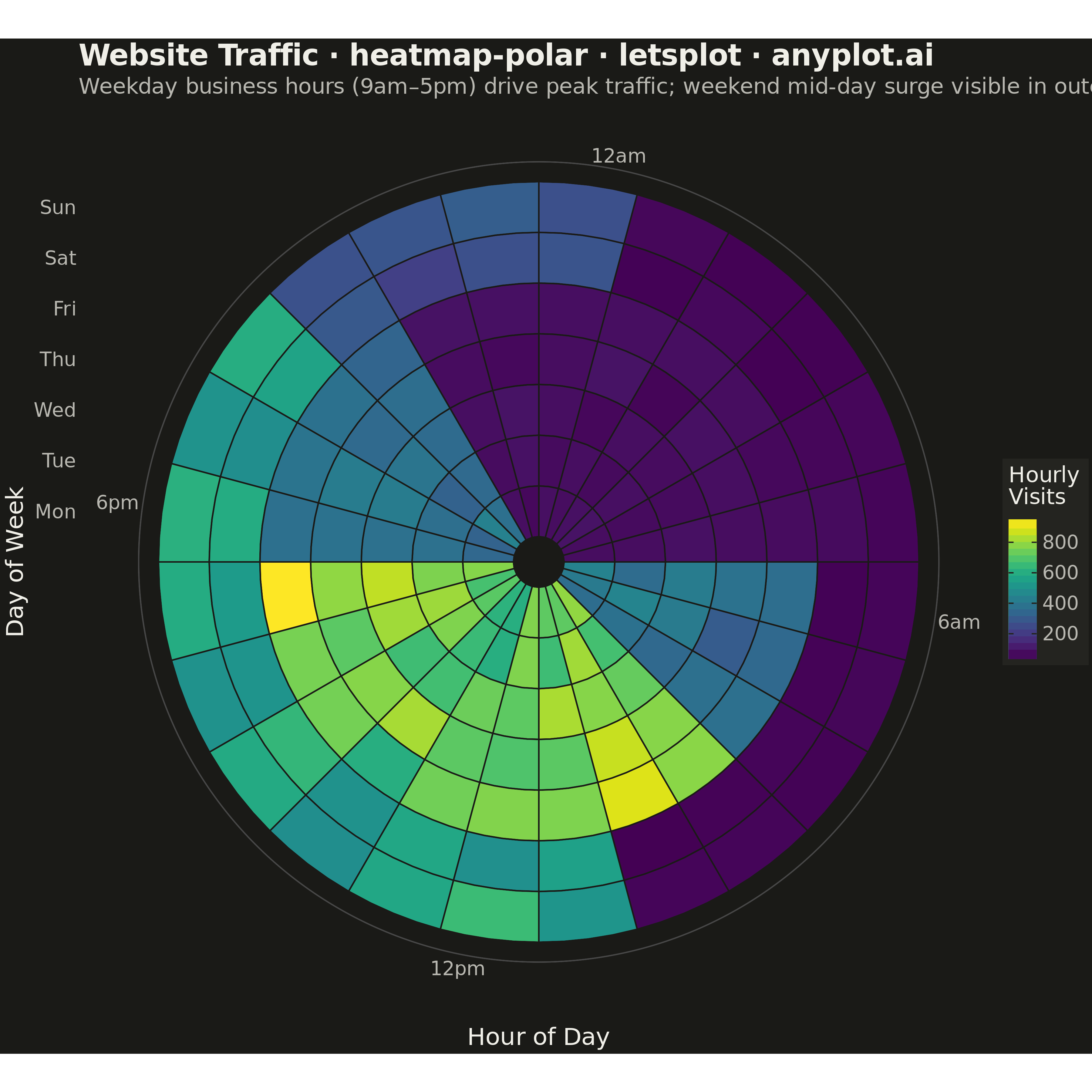

Polar Heatmap for Cyclic Two-Dimensional Data rendered with lets-plot

Renders

Python source (lets-plot)

""" anyplot.ai
heatmap-polar: Polar Heatmap for Cyclic Two-Dimensional Data
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 87/100 | Created: 2026-05-13
"""

import os

import numpy as np
import pandas as pd
from lets_plot import (
    LetsPlot,
    aes,
    coord_polar,
    element_blank,
    element_rect,
    element_text,
    geom_tile,
    ggplot,
    ggsize,
    labs,
    scale_fill_viridis,
    scale_x_continuous,
    scale_y_continuous,
    theme,
)
from lets_plot.export import ggsave


LetsPlot.setup_html()

THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Data — website traffic by hour of day (angular) and day of week (radial)
np.random.seed(42)

days = ["Mon", "Tue", "Wed", "Thu", "Fri", "Sat", "Sun"]

records = []
for d_idx, day in enumerate(days):
    for h in range(24):
        is_weekend = d_idx >= 5
        if not is_weekend:
            if 9 <= h <= 17:
                base = 750
            elif (6 <= h <= 8) or (18 <= h <= 21):
                base = 380
            else:
                base = 80
        else:
            if 11 <= h <= 20:
                base = 550
            elif (21 <= h <= 23) or h == 0:
                base = 260
            else:
                base = 60
        visits = max(10, int(base + np.random.normal(0, base * 0.10)))
        records.append({"day": day, "day_num": d_idx + 1, "hour_mid": h + 0.5, "visits": visits})

df = pd.DataFrame(records)

# Theme
anyplot_theme = theme(
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG),
    panel_grid_major=element_blank(),
    panel_grid_minor=element_blank(),
    axis_title=element_text(color=INK, size=20),
    axis_text=element_text(color=INK_SOFT, size=14),
    axis_ticks=element_blank(),
    axis_line=element_blank(),
    plot_title=element_text(color=INK, size=22, face="bold"),
    legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
    legend_text=element_text(color=INK_SOFT, size=14),
    legend_title=element_text(color=INK, size=16),
)

# Plot — polar heatmap: x=hour (angular), y=day_num (radial), fill=visits
plot = (
    ggplot(df, aes(x="hour_mid", y="day_num", fill="visits"))
    + geom_tile(color=PAGE_BG, size=0.5)
    + coord_polar(theta="x")
    + scale_fill_viridis(name="Hourly\nVisits")
    + scale_x_continuous(
        breaks=[0.5, 6.5, 12.5, 18.5], labels=["12am", "6am", "12pm", "6pm"], limits=[0, 24], expand=[0, 0]
    )
    + scale_y_continuous(breaks=list(range(1, 8)), labels=days, limits=[0, 7.5], expand=[0, 0])
    + labs(title="Website Traffic · heatmap-polar · letsplot · anyplot.ai", x="Hour of Day", y="Day of Week")
    + anyplot_theme
    + ggsize(900, 900)
)

# Save
ggsave(plot, f"plot-{THEME}.png", path=".", scale=4)
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of Polar Heatmap for Cyclic Two-Dimensional Data on anyplot.ai.
