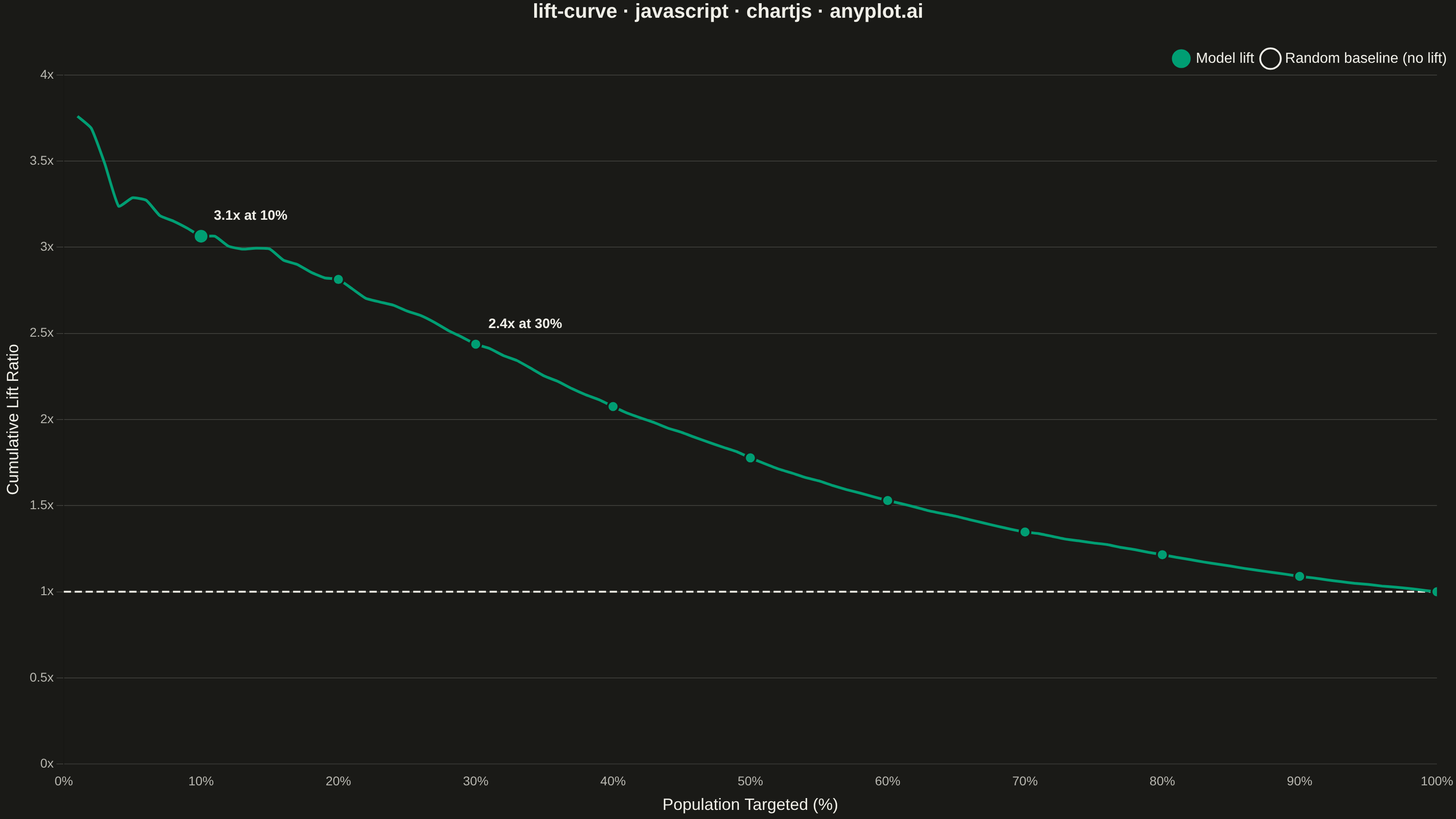

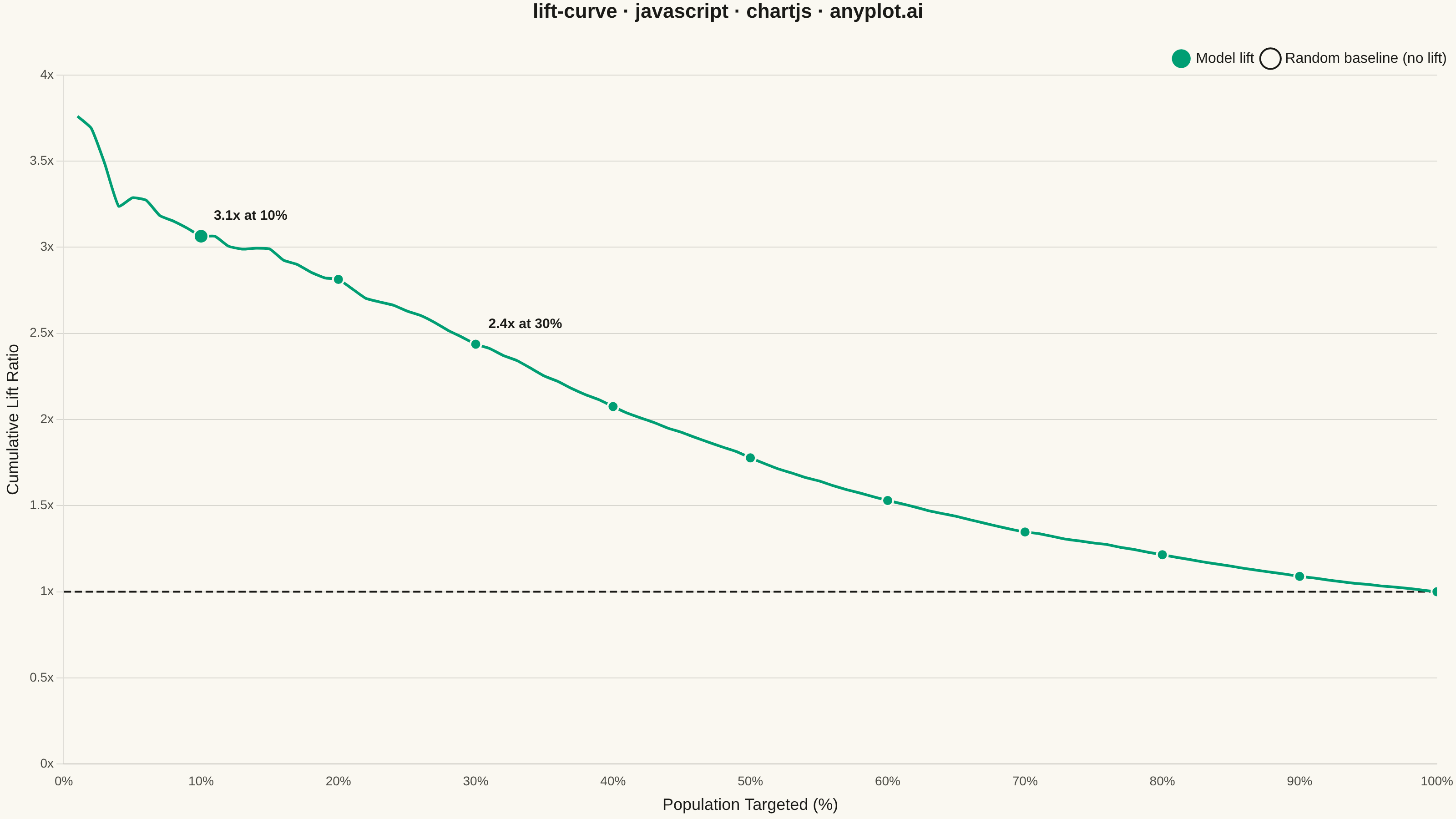

A lift curve visualizes how much better a predictive model performs compared to random selection, showing the cumulative lift ratio as you target increasing percentages of the population. It answers the question: "If I target the top X% of predictions, how many times more responders will I capture than random targeting?" This plot is essential for evaluating and comparing classification models in scenarios where targeting efficiency matters.
// anyplot.ai
// lift-curve: Model Lift Chart
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 92/100 | Created: 2026-09-05
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic fraud-detection scenario) --------------
// Tiny fixed-seed LCG — the browser has no seeded Math.random().
function makeLcg(seed) {
let state = seed >>> 0;
return function lcg() {
state = (Math.imul(state, 1664525) + 1013904223) >>> 0;
return state / 4294967296;
};
}
const rng = makeLcg(42);
const SAMPLE_COUNT = 3000;
const transactions = [];
for (let i = 0; i < SAMPLE_COUNT; i++) {
// Latent risk, skewed toward zero — most transactions are low risk.
const risk = Math.pow(rng(), 3);
const fraudProbability = Math.min(0.95, risk * 0.9 + 0.02);
const isFraud = rng() < fraudProbability ? 1 : 0;
// Model score correlates with risk but includes noise (imperfect model).
const noise = (rng() - 0.5) * 0.3;
const score = Math.max(0, Math.min(1, risk + noise));
transactions.push({ isFraud, score });
}
const rankedByScore = transactions.slice().sort((a, b) => b.score - a.score);
const cumulativeFraud = new Array(SAMPLE_COUNT + 1).fill(0);
for (let i = 0; i < SAMPLE_COUNT; i++) {
cumulativeFraud[i + 1] = cumulativeFraud[i] + rankedByScore[i].isFraud;
}
const totalFraud = cumulativeFraud[SAMPLE_COUNT];
const baselineRate = totalFraud / SAMPLE_COUNT;
const liftPoints = [];
for (let percent = 1; percent <= 100; percent++) {
const targeted = Math.max(1, Math.round((percent / 100) * SAMPLE_COUNT));
const responseRate = cumulativeFraud[targeted] / targeted;
liftPoints.push({ x: percent, y: responseRate / baselineRate });
}
const DECILE_STEP = 10;
// Deciles called out with an explicit numeric label (spec: "actual values at
// key percentiles"); FOCUS_DECILE also gets a larger marker as the chart's
// single focal point.
const CALLOUT_DECILES = [10, 30];
const FOCUS_DECILE = 10;
// --- Mount -------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Plugins ---------------------------------------------------------------
// Draws "3.1x at 10%" callouts above the CALLOUT_DECILES markers.
const decileCalloutPlugin = {
id: "decileCallout",
afterDatasetsDraw(chart) {
const meta = chart.getDatasetMeta(0);
const { ctx, chartArea } = chart;
ctx.save();
ctx.font = "bold 15px sans-serif";
ctx.fillStyle = t.ink;
ctx.textAlign = "left";
// Offset up-and-right of the marker: the falling curve approaches from
// the upper-left and departs to the lower-right, so that quadrant stays clear.
for (const percent of CALLOUT_DECILES) {
const point = meta.data[percent - 1];
if (!point) continue;
const value = liftPoints[percent - 1].y;
const labelY = Math.max(point.y - 22, chartArea.top + 14);
ctx.fillText(`${value.toFixed(1)}x at ${percent}%`, point.x + 14, labelY);
}
ctx.restore();
},
};
// --- Chart ---------------------------------------------------------------
new Chart(canvas, {
type: "line",
plugins: [decileCalloutPlugin],
data: {
datasets: [
{
label: "Model lift",
data: liftPoints,
borderColor: t.palette[0],
backgroundColor: t.palette[0],
borderWidth: 3,
pointBackgroundColor: t.palette[0],
pointBorderColor: t.pageBg,
pointBorderWidth: 2,
pointRadius: (ctx) => {
const percent = ctx.dataIndex + 1;
if (percent === FOCUS_DECILE) return 8;
return percent % DECILE_STEP === 0 ? 6 : 0;
},
pointHoverRadius: 7,
tension: 0.15,
fill: false,
},
{
label: "Random baseline (no lift)",
data: [
{ x: 0, y: 1 },
{ x: 100, y: 1 },
],
borderColor: t.ink,
backgroundColor: t.pageBg,
borderWidth: 2,
borderDash: [8, 4],
pointBackgroundColor: t.pageBg,
pointBorderColor: t.ink,
pointBorderWidth: 2,
pointRadius: 0,
fill: false,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
title: {
display: true,
text: "lift-curve · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 22 },
padding: { bottom: 20 },
},
legend: {
position: "top",
align: "end",
labels: { color: t.ink, font: { size: 16 }, boxWidth: 24, usePointStyle: true },
},
},
scales: {
x: {
type: "linear",
min: 0,
max: 100,
title: { display: true, text: "Population Targeted (%)", color: t.ink, font: { size: 18 } },
ticks: { color: t.inkSoft, font: { size: 14 }, callback: (v) => `${v}%` },
grid: { display: false },
},
y: {
beginAtZero: true,
title: { display: true, text: "Cumulative Lift Ratio", color: t.ink, font: { size: 18 } },
ticks: { color: t.inkSoft, font: { size: 14 }, callback: (v) => `${v}x` },
grid: { color: t.grid },
},
},
},
});
