Model Lift Chart — Plotly

A lift curve visualizes how much better a predictive model performs compared to random selection, showing the cumulative lift ratio as you target increasing percentages of the population. It answers the question: "If I target the top X% of predictions, how many times more responders will I capture than random targeting?" This plot is essential for evaluating and comparing classification models in scenarios where targeting efficiency matters.

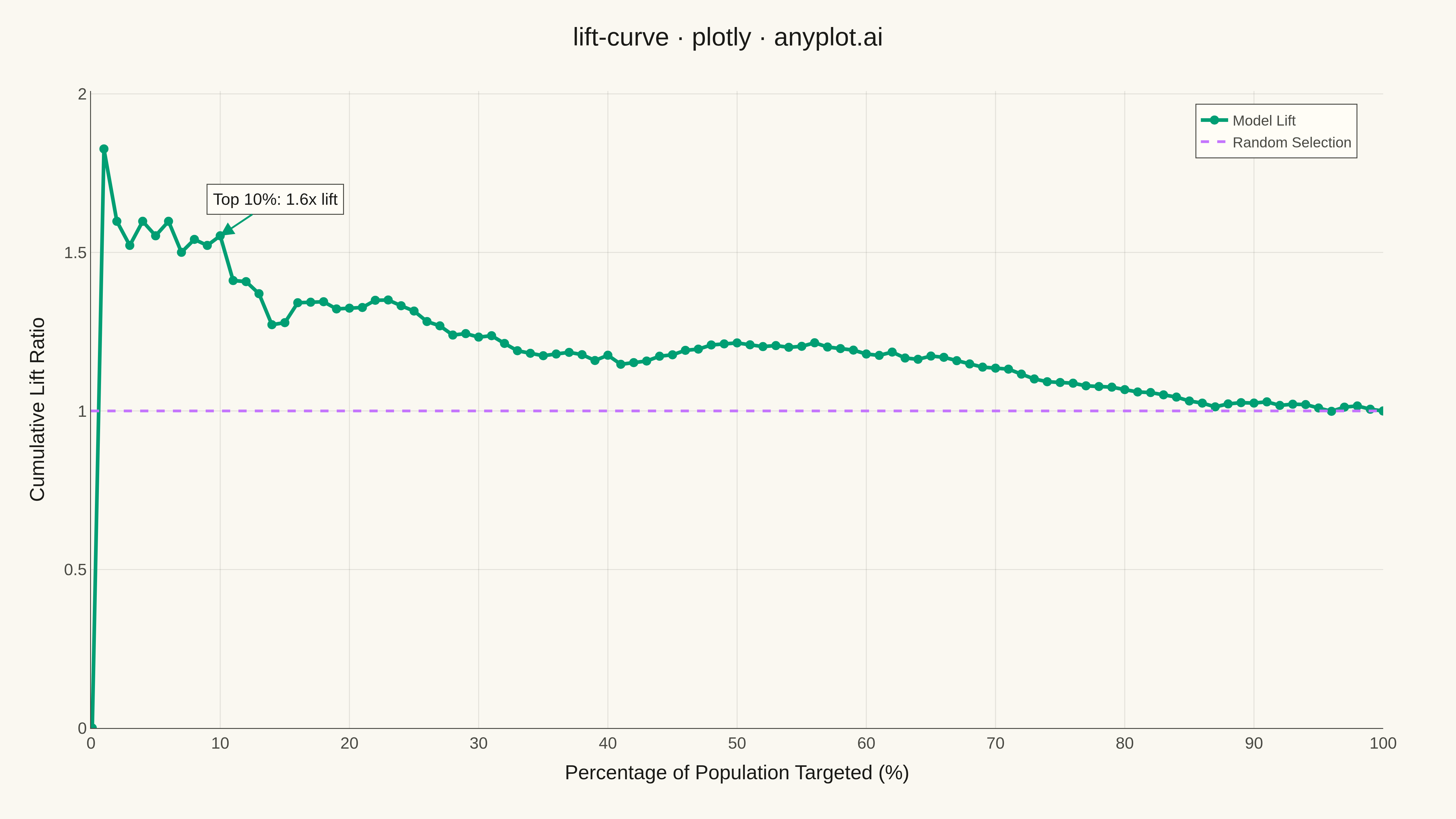

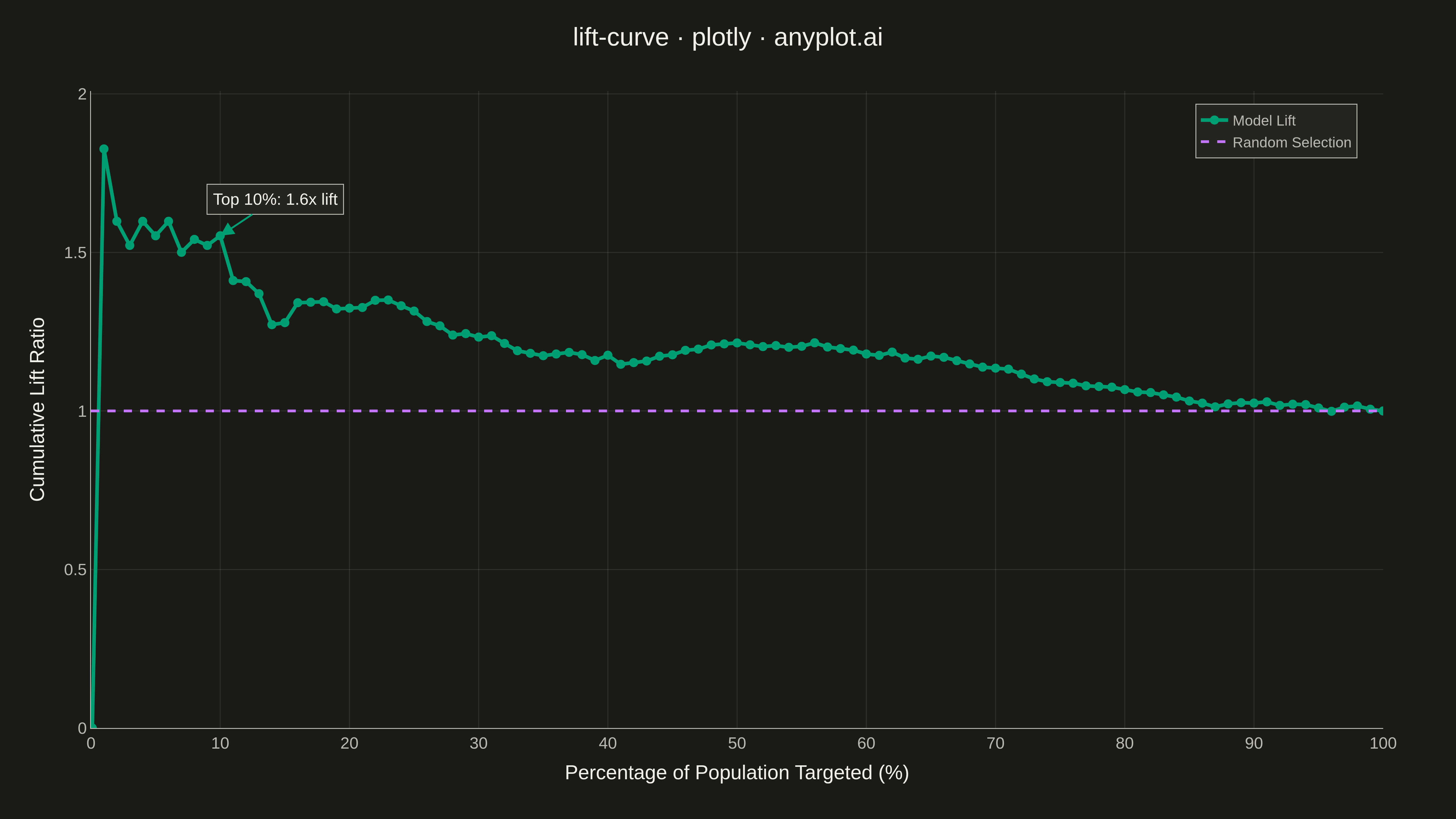

Model Lift Chart rendered with Plotly

Python source (Plotly)

""" anyplot.ai
lift-curve: Model Lift Chart
Library: plotly 6.7.0 | Python 3.13.13
Quality: 93/100 | Updated: 2026-05-10
"""

import os

import numpy as np
import plotly.graph_objects as go


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"

# Okabe-Ito palette
BRAND = "#009E73"  # First series, always
ACCENT = "#C475FD"  # Second series

# Data: Simulate customer response model predictions
np.random.seed(42)
n_samples = 1000

# Create realistic model predictions with varying quality
base_score = np.random.beta(2, 5, n_samples)
true_signal = np.random.rand(n_samples)

# Model scores with predictive power
y_score = 0.6 * base_score + 0.4 * true_signal
y_score = np.clip(y_score, 0, 1)

# Generate true labels based on scores
response_prob = 0.3 * y_score + 0.1
y_true = (np.random.rand(n_samples) < response_prob).astype(int)

# Calculate lift curve
sorted_indices = np.argsort(y_score)[::-1]
y_true_sorted = y_true[sorted_indices]

cumsum_responses = np.cumsum(y_true_sorted)
total_responses = y_true_sorted.sum()
baseline_rate = total_responses / n_samples

percentile = np.arange(1, n_samples + 1) / n_samples * 100
expected_random = np.arange(1, n_samples + 1) * baseline_rate
lift = cumsum_responses / expected_random

# Sample at key percentiles for visualization
sample_points = [0] + list(range(9, n_samples, 10)) + [n_samples - 1]
percentile_sampled = percentile[sample_points]
lift_sampled = lift[sample_points]

# Create figure
fig = go.Figure()

# Lift curve (first series = brand color)
fig.add_trace(
    go.Scatter(
        x=percentile_sampled,
        y=lift_sampled,
        mode="lines+markers",
        name="Model Lift",
        line=dict(color=BRAND, width=4),
        marker=dict(size=10, color=BRAND),
        hovertemplate="Top %{x:.0f}%<br>Lift: %{y:.2f}x<extra></extra>",
    )
)

# Random selection baseline (second series = accent color)
fig.add_trace(
    go.Scatter(
        x=[0, 100],
        y=[1, 1],
        mode="lines",
        name="Random Selection",
        line=dict(color=ACCENT, width=3, dash="dash"),
        hovertemplate="Random baseline<br>Lift: 1.0x<extra></extra>",
    )
)

# Add annotation for key insight
top_10_lift = lift[int(n_samples * 0.1) - 1]
fig.add_annotation(
    x=10,
    y=top_10_lift,
    text=f"Top 10%: {top_10_lift:.1f}x lift",
    showarrow=True,
    arrowhead=2,
    arrowsize=1.5,
    arrowwidth=2,
    arrowcolor=BRAND,
    ax=60,
    ay=-40,
    font=dict(size=18, color=INK),
    bgcolor=ELEVATED_BG,
    bordercolor=INK_SOFT,
    borderwidth=1,
    borderpad=6,
)

# Layout with theme-adaptive colors
fig.update_layout(
    title=dict(text="lift-curve · plotly · anyplot.ai", font=dict(size=28, color=INK), x=0.5, xanchor="center"),
    xaxis=dict(
        title=dict(text="Percentage of Population Targeted (%)", font=dict(size=22, color=INK)),
        tickfont=dict(size=18, color=INK_SOFT),
        range=[0, 100],
        showgrid=True,
        gridcolor=GRID,
        gridwidth=1,
        dtick=10,
        linecolor=INK_SOFT,
        zerolinecolor=INK_SOFT,
    ),
    yaxis=dict(
        title=dict(text="Cumulative Lift Ratio", font=dict(size=22, color=INK)),
        tickfont=dict(size=18, color=INK_SOFT),
        range=[0, max(lift_sampled) * 1.1],
        showgrid=True,
        gridcolor=GRID,
        gridwidth=1,
        linecolor=INK_SOFT,
        zerolinecolor=INK_SOFT,
    ),
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    legend=dict(
        font=dict(size=16, color=INK_SOFT),
        x=0.98,
        y=0.98,
        xanchor="right",
        yanchor="top",
        bgcolor=ELEVATED_BG,
        bordercolor=INK_SOFT,
        borderwidth=1,
    ),
    margin=dict(l=100, r=80, t=100, b=100),
)

# Save with theme suffix
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of Model Lift Chart on anyplot.ai.
