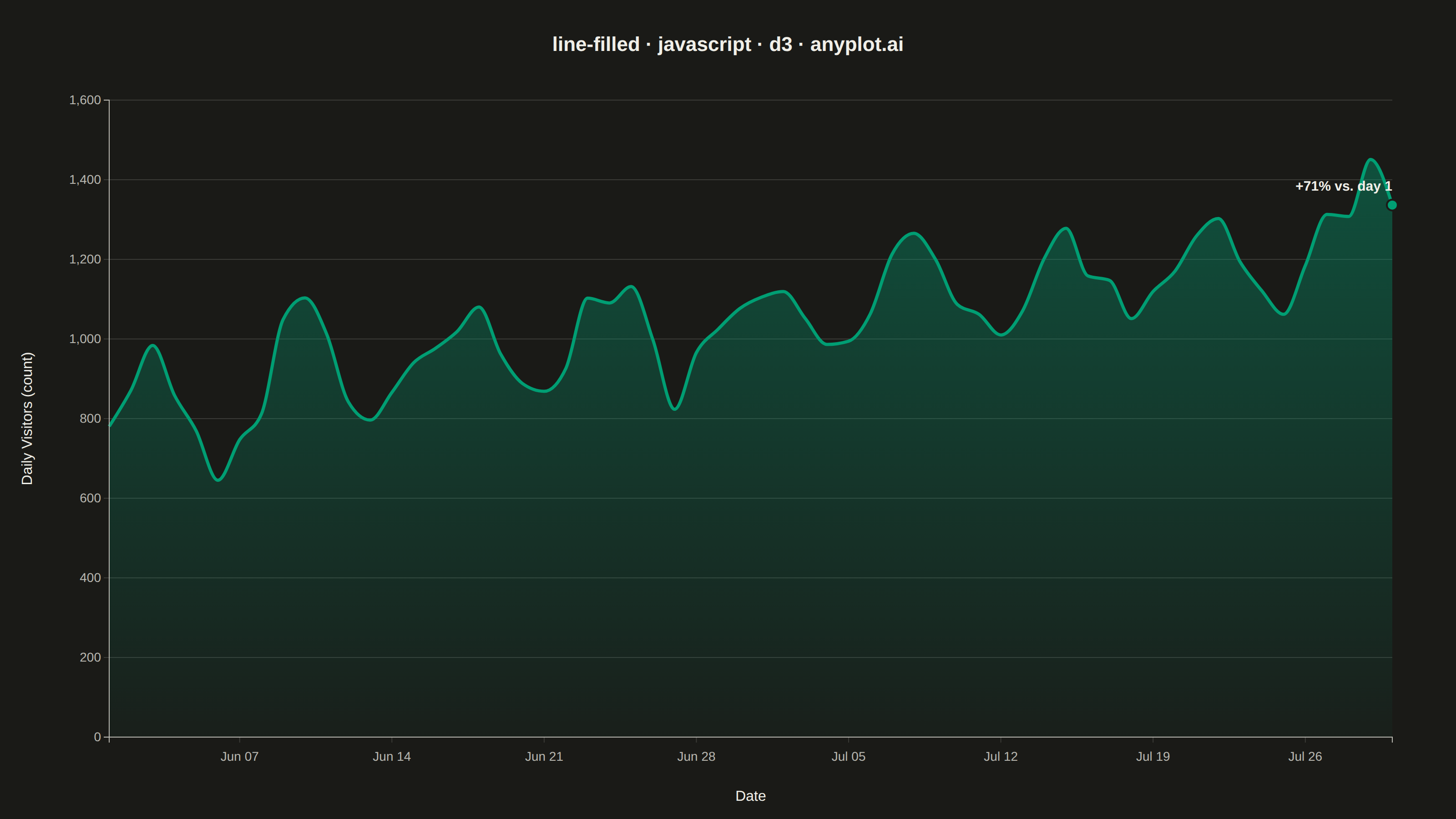

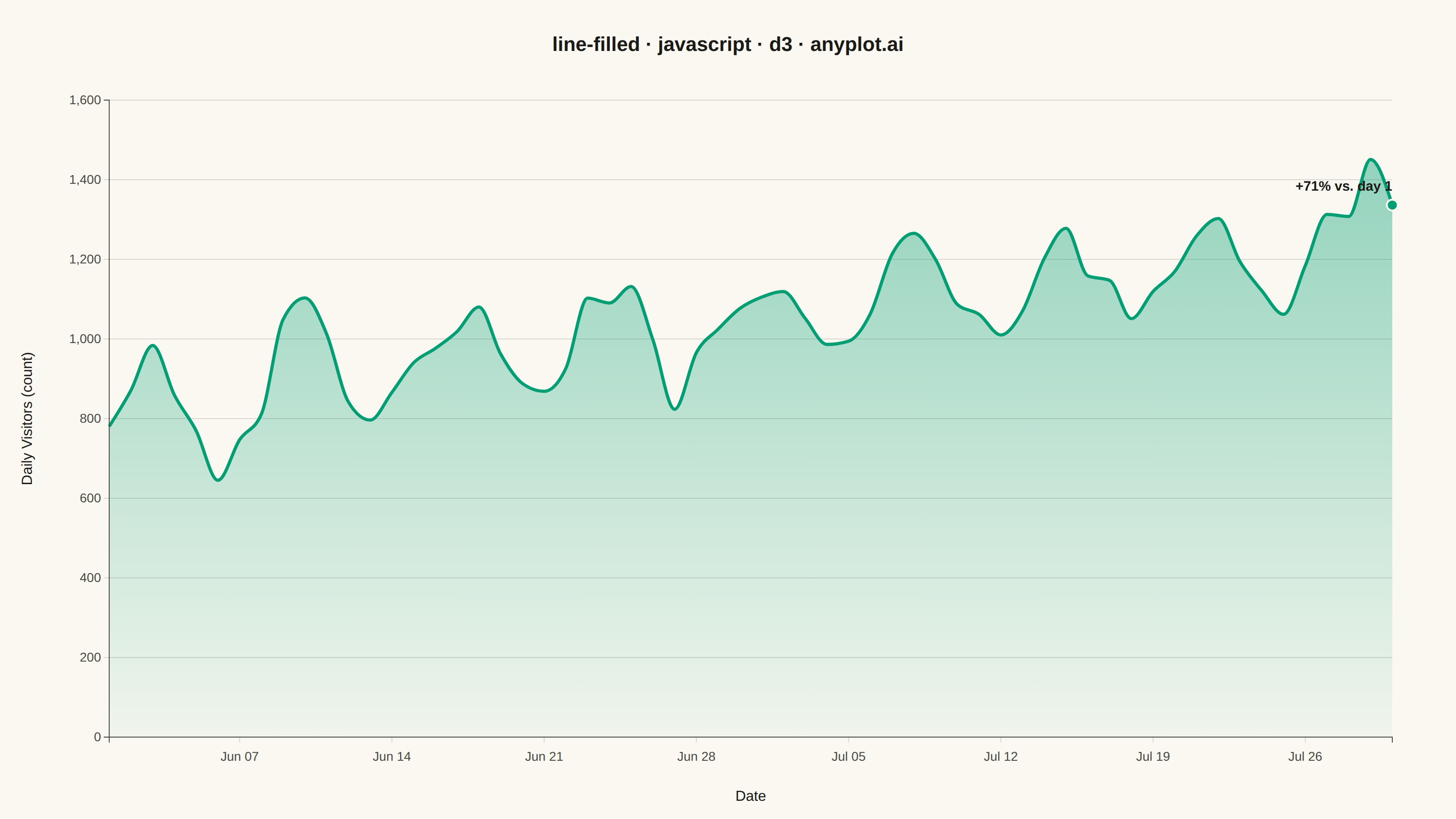

A line plot with the area between the line and the baseline (typically x-axis) filled with a semi-transparent color. This creates an area chart effect for a single series, emphasizing the magnitude of values.
// anyplot.ai
// line-filled: Filled Line Plot
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 94/100 | Created: 2026-09-05
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 110, right: 70, bottom: 90, left: 120 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// --- Data (in-memory, deterministic LCG) ------------------------------------
function lcg(seed) {
let state = seed;
return () => {
state = (state * 1664525 + 1013904223) % 4294967296;
return state / 4294967296;
};
}
const random = lcg(42);
const startDate = new Date(2026, 5, 1);
const dayCount = 60;
const dailyVisitors = [];
for (let i = 0; i < dayCount; i++) {
const trend = 820 + i * 7.5;
const weeklyCycle = 140 * Math.sin((i / 7) * 2 * Math.PI);
const noise = (random() - 0.5) * 160;
const date = new Date(startDate);
date.setDate(date.getDate() + i);
dailyVisitors.push({ date, visitors: Math.max(0, trend + weeklyCycle + noise) });
}
// --- Scales -------------------------------------------------------------------
const x = d3.scaleTime()
.domain(d3.extent(dailyVisitors, (d) => d.date))
.range([0, iw]);
const y = d3.scaleLinear()
.domain([0, d3.max(dailyVisitors, (d) => d.visitors) * 1.1])
.nice()
.range([ih, 0]);
// --- SVG mount ----------------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);
// --- Gridlines (y-axis only, subtle) -------------------------------------------
const grid = g.append("g").call(d3.axisLeft(y).tickSize(-iw).tickFormat(""));
grid.selectAll("line").attr("stroke", t.grid);
grid.select(".domain").remove();
// --- Area gradient (opaque near the line, fading to the baseline) --------------
const gradientId = "line-filled-area-gradient";
const gradient = svg.append("defs")
.append("linearGradient")
.attr("id", gradientId)
.attr("gradientUnits", "userSpaceOnUse")
.attr("x1", 0).attr("y1", 0)
.attr("x2", 0).attr("y2", ih);
gradient.append("stop").attr("offset", "0%").attr("stop-color", t.palette[0]).attr("stop-opacity", 0.45);
gradient.append("stop").attr("offset", "100%").attr("stop-color", t.palette[0]).attr("stop-opacity", 0.04);
// --- Area + line ----------------------------------------------------------------
const area = d3.area()
.curve(d3.curveMonotoneX)
.x((d) => x(d.date))
.y0(ih)
.y1((d) => y(d.visitors));
const line = d3.line()
.curve(d3.curveMonotoneX)
.x((d) => x(d.date))
.y((d) => y(d.visitors));
g.append("path")
.datum(dailyVisitors)
.attr("d", area)
.attr("fill", `url(#${gradientId})`)
.attr("stroke", "none");
g.append("path")
.datum(dailyVisitors)
.attr("d", line)
.attr("fill", "none")
.attr("stroke", t.palette[0])
.attr("stroke-width", 3.5);
// --- End-point focal marker (emphasizes the overall upward trend) --------------
const last = dailyVisitors[dailyVisitors.length - 1];
const first = dailyVisitors[0];
const growthPct = Math.round(((last.visitors - first.visitors) / first.visitors) * 100);
g.append("circle")
.attr("cx", x(last.date))
.attr("cy", y(last.visitors))
.attr("r", 6)
.attr("fill", t.palette[0])
.attr("stroke", t.pageBg)
.attr("stroke-width", 2);
g.append("text")
.attr("x", x(last.date))
.attr("y", y(last.visitors) - 16)
.attr("text-anchor", "end")
.attr("fill", t.ink)
.style("font-size", "15px")
.style("font-weight", "600")
.text(`+${growthPct}% vs. day 1`);
// --- Axes -----------------------------------------------------------------------
const xAxis = g.append("g")
.attr("transform", `translate(0,${ih})`)
.call(d3.axisBottom(x).ticks(d3.timeWeek.every(1)).tickFormat(d3.timeFormat("%b %d")));
const yAxis = g.append("g").call(d3.axisLeft(y).ticks(6));
for (const ax of [xAxis, yAxis]) {
ax.selectAll("text").attr("fill", t.inkSoft).style("font-size", "14px");
ax.selectAll("line").attr("stroke", t.grid);
ax.select(".domain").attr("stroke", t.inkSoft);
}
xAxis.selectAll("text").attr("dy", "1.2em");
// --- Axis labels ------------------------------------------------------------------
g.append("text")
.attr("x", iw / 2)
.attr("y", ih + 70)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.text("Date");
g.append("text")
.attr("transform", "rotate(-90)")
.attr("x", -ih / 2)
.attr("y", -85)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.text("Daily Visitors (count)");
// --- Title ----------------------------------------------------------------------
svg.append("text")
.attr("x", width / 2)
.attr("y", 56)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text("line-filled · javascript · d3 · anyplot.ai");
