An NMR spectrum plots signal intensity versus chemical shift (in ppm) to reveal the electronic environment of atomic nuclei in a molecule. It is the primary analytical tool in organic chemistry for determining molecular structure, with peak positions indicating functional groups and splitting patterns (multiplets) revealing connectivity between neighboring atoms. The x-axis is conventionally reversed (high ppm on the left) and peaks appear as sharp signals rising from a baseline.
// anyplot.ai
// spectrum-nmr: NMR Spectrum (Nuclear Magnetic Resonance)
// Library: chartjs 4.4.7 | JavaScript 22.22.3
// Quality: 88/100 | Created: 2026-06-03
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// Lorentzian lineshape: models sharp NMR resonance peaks
const lorentz = (x, c, hw, h) => h / (1 + ((x - c) / hw) ** 2);
// Chemical shift axis: 4.5 to -0.3 ppm, 4000 points
const N = 4000;
const ppmMin = -0.3;
const ppmMax = 4.5;
const ppmStep = (ppmMax - ppmMin) / (N - 1);
// 1H NMR of ethanol (400 MHz): J = 7 Hz = 0.0175 ppm coupling constant
const J = 0.0175;
const hw = 0.006; // Lorentzian half-width (~2.4 Hz at 400 MHz; J/hw ≈ 2.9 gives resolved multiplets)
const peakDefs = [
// TMS internal standard at 0.00 ppm — singlet, small reference peak
{ c: 0.00, hw, h: 0.10, label: "TMS\n0.00 ppm" },
// CH3 triplet at 1.25 ppm (3H, 1:2:1 intensity pattern)
{ c: 1.25 - J, hw, h: 0.42 },
{ c: 1.25, hw, h: 0.85, label: "CH₃\n1.25 ppm" },
{ c: 1.25 + J, hw, h: 0.42 },
// OH singlet at 2.61 ppm (1H, broad due to fast proton exchange)
{ c: 2.61, hw: hw * 2.5, h: 0.28, label: "OH\n2.61 ppm" },
// CH2 quartet at 3.69 ppm (2H, 1:3:3:1 intensity pattern)
{ c: 3.69 - 1.5 * J, hw, h: 0.20 },
{ c: 3.69 - 0.5 * J, hw, h: 0.60, label: "CH₂\n3.69 ppm" },
{ c: 3.69 + 0.5 * J, hw, h: 0.60 },
{ c: 3.69 + 1.5 * J, hw, h: 0.20 },
];
// Compute spectrum intensities across the chemical shift axis
const chartData = Array.from({ length: N }, (_, i) => {
const ppm = ppmMax - ppmStep * i;
const y = peakDefs.reduce((sum, p) => sum + lorentz(ppm, p.c, p.hw, p.h), 0);
return { x: ppm, y };
});
// Peaks that carry labels
const labeledPeaks = peakDefs.filter(p => p.label);
// Title with font size scaled to length (baseline 67 chars → 22px)
const titleText =

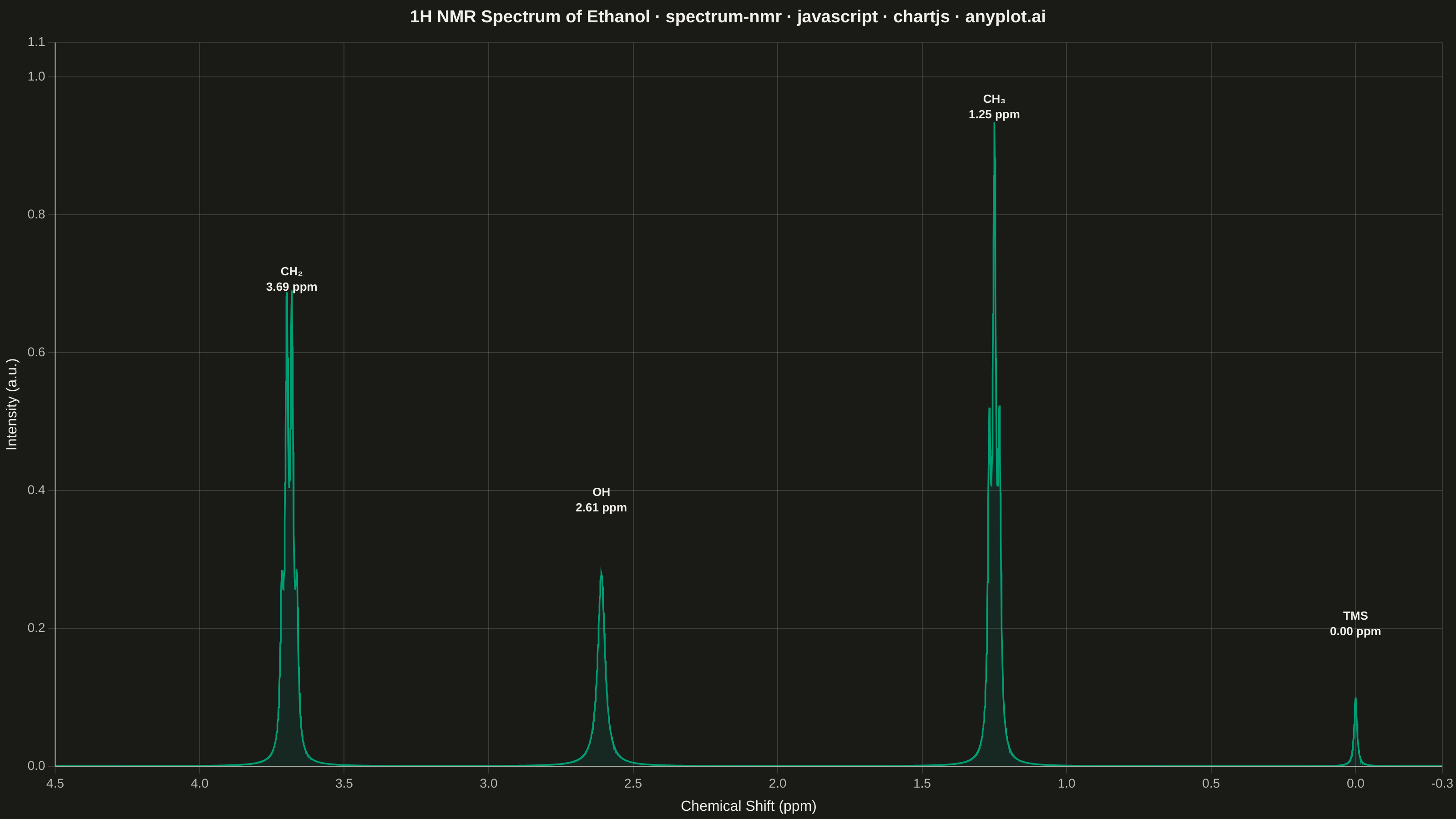

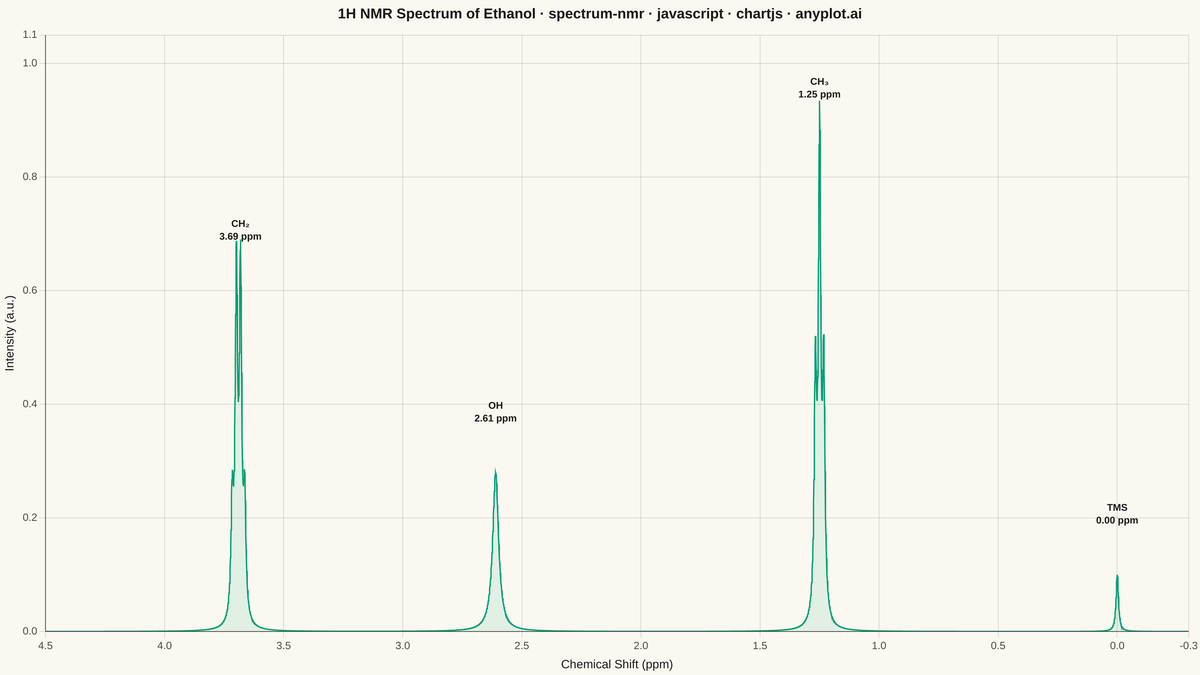

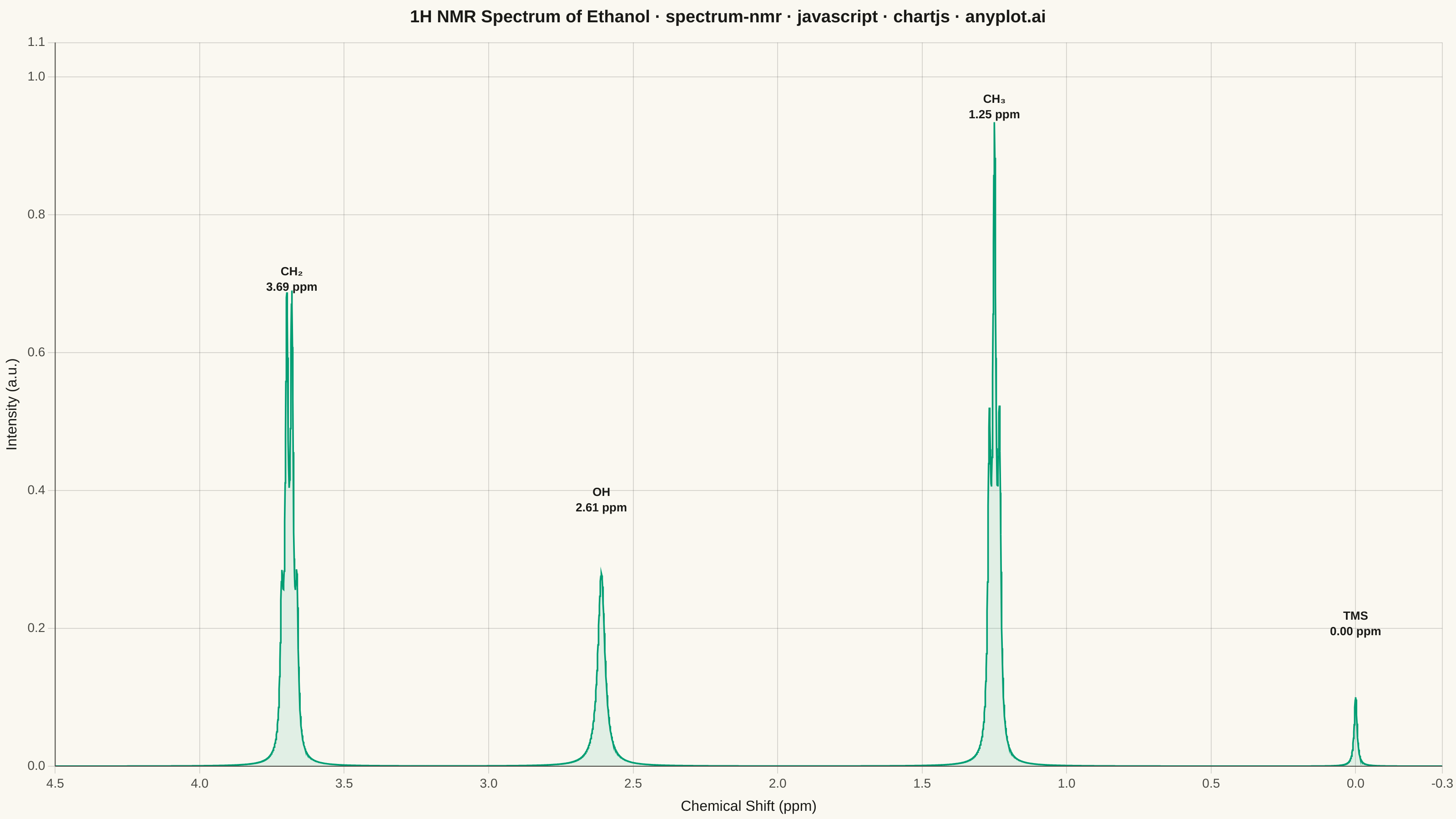

"1H NMR Spectrum of Ethanol · spectrum-nmr · javascript · chartjs · anyplot.ai";
const titleFontSize = Math.max(15, Math.round(22 * 67 / titleText.length));
// Fill the full canvas with the page background before Chart.js draws
const bgPlugin = {
id: "bg",
beforeDraw({ ctx, width, height }) {
ctx.save();
ctx.fillStyle = t.pageBg;
ctx.fillRect(0, 0, width, height);
ctx.restore();
},
};
// Draw only bottom and left axis spines (L-shaped frame, scientific style)
const spinePlugin = {
id: "spines",
afterDatasetsDraw({ ctx, chartArea: { top, right, bottom, left } }) {
ctx.save();
ctx.strokeStyle = t.inkSoft;
ctx.lineWidth = 1;
ctx.beginPath();
ctx.moveTo(left, top);
ctx.lineTo(left, bottom);
ctx.moveTo(left, bottom);
ctx.lineTo(right, bottom);
ctx.stroke();
ctx.restore();
},
};
// Draw chemical group labels above each key peak
const labelPlugin = {
id: "peakLabels",
afterDatasetsDraw({ ctx, scales: { x: xs, y: ys } }) {
ctx.save();
ctx.textAlign = "center";
ctx.fillStyle = t.ink;
ctx.font = "600 13px sans-serif";
labeledPeaks.forEach(({ c, h, label }) => {
const px = xs.getPixelForValue(c);
const lines = label.split("\n");
lines.forEach((line, i) => {
const py = ys.getPixelForValue(h + 0.09) - (lines.length - 1 - i) * 17;
ctx.fillText(line, px, py);
});
});
ctx.restore();
},
};
// Mount
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
new Chart(canvas, {
type: "scatter",
data: {
datasets: [{
data: chartData,
showLine: true,
borderColor: t.palette[0],
backgroundColor: t.palette[0] + "1a",
borderWidth: 1.8,
pointRadius: 0,
fill: "origin",
tension: 0,
}],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
title: {
display: true,
text: titleText,
color: t.ink,
font: { size: titleFontSize, weight: "600" },
padding: { top: 8, bottom: 16 },
},
legend: { display: false },
tooltip: { enabled: false },
},
scales: {
x: {
type: "linear",
reverse: true,
min: ppmMin,
max: ppmMax,
border: { display: false },
ticks: {
color: t.inkSoft,
font: { size: 14 },
stepSize: 0.5,
callback: (v) => v.toFixed(1),
},
grid: { color: t.grid },
title: {
display: true,
text: "Chemical Shift (ppm)",
color: t.ink,
font: { size: 16 },
},
},
y: {
min: 0,
max: 1.05,
border: { display: false },
ticks: {
color: t.inkSoft,
font: { size: 14 },
callback: (v) => v.toFixed(1),
},
grid: { color: t.grid },
title: {
display: true,
text: "Intensity (a.u.)",
color: t.ink,
font: { size: 16 },
},
},
},
},
plugins: [bgPlugin, spinePlugin, labelPlugin],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/spectrum-nmr/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "spectrum-nmr",
"language": "javascript",
"library": "chartjs",
"page": "https://anyplot.ai/spectrum-nmr/javascript/chartjs",
"hub": "https://anyplot.ai/spectrum-nmr",
"code_json": "https://api.anyplot.ai/specs/spectrum-nmr/chartjs/code",
"spec_json": "https://api.anyplot.ai/specs/spectrum-nmr",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/spectrum-nmr/javascript/chartjs/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/spectrum-nmr/javascript/chartjs/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/spectrum-nmr/javascript/chartjs/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/spectrum-nmr/javascript/chartjs/plot-dark.html",
"quality_score": 88.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of NMR Spectrum (Nuclear Magnetic Resonance) on anyplot.ai.
