NMR Spectrum (Nuclear Magnetic Resonance) in Apache ECharts (JavaScript)

The same plot in 14 other libraries — JavaScript: Chart.js, D3.js, Highcharts, MUI X Charts; Python: Altair, Bokeh, lets-plot, Matplotlib, Plotly, plotnine, Pygal, Seaborn; R: ggplot2; Julia: Makie.jl. Compare all 15 side by side: NMR Spectrum (Nuclear Magnetic Resonance) in Python, R, Julia and JavaScript.

An NMR spectrum plots signal intensity versus chemical shift (in ppm) to reveal the electronic environment of atomic nuclei in a molecule. It is the primary analytical tool in organic chemistry for determining molecular structure, with peak positions indicating functional groups and splitting patterns (multiplets) revealing connectivity between neighboring atoms. The x-axis is conventionally reversed (high ppm on the left) and peaks appear as sharp signals rising from a baseline.

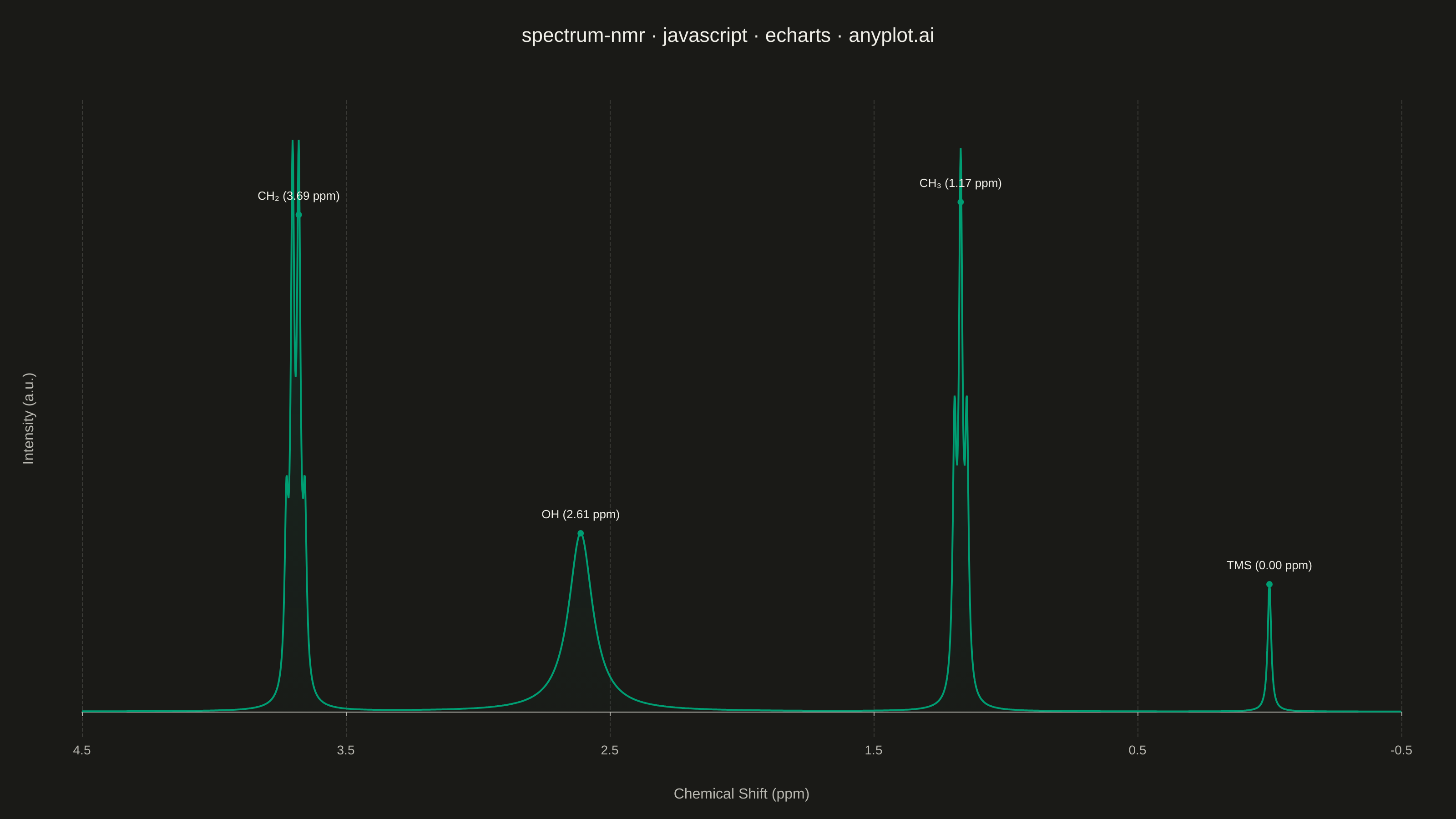

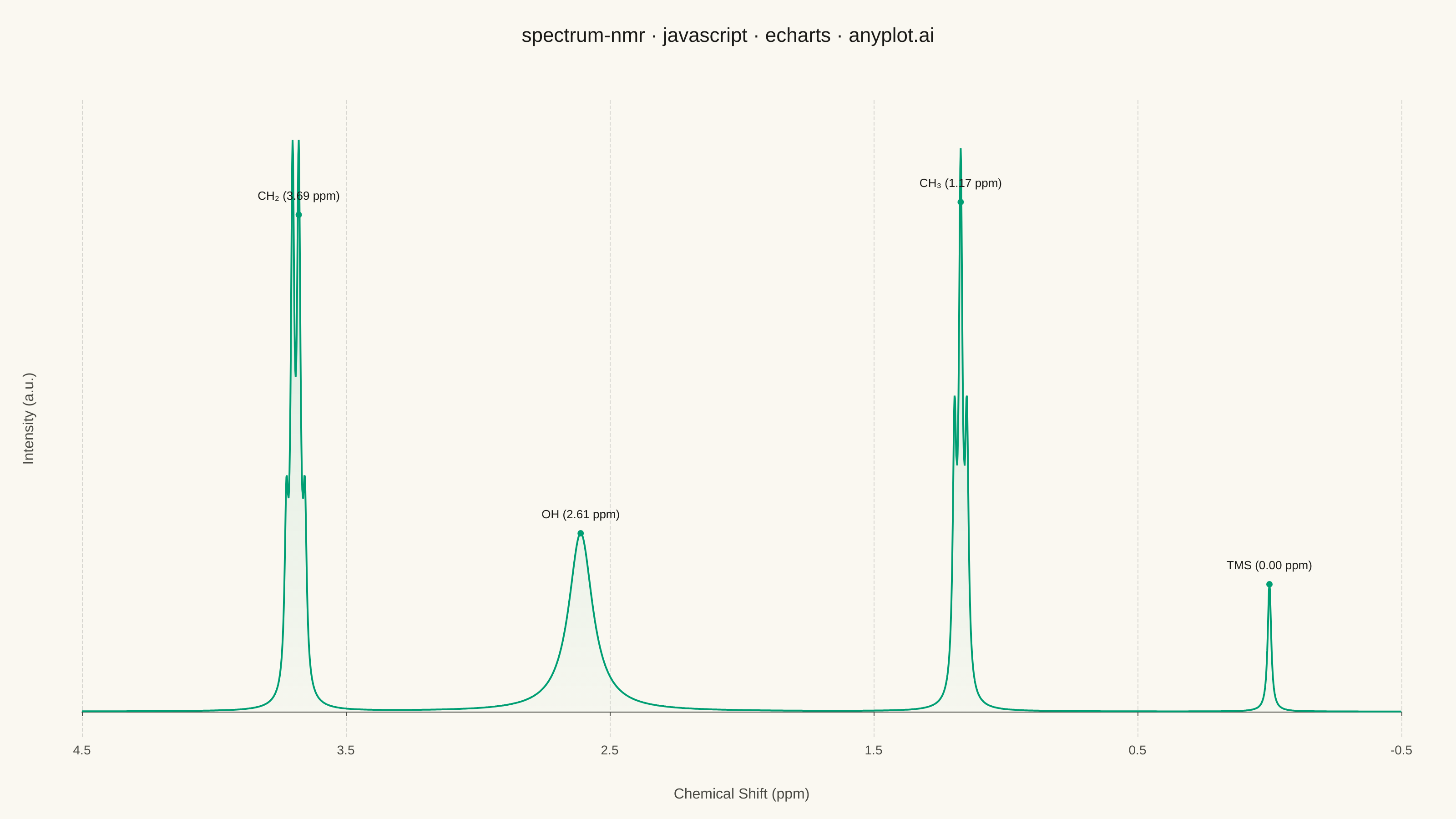

NMR Spectrum (Nuclear Magnetic Resonance) rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// spectrum-nmr: NMR Spectrum (Nuclear Magnetic Resonance)
// Library: echarts 5.5.1 | JavaScript 22.22.3
// Quality: 88/100 | Created: 2026-06-03

//# anyplot-orientation: landscape

const t = window.ANYPLOT_TOKENS;

// --- Data: synthetic 1H NMR of Ethanol (CH3-CH2-OH) at 300 MHz ---
// CH3 triplet ~1.17 ppm, CH2 quartet ~3.69 ppm, OH broad singlet ~2.61 ppm, TMS at 0.00
const nPts = 3001;
const ppmLo = -0.5;
const ppmHi = 4.5;
const J = 7 / 300; // 7 Hz coupling constant → 0.0233 ppm at 300 MHz

function lorentz(x, x0, amp, hw) {
  return amp * hw * hw / ((x - x0) * (x - x0) + hw * hw);
}

const lw = 0.008; // sharp Lorentzian linewidth (ppm half-width)
const specData = [];
for (let i = 0; i < nPts; i++) {
  const ppm = ppmLo + i * (ppmHi - ppmLo) / (nPts - 1);
  let y = 0;
  // TMS reference singlet (0.00 ppm)
  y += lorentz(ppm, 0.00, 20, lw);
  // CH3 triplet: 1:2:1 intensity ratio, J = 7 Hz
  y += lorentz(ppm, 1.17 - J, 40, lw);
  y += lorentz(ppm, 1.17,     80, lw);
  y += lorentz(ppm, 1.17 + J, 40, lw);
  // OH broad singlet (exchangeable proton, broadened by H-bonding)
  y += lorentz(ppm, 2.61, 28, 0.055);
  // CH2 quartet: 1:3:3:1 intensity ratio, J = 7 Hz
  y += lorentz(ppm, 3.69 - 1.5 * J, 26, lw);
  y += lorentz(ppm, 3.69 - 0.5 * J, 78, lw);
  y += lorentz(ppm, 3.69 + 0.5 * J, 78, lw);
  y += lorentz(ppm, 3.69 + 1.5 * J, 26, lw);
  specData.push([parseFloat(ppm.toFixed(4)), parseFloat(y.toFixed(3))]);
}

// --- Init ---
const chart = echarts.init(document.getElementById("container"));

// --- Option ---
chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",

  title: {
    text: "spectrum-nmr · javascript · echarts · anyplot.ai",
    left: "center",
    top: 24,
    textStyle: { color: t.ink, fontSize: 22, fontWeight: "500" },
  },

  grid: { left: 90, right: 60, top: 110, bottom: 90 },

  xAxis: {
    type: "value",
    inverse: true,
    min: ppmLo,
    max: ppmHi,
    interval: 1,
    name: "Chemical Shift (ppm)",
    nameLocation: "middle",
    nameGap: 55,
    nameTextStyle: { color: t.inkSoft, fontSize: 16 },
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { lineStyle: { color: t.inkSoft } },
    splitLine: { show: true, lineStyle: { color: t.grid, type: "dashed" } },
  },

  yAxis: {
    type: "value",
    name: "Intensity (a.u.)",
    nameLocation: "middle",
    nameGap: 50,
    nameTextStyle: { color: t.inkSoft, fontSize: 16 },
    min: -4,
    max: 96,
    axisLabel: { show: false },
    axisLine: { show: false },
    axisTick: { show: false },
    splitLine: { show: false },
  },

  series: [
    {
      type: "line",
      data: specData,
      showSymbol: false,
      lineStyle: { color: t.palette[0], width: 2 },
      areaStyle: {
        color: {
          type: "linear",
          x: 0, y: 0, x2: 0, y2: 1,
          colorStops: [
            { offset: 0, color: t.palette[0] + "30" },
            { offset: 1, color: t.palette[0] + "06" },
          ],
        },
      },
      markPoint: {
        symbol: "circle",
        symbolSize: 7,
        itemStyle: { color: t.palette[0] },
        label: {
          show: true,
          position: "top",
          distance: 10,
          fontSize: 13,
          fontWeight: "500",
          color: t.ink,
          formatter: "{b}",
        },
        data: [
          { name: "TMS (0.00 ppm)", coord: [0.00, 20] },
          { name: "CH₃ (1.17 ppm)", coord: [1.17, 80] },
          { name: "OH (2.61 ppm)", coord: [2.61, 28] },
          { name: "CH₂ (3.69 ppm)", coord: [3.69 - 0.5 * J, 78] },
        ],
      },
    },
  ],
});

Retrieve this implementation
