3D Bar Chart for Categorical Comparison — Plotly

A three-dimensional bar chart where bars rise from a 2D categorical grid, with height encoding the measured value. Two categorical axes define the grid position on the base plane while the vertical axis shows magnitude. This visualization extends the bar chart family into 3D space, making it effective for comparing values across two categorical dimensions simultaneously.

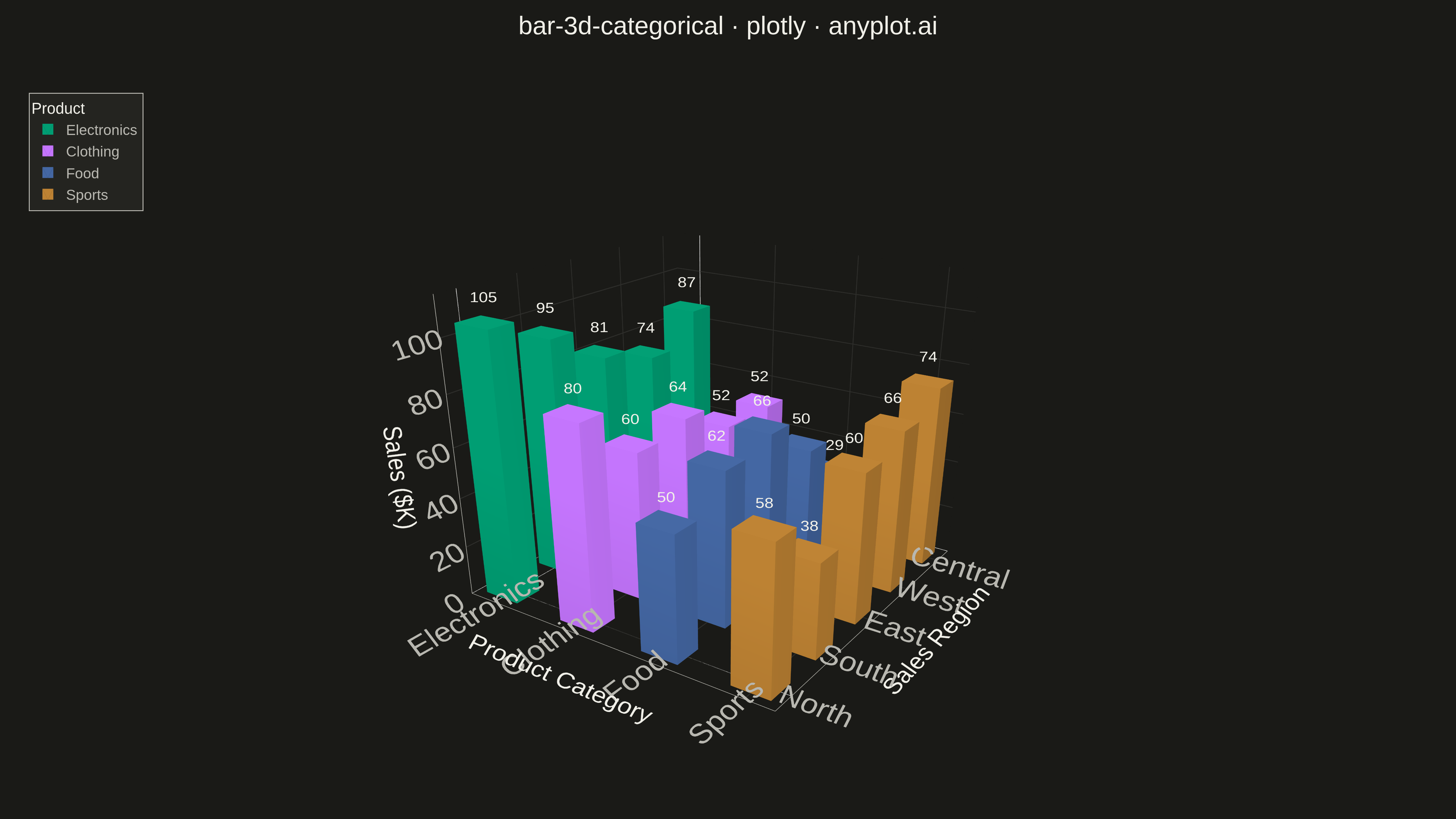

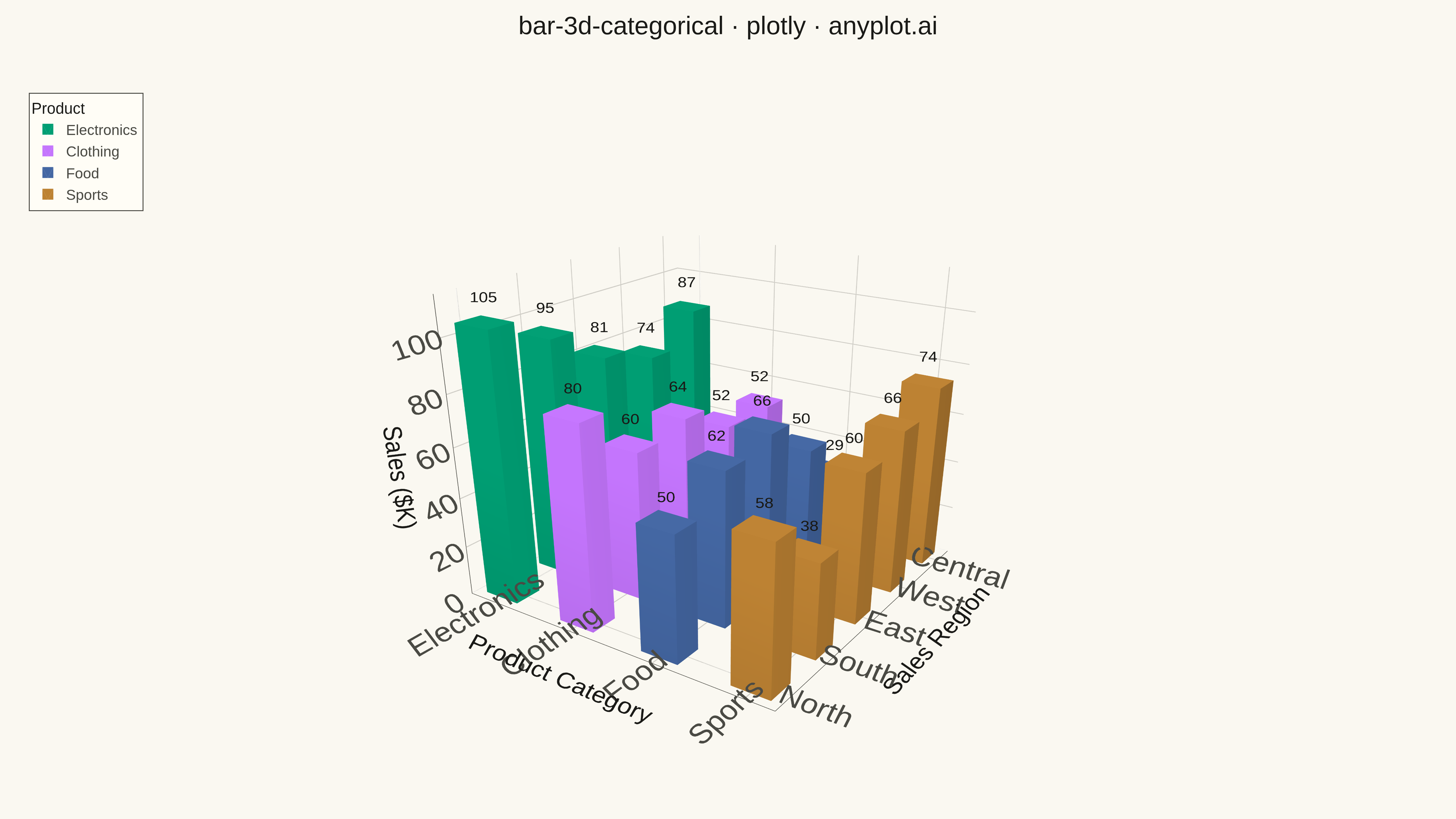

3D Bar Chart for Categorical Comparison rendered with Plotly

Renders

Python source (Plotly)

""" anyplot.ai
bar-3d-categorical: 3D Bar Chart for Categorical Comparison
Library: plotly 6.7.0 | Python 3.13.13
Quality: 82/100 | Created: 2026-05-15
"""

import os

import numpy as np
import plotly.graph_objects as go


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID_COLOR = "#D0CEC7" if THEME == "light" else "#2D2D2A"

IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]

# Data
np.random.seed(42)
products = ["Electronics", "Clothing", "Food", "Sports"]
regions = ["North", "South", "East", "West", "Central"]
n_prod, n_reg = len(products), len(regions)

base = np.array([85, 60, 45, 55])
sales = base[:, None] + np.random.randint(-18, 22, size=(n_prod, n_reg))
z_max = int(sales.max()) + 10

DW = 0.42

# Plot
fig = go.Figure()

for p_idx, prod in enumerate(products):
    xs, ys, zs = [], [], []
    ii, jj, kk = [], [], []

    for r_idx in range(n_reg):
        xi, yi, h = p_idx, r_idx, float(sales[p_idx, r_idx])
        x0, x1 = xi - DW / 2, xi + DW / 2
        y0, y1 = yi - DW / 2, yi + DW / 2
        vx = [x0, x1, x1, x0, x0, x1, x1, x0]
        vy = [y0, y0, y1, y1, y0, y0, y1, y1]
        vz = [0, 0, 0, 0, h, h, h, h]
        fi = [0, 0, 4, 4, 0, 0, 2, 2, 0, 0, 1, 1]
        fj = [1, 2, 5, 6, 1, 5, 3, 7, 3, 7, 2, 6]
        fk = [2, 3, 6, 7, 5, 4, 7, 6, 7, 4, 6, 5]
        n = len(xs)
        xs.extend(vx)
        ys.extend(vy)
        zs.extend(vz)
        ii.extend(v + n for v in fi)
        jj.extend(v + n for v in fj)
        kk.extend(v + n for v in fk)

    fig.add_trace(
        go.Mesh3d(
            x=xs,
            y=ys,
            z=zs,
            i=ii,
            j=jj,
            k=kk,
            color=IMPRINT[p_idx],
            opacity=1.0,
            name=prod,
            showlegend=True,
            flatshading=True,
            lighting={"ambient": 0.7, "diffuse": 0.7, "specular": 0.05, "roughness": 0.8},
            lightposition={"x": 3, "y": -3, "z": 8},
        )
    )

# Value labels on top of each bar
lx, ly, lz, lt = [], [], [], []
for p_idx in range(n_prod):
    for r_idx in range(n_reg):
        lx.append(p_idx)
        ly.append(r_idx)
        lz.append(float(sales[p_idx, r_idx]) + 2)
        lt.append(str(int(sales[p_idx, r_idx])))

fig.add_trace(
    go.Scatter3d(
        x=lx, y=ly, z=lz, mode="text", text=lt, textfont={"size": 14, "color": INK}, showlegend=False, hoverinfo="skip"
    )
)

# Style
fig.update_layout(
    title={
        "text": "bar-3d-categorical · plotly · anyplot.ai",
        "font": {"size": 28, "color": INK},
        "x": 0.5,
        "xanchor": "center",
        "y": 0.98,
        "yanchor": "top",
    },
    scene={
        "xaxis": {
            "ticktext": products,
            "tickvals": list(range(n_prod)),
            "title": {"text": "Product Category", "font": {"size": 22, "color": INK}},
            "tickfont": {"size": 18, "color": INK_SOFT},
            "gridcolor": GRID_COLOR,
            "backgroundcolor": PAGE_BG,
            "showbackground": True,
            "linecolor": INK_SOFT,
            "showgrid": True,
        },
        "yaxis": {
            "ticktext": regions,
            "tickvals": list(range(n_reg)),
            "title": {"text": "Sales Region", "font": {"size": 22, "color": INK}},
            "tickfont": {"size": 18, "color": INK_SOFT},
            "gridcolor": GRID_COLOR,
            "backgroundcolor": PAGE_BG,
            "showbackground": True,
            "linecolor": INK_SOFT,
            "showgrid": True,
        },
        "zaxis": {
            "title": {"text": "Sales ($K)", "font": {"size": 22, "color": INK}},
            "tickfont": {"size": 18, "color": INK_SOFT},
            "gridcolor": GRID_COLOR,
            "backgroundcolor": PAGE_BG,
            "showbackground": True,
            "linecolor": INK_SOFT,
            "showgrid": True,
            "range": [0, z_max],
        },
        "camera": {"eye": {"x": 1.5, "y": -2.2, "z": 1.2}, "up": {"x": 0, "y": 0, "z": 1}},
    },
    paper_bgcolor=PAGE_BG,
    legend={
        "bgcolor": ELEVATED_BG,
        "bordercolor": INK_SOFT,
        "borderwidth": 1,
        "font": {"color": INK_SOFT, "size": 16},
        "title": {"text": "Product", "font": {"color": INK, "size": 17}},
        "x": 0.02,
        "y": 0.95,
    },
    margin={"l": 0, "r": 20, "t": 60, "b": 0},
)

# Save
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of 3D Bar Chart for Categorical Comparison on anyplot.ai.
