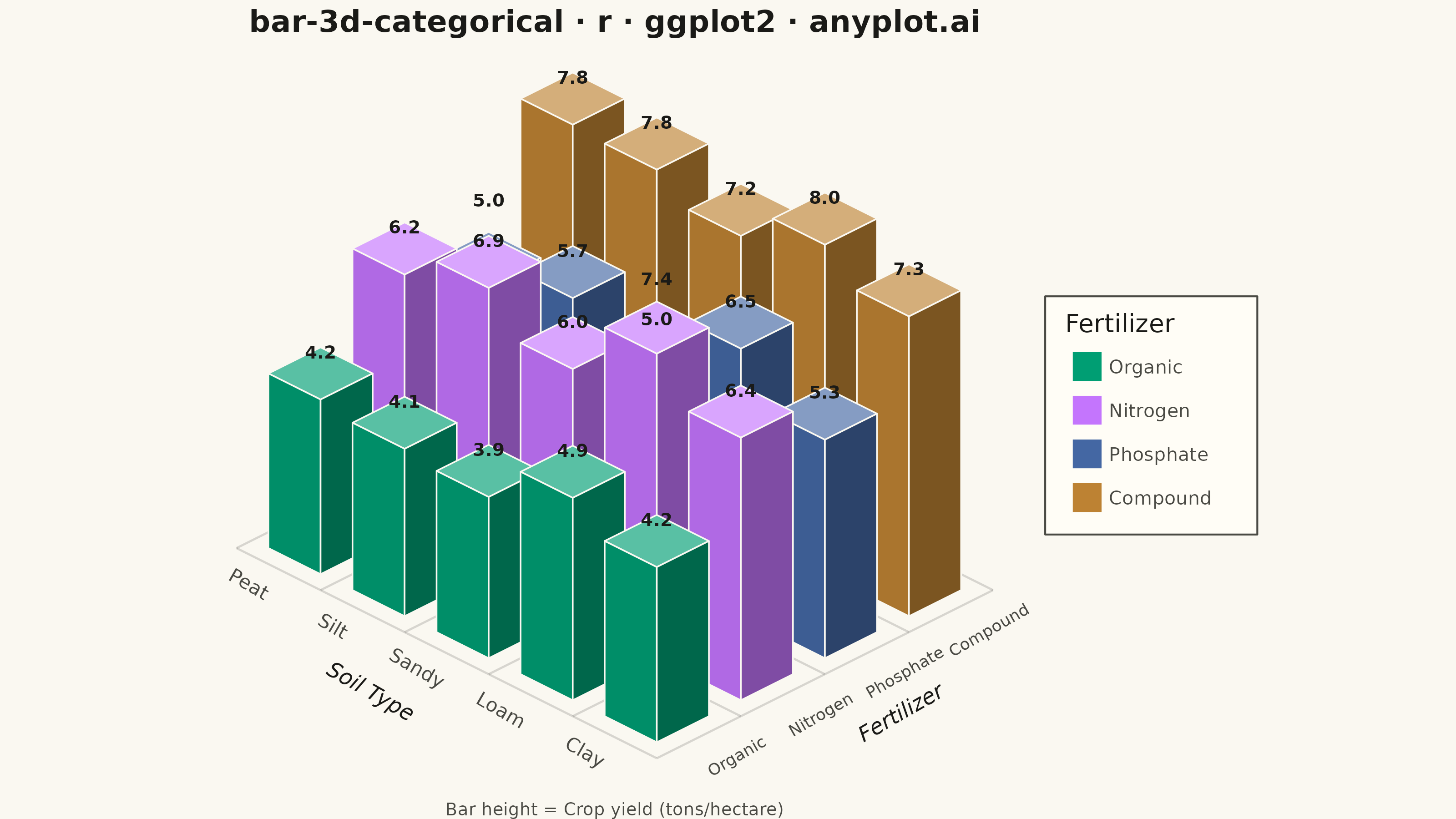

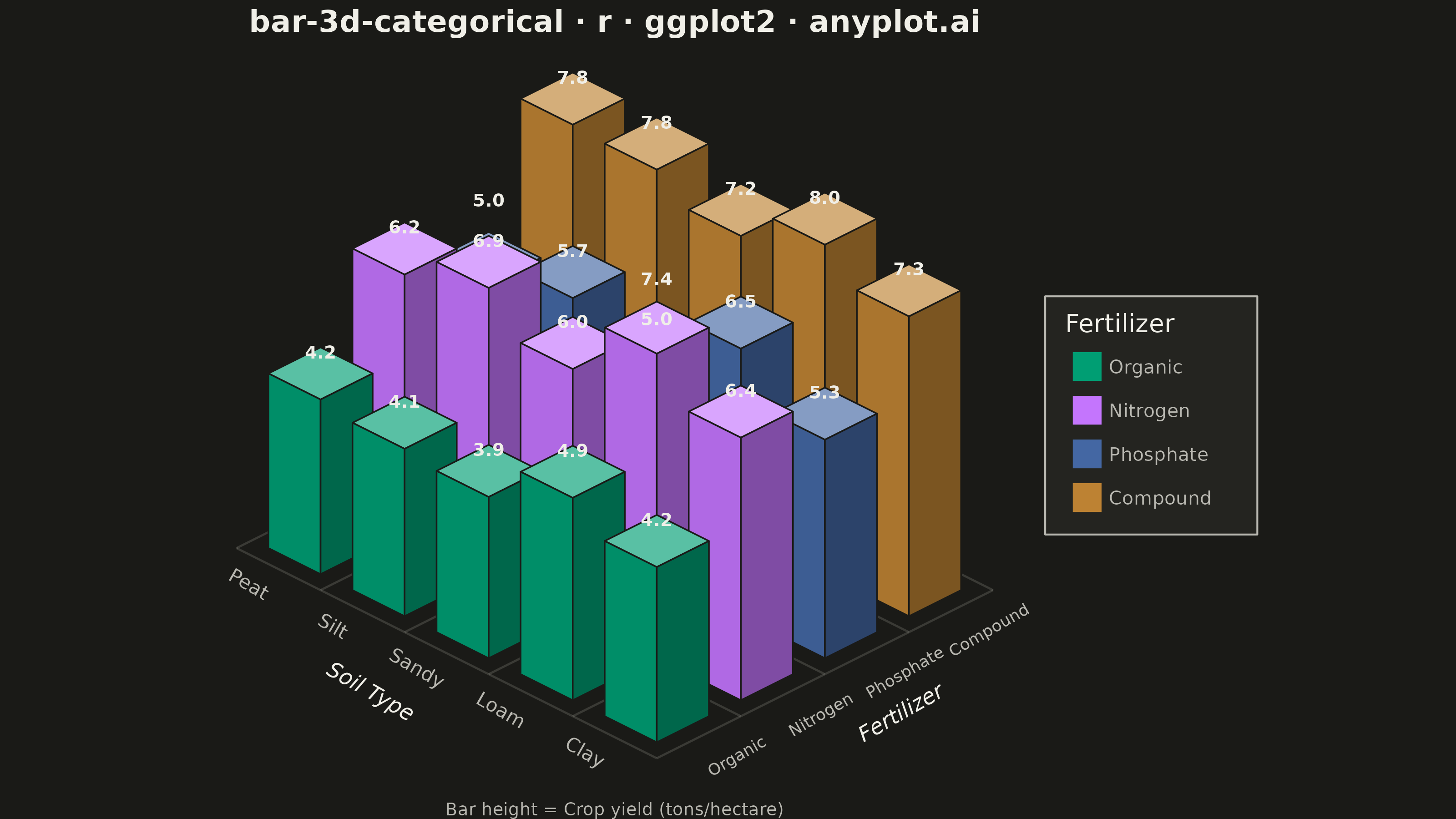

A three-dimensional bar chart where bars rise from a 2D categorical grid, with height encoding the measured value. Two categorical axes define the grid position on the base plane while the vertical axis shows magnitude. This visualization extends the bar chart family into 3D space, making it effective for comparing values across two categorical dimensions simultaneously.
#' anyplot.ai
#' bar-3d-categorical: 3D Bar Chart for Categorical Comparison
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 90/100 | Created: 2026-09-04
library(ggplot2)
library(dplyr)
library(ragg)
set.seed(42)
# Theme tokens (see prompts/default-style-guide.md "Background" + "Theme-adaptive Chrome")
THEME <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
ELEVATED_BG <- if (THEME == "light") "#FFFDF6" else "#242420"
INK <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT <- if (THEME == "light") "#4A4A44" else "#B8B7B0"
# Imprint palette — 8 hues, theme-independent, hybrid-v3 sort
IMPRINT_PALETTE <- c(
"#009E73", "#C475FD", "#4467A3", "#BD8233",
"#AE3030", "#2ABCCD", "#954477", "#99B314"
)
# --- Data: crop yield across fertilizer x soil type (factorial design, 4 x 5 = 20 bars) ---
fertilizer_types <- c("Organic", "Nitrogen", "Phosphate", "Compound")
soil_types <- c("Clay", "Loam", "Sandy", "Silt", "Peat")
fertilizer_baseline <- c(Organic = 4.2, Nitrogen = 6.8, Phosphate = 5.5, Compound = 7.4)
soil_modifier <- c(Clay = -0.3, Loam = 0.6, Sandy = -0.8, Silt = 0.2, Peat = 0.1)
trial <- expand.grid(
fertilizer = fertilizer_types,
soil = soil_types,
stringsAsFactors = FALSE
) |>
mutate(
fertilizer = factor(fertilizer, levels = fertilizer_types),
soil = factor(soil, levels = soil_types),
i = as.integer(fertilizer) - 1L,
j = as.integer(soil) - 1L,
yield = fertilizer_baseline[as.character(fertilizer)] +
soil_modifier[as.character(soil)] +
rnorm(n(), mean = 0, sd = 0.25)
)
# --- Isometric projection: rotate by azimuth, tilt by elevation, drop depth ----
# See specification.md "Notes": elevation ~30 deg, azimuth ~45 deg.
AZIMUTH <- 45 * pi / 180
ELEVATION <- 30 * pi / 180
project_iso <- function(gx, gy, gz) {
rx <- gx * cos(AZIMUTH) - gy * sin(AZIMUTH)
ry <- gx * sin(AZIMUTH) + gy * cos(AZIMUTH)
screen_x <- rx
screen_y <- ry * sin(ELEVATION) + gz * cos(ELEVATION)
list(x = screen_x, y = screen_y)
}
shade <- function(hex, amount) {
channel <- col2rgb(hex) / 255
if (amount >= 0) {
channel <- channel + (1 - channel) * amount
} else {
channel <- channel * (1 + amount)
}
rgb(channel[1], channel[2], channel[3])
}
# --- Bar geometry: footprint with spacing, height scaled to a comfortable range ---
CELL <- 1.0
BAR_W <- 0.62
BAR_D <- 0.62
MARGIN <- (CELL - BAR_W) / 2
HEIGHT_SCALE <- 3.2 / max(trial$yield)
fert_colors <- setNames(IMPRINT_PALETTE[seq_along(fertilizer_types)], fertilizer_types)
# Painter's algorithm: draw far bars first so nearer bars occlude them correctly
trial <- trial |> arrange(desc(i + j))
faces <- vector("list", nrow(trial) * 12)
labels_rows <- vector("list", nrow(trial))
slot <- 0
for (row in seq_len(nrow(trial))) {
bar <- trial[row, ]
x0 <- bar$i + MARGIN
x1 <- bar$i + MARGIN + BAR_W
y0 <- bar$j + MARGIN
y1 <- bar$j + MARGIN + BAR_D
h <- bar$yield * HEIGHT_SCALE
base_hex <- fert_colors[[as.character(bar$fertilizer)]]
poly_id_base <- row * 3
top_corners <- list(c(x0, y0, h), c(x1, y0, h), c(x1, y1, h), c(x0, y1, h))
left_corners <- list(c(x0, y0, 0), c(x0, y1, 0), c(x0, y1, h), c(x0, y0, h))
right_corners <- list(c(x0, y0, 0), c(x1, y0, 0), c(x1, y0, h), c(x0, y0, h))
face_specs <- list(
list(corners = top_corners, fill_hex = shade(base_hex, 0.35), poly_id = poly_id_base),
list(corners = left_corners, fill_hex = shade(base_hex, -0.10), poly_id = poly_id_base + 1),
list(corners = right_corners, fill_hex = shade(base_hex, -0.35), poly_id = poly_id_base + 2)
)
for (face in face_specs) {
for (order in seq_along(face$corners)) {
corner <- face$corners[[order]]
screen <- project_iso(corner[1], corner[2], corner[3])
slot <- slot + 1
faces[[slot]] <- data.frame(
poly_id = face$poly_id, order = order,
px = screen$x, py = screen$y, fill_hex = face$fill_hex
)
}
}
top_center <- project_iso((x0 + x1) / 2, (y0 + y1) / 2, h)
labels_rows[[row]] <- data.frame(px = top_center$x, py = top_center$y + 0.18, label = sprintf("%.1f", bar$yield))
}
faces_df <- bind_rows(faces)
labels_df <- bind_rows(labels_rows)
# Isometric views can put two different grid cells on the same screen column
# (cells sharing fertilizer_index - soil_index land on one diagonal); when their
# heights are close, the value labels collide. Nudge later labels (bottom-to-top)
# apart from earlier ones sharing a column so every value stays legible.
MIN_LABEL_GAP <- 0.34
label_order <- order(labels_df$py)
for (k in seq_along(label_order)[-1]) {
cur <- label_order[k]
for (prev in label_order[seq_len(k - 1)]) {
if (abs(labels_df$px[cur] - labels_df$px[prev]) < 0.45) {
gap <- labels_df$py[cur] - labels_df$py[prev]
if (gap < MIN_LABEL_GAP) {
labels_df$py[cur] <- labels_df$py[prev] + MIN_LABEL_GAP
}
}
}
}
# --- Base-plane grid lines (relate bars to their categorical position) --------
n_fert <- length(fertilizer_types)
n_soil <- length(soil_types)
grid_lines <- vector("list", (n_fert + 1) + (n_soil + 1))
slot <- 0
for (i in 0:n_fert) {
a <- project_iso(i, 0, 0)
b <- project_iso(i, n_soil, 0)
slot <- slot + 1
grid_lines[[slot]] <- data.frame(line_id = slot, px = c(a$x, b$x), py = c(a$y, b$y))
}
for (j in 0:n_soil) {
a <- project_iso(0, j, 0)
b <- project_iso(n_fert, j, 0)
slot <- slot + 1
grid_lines[[slot]] <- data.frame(line_id = slot, px = c(a$x, b$x), py = c(a$y, b$y))
}
grid_df <- bind_rows(grid_lines)
# --- Category tick labels along the two front edges ---------------------------
fert_ticks <- bind_rows(lapply(seq_along(fertilizer_types) - 1L, function(i) {
p <- project_iso(i + 0.5, -0.45, 0)
data.frame(px = p$x, py = p$y, label = fertilizer_types[i + 1])
}))
soil_ticks <- bind_rows(lapply(seq_along(soil_types) - 1L, function(j) {
p <- project_iso(-0.35, j + 0.5, 0)
data.frame(px = p$x, py = p$y, label = soil_types[j + 1])
}))
fert_axis_label <- project_iso(n_fert / 2, -0.9, 0)
soil_axis_label <- project_iso(-0.9, n_soil / 2, 0)
# --- Theme-adaptive chrome — bespoke isometric canvas (no meaningful cartesian axes) ---
anyplot_theme <- theme_void(base_size = 8) +
theme(
plot.background = element_rect(fill = PAGE_BG, color = PAGE_BG),
legend.background = element_rect(fill = ELEVATED_BG, color = INK_SOFT),
legend.margin = margin(t = 6, r = 12, b = 6, l = 8),
legend.text = element_text(color = INK_SOFT, size = 7.5, margin = margin(r = 6)),
legend.title = element_text(color = INK, size = 10),
plot.title = element_text(color = INK, size = 12, face = "bold", hjust = 0.5),
plot.caption = element_text(color = INK_SOFT, size = 7, hjust = 0.5),
legend.position = "right"
)
p <- ggplot() +
geom_path(data = grid_df, aes(x = px, y = py, group = line_id), color = INK_SOFT, alpha = 0.2, linewidth = 0.4) +
geom_polygon(
data = faces_df, aes(x = px, y = py, group = poly_id, fill = fill_hex),
color = PAGE_BG, linewidth = 0.3, show.legend = FALSE
) +
geom_point(
data = data.frame(fertilizer = factor(fertilizer_types, levels = fertilizer_types)),
aes(x = 0, y = 0, color = fertilizer), alpha = 0
) +
geom_text(data = labels_df, aes(x = px, y = py, label = label), color = INK, size = 2.5, fontface = "bold") +
geom_text(data = fert_ticks, aes(x = px, y = py, label = label), color = INK_SOFT, size = 2.3, angle = 30) +
geom_text(data = soil_ticks, aes(x = px, y = py, label = label), color = INK_SOFT, size = 2.7, angle = -30) +
annotate("text", x = fert_axis_label$x, y = fert_axis_label$y, label = "Fertilizer", color = INK, size = 3.0, angle = 30, fontface = "italic") +
annotate("text", x = soil_axis_label$x, y = soil_axis_label$y, label = "Soil Type", color = INK, size = 3.0, angle = -30, fontface = "italic") +
scale_fill_identity() +
scale_color_manual(values = fert_colors, name = "Fertilizer", guide = guide_legend(override.aes = list(alpha = 1, size = 5, shape = 15))) +
coord_fixed(ratio = 1) +
labs(
title = "bar-3d-categorical · r · ggplot2 · anyplot.ai",
caption = "Bar height = Crop yield (tons/hectare)"
) +
anyplot_theme
ggsave(
filename = sprintf("plot-%s.png", THEME),
plot = p,
device = ragg::agg_png,
width = 8,
height = 4.5,
units = "in",
dpi = 400
)
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/bar-3d-categorical/ggplot2/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "bar-3d-categorical",
"language": "r",
"library": "ggplot2",
"page": "https://anyplot.ai/bar-3d-categorical/r/ggplot2",
"hub": "https://anyplot.ai/bar-3d-categorical",
"code_json": "https://api.anyplot.ai/specs/bar-3d-categorical/ggplot2/code",
"spec_json": "https://api.anyplot.ai/specs/bar-3d-categorical",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/bar-3d-categorical/r/ggplot2/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/bar-3d-categorical/r/ggplot2/plot-dark.png",
"quality_score": 90.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of 3D Bar Chart for Categorical Comparison on anyplot.ai.
