Time in Heart Rate Zones Bar Chart — D3.js

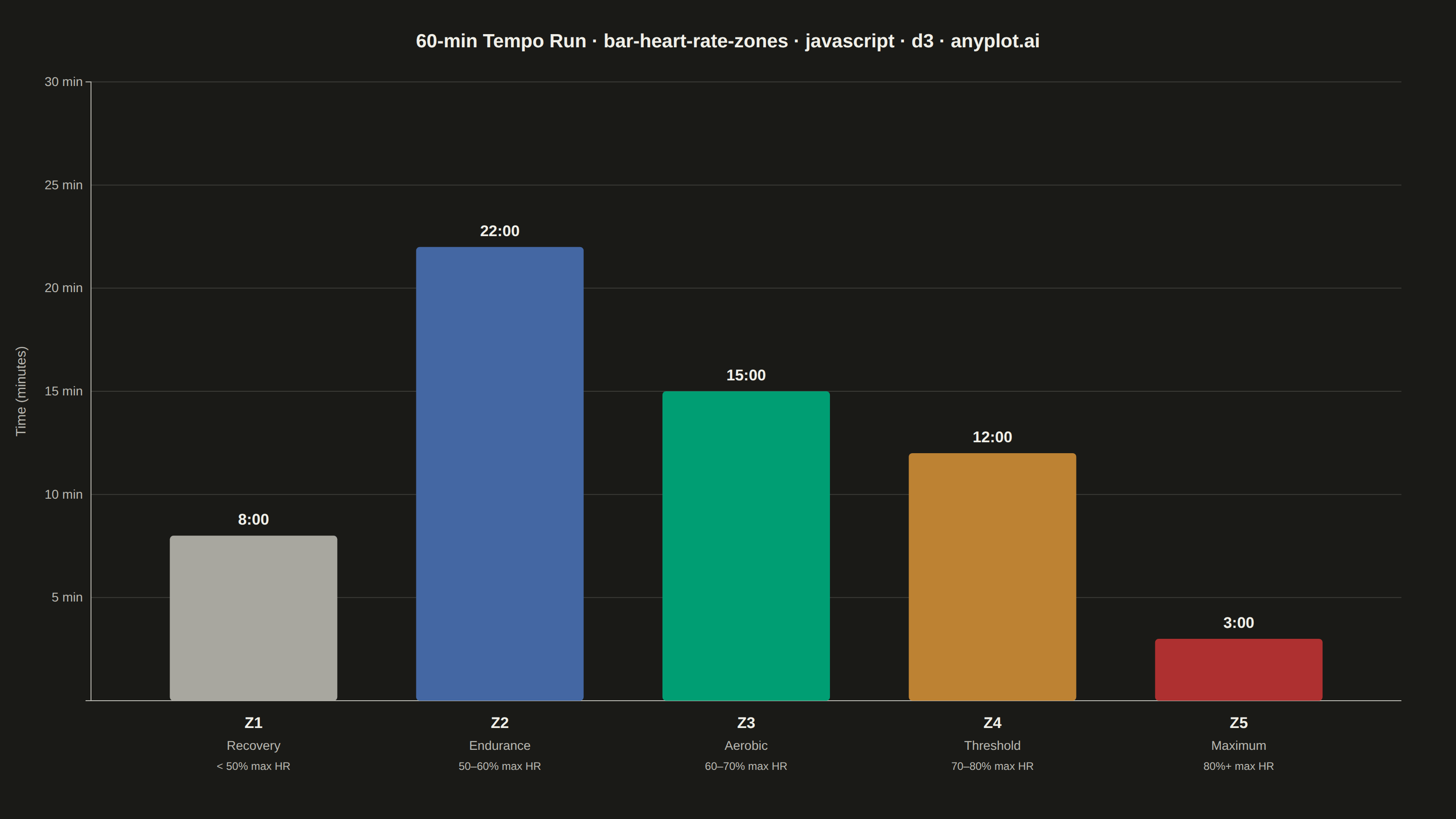

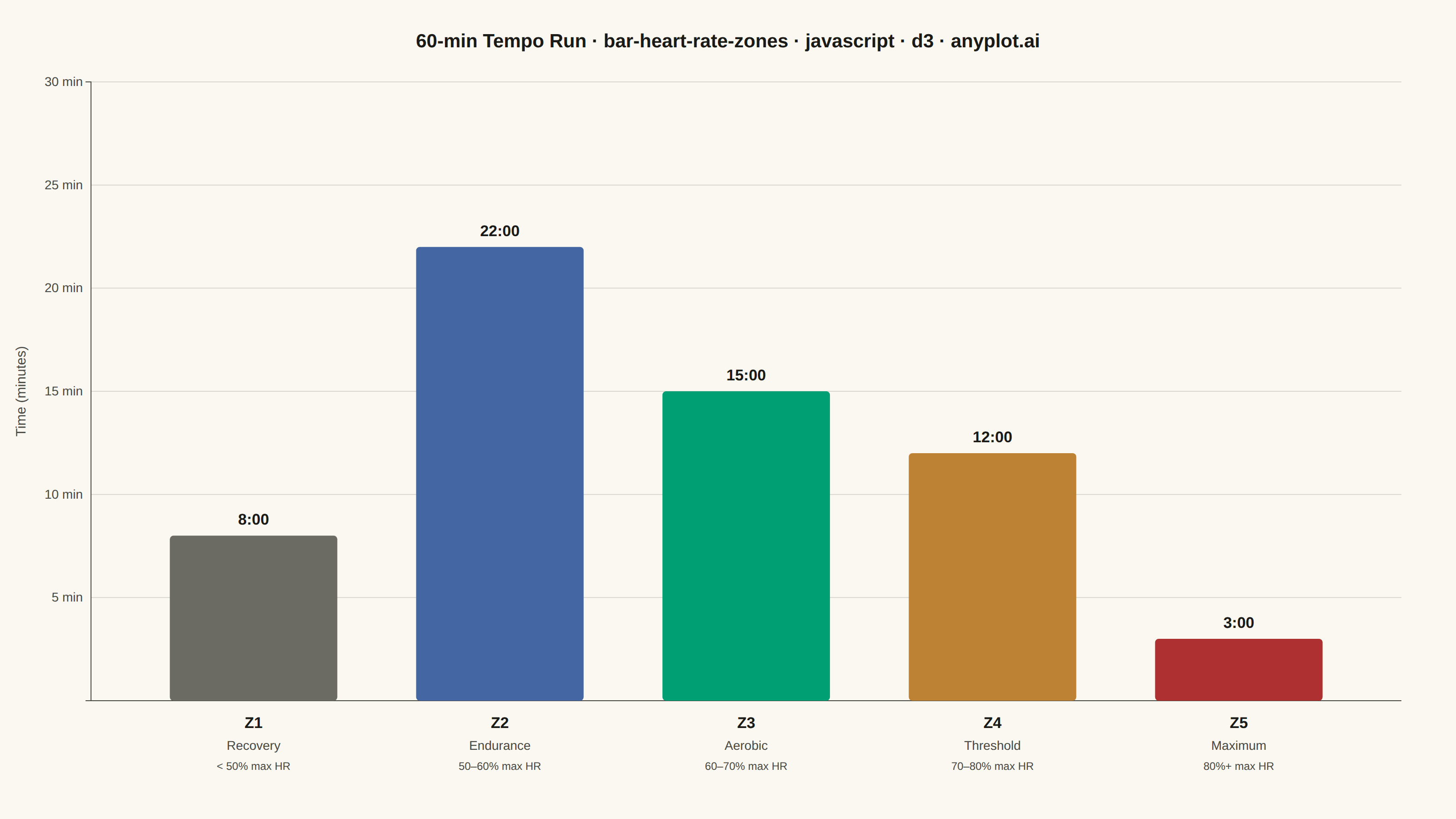

A vertical bar chart showing the time spent in each heart rate training zone (Z1–Z5) during a workout or training period. Each bar uses the conventional zone color semantics (grey for Z1 recovery, blue for Z2 endurance, green for Z3 aerobic, orange for Z4 threshold, red for Z5 maximum) and is annotated with its duration, making the distribution of training intensity immediately readable. This is the standard summary chart found in fitness platforms such as Garmin, Strava, and Polar, and it reveals at a glance whether a session was easy, balanced, or high-intensity.

Time in Heart Rate Zones Bar Chart rendered with D3.js

JavaScript source (D3.js)

// anyplot.ai
// bar-heart-rate-zones: Time in Heart Rate Zones Bar Chart
// Library: d3 7.9.0 | JavaScript 22.22.3
// Quality: 90/100 | Created: 2026-06-14
//# anyplot-orientation: landscape

const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const THEME = window.ANYPLOT_THEME;

// Semantic zone colors — conventional fitness-zone hues mapped to Imprint palette
const muted = THEME === "light" ? "#6B6A63" : "#A8A79F";
const zoneColors = [
  muted,      // Z1 Recovery  — grey  (Imprint muted anchor)
  "#4467A3",  // Z2 Endurance — blue  (Imprint pos 3)
  "#009E73",  // Z3 Aerobic   — green (Imprint pos 1 / brand)
  "#BD8233",  // Z4 Threshold — ochre (Imprint pos 4)
  "#AE3030",  // Z5 Maximum   — matte red (Imprint pos 5)
];

// Data — 60-minute tempo run
const zones = [
  { id: "Z1", name: "Recovery",  minutes: 8,  hrRange: "< 50% max HR"  },
  { id: "Z2", name: "Endurance", minutes: 22, hrRange: "50–60% max HR" },
  { id: "Z3", name: "Aerobic",   minutes: 15, hrRange: "60–70% max HR" },
  { id: "Z4", name: "Threshold", minutes: 12, hrRange: "70–80% max HR" },
  { id: "Z5", name: "Maximum",   minutes: 3,  hrRange: "80%+ max HR"   },
];

const margin = { top: 90, right: 60, bottom: 130, left: 100 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;

const svg = d3.select("#container").append("svg")
  .attr("width", width).attr("height", height);

const g = svg.append("g")
  .attr("transform", `translate(${margin.left},${margin.top})`);

// Scales
const x = d3.scaleBand()
  .domain(zones.map(d => d.id))
  .range([0, iw])
  .padding(0.32);

const y = d3.scaleLinear()
  .domain([0, 30])
  .range([ih, 0]);

// Horizontal gridlines (y-axis only)
g.append("g")
  .call(d3.axisLeft(y).tickValues([5, 10, 15, 20, 25, 30]).tickSize(-iw).tickFormat(""))
  .call(ag => ag.select(".domain").remove())
  .selectAll("line")
  .attr("stroke", t.grid)
  .attr("stroke-width", 1);

// Y axis with labels
g.append("g")
  .call(
    d3.axisLeft(y)
      .tickValues([0, 5, 10, 15, 20, 25, 30])
      .tickFormat(d => d === 0 ? "" : `${d} min`)
  )
  .call(ag => {
    ag.select(".domain").attr("stroke", t.inkSoft);
    ag.selectAll(".tick text").attr("fill", t.inkSoft).style("font-size", "14px");
    ag.selectAll(".tick line").remove();
  });

// X axis baseline
g.append("g")
  .attr("transform", `translate(0,${ih})`)
  .call(d3.axisBottom(x).tickSize(0).tickFormat(""))
  .call(ag => ag.select(".domain").attr("stroke", t.inkSoft));

// Bars
g.selectAll(".bar")
  .data(zones)
  .join("rect")
  .attr("x", d => x(d.id))
  .attr("y", d => y(d.minutes))
  .attr("width", x.bandwidth())
  .attr("height", d => ih - y(d.minutes))
  .attr("fill", (d, i) => zoneColors[i])
  .attr("rx", 4);

// Duration labels above each bar
g.selectAll(".dur-label")
  .data(zones)
  .join("text")
  .attr("x", d => x(d.id) + x.bandwidth() / 2)
  .attr("y", d => y(d.minutes) - 12)
  .attr("text-anchor", "middle")
  .attr("fill", t.ink)
  .style("font-size", "17px")
  .style("font-weight", "700")
  .text(d => {
    const m = Math.floor(d.minutes);
    const s = Math.round((d.minutes - m) * 60);
    return `${m}:${String(s).padStart(2, "0")}`;
  });

// X-axis zone label groups: ID + name + HR range
const xLabels = g.selectAll(".zone-label")
  .data(zones)
  .join("g")
  .attr("transform", d => `translate(${x(d.id) + x.bandwidth() / 2},${ih})`);

xLabels.append("text")
  .attr("y", 30)
  .attr("text-anchor", "middle")
  .attr("fill", t.ink)
  .style("font-size", "17px")
  .style("font-weight", "700")
  .text(d => d.id);

xLabels.append("text")
  .attr("y", 54)
  .attr("text-anchor", "middle")
  .attr("fill", t.inkSoft)
  .style("font-size", "14px")
  .text(d => d.name);

xLabels.append("text")
  .attr("y", 76)
  .attr("text-anchor", "middle")
  .attr("fill", t.inkSoft)
  .style("font-size", "12px")
  .text(d => d.hrRange);

// Y-axis label (rotated)
g.append("text")
  .attr("transform", "rotate(-90)")
  .attr("x", -(ih / 2))
  .attr("y", -72)
  .attr("text-anchor", "middle")
  .attr("fill", t.inkSoft)
  .style("font-size", "15px")
  .text("Time (minutes)");

// Title
const titleText = "60-min Tempo Run · bar-heart-rate-zones · javascript · d3 · anyplot.ai";
const titleSize = Math.max(16, Math.round(22 * Math.min(1, 67 / titleText.length)));

svg.append("text")
  .attr("x", width / 2)
  .attr("y", 52)
  .attr("text-anchor", "middle")
  .attr("fill", t.ink)
  .style("font-size", `${titleSize}px`)
  .style("font-weight", "600")
  .text(titleText);
