Time in Heart Rate Zones Bar Chart — MUI X Charts

A vertical bar chart showing the time spent in each heart rate training zone (Z1–Z5) during a workout or training period. Each bar uses the conventional zone color semantics (grey for Z1 recovery, blue for Z2 endurance, green for Z3 aerobic, orange for Z4 threshold, red for Z5 maximum) and is annotated with its duration, making the distribution of training intensity immediately readable. This is the standard summary chart found in fitness platforms such as Garmin, Strava, and Polar, and it reveals at a glance whether a session was easy, balanced, or high-intensity.

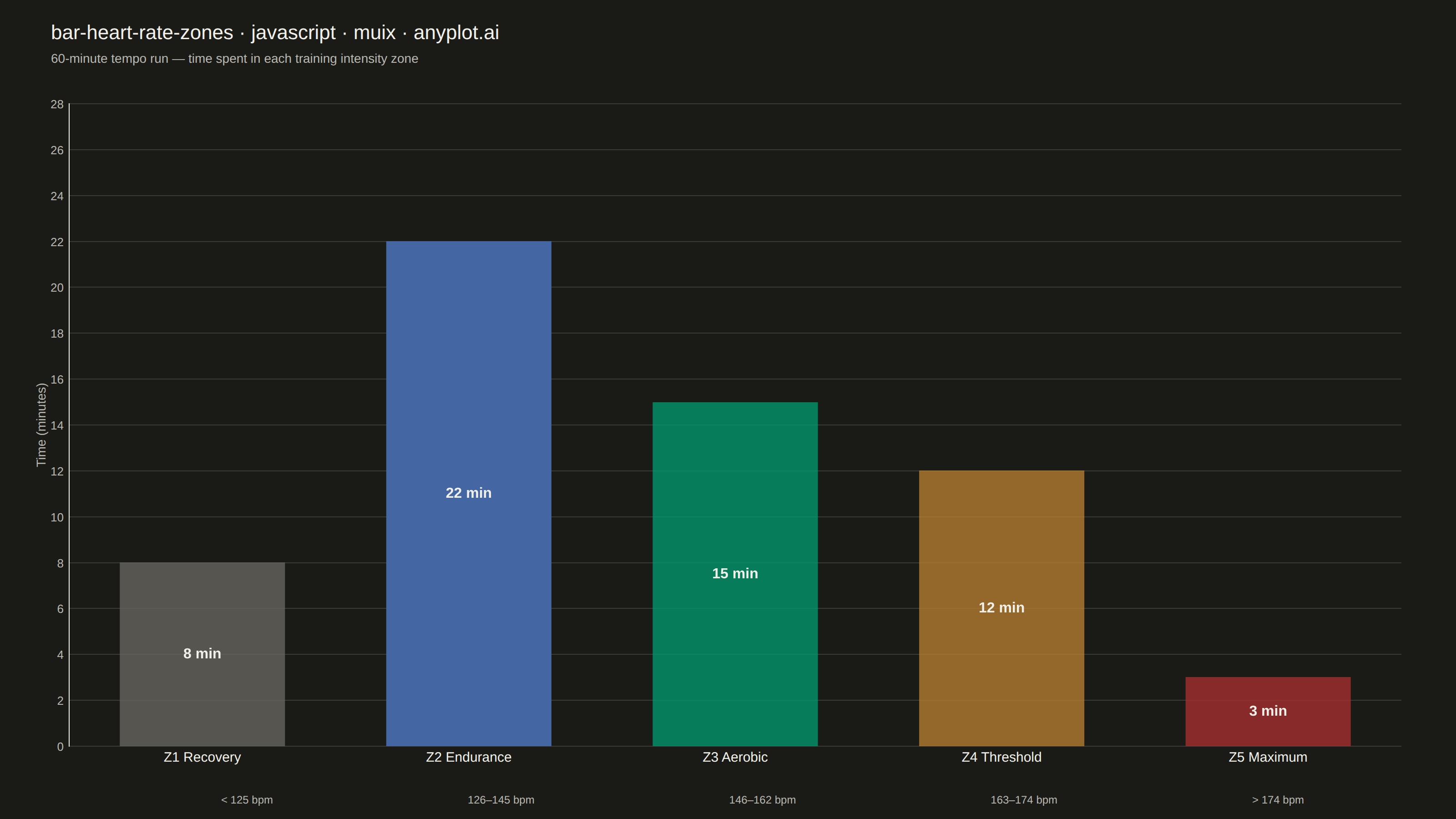

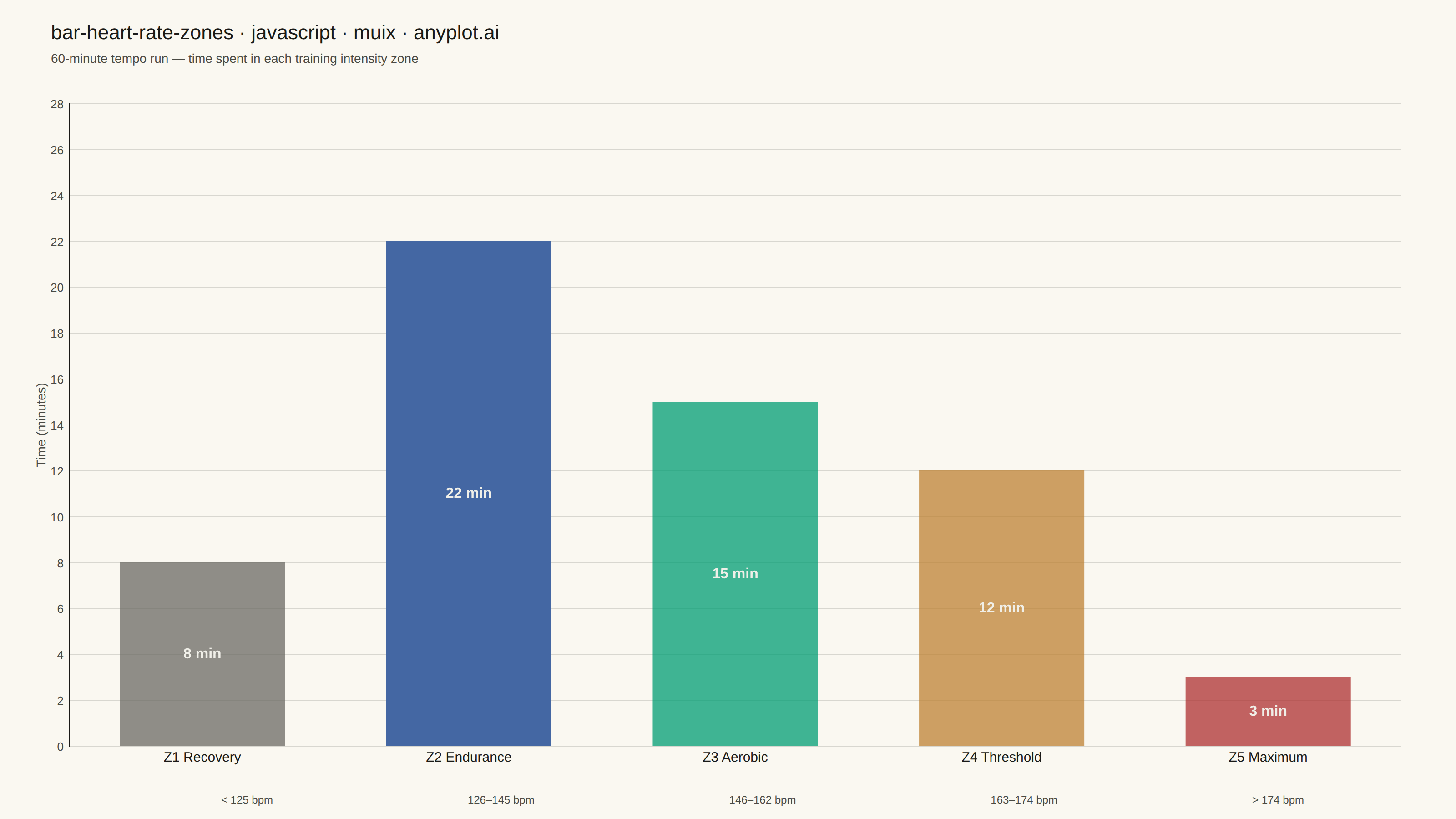

Time in Heart Rate Zones Bar Chart rendered with MUI X Charts

JavaScript source (MUI X Charts)

// anyplot.ai
// bar-heart-rate-zones: Time in Heart Rate Zones Bar Chart
// Library: muix 7.29.1 | JavaScript 22.22.3
// Quality: 91/100 | Created: 2026-06-14
//# anyplot-orientation: landscape
// anyplot.ai
// bar-heart-rate-zones: Time in Heart Rate Zones Bar Chart
// Library: MUI X Charts | React | Node 22
// License: @mui/x-charts — MIT (community). Pro/Premium are out of scope.
// Quality: pending | Created: 2026-06-14

import { BarChart } from "@mui/x-charts/BarChart";
import Box from "@mui/material/Box";
import Typography from "@mui/material/Typography";

const t = window.ANYPLOT_TOKENS;

const zoneLabels = ["Z1 Recovery", "Z2 Endurance", "Z3 Aerobic", "Z4 Threshold", "Z5 Maximum"];
const hrRanges   = ["< 125 bpm", "126–145 bpm", "146–162 bpm", "163–174 bpm", "> 174 bpm"];
const minutes    = [8, 22, 15, 12, 3];

// Semantic zone colors: fitness-industry grey/blue/green/ochre/red → nearest Imprint members.
// Z2 Endurance dominates at 22/60 min (37%) — rendered full opacity.
// Remaining zones at 75% opacity (hex alpha BF) to direct the eye toward the dominant bar.
const zoneColors = [
  "#6B6A63BF",  // Z1 Recovery  — muted anchor, 75%
  "#4467A3",    // Z2 Endurance — position 3 blue, full opacity (dominant)
  "#009E73BF",  // Z3 Aerobic   — position 1 green, 75%
  "#BD8233BF",  // Z4 Threshold — position 4 ochre, 75%
  "#AE3030BF",  // Z5 Maximum   — position 5 matte red, 75%
];

export default function Chart() {
  const W = window.ANYPLOT_SIZE.width;   // 1600 CSS px (landscape mount)
  const H = window.ANYPLOT_SIZE.height;  // 900 CSS px
  const CHART_TOP = 84;

  return (
    <Box sx={{ position: "relative", width: W, height: H, bgcolor: t.pageBg }}>

      {/* Title + subtitle */}
      <Box sx={{ position: "absolute", top: 22, left: 56, right: 56 }}>
        <Typography sx={{ color: t.ink, fontSize: 22, fontWeight: 500, lineHeight: 1.25 }}>
          bar-heart-rate-zones · javascript · muix · anyplot.ai
        </Typography>
        <Typography sx={{ color: t.inkSoft, fontSize: 14, mt: 0.5 }}>
          60-minute tempo run — time spent in each training intensity zone
        </Typography>
      </Box>

      {/* Bar chart */}
      <Box sx={{ position: "absolute", top: CHART_TOP, left: 0, right: 0, bottom: 0 }}>
        <BarChart
          width={W}
          height={H - CHART_TOP}
          skipAnimation
          xAxis={[{
            scaleType: "band",
            data: zoneLabels,
            colorMap: {
              type: "ordinal",
              values: zoneLabels,
              colors: zoneColors,
            },
            disableLine: true,
            disableTicks: true,
            tickLabelStyle: { fontSize: 15, fill: t.ink, fontWeight: 500 },
            categoryGapRatio: 0.38,
          }]}
          yAxis={[{
            label: "Time (minutes)",
            labelStyle: { fontSize: 14, fill: t.inkSoft },
            tickLabelStyle: { fontSize: 13, fill: t.inkSoft },
            disableTicks: true,
            max: 28,
          }]}
          series={[{
            data: minutes,
            label: "Time in zone",
            valueFormatter: (v, ctx) => {
              const i = ctx?.dataIndex ?? 0;
              return `${v} min | HR: ${hrRanges[i]}`;
            },
          }]}
          barLabel={(item) => (item.value !== null ? `${item.value} min` : null)}
          margin={{ top: 30, right: 60, bottom: 80, left: 76 }}
          grid={{ horizontal: true }}
          sx={{
            "& .MuiBarLabel-root": {
              fill: "#F0EFE8",  // warm white — readable on all zone colors in both themes
              fontSize: "16px",
              fontWeight: 700,
            },
            "& .MuiChartsAxis-line": { stroke: t.inkSoft },
            "& .MuiChartsGrid-line": { stroke: t.grid },
            "& .MuiChartsLegend-root": { display: "none" },
          }}
        />
      </Box>

      {/* HR boundary ranges below each zone (bottom strip) */}
      <Box
        sx={{
          position: "absolute",
          bottom: 12,
          left: 76 + 60,
          right: 60,
          display: "flex",
          justifyContent: "space-around",
          pointerEvents: "none",
        }}
      >
        {hrRanges.map((range, i) => (
          <Typography
            key={i}
            sx={{ color: t.inkSoft, fontSize: 12, textAlign: "center" }}
          >
            {range}
          </Typography>
        ))}
      </Box>
    </Box>
  );
}

Part of Time in Heart Rate Zones Bar Chart on anyplot.ai.
