Time in Heart Rate Zones Bar Chart — Makie.jl

A vertical bar chart showing the time spent in each heart rate training zone (Z1–Z5) during a workout or training period. Each bar uses the conventional zone color semantics (grey for Z1 recovery, blue for Z2 endurance, green for Z3 aerobic, orange for Z4 threshold, red for Z5 maximum) and is annotated with its duration, making the distribution of training intensity immediately readable. This is the standard summary chart found in fitness platforms such as Garmin, Strava, and Polar, and it reveals at a glance whether a session was easy, balanced, or high-intensity.

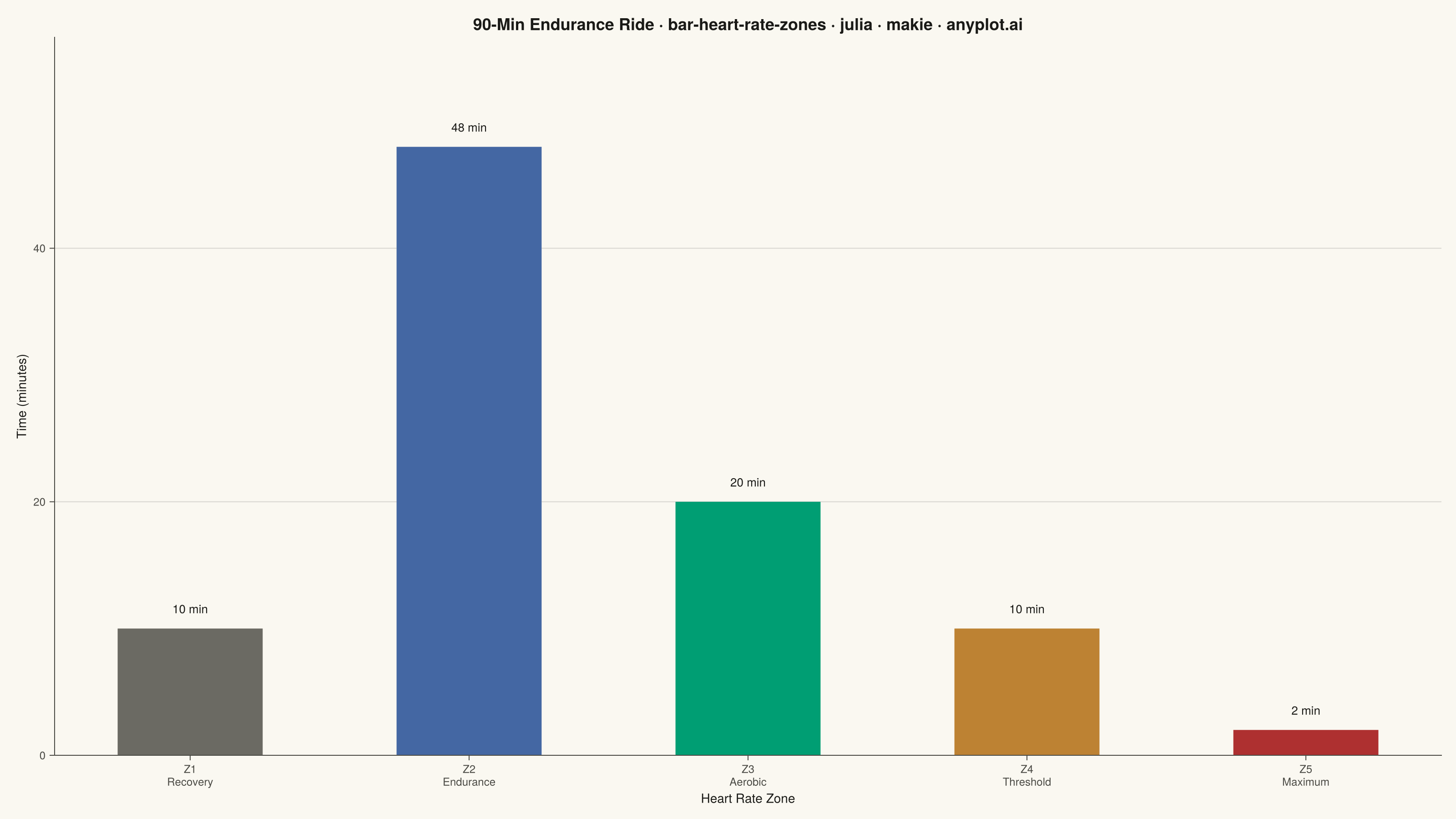

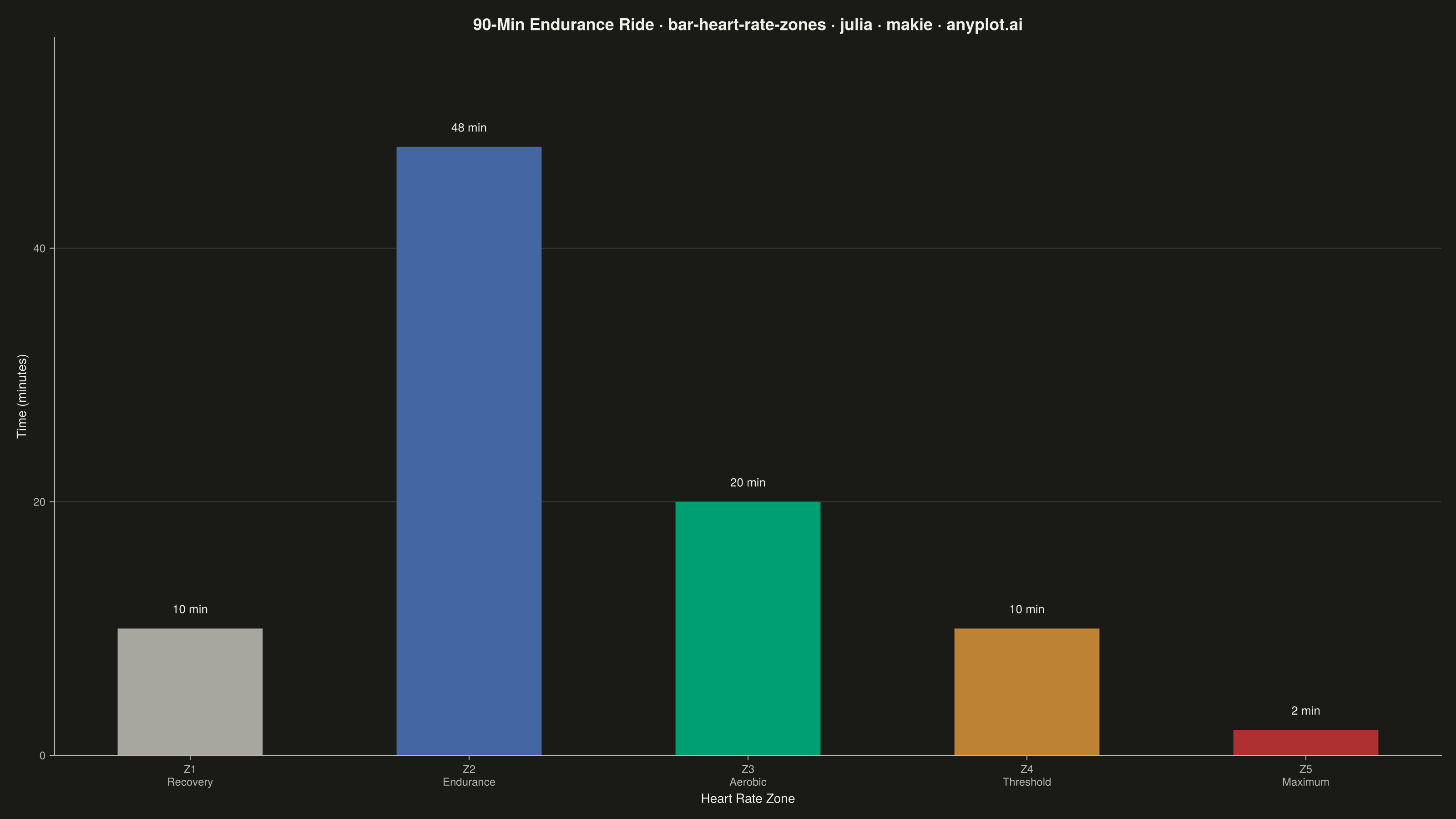

Time in Heart Rate Zones Bar Chart rendered with Makie.jl

Julia source (Makie.jl)

# anyplot.ai
# bar-heart-rate-zones: Time in Heart Rate Zones Bar Chart
# Library: makie 0.22.10 | Julia 1.11.9
# Quality: 88/100 | Created: 2026-06-14

using CairoMakie
using Colors

const THEME     = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG   = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK       = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT  = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
const INK_MUTED = THEME == "light" ? colorant"#6B6A63" : colorant"#A8A79F"

# Semantic zone colors: conventional fitness zone color scheme (semantic exception)
# Z1→grey/muted, Z2→Imprint blue, Z3→Imprint green, Z4→Imprint ochre, Z5→Imprint red
const ZONE_COLORS = [
    INK_MUTED,           # Z1 Recovery  — grey (theme-adaptive muted)
    colorant"#4467A3",   # Z2 Endurance — Imprint blue
    colorant"#009E73",   # Z3 Aerobic   — Imprint brand green
    colorant"#BD8233",   # Z4 Threshold — Imprint ochre
    colorant"#AE3030",   # Z5 Maximum   — Imprint matte red
]

# Data — 90-minute endurance ride
const ZONE_POS    = [1, 2, 3, 4, 5]
const MINUTES     = [10.0, 48.0, 20.0, 10.0, 2.0]
const TOTAL_MIN   = sum(MINUTES)
const ZONE_LABELS = ["Z1\nRecovery", "Z2\nEndurance", "Z3\nAerobic", "Z4\nThreshold", "Z5\nMaximum"]

const TITLE_STR = "90-Min Endurance Ride · bar-heart-rate-zones · julia · makie · anyplot.ai"
const TITLESIZE = round(Int, 20 * min(1.0, 67 / length(TITLE_STR)))

fig = Figure(size = (1600, 900), fontsize = 14, backgroundcolor = PAGE_BG)

ax = Axis(
    fig[1, 1];
    title              = TITLE_STR,
    titlesize          = TITLESIZE,
    titlefont          = :bold,
    titlecolor         = INK,
    xlabel             = "Heart Rate Zone",
    ylabel             = "Time (minutes)",
    xlabelsize         = 14,
    ylabelsize         = 14,
    xlabelcolor        = INK,
    ylabelcolor        = INK,
    xticklabelsize     = 12,
    yticklabelsize     = 12,
    xticklabelcolor    = INK_SOFT,
    yticklabelcolor    = INK_SOFT,
    xtickcolor         = INK_SOFT,
    ytickcolor         = INK_SOFT,
    backgroundcolor    = PAGE_BG,
    topspinevisible    = false,
    rightspinevisible  = false,
    leftspinecolor     = INK_SOFT,
    bottomspinecolor   = INK_SOFT,
    xgridvisible       = false,
    ygridcolor         = RGBAf(INK.r, INK.g, INK.b, 0.15),
    yminorgridvisible  = false,
    xminorgridvisible  = false,
    xticks             = (ZONE_POS, ZONE_LABELS),
)

barplot!(ax, ZONE_POS, MINUTES; color = ZONE_COLORS, width = 0.65, strokewidth = 0)

# Duration + percentage breakdown labels above each bar
# Dominant zone (Z2) rendered in zone color and bold for storytelling emphasis
for (i, m) in enumerate(MINUTES)
    pct = round(Int, 100 * m / TOTAL_MIN)
    if i == 2  # Z2 Endurance — dominant zone
        text!(ax, i, m + 1.2;
            text     = "$(Int(m)) min\n$(pct)%",
            align    = (:center, :bottom),
            fontsize = 13,
            color    = ZONE_COLORS[2],
            font     = :bold,
        )
    else
        text!(ax, i, m + 1.2;
            text     = "$(Int(m)) min\n$(pct)%",
            align    = (:center, :bottom),
            fontsize = 12,
            color    = INK,
        )
    end
end

# Dominant zone callout — session context in the upper-right open space
text!(ax, 5.38, maximum(MINUTES) * 1.25;
    text  = "Base endurance ride\nZ2-heavy · 53% of session",
    align = (:right, :top),
    fontsize = 11,
    color    = INK_MUTED,
    font     = :italic,
)

ylims!(ax, 0, maximum(MINUTES) * 1.40)

# HR zone boundary legend — Makie composable layout with PolyElement patches
legend_patches = [PolyElement(color = ZONE_COLORS[i], strokewidth = 0) for i in 1:5]
legend_labels = [
    "Z1 Recovery  < 60% HRmax",
    "Z2 Endurance  60–70% HRmax",
    "Z3 Aerobic  70–80% HRmax",
    "Z4 Threshold  80–90% HRmax",
    "Z5 Maximum  > 90% HRmax",
]

Legend(fig[2, 1], legend_patches, legend_labels, "HR Zone Boundaries";
    orientation  = :horizontal,
    framevisible = false,
    labelcolor   = INK_SOFT,
    titlecolor   = INK_SOFT,
    labelsize    = 10,
    titlesize    = 11,
    patchsize    = (20, 12),
)

rowsize!(fig.layout, 2, Relative(0.08))
rowgap!(fig.layout, 6)

save("plot-$(THEME).png", fig; px_per_unit = 2)

Part of Time in Heart Rate Zones Bar Chart on anyplot.ai.
