Time in Heart Rate Zones Bar Chart — ggplot2

A vertical bar chart showing the time spent in each heart rate training zone (Z1–Z5) during a workout or training period. Each bar uses the conventional zone color semantics (grey for Z1 recovery, blue for Z2 endurance, green for Z3 aerobic, orange for Z4 threshold, red for Z5 maximum) and is annotated with its duration, making the distribution of training intensity immediately readable. This is the standard summary chart found in fitness platforms such as Garmin, Strava, and Polar, and it reveals at a glance whether a session was easy, balanced, or high-intensity.

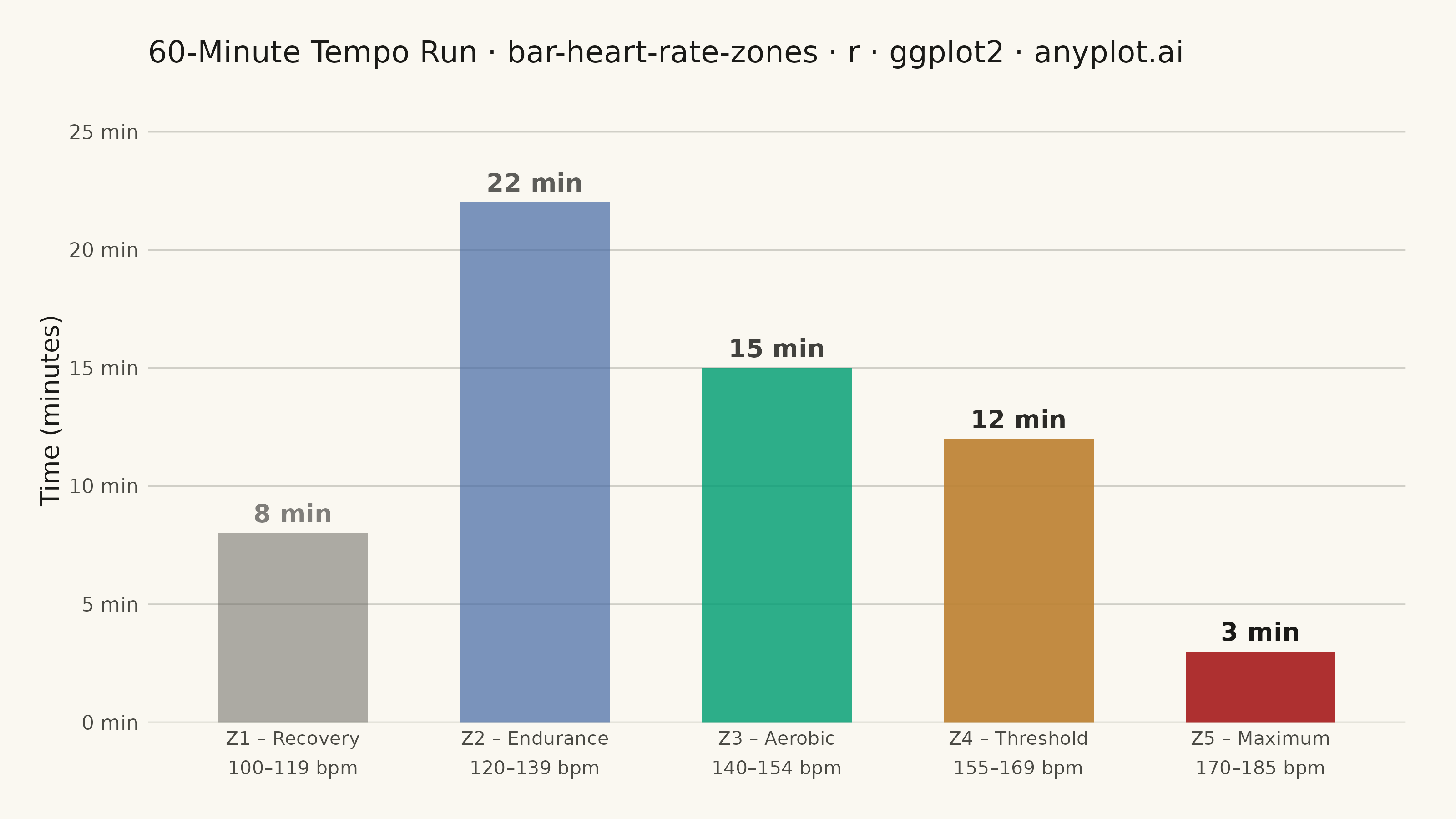

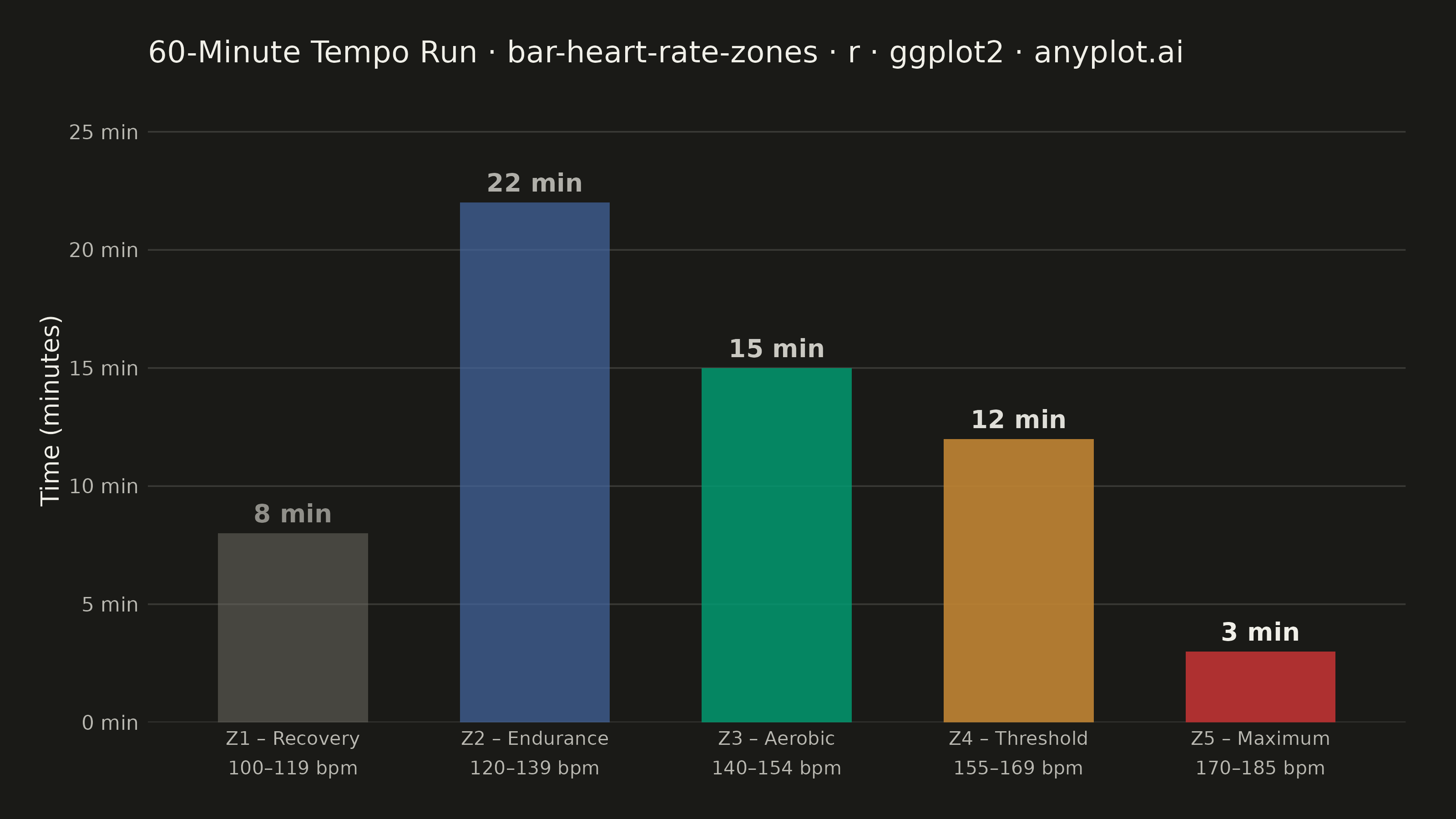

Time in Heart Rate Zones Bar Chart rendered with ggplot2

R source (ggplot2)

#' anyplot.ai
#' bar-heart-rate-zones: Time in Heart Rate Zones Bar Chart
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 91/100 | Created: 2026-06-14

library(ggplot2)
library(ragg)

# Theme tokens
THEME       <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG     <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
INK         <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT    <- if (THEME == "light") "#4A4A44" else "#B8B7B0"
GRID_COLOR  <- if (THEME == "light") "#D0CFC7" else "#3A3A36"

# Zone colors — semantic Imprint palette mapping (conventional HR zone hue associations):
# Z1 recovery (grey) -> fixed #6B6A63  |  Z4 threshold (orange) -> Imprint ochre #BD8233
# Z2 endurance (blue) -> Imprint #4467A3  |  Z5 maximum (red) -> semantic red #AE3030
# Z3 aerobic (green) -> Imprint brand green #009E73
ZONE_COLORS <- c(
  Z1 = "#6B6A63",
  Z2 = "#4467A3",
  Z3 = "#009E73",
  Z4 = "#BD8233",
  Z5 = "#AE3030"
)

# Data — 60-minute tempo run workout
zones <- c("Z1", "Z2", "Z3", "Z4", "Z5")
df <- data.frame(
  zone    = factor(zones, levels = zones),
  minutes = c(8, 22, 15, 12, 3),
  hr_low  = c(100, 120, 140, 155, 170),
  hr_high = c(119, 139, 154, 169, 185)
)
# Intensity alpha: de-emphasise low zones, fully saturate high zones
df$intensity <- c(0.55, 0.70, 0.82, 0.92, 1.00)
df$bar_label <- paste0(df$minutes, " min")

# x-axis labels: zone code + name + bpm range
zone_names <- c("Recovery", "Endurance", "Aerobic", "Threshold", "Maximum")
x_labels <- setNames(
  paste0(zones, " – ", zone_names, "\n", df$hr_low, "–", df$hr_high, " bpm"),
  zones
)

# Plot
p <- ggplot(df, aes(x = zone, y = minutes, fill = zone, alpha = I(intensity))) +
  geom_col(width = 0.62) +
  geom_text(
    aes(label = bar_label, y = minutes),
    vjust    = -0.6,
    color    = INK,
    size     = 3.5,
    fontface = "bold"
  ) +
  scale_fill_manual(values = ZONE_COLORS, guide = "none") +
  scale_x_discrete(labels = x_labels) +
  scale_y_continuous(
    expand = expansion(mult = c(0, 0.20)),
    labels = function(x) paste0(x, " min"),
    breaks = seq(0, 25, by = 5)
  ) +
  labs(
    title = "60-Minute Tempo Run · bar-heart-rate-zones · r · ggplot2 · anyplot.ai",
    x     = NULL,
    y     = "Time (minutes)"
  ) +
  theme_minimal(base_size = 8) +
  theme(
    plot.background    = element_rect(fill = PAGE_BG, color = PAGE_BG),
    panel.background   = element_rect(fill = PAGE_BG, color = NA),
    panel.grid.major.x = element_blank(),
    panel.grid.minor.x = element_blank(),
    panel.grid.major.y = element_line(color = GRID_COLOR, linewidth = 0.3),
    panel.grid.minor.y = element_blank(),
    axis.title.y       = element_text(color = INK, size = 10),
    axis.text.x        = element_text(color = INK_SOFT, size = 7.5, lineheight = 1.3),
    axis.text.y        = element_text(color = INK_SOFT, size = 8),
    axis.ticks         = element_blank(),
    plot.title         = element_text(color = INK, size = 12, margin = margin(b = 12)),
    plot.margin        = margin(16, 20, 16, 16)
  )

ggsave(
  filename = sprintf("plot-%s.png", THEME),
  plot     = p,
  device   = ragg::agg_png,
  width    = 8,
  height   = 4.5,
  units    = "in",
  dpi      = 400
)

Part of Time in Heart Rate Zones Bar Chart on anyplot.ai.
