Time in Heart Rate Zones Bar Chart — Plotly

A vertical bar chart showing the time spent in each heart rate training zone (Z1–Z5) during a workout or training period. Each bar uses the conventional zone color semantics (grey for Z1 recovery, blue for Z2 endurance, green for Z3 aerobic, orange for Z4 threshold, red for Z5 maximum) and is annotated with its duration, making the distribution of training intensity immediately readable. This is the standard summary chart found in fitness platforms such as Garmin, Strava, and Polar, and it reveals at a glance whether a session was easy, balanced, or high-intensity.

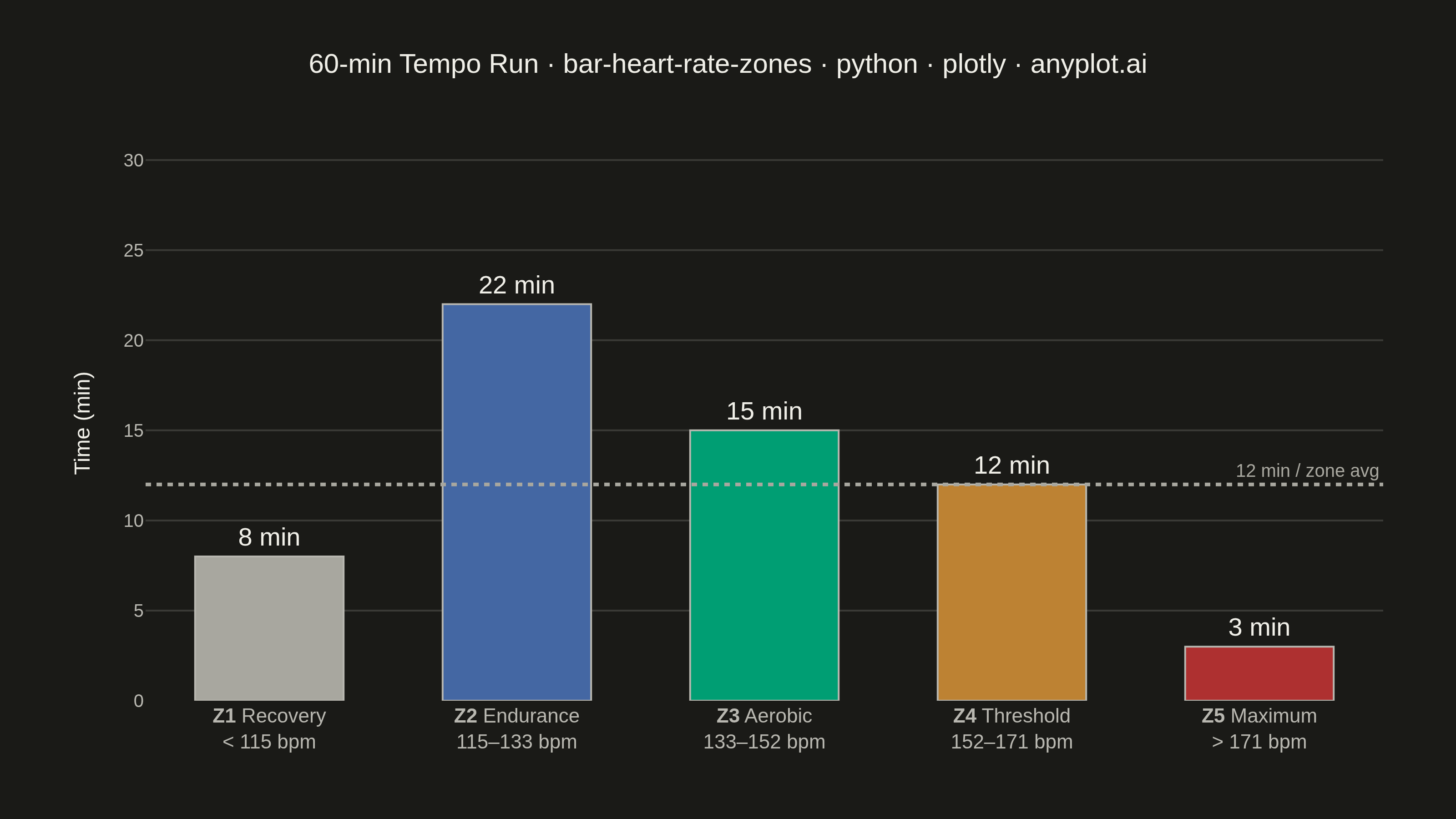

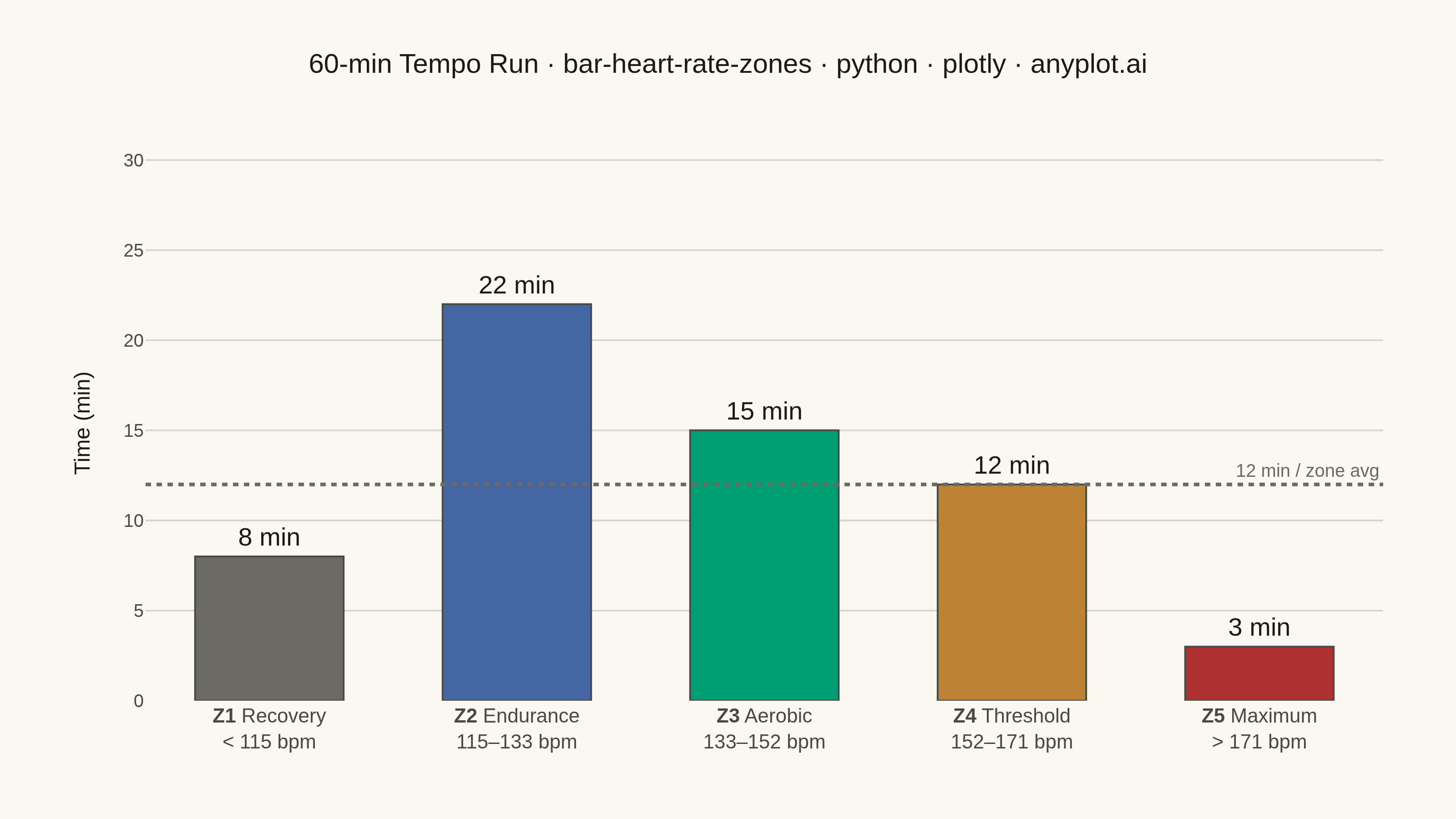

Time in Heart Rate Zones Bar Chart rendered with Plotly

Python source (Plotly)

""" anyplot.ai
bar-heart-rate-zones: Time in Heart Rate Zones Bar Chart
Library: plotly 6.8.0 | Python 3.13.13
Quality: 91/100 | Created: 2026-06-14
"""

import os

import plotly.graph_objects as go


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
GRID = "rgba(26,26,23,0.15)" if THEME == "light" else "rgba(240,239,232,0.15)"

# Zone colors — Imprint palette, semantically mapped to fitness zone conventions:
# Z1 grey → theme-adaptive muted; Z2 blue → Imprint #3; Z3 green → Imprint #1 (brand);
# Z4 orange → Imprint #4 ochre; Z5 red → Imprint #5 matte red
ZONE_COLORS = [INK_MUTED, "#4467A3", "#009E73", "#BD8233", "#AE3030"]

# Data — 60-min tempo run
zones = ["Z1", "Z2", "Z3", "Z4", "Z5"]
zone_names = ["Recovery", "Endurance", "Aerobic", "Threshold", "Maximum"]
minutes = [8, 22, 15, 12, 3]
hr_ranges = ["< 115 bpm", "115–133 bpm", "133–152 bpm", "152–171 bpm", "> 171 bpm"]

title = "60-min Tempo Run · bar-heart-rate-zones · python · plotly · anyplot.ai"
title_size = max(11, round(16 * 67 / len(title)))

tick_labels = [f"<b>{z}</b> {name}<br>{hr}" for z, name, hr in zip(zones, zone_names, hr_ranges, strict=False)]

# Plot
fig = go.Figure(
    go.Bar(
        x=zones,
        y=minutes,
        marker_color=ZONE_COLORS,
        marker_line={"width": 1, "color": INK_SOFT},
        text=[f"{m} min" for m in minutes],
        textposition="outside",
        textfont={"size": 14, "color": INK},
        constraintext="none",
        hovertemplate="<b>%{x}</b><br>Time in zone: %{y} min<extra></extra>",
    )
)

fig.add_hline(
    y=12,
    line_color=INK_MUTED,
    line_dash="dot",
    line_width=2,
    annotation_text="12 min / zone avg",
    annotation_font={"size": 10, "color": INK_MUTED},
    annotation_position="top right",
)

fig.update_layout(
    autosize=False,
    bargap=0.4,
    margin={"l": 80, "r": 40, "t": 80, "b": 65},
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    title={"text": title, "font": {"size": title_size, "color": INK}, "x": 0.5, "xanchor": "center"},
    xaxis={
        "tickmode": "array",
        "tickvals": zones,
        "ticktext": tick_labels,
        "tickfont": {"size": 11, "color": INK_SOFT},
        "showline": False,
        "showgrid": False,
        "zeroline": False,
    },
    yaxis={
        "title": {"text": "Time (min)", "font": {"size": 12, "color": INK}},
        "tickfont": {"size": 10, "color": INK_SOFT},
        "gridcolor": GRID,
        "showline": False,
        "zeroline": False,
        "range": [0, max(minutes) * 1.4],
    },
    showlegend=False,
)

fig.write_image(f"plot-{THEME}.png", width=800, height=450, scale=4)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of Time in Heart Rate Zones Bar Chart on anyplot.ai.
