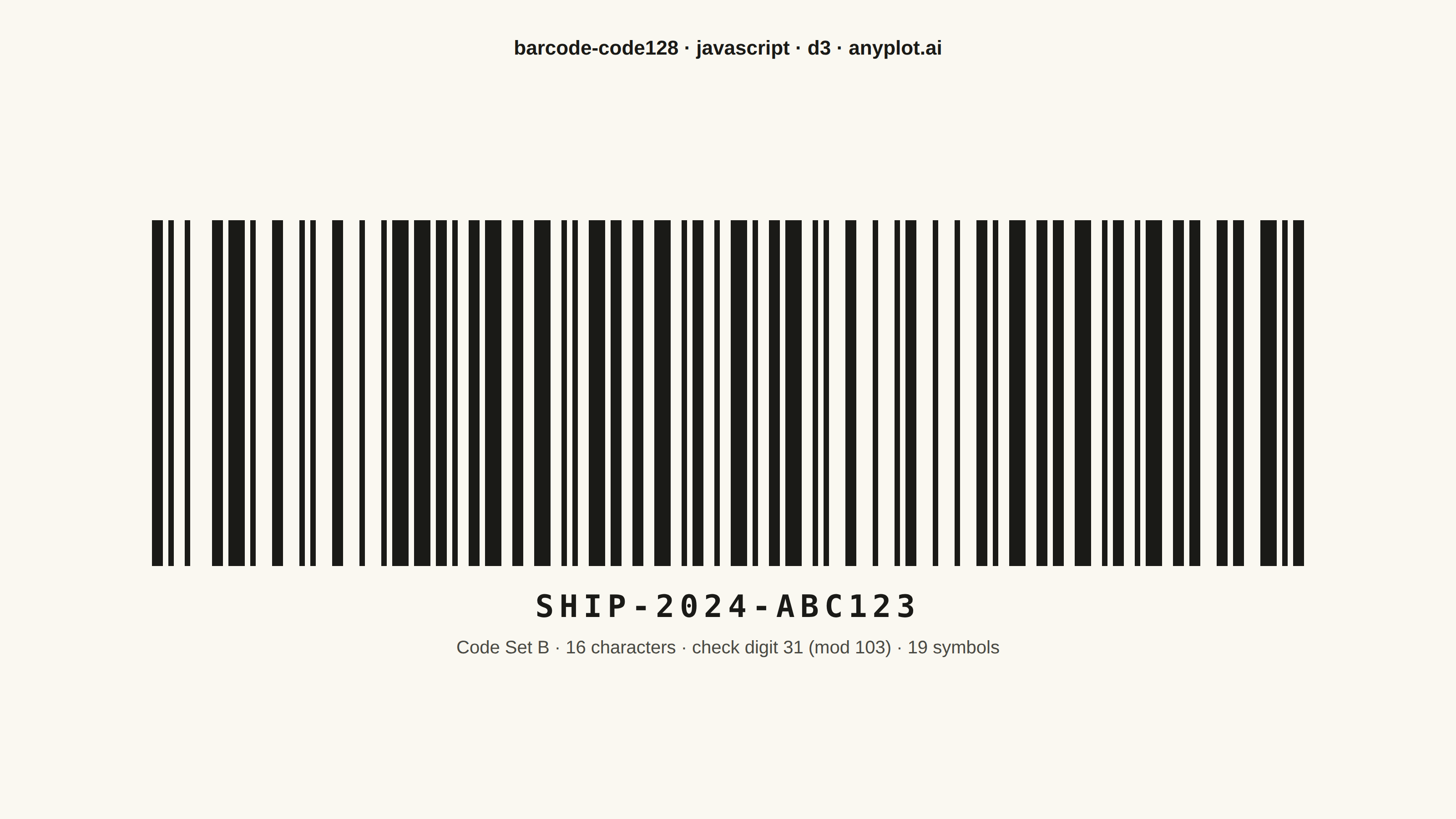

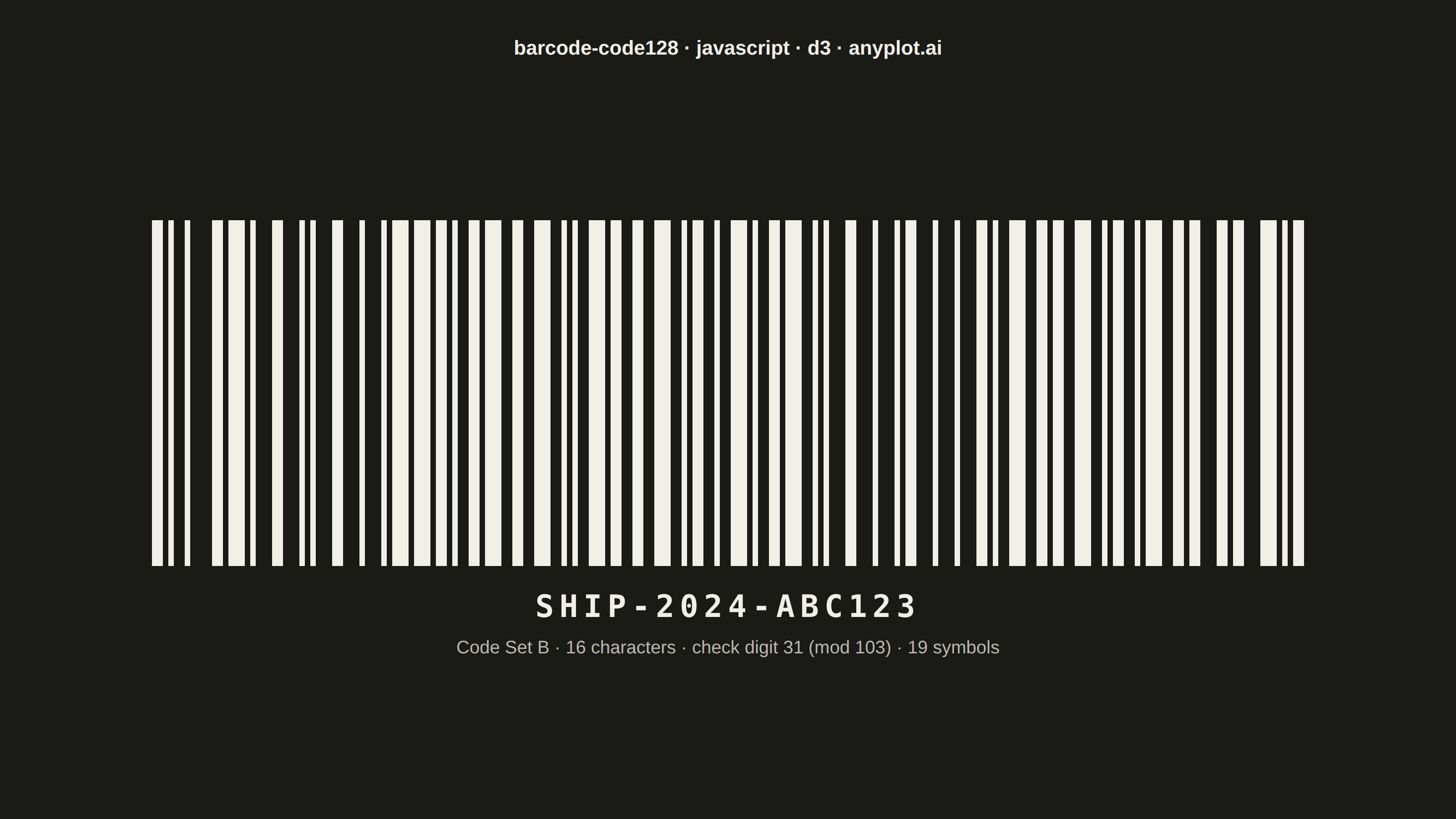

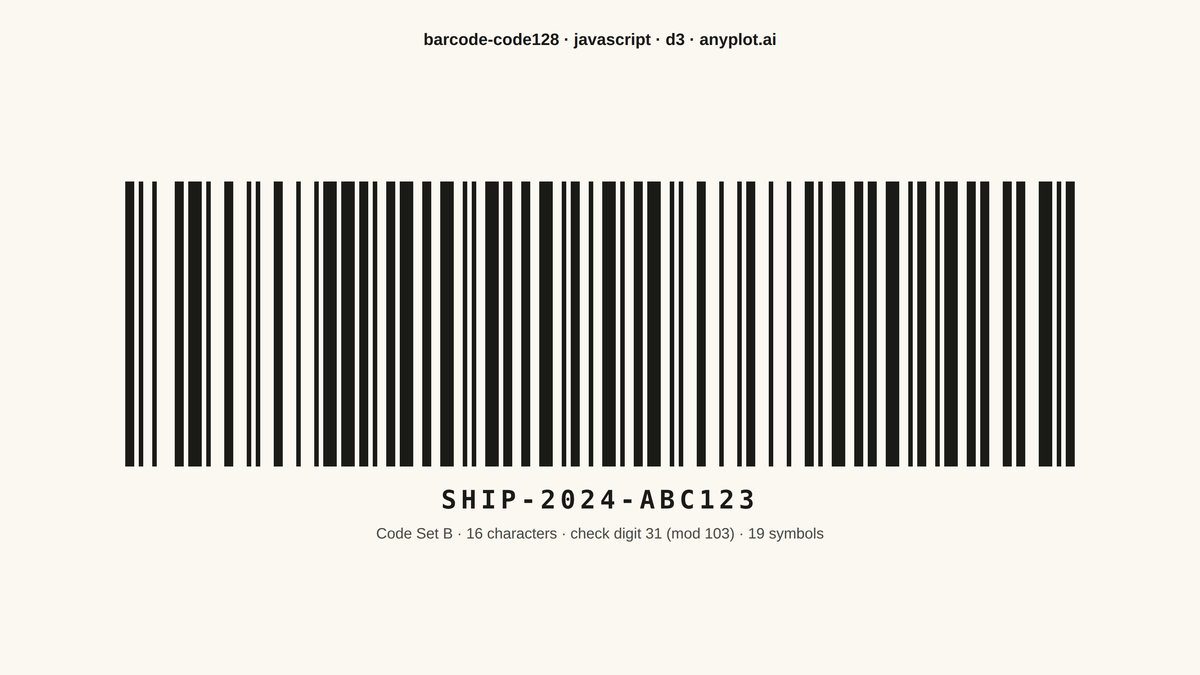

A Code 128 barcode visualization that encodes alphanumeric data into a high-density linear barcode pattern. Code 128 is a widely-used 1D barcode format that supports the full 128 ASCII character set, with three code subsets (A, B, C) that can be switched dynamically for optimal encoding efficiency. This visualization generates scannable barcodes commonly found on shipping labels, industrial parts, and healthcare specimens.
// anyplot.ai
// barcode-code128: Code 128 Barcode
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 89/100 | Created: 2026-09-01
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
// --- Code 128 Subset B symbol table -----------------------------------------
// Module-width patterns (bar,space,bar,space,bar,space) for symbol values
// 0-102, plus Start A/B/C (103/104/105) and Stop (106). Subset B maps ASCII
// 32-127 to values 0-95 via value = charCode - 32.
const CODE128_B = [
"212222", "222122", "222221", "121223", "121322",
"131222", "122213", "122312", "132212", "221213",
"221312", "231212", "112232", "122132", "122231",
"113222", "123122", "123221", "223211", "221132",
"221231", "213212", "223112", "312131", "311222",
"321122", "321221", "312212", "322112", "322211",
"212123", "212321", "232121", "111323", "131123",
"131321", "112313", "132113", "132311", "211313",
"231113", "231311", "112133", "112331", "132131",
"113123", "113321", "133121", "313121", "211331",
"231131", "213113", "213311", "213131", "311123",
"311321", "331121", "312113", "312311", "332111",
"314111", "221411", "431111", "111224", "111422",
"121124", "121421", "141122", "141221", "112214",
"112412", "122114", "122411", "142112", "142211",
"241211", "221114", "413111", "241112", "134111",
"111242", "121142", "121241", "114212", "124112",
"124211", "411212", "421112", "421211", "212141",
"214121", "412121", "111143", "111341", "131141",
"114113", "114311", "411113", "411311", "113141",
"114131", "311141", "411131", "211412", "211214",
"211232", "2331112",
].map((pattern) => pattern.split("").map(Number));
const START_B = 104;
const STOP = 106;
// --- Data: encode a shipping-label style payload with Code Set B -----------
const content = "SHIP-2024-ABC123";
const dataValues = Array.from(content).map((ch) => ch.charCodeAt(0) - 32);
let checksum = START_B;
dataValues.forEach((value, i) => {
checksum += value * (i + 1);
});
checksum %= 103;
const symbolValues = [START_B, ...dataValues, checksum, STOP];
// Flatten symbols into a sequence of bar/space elements (bar first, alternating)
const elements = symbolValues.flatMap((symbol) =>
CODE128_B[symbol].map((moduleWidth, i) => ({ moduleWidth, dark: i % 2 === 0 }))
);
// --- Layout ------------------------------------------------------------------
const QUIET_MODULES = 10; // minimum quiet zone per Code 128 spec, each side
const totalModules = elements.reduce((sum, e) => sum + e.moduleWidth, 0) + QUIET_MODULES * 2;
const marginX = 100;
const moduleSize = Math.floor((width - marginX * 2) / totalModules);
const barcodeWidth = moduleSize * totalModules;
const barcodeX = (width - barcodeWidth) / 2;
// Shifted down from the top so the whitespace above the barcode block
// balances the whitespace below the caption (see review feedback).
const barTop = 242;
const barHeight = 380;
// --- SVG mount ----------------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
// --- Bars ---------------------------------------------------------------------
// Bars use theme-adaptive ink (rather than a fixed data color) — the bar
// pattern IS the encoded content, not a categorical series, so it follows
// chrome contrast rules: dark ink on the light surface, light ink on the
// dark surface, always maximally contrasted against the page background.
// Module position (in module units, not pixels) maps to pixel-x through an
// idiomatic D3 linear scale, rather than accumulating raw pixel offsets.
const moduleScale = d3.scaleLinear().domain([0, totalModules]).range([barcodeX, barcodeX + barcodeWidth]);
let modulePos = QUIET_MODULES;
const bars = [];
for (const el of elements) {
if (el.dark) {
bars.push({
x: moduleScale(modulePos),
w: moduleScale(modulePos + el.moduleWidth) - moduleScale(modulePos),
});
}
modulePos += el.moduleWidth;
}
svg.selectAll("rect.bar").data(bars).join("rect")
.attr("class", "bar")
.attr("x", (d) => d.x)
.attr("y", barTop)
.attr("width", (d) => d.w)
.attr("height", barHeight)
.attr("fill", t.ink);
// --- Human-readable text below the barcode -------------------------------
svg.append("text")
.attr("x", width / 2)
.attr("y", barTop + barHeight + 56)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-family", "monospace")
.style("font-size", "34px")
.style("font-weight", "600")
.style("letter-spacing", "6px")
.text(content);
// --- Caption: encoding metadata ------------------------------------------
svg.append("text")
.attr("x", width / 2)
.attr("y", barTop + barHeight + 96)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "20px")
.text(
`Code Set B · ${content.length} characters · check digit ${checksum} (mod 103) · ${symbolValues.length} symbols`
);
// --- Title ---------------------------------------------------------------
svg.append("text")
.attr("x", width / 2)
.attr("y", 60)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text("barcode-code128 · javascript · d3 · anyplot.ai");
