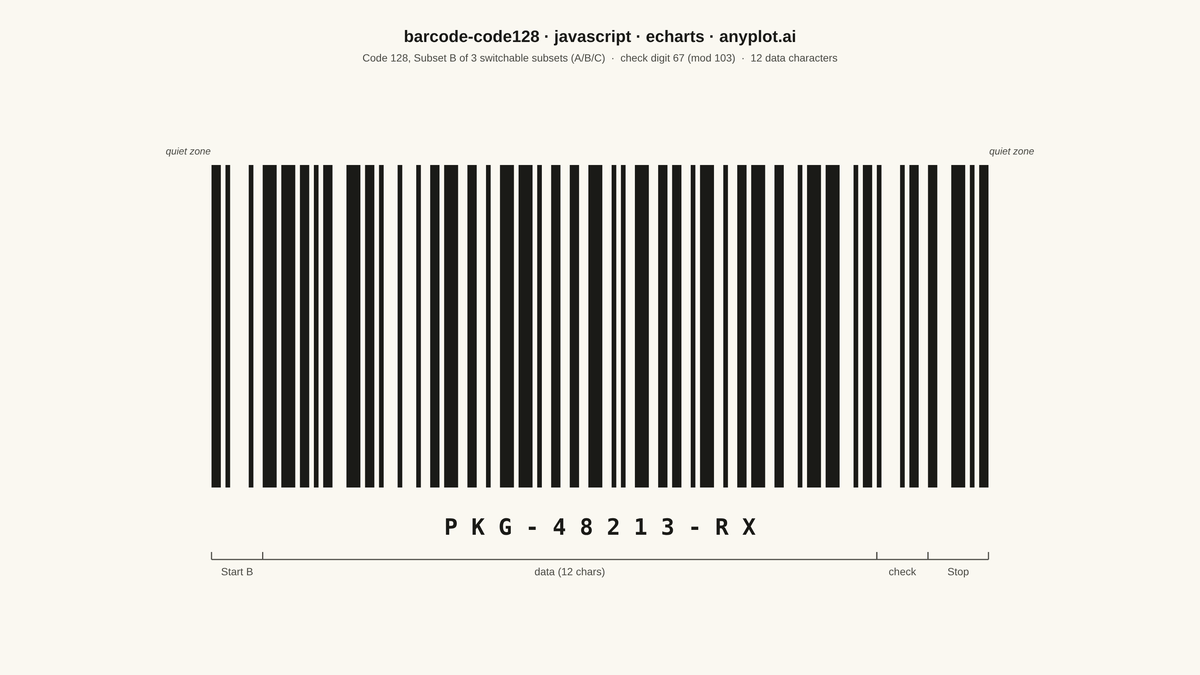

A Code 128 barcode visualization that encodes alphanumeric data into a high-density linear barcode pattern. Code 128 is a widely-used 1D barcode format that supports the full 128 ASCII character set, with three code subsets (A, B, C) that can be switched dynamically for optimal encoding efficiency. This visualization generates scannable barcodes commonly found on shipping labels, industrial parts, and healthcare specimens.
// anyplot.ai
// barcode-code128: Code 128 Barcode
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 92/100 | Created: 2026-09-01
const t = window.ANYPLOT_TOKENS;
// --- Code 128 Subset B pattern table -----------------------------------------
// Standard-compliant bar/space module widths for symbol values 0-102 (each sums
// to 11 modules). Used both for character data (value = ASCII code - 32) and for
// looking up the modulo-103 check symbol. Start-B and Stop are fixed patterns.
const PATTERNS = [
[2,1,2,2,2,2], [2,2,2,1,2,2], [2,2,2,2,2,1], [1,2,1,2,2,3], [1,2,1,3,2,2],
[1,3,1,2,2,2], [1,2,2,2,1,3], [1,2,2,3,1,2], [1,3,2,2,1,2], [2,2,1,2,1,3],
[2,2,1,3,1,2], [2,3,1,2,1,2], [1,1,2,2,3,2], [1,2,2,1,3,2], [1,2,2,2,3,1],
[1,1,3,2,2,2], [1,2,3,1,2,2], [1,2,3,2,2,1], [2,2,3,2,1,1], [2,2,1,1,3,2],
[2,2,1,2,3,1], [2,1,3,2,1,2], [2,2,3,1,1,2], [3,1,2,1,3,1], [3,1,1,2,2,2],
[3,2,1,1,2,2], [3,2,1,2,2,1], [3,1,2,2,1,2], [3,2,2,1,1,2], [3,2,2,2,1,1],
[2,1,2,1,2,3], [2,1,2,3,2,1], [2,3,2,1,2,1], [1,1,1,3,2,3], [1,3,1,1,2,3],
[1,3,1,3,2,1], [1,1,2,3,1,3], [1,3,2,1,1,3], [1,3,2,3,1,1], [2,1,1,3,1,3],
[2,3,1,1,1,3], [2,3,1,3,1,1], [1,1,2,1,3,3], [1,1,2,3,3,1], [1,3,2,1,3,1],
[1,1,3,1,2,3], [1,1,3,3,2,1], [1,3,3,1,2,1], [3,1,3,1,2,1], [2,1,1,3,3,1],
[2,3,1,1,3,1], [2,1,3,1,1,3], [2,1,3,3,1,1], [2,1,3,1,3,1], [3,1,1,1,2,3],
[3,1,1,3,2,1], [3,3,1,1,2,1], [3,1,2,1,1,3], [3,1,2,3,1,1], [3,3,2,1,1,1],
[3,1,4,1,1,1], [2,2,1,4,1,1], [4,3,1,1,1,1], [1,1,1,2,2,4], [1,1,1,4,2,2],
[1,2,1,1,2,4], [1,2,1,4,2,1], [1,4,1,1,2,2], [1,4,1,2,2,1], [1,1,2,2,1,4],
[1,1,2,4,1,2], [1,2,2,1,1,4], [1,2,2,4,1,1], [1,4,2,1,1,2], [1,4,2,2,1,1],
[2,4,1,2,1,1], [2,2,1,1,1,4], [4,1,3,1,1,1], [2,4,1,1,1,2], [1,3,4,1,1,1],
[1,1,1,2,4,2], [1,2,1,1,4,2], [1,2,1,2,4,1], [1,1,4,2,1,2], [1,2,4,1,1,2],
[1,2,4,2,1,1], [4,1,1,2,1,2], [4,2,1,1,1,2], [4,2,1,2,1,1], [2,1,2,1,4,1],
[2,1,4,1,2,1], [4,1,2,1,2,1], [1,1,1,1,4,3], [1,1,1,3,4,1], [1,3,1,1,4,1],
[1,1,4,1,1,3], [1,1,4,3,1,1], [4,1,1,1,1,3], [4,1,1,3,1,1], [1,1,3,1,4,1],
[1,1,4,1,3,1], [3,1,1,1,4,1], [4,1,1,1,3,1],
];
const START_B = [2, 1, 1, 4, 1, 2];
const START_B_VALUE = 104;
const STOP = [2, 3, 3, 1, 1, 1, 2];
const QUIET_MODULES = 10; // >=10x per the Code 128 spec's minimum quiet-zone width
// --- Data: a logistics package-tracking label --------------------------------
const content = "PKG-48213-RX";
// --- Encode: Start B + data symbols + check symbol (mod 103) + Stop ----------
const symbolPatterns = [START_B];
let checksum = START_B_VALUE;
for (let i = 0; i < content.length; i++) {
const value = content.charCodeAt(i) - 32;
symbolPatterns.push(PATTERNS[value]);
checksum += value * (i + 1);
}
const checkValue = checksum % 103;
symbolPatterns.push(PATTERNS[checkValue]);
symbolPatterns.push(STOP);
// --- Flatten to a module-width sequence, keep only the drawn bar segments ----
const widths = symbolPatterns.flat();
const bars = [];
let isBar = true;
let pos = QUIET_MODULES;
for (const width of widths) {
if (isBar) bars.push([pos, width]);
pos += width;
isBar = !isBar;
}
const totalModules = pos + QUIET_MODULES;
// --- Structural segments (Start B / data / check / Stop), for the bracket
// annotations below the human-readable text -----------------------------------
const symbolWidths = symbolPatterns.map((p) => p.reduce((a, b) => a + b, 0));
const dataWidths = symbolWidths.slice(1, 1 + content.length);
const startBEnd = QUIET_MODULES + symbolWidths[0];
const dataStart = startBEnd;
const dataEnd = dataStart + dataWidths.reduce((a, b) => a + b, 0);
const checkStart = dataEnd;
const checkEnd = checkStart + symbolWidths[1 + content.length];
const stopStart = checkEnd;
const stopEnd = stopStart + symbolWidths[2 + content.length];
const segments = [
{ label: "Start B", start: QUIET_MODULES, end: startBEnd },
{ label: `data (${content.length} chars)`, start: dataStart, end: dataEnd },
{ label: "check", start: checkStart, end: checkEnd },
{ label: "Stop", start: stopStart, end: stopEnd },
];
// --- Layout (1600x900 CSS mount -> 3200x1800 px) ------------------------------
const AREA_LEFT = 220;
const AREA_RIGHT = 220;
const BAR_TOP = 220;
const BAR_BOTTOM_GAP = 250; // grid "bottom" = distance from mount bottom to bar baseline
const barBaselineY = 900 - BAR_BOTTOM_GAP;
const pxPerModule = (1600 - AREA_LEFT - AREA_RIGHT) / totalModules;
const toPx = (moduleValue) => AREA_LEFT + moduleValue * pxPerModule;
const chart = echarts.init(document.getElementById("container"));
chart.setOption({
animation: false,
backgroundColor: "transparent",
title: {
text: "barcode-code128 · javascript · echarts · anyplot.ai",
subtext: `Code 128, Subset B of 3 switchable subsets (A/B/C) · check digit ${checkValue} (mod 103) · ${content.length} data characters`,
left: "center",
top: 34,
textStyle: { color: t.ink, fontSize: 22, fontWeight: "bold" },
subtextStyle: { color: t.inkSoft, fontSize: 14 },
},
grid: {
left: AREA_LEFT,
right: AREA_RIGHT,
top: BAR_TOP,
bottom: BAR_BOTTOM_GAP,
},
xAxis: { type: "value", min: 0, max: totalModules, show: false },
yAxis: { type: "value", min: 0, max: 1, show: false },
graphic: [
{
type: "text",
bounding: "raw",
x: toPx(QUIET_MODULES / 2),
y: BAR_TOP - 24,
style: { text: "quiet zone", fill: t.inkSoft, fontSize: 13, fontStyle: "italic", textAlign: "center" },
z: 40,
},
{
type: "text",
bounding: "raw",
x: toPx(totalModules - QUIET_MODULES / 2),
y: BAR_TOP - 24,
style: { text: "quiet zone", fill: t.inkSoft, fontSize: 13, fontStyle: "italic", textAlign: "center" },
z: 40,
},
{
type: "text",
bounding: "raw",
x: 800,
y: barBaselineY + 40,
style: {
text: content.split("").join(" "),
fill: t.ink,
fontSize: 30,
fontWeight: "bold",
fontFamily: "monospace",
textAlign: "center",
},
z: 40,
},
// Per-segment bracket annotations: a tick-and-line bracket under each
// structural group (Start B / data / check / Stop), labeled directly
// below the bar range it covers.
...segments.flatMap(({ label, start, end }) => {
const x1 = toPx(start);
const x2 = toPx(end);
const bracketY = barBaselineY + 96;
const tickTop = bracketY - 10;
return [
{
type: "line",
shape: { x1, y1: bracketY, x2, y2: bracketY },
style: { stroke: t.inkSoft, lineWidth: 1.5 },
z: 35,
},
{
type: "line",
shape: { x1, y1: tickTop, x2: x1, y2: bracketY },
style: { stroke: t.inkSoft, lineWidth: 1.5 },
z: 35,
},
{
type: "line",
shape: { x1: x2, y1: tickTop, x2, y2: bracketY },
style: { stroke: t.inkSoft, lineWidth: 1.5 },
z: 35,
},
{
type: "text",
bounding: "raw",
x: (x1 + x2) / 2,
y: bracketY + 10,
style: { text: label, fill: t.inkSoft, fontSize: 14, textAlign: "center" },
z: 35,
},
];
}),
],
series: [
{
type: "custom",
clip: true,
renderItem: (params, api) => {
const start = api.value(0);
const width = api.value(1);
const topLeft = api.coord([start, 1]);
const bottomRight = api.coord([start + width, 0]);
return {
type: "rect",
shape: {
x: topLeft[0],
y: topLeft[1],
width: bottomRight[0] - topLeft[0],
height: bottomRight[1] - topLeft[1],
},
style: { fill: t.ink },
};
},
data: bars,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/barcode-code128/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "barcode-code128",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/barcode-code128/javascript/echarts",
"hub": "https://anyplot.ai/barcode-code128",
"code_json": "https://api.anyplot.ai/specs/barcode-code128/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/barcode-code128",

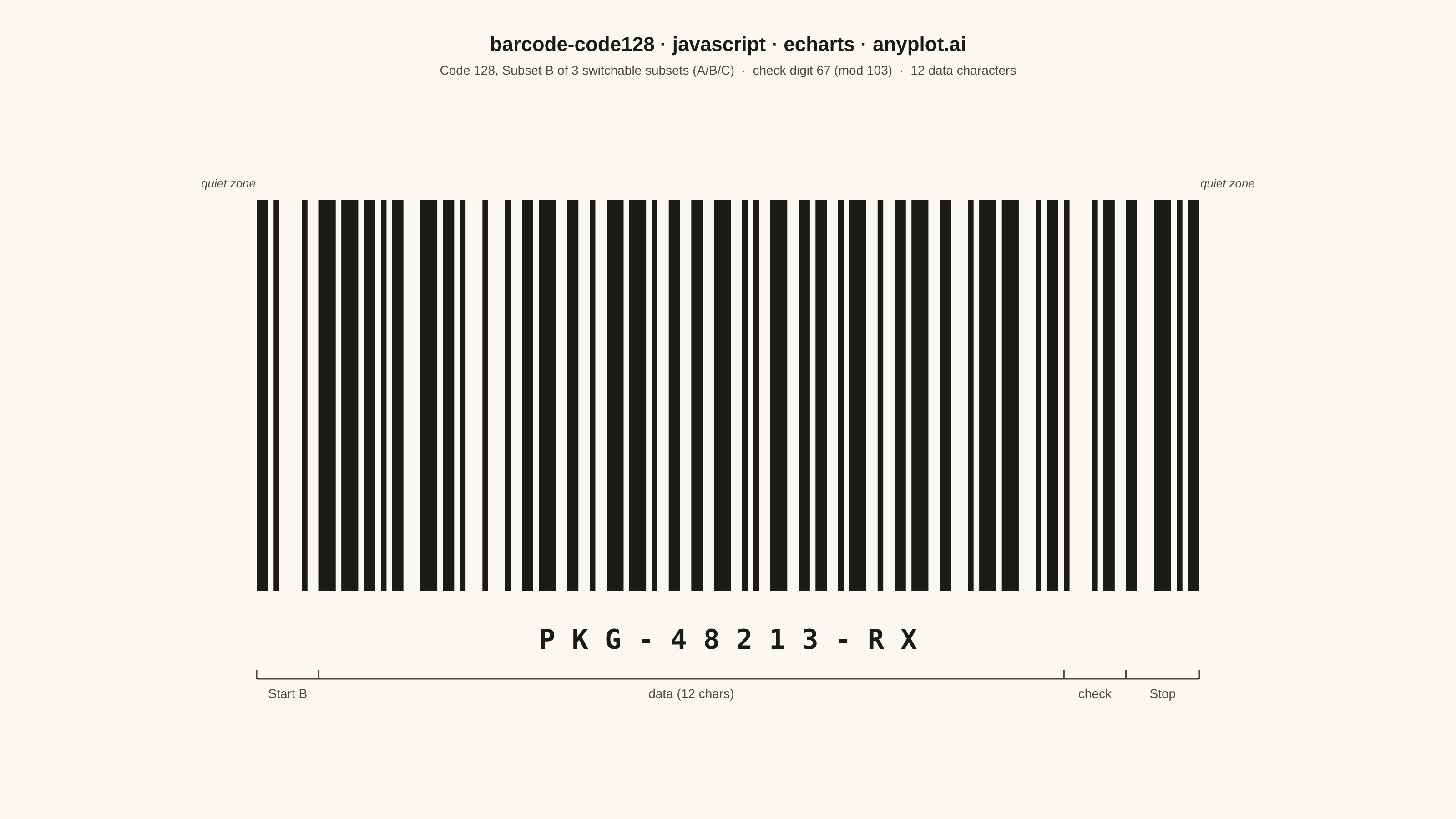

"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/barcode-code128/javascript/echarts/plot-light.png",

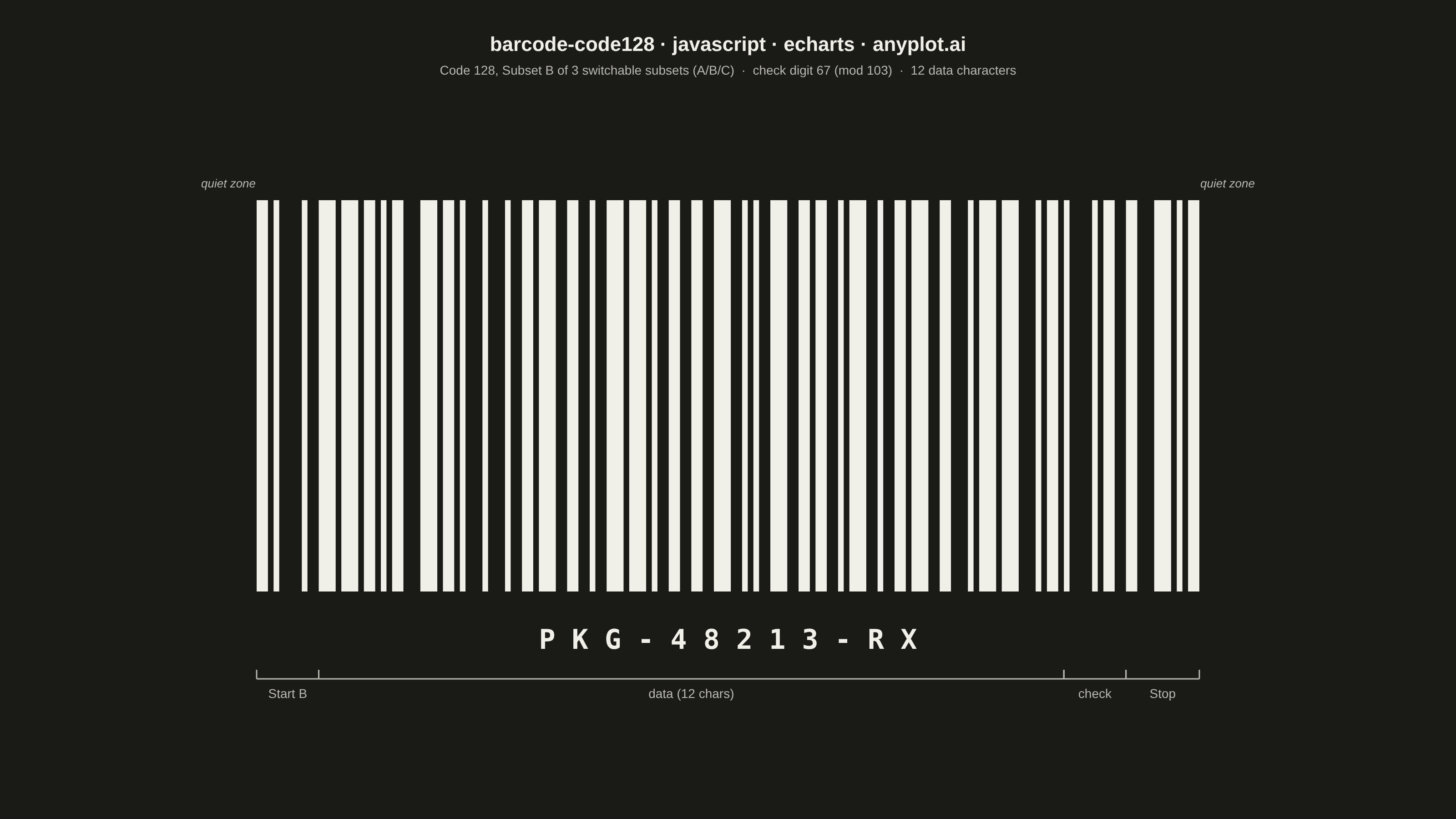

"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/barcode-code128/javascript/echarts/plot-dark.png",
