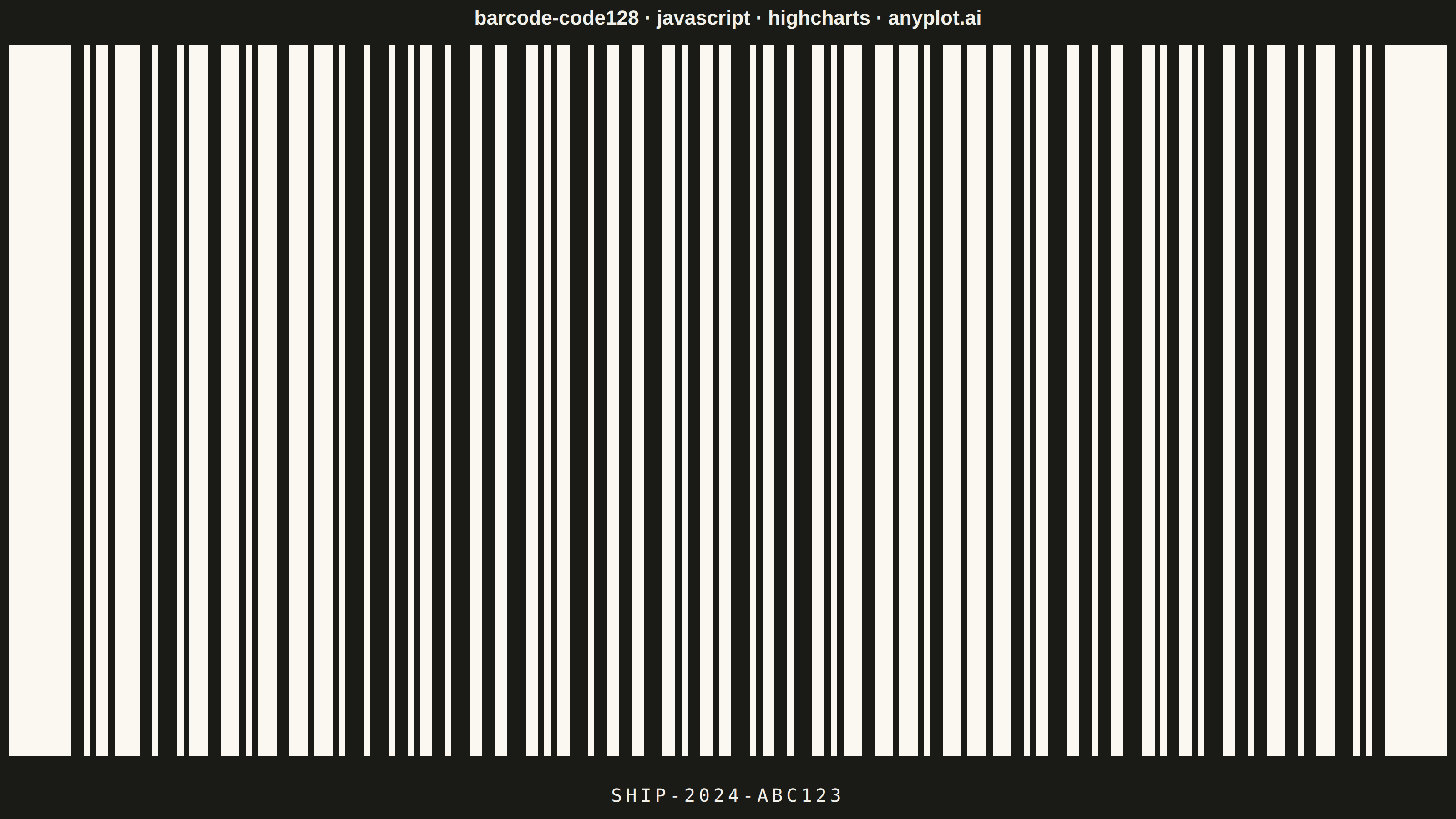

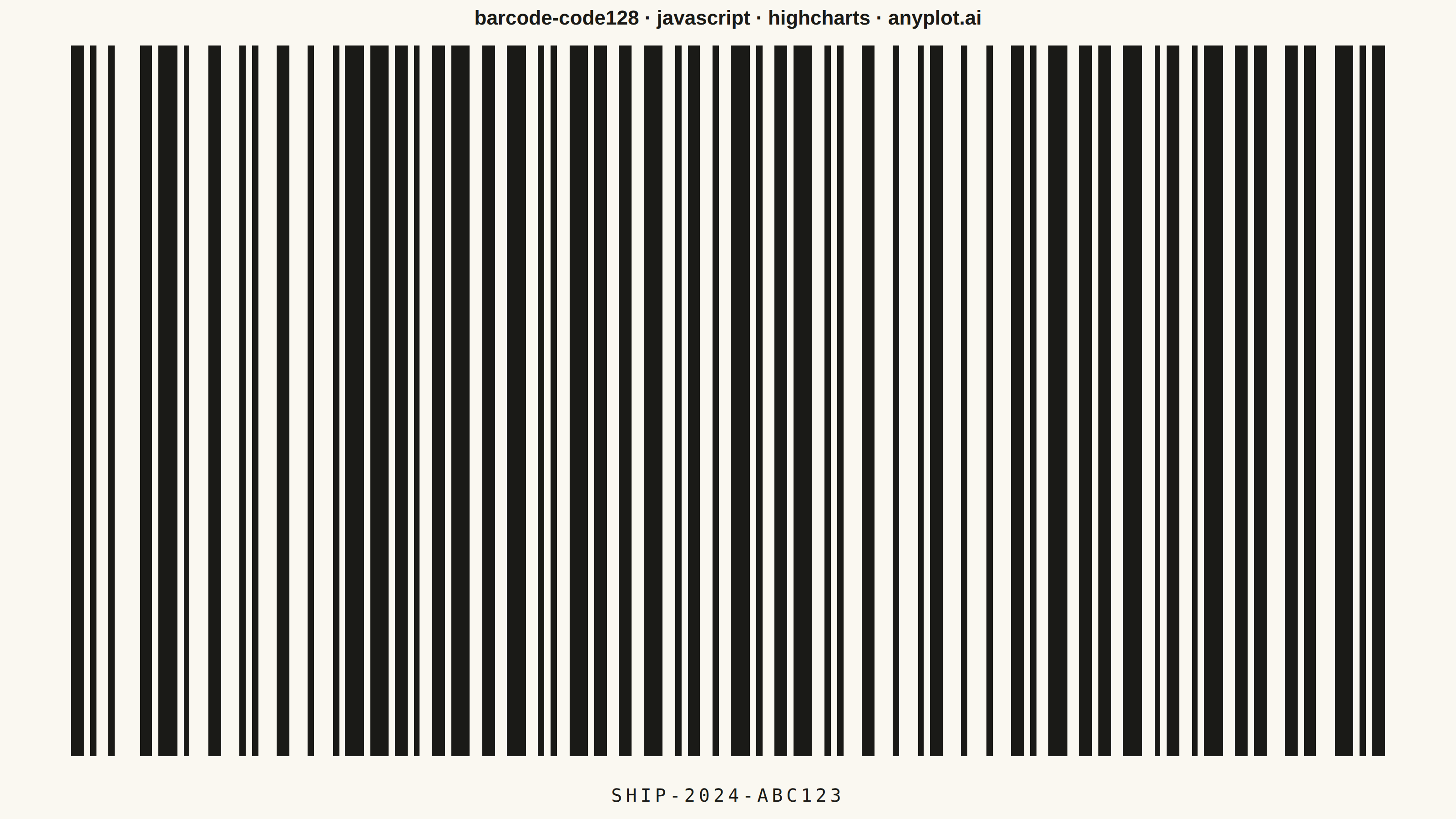

A Code 128 barcode visualization that encodes alphanumeric data into a high-density linear barcode pattern. Code 128 is a widely-used 1D barcode format that supports the full 128 ASCII character set, with three code subsets (A, B, C) that can be switched dynamically for optimal encoding efficiency. This visualization generates scannable barcodes commonly found on shipping labels, industrial parts, and healthcare specimens.
// anyplot.ai
// barcode-code128: Code 128 Barcode
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 87/100 | Created: 2026-09-01
const t = window.ANYPLOT_TOKENS;
// --- Code 128 encoding (Subset B, modulo-103 check digit) ------------------
// Element-width table: 6 digits (bar,space,bar,space,bar,space) per symbol
// value 0-102, plus Start A/B/C (103/104/105) and Stop (106, 7-digit
// bar-space-bar-space-bar-space-bar). Digits are module counts (1-4 units).
const CODE128_WIDTHS = [
"212222", "222122", "222221", "121223", "121322", "131222", "122213",
"122312", "132212", "221213", "221312", "231212", "112232", "122132",
"122231", "113222", "123122", "123221", "223211", "221132", "221231",
"213212", "223112", "312131", "311222", "321122", "321221", "312212",
"322112", "322211", "212123", "212321", "232121", "111323", "131123",
"131321", "112313", "132113", "132311", "211313", "231113", "231311",
"112133", "112331", "132131", "113123", "113321", "133121", "313121",
"211331", "231131", "213113", "213311", "213131", "311123", "311321",
"331121", "312113", "312311", "332111", "314111", "221411", "431111",
"111224", "111422", "121124", "121421", "141122", "141221", "112214",
"112412", "122114", "122411", "142112", "142211", "241211", "221114",
"413111", "241112", "134111", "111242", "121142", "121241", "114212",
"124112", "124211", "411212", "421112", "421211", "212141", "214121",
"412121", "111143", "111341", "131141", "114113", "114311", "411113",
"411311", "113141", "114131", "311141", "411131", "211412", "211214",
"211232", "2331112",
];
const START_B = 104;
const STOP = 106;
// The barcode itself is encoded *data*, not chrome: it must stay high-contrast
// black-on-white in both themes for scan reliability, so these are fixed
// literals rather than theme tokens (only the title/label chrome uses t.ink).
const BARCODE_INK = "#1A1A17";
const BARCODE_BG = "#FAF8F1";
const content = "SHIP-2024-ABC123";
// Subset B maps printable ASCII 32-126 to symbol values 0-94.
const values = content.split("").map((c) => c.charCodeAt(0) - 32);
const checkDigit =
(START_B + values.reduce((sum, v, i) => sum + v * (i + 1), 0)) % 103;
const symbolValues = [START_B, ...values, checkDigit, STOP];
// Expand each symbol's width digits into 1-unit modules (1 = bar, 0 = space).
// Every pattern both starts and ends its digit count so that the alternation
// carries over cleanly into the next symbol's bar.
const modules = [];
symbolValues.forEach((value) => {
let isBar = true;
for (const digit of CODE128_WIDTHS[value]) {
for (let i = 0; i < Number(digit); i++) modules.push(isBar ? 1 : 0);
isBar = !isBar;
}
});
// --- Chart -------------------------------------------------------------
const QUIET_ZONE = 10; // blank modules either side — Code 128 requires >=10x
const barData = modules.map((bit, i) => ({
x: i,
y: 1,
color: bit ? BARCODE_INK : "transparent",
}));
Highcharts.chart("container", {
chart: {
type: "column",
backgroundColor: "transparent",
plotBackgroundColor: BARCODE_BG,
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
title: {
text: "barcode-code128 · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
xAxis: {
min: -QUIET_ZONE,
max: modules.length - 1 + QUIET_ZONE,
lineWidth: 0,
tickLength: 0,
labels: { enabled: false },
title: {
text: content,
style: {
color: t.ink,
fontSize: "20px",
fontFamily: "monospace",
letterSpacing: "4px",
},
margin: 30,
},
},
yAxis: {
min: 0,
max: 1,
gridLineWidth: 0,
lineWidth: 0,
tickLength: 0,
labels: { enabled: false },
title: { text: null },
},
legend: { enabled: false },
tooltip: { enabled: false },
plotOptions: {
column: {
pointPadding: 0,
groupPadding: 0,
borderWidth: 0,
borderRadius: 0,
pointRange: 1,
},
series: { animation: false },
},
series: [{ name: "Code 128 modules", data: barData }],
});
