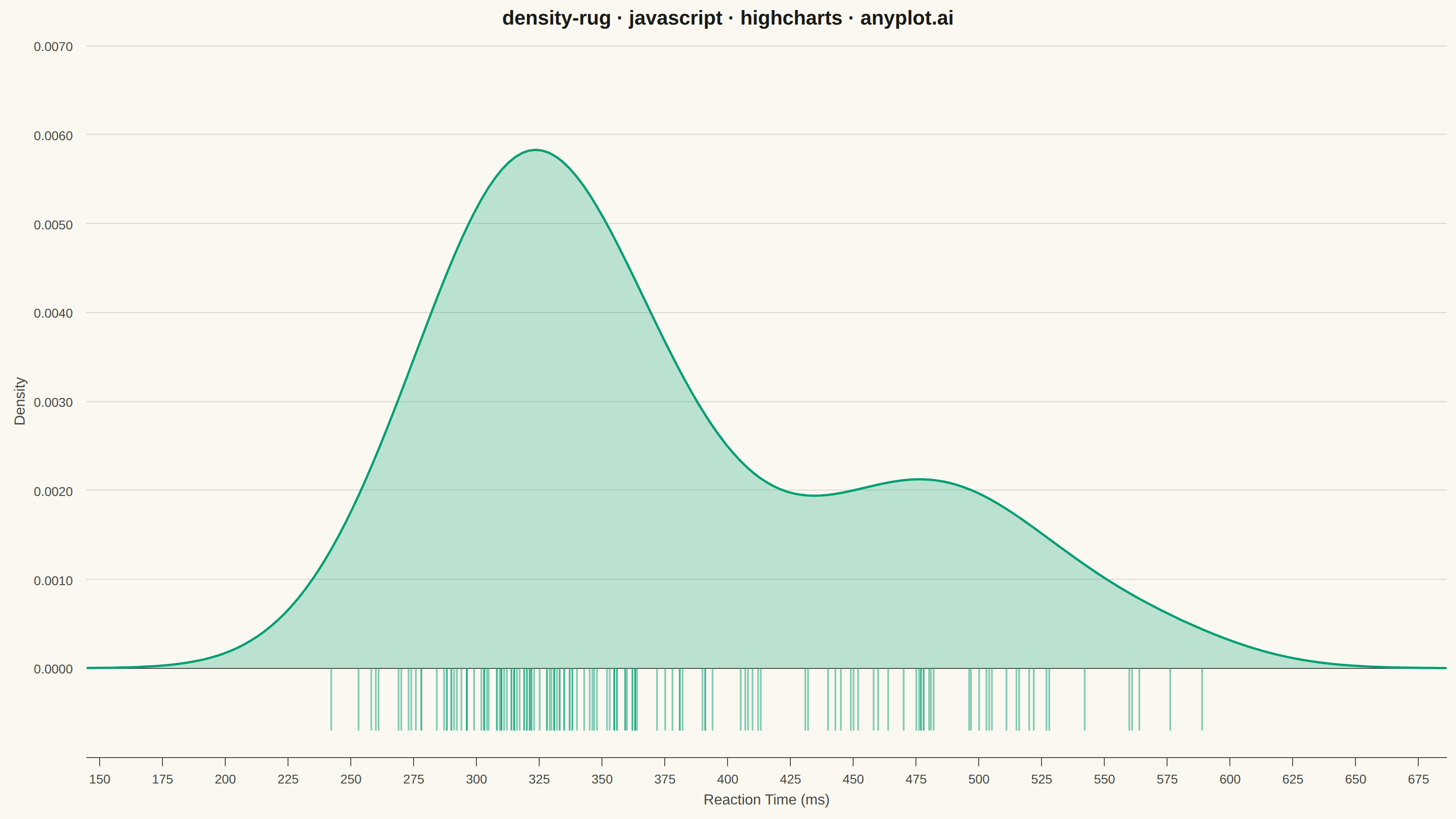

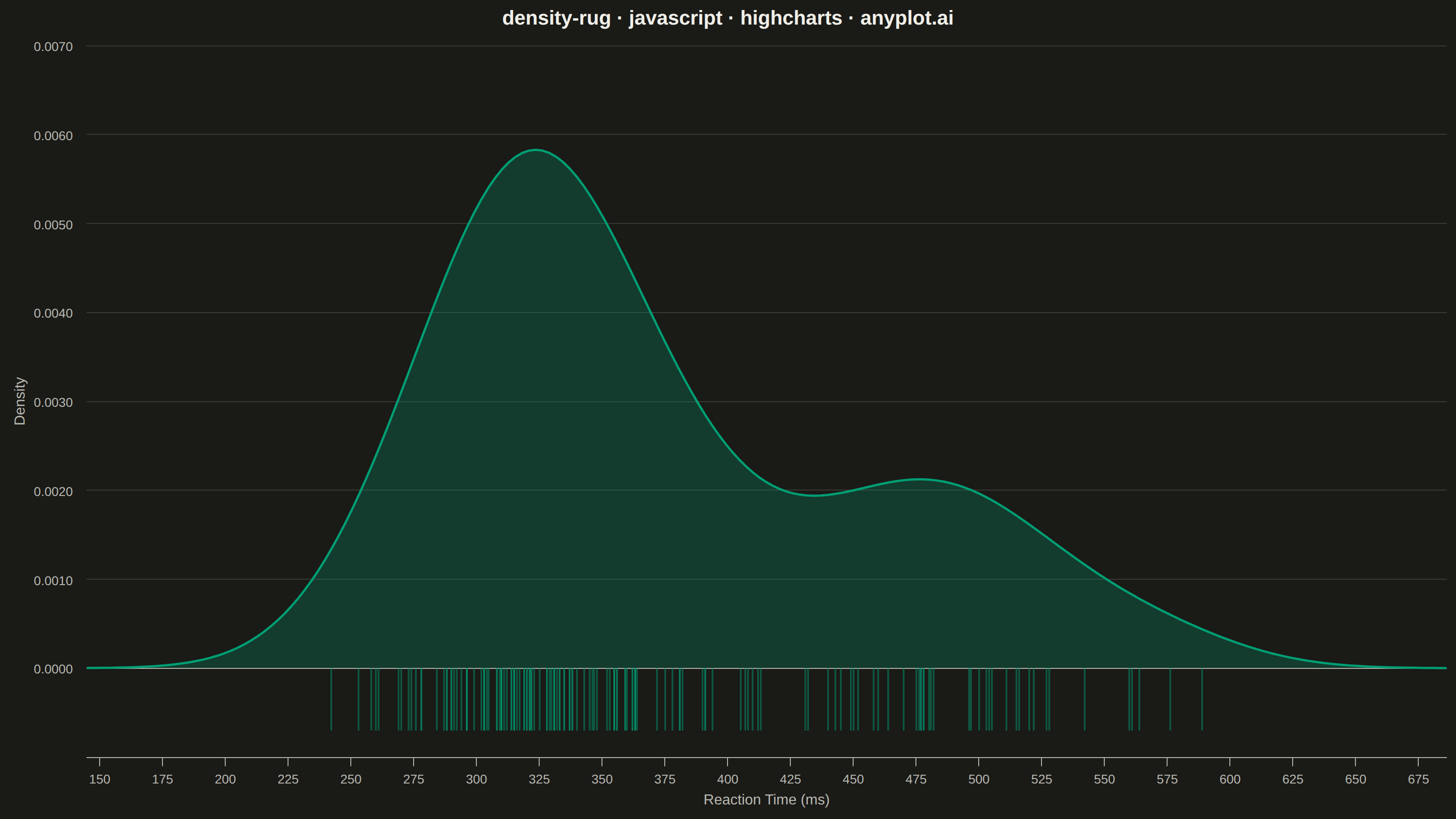

A kernel density estimation (KDE) plot combined with rug marks along the x-axis, showing both the smoothed probability distribution and the exact location of each individual data point. This combination provides the best of both worlds: the KDE reveals the overall shape, modality, and smoothed density of the distribution, while the rug marks preserve transparency about where actual observations fall, highlighting data density and potential gaps.
// anyplot.ai
// density-rug: Density Plot with Rug Marks
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-02
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic, LCG-seeded Box-Muller) ----------------
const makeLcg = (seed) => {
let state = seed >>> 0;
return () => {
state = (Math.imul(state, 1664525) + 1013904223) >>> 0;
return state / 4294967296;
};
};
const rand = makeLcg(42);
const gaussian = () => {
const u1 = Math.max(rand(), 1e-12);
const u2 = rand();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
};
// Reaction times (ms) from a lexical-decision task: a fast majority group
// plus a slower, more variable tail group — a realistic bimodal shape.
const reactionTimes = [];
for (let i = 0; i < 150; i++) {
const isSlowGroup = rand() < 0.3;
const mean = isSlowGroup ? 485 : 320;
const spread = isSlowGroup ? 55 : 38;
reactionTimes.push(Math.round(mean + gaussian() * spread));
}
reactionTimes.sort((a, b) => a - b);
// --- Kernel density estimation (Gaussian kernel, Silverman bandwidth) ------
const n = reactionTimes.length;
const mean = reactionTimes.reduce((s, v) => s + v, 0) / n;
const variance = reactionTimes.reduce((s, v) => s + (v - mean) ** 2, 0) / (n - 1);
const std = Math.sqrt(variance);
const bandwidth = 1.06 * std * n ** (-1 / 5);
const gaussianKernel = (u) => Math.exp(-0.5 * u * u) / Math.sqrt(2 * Math.PI);
const densityAt = (x) =>
reactionTimes.reduce((s, v) => s + gaussianKernel((x - v) / bandwidth), 0) / (n * bandwidth);
const gridMin = reactionTimes[0] - 3 * bandwidth;
const gridMax = reactionTimes[n - 1] + 3 * bandwidth;
const gridSteps = 200;
const densityCurve = [];
for (let i = 0; i <= gridSteps; i++) {
const x = gridMin + ((gridMax - gridMin) * i) / gridSteps;
densityCurve.push([x, densityAt(x)]);
}
const maxDensity = Math.max(...densityCurve.map((p) => p[1]));
// Rug ticks sit below the zero line as a thin band, separated from the fill.
const tickHeight = maxDensity * 0.12;
const rugColor = `${t.palette[0]}73`; // brand green, ~45% opacity (overlap-friendly)
// Nice round y-axis tick interval (1/2/5 * 10^k) so labeled ticks are spaced
// far enough apart to stay visually distinct after rounding.
const niceStep = (rough) => {
const exp = Math.floor(Math.log10(rough));
const base = rough / 10 ** exp;
const niceBase = base < 1.5 ? 1 : base < 3 ? 2 : base < 7 ? 5 : 10;
return niceBase * 10 ** exp;
};
const yTickInterval = niceStep(maxDensity / 5);
// --- Chart -------------------------------------------------------------
Highcharts.chart("container", {
chart: {
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
colors: t.palette,
title: {
text: "density-rug · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
xAxis: {
title: { text: "Reaction Time (ms)", style: { color: t.inkSoft, fontSize: "16px" } },
lineColor: t.inkSoft,
tickColor: t.inkSoft,
gridLineColor: t.grid,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
min: gridMin,
max: gridMax,
},
yAxis: {
title: { text: "Density", style: { color: t.inkSoft, fontSize: "16px" } },
gridLineColor: t.grid,
labels: {
style: { color: t.inkSoft, fontSize: "14px" },
formatter() {
return this.value >= 0 ? this.value.toFixed(4) : "";
},
},
tickInterval: yTickInterval,
min: -tickHeight * 1.4,
max: maxDensity * 1.15,
plotLines: [{ value: 0, color: t.inkSoft, width: 1, zIndex: 3 }],
},
legend: { enabled: false },
tooltip: { enabled: false },
plotOptions: {
series: { animation: false, enableMouseTracking: false },
},
series: [
{
type: "area",
name: "Estimated density",
data: densityCurve,
color: t.palette[0],
lineWidth: 2.5,
fillOpacity: 0.25,
threshold: 0,
marker: { enabled: false },
},
{
type: "column",
name: "Observations",
data: reactionTimes.map((v) => [v, -tickHeight]),
color: rugColor,
borderWidth: 0,
pointWidth: 2,
threshold: 0,
pointPadding: 0,
groupPadding: 0,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/density-rug/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "density-rug",
"language": "javascript",
"library": "highcharts",
"page": "https://anyplot.ai/density-rug/javascript/highcharts",
"hub": "https://anyplot.ai/density-rug",
"code_json": "https://api.anyplot.ai/specs/density-rug/highcharts/code",
"spec_json": "https://api.anyplot.ai/specs/density-rug",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/density-rug/javascript/highcharts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/density-rug/javascript/highcharts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/density-rug/javascript/highcharts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/density-rug/javascript/highcharts/plot-dark.html",
"quality_score": 90.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Density Plot with Rug Marks on anyplot.ai.
