Density Plot with Rug Marks — Plotly

A kernel density estimation (KDE) plot combined with rug marks along the x-axis, showing both the smoothed probability distribution and the exact location of each individual data point. This combination provides the best of both worlds: the KDE reveals the overall shape, modality, and smoothed density of the distribution, while the rug marks preserve transparency about where actual observations fall, highlighting data density and potential gaps.

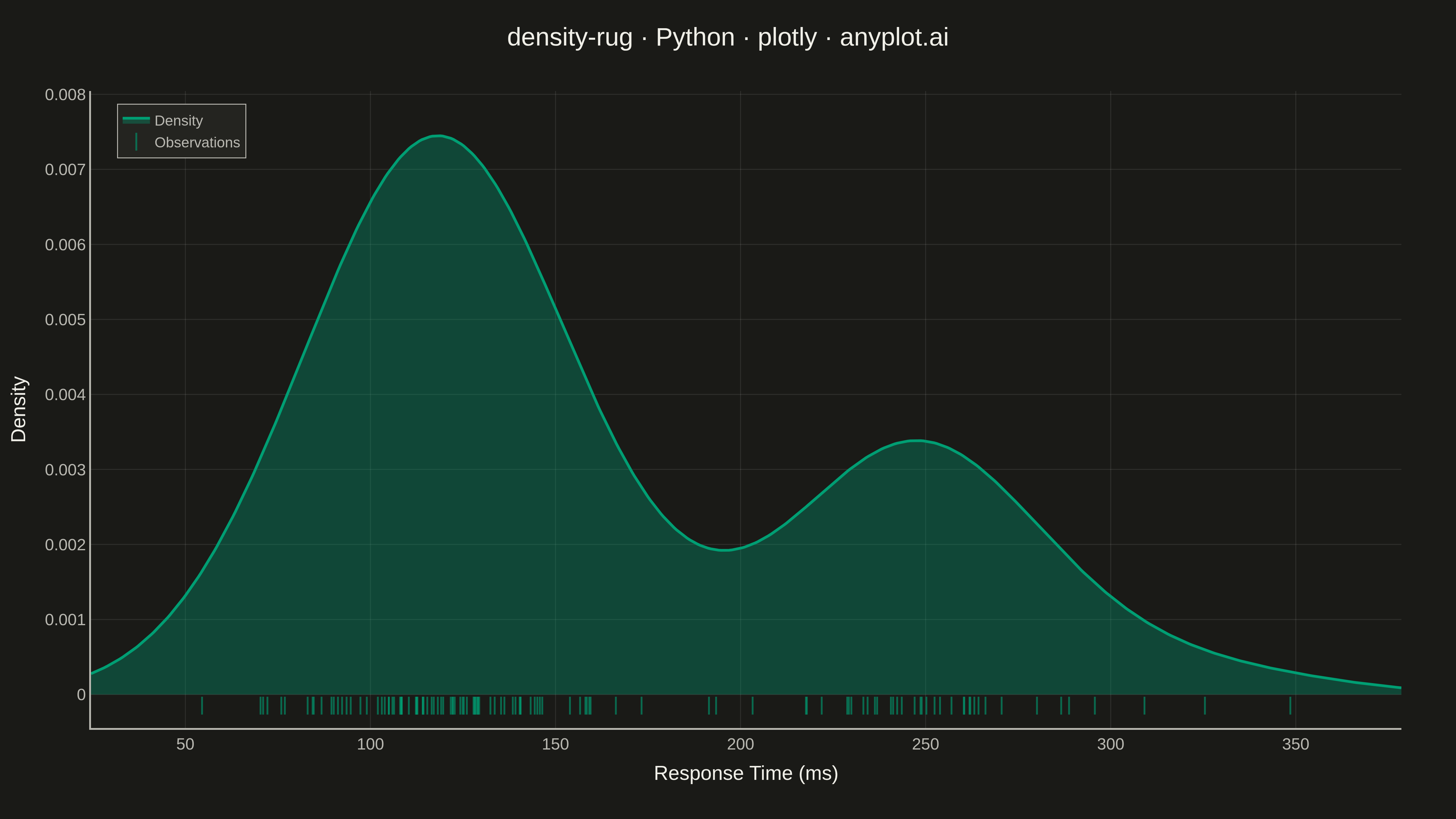

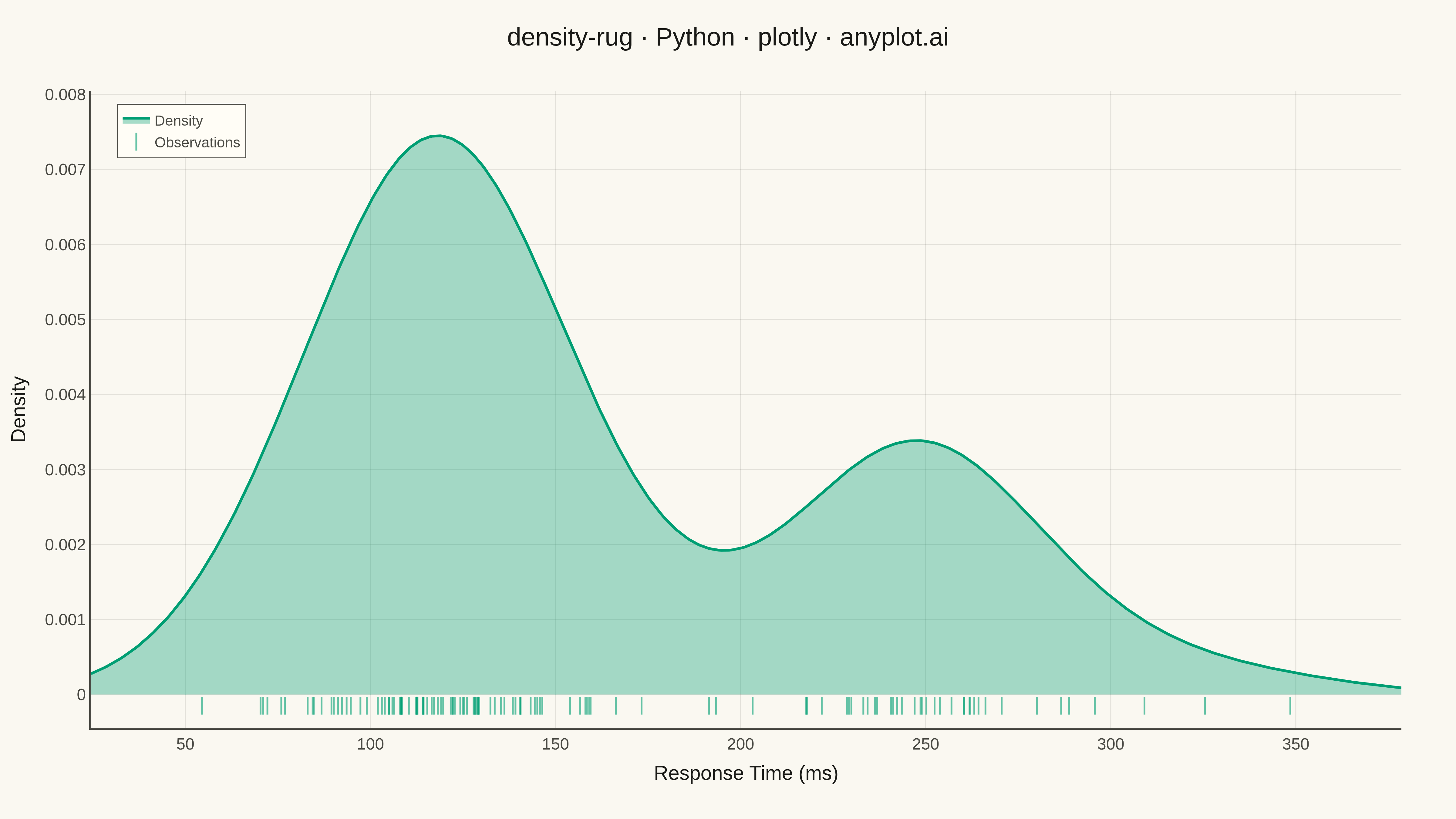

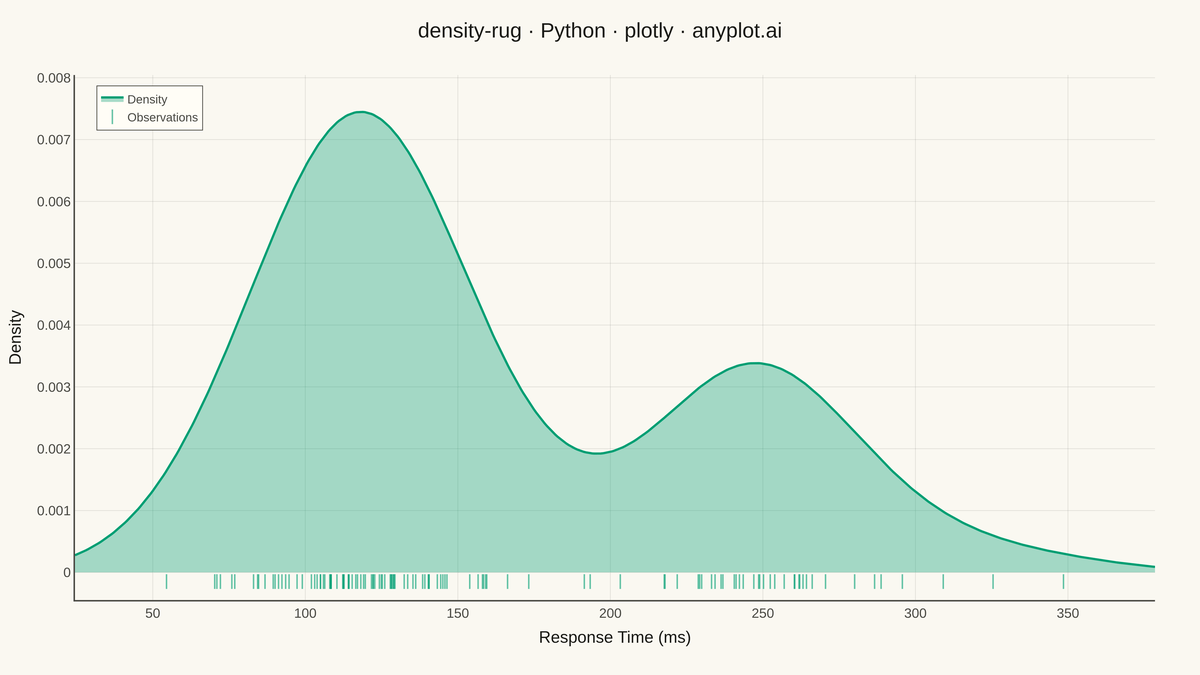

Density Plot with Rug Marks rendered with Plotly

Python source (Plotly)

""" anyplot.ai
density-rug: Density Plot with Rug Marks
Library: plotly 6.7.0 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-18
"""

import os

import numpy as np
import plotly.graph_objects as go
from scipy.stats import gaussian_kde


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"
BRAND = "#009E73"  # Okabe-Ito position 1

# Data - Response times for a web application (in milliseconds)
np.random.seed(42)
# Create a bimodal distribution to show interesting KDE behavior
response_times = np.concatenate(
    [
        np.random.normal(120, 25, 80),  # Fast responses
        np.random.normal(250, 40, 40),  # Slower responses
    ]
)

# Compute KDE
kde = gaussian_kde(response_times)
x_range = np.linspace(response_times.min() - 30, response_times.max() + 30, 500)
density = kde(x_range)

# Create figure
fig = go.Figure()

# Add filled KDE curve with brand color
fig.add_trace(
    go.Scatter(
        x=x_range,
        y=density,
        mode="lines",
        fill="tozeroy",
        fillcolor=f"rgba({int(BRAND[1:3], 16)}, {int(BRAND[3:5], 16)}, {int(BRAND[5:7], 16)}, 0.35)",
        line=dict(color=BRAND, width=3),
        name="Density",
        hovertemplate="Time: %{x:.1f} ms<br>Density: %{y:.4f}<extra></extra>",
    )
)

# Add rug marks at y=0
rug_height = max(density) * 0.04
fig.add_trace(
    go.Scatter(
        x=response_times,
        y=np.zeros_like(response_times) - rug_height * 0.5,
        mode="markers",
        marker=dict(
            symbol="line-ns",
            size=14,
            line=dict(width=2, color=f"rgba({int(BRAND[1:3], 16)}, {int(BRAND[3:5], 16)}, {int(BRAND[5:7], 16)}, 0.6)"),
            color=f"rgba({int(BRAND[1:3], 16)}, {int(BRAND[3:5], 16)}, {int(BRAND[5:7], 16)}, 0.6)",
        ),
        name="Observations",
        hovertemplate="Response Time: %{x:.1f} ms<extra></extra>",
    )
)

# Layout with theme-adaptive colors
fig.update_layout(
    title=dict(
        text="density-rug · Python · plotly · anyplot.ai", font=dict(size=28, color=INK), x=0.5, xanchor="center"
    ),
    xaxis=dict(
        title=dict(text="Response Time (ms)", font=dict(size=22, color=INK)),
        tickfont=dict(size=18, color=INK_SOFT),
        gridcolor=GRID,
        gridwidth=1,
        zeroline=False,
        showline=True,
        linewidth=2,
        linecolor=INK_SOFT,
    ),
    yaxis=dict(
        title=dict(text="Density", font=dict(size=22, color=INK)),
        tickfont=dict(size=18, color=INK_SOFT),
        gridcolor=GRID,
        gridwidth=1,
        zeroline=False,
        showline=True,
        linewidth=2,
        linecolor=INK_SOFT,
        rangemode="tozero",
    ),
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    font=dict(color=INK),
    showlegend=True,
    legend=dict(
        font=dict(size=16, color=INK_SOFT),
        x=0.02,
        y=0.98,
        xanchor="left",
        yanchor="top",
        bgcolor=ELEVATED_BG,
        bordercolor=INK_SOFT,
        borderwidth=1,
    ),
    margin=dict(l=100, r=60, t=100, b=100),
)

# Adjust y-axis range to include rug marks below zero
fig.update_yaxes(range=[-rug_height * 1.5, max(density) * 1.08])

# Save as PNG (4800 x 2700 px)
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)

# Save interactive HTML
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of Density Plot with Rug Marks on anyplot.ai.
