Density Plot with Rug Marks — ggplot2

A kernel density estimation (KDE) plot combined with rug marks along the x-axis, showing both the smoothed probability distribution and the exact location of each individual data point. This combination provides the best of both worlds: the KDE reveals the overall shape, modality, and smoothed density of the distribution, while the rug marks preserve transparency about where actual observations fall, highlighting data density and potential gaps.

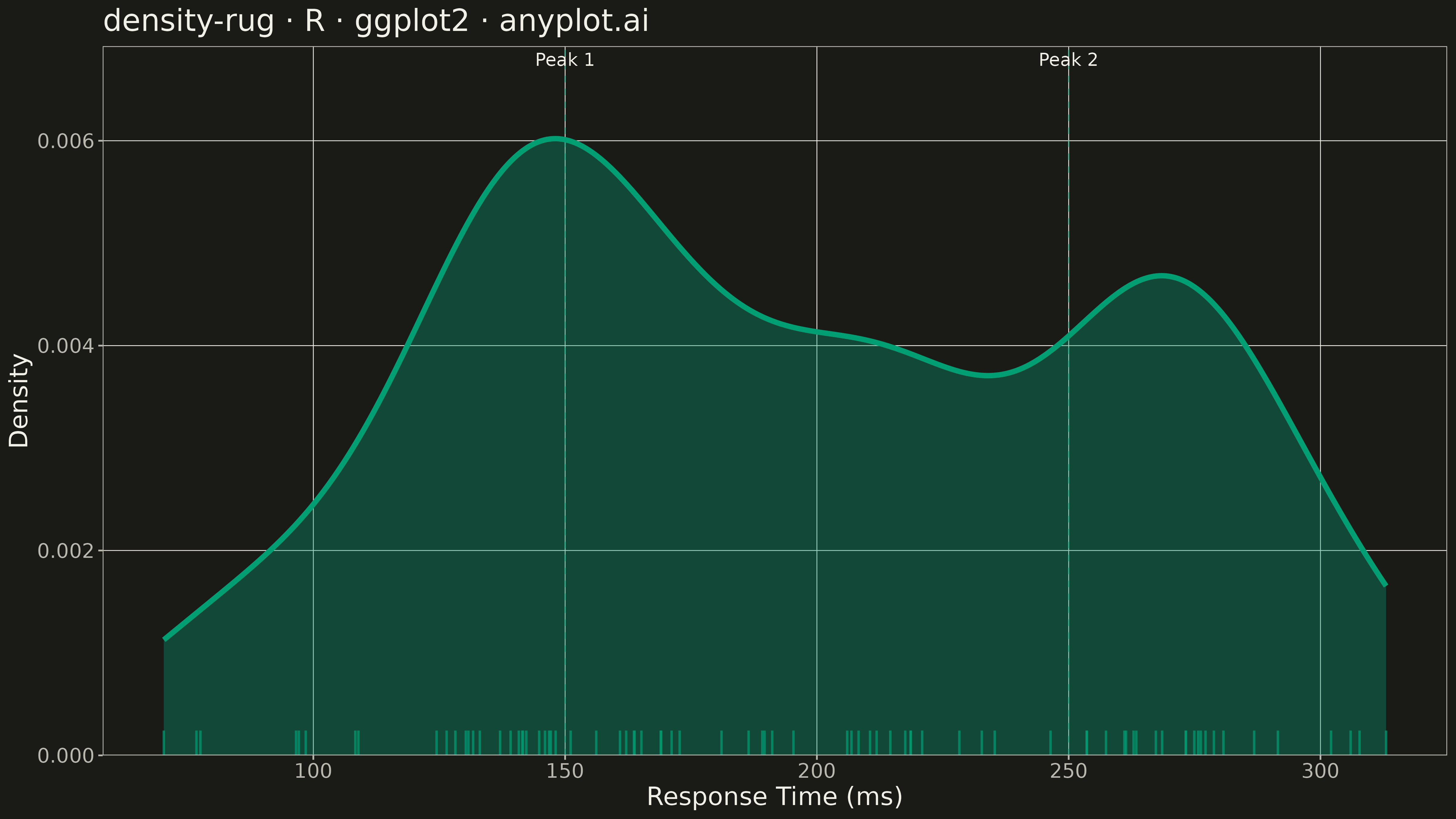

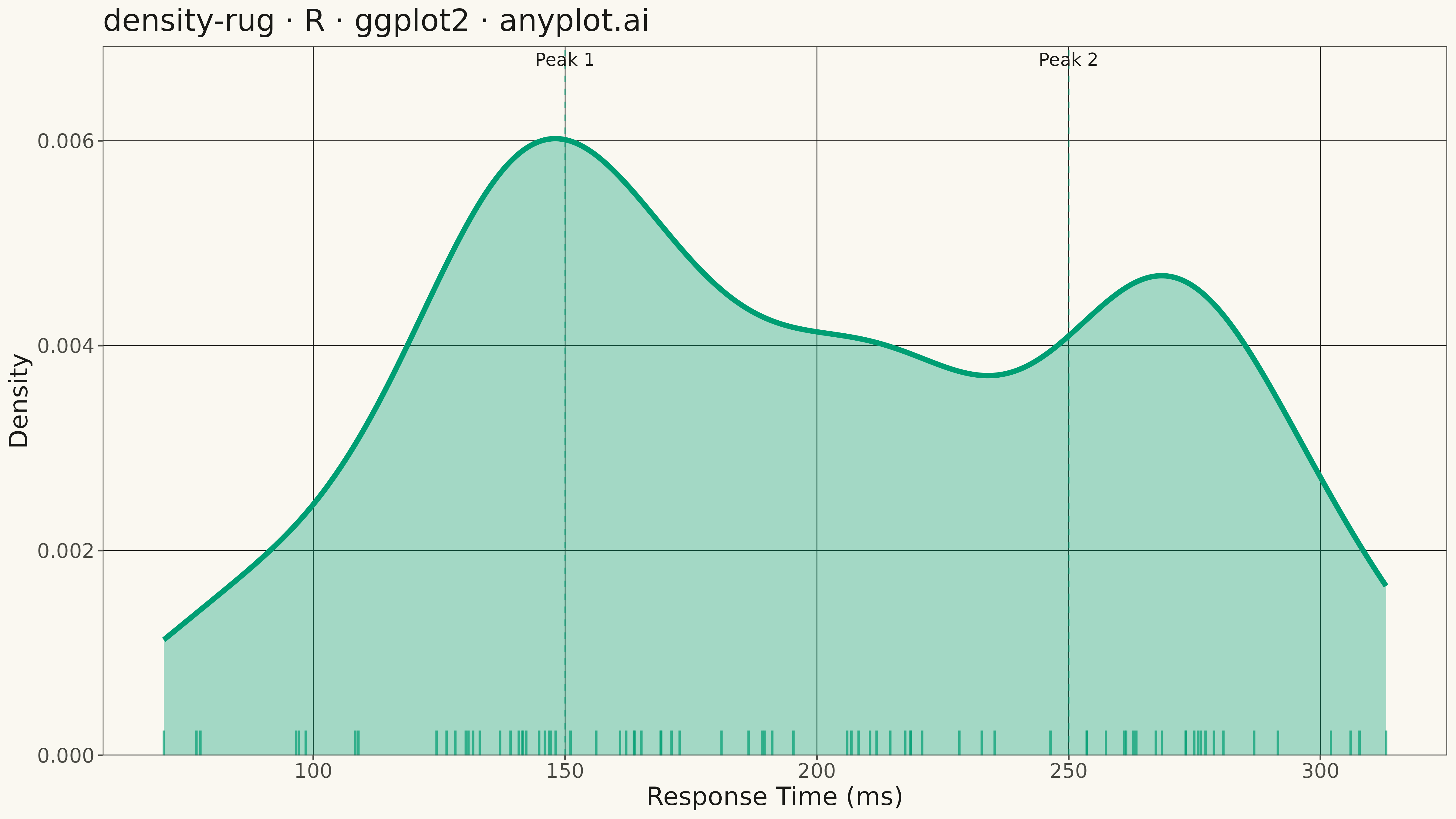

Density Plot with Rug Marks rendered with ggplot2

Renders

R source (ggplot2)

#' anyplot.ai
#' density-rug: Density Plot with Rug Marks
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 95/100 | Created: 2026-05-18

library(ggplot2)
library(ragg)

set.seed(42)

# --- Theme tokens -----------------------------------------------------------
THEME       <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG     <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
INK         <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT    <- if (THEME == "light") "#4A4A44" else "#B8B7B0"
IMPRINT   <- c("#009E73", "#C475FD", "#4467A3", "#BD8233",
                 "#AE3030", "#2ABCCD", "#954477")

# --- Data -------------------------------------------------------------------
# Response times (in milliseconds) from a web application
response_times <- c(
  rnorm(45, mean = 150, sd = 30),
  rnorm(35, mean = 250, sd = 40)
)

df <- data.frame(value = response_times)

# --- Plot -------------------------------------------------------------------
p <- ggplot(df, aes(x = value)) +
  geom_density(
    stat = "density",
    fill = IMPRINT[1],
    color = IMPRINT[1],
    alpha = 0.35,
    linewidth = 1.4,
    bw = 20
  ) +
  geom_density(
    stat = "density",
    fill = NA,
    color = IMPRINT[1],
    alpha = 1,
    linewidth = 2,
    bw = 20,
    key_glyph = "blank"
  ) +
  geom_rug(
    color = IMPRINT[1],
    alpha = 0.7,
    linewidth = 0.9,
    length = unit(0.035, "npc")
  ) +
  geom_vline(
    xintercept = 150,
    color = IMPRINT[1],
    linewidth = 0.6,
    alpha = 0.5,
    linetype = "dashed"
  ) +
  geom_vline(
    xintercept = 250,
    color = IMPRINT[1],
    linewidth = 0.6,
    alpha = 0.5,
    linetype = "dashed"
  ) +
  annotate(
    "text",
    x = 150,
    y = Inf,
    label = "Peak 1",
    vjust = 1.5,
    hjust = 0.5,
    size = 5,
    color = INK,
    family = "sans"
  ) +
  annotate(
    "text",
    x = 250,
    y = Inf,
    label = "Peak 2",
    vjust = 1.5,
    hjust = 0.5,
    size = 5,
    color = INK,
    family = "sans"
  ) +
  labs(
    title = "density-rug · R · ggplot2 · anyplot.ai",
    x = "Response Time (ms)",
    y = "Density"
  ) +
  scale_y_continuous(expand = expansion(mult = c(0, 0.15))) +
  theme_minimal(base_size = 14) +
  theme(
    plot.background  = element_rect(fill = PAGE_BG, color = PAGE_BG),
    panel.background = element_rect(fill = PAGE_BG, color = NA),
    panel.grid.major = element_line(color = INK, linewidth = 0.3),
    panel.grid.minor = element_blank(),
    panel.border     = element_rect(color = INK_SOFT, fill = NA, linewidth = 0.6),
    axis.title       = element_text(color = INK, size = 20),
    axis.text        = element_text(color = INK_SOFT, size = 16),
    plot.title       = element_text(color = INK, size = 24),
    axis.ticks       = element_line(color = INK_SOFT)
  )

# --- Save -------------------------------------------------------------------
ggsave(
  filename = sprintf("plot-%s.png", THEME),
  plot     = p,
  device   = ragg::agg_png,
  width    = 16,
  height   = 9,
  units    = "in",
  dpi      = 300
)

Part of Density Plot with Rug Marks on anyplot.ai.
