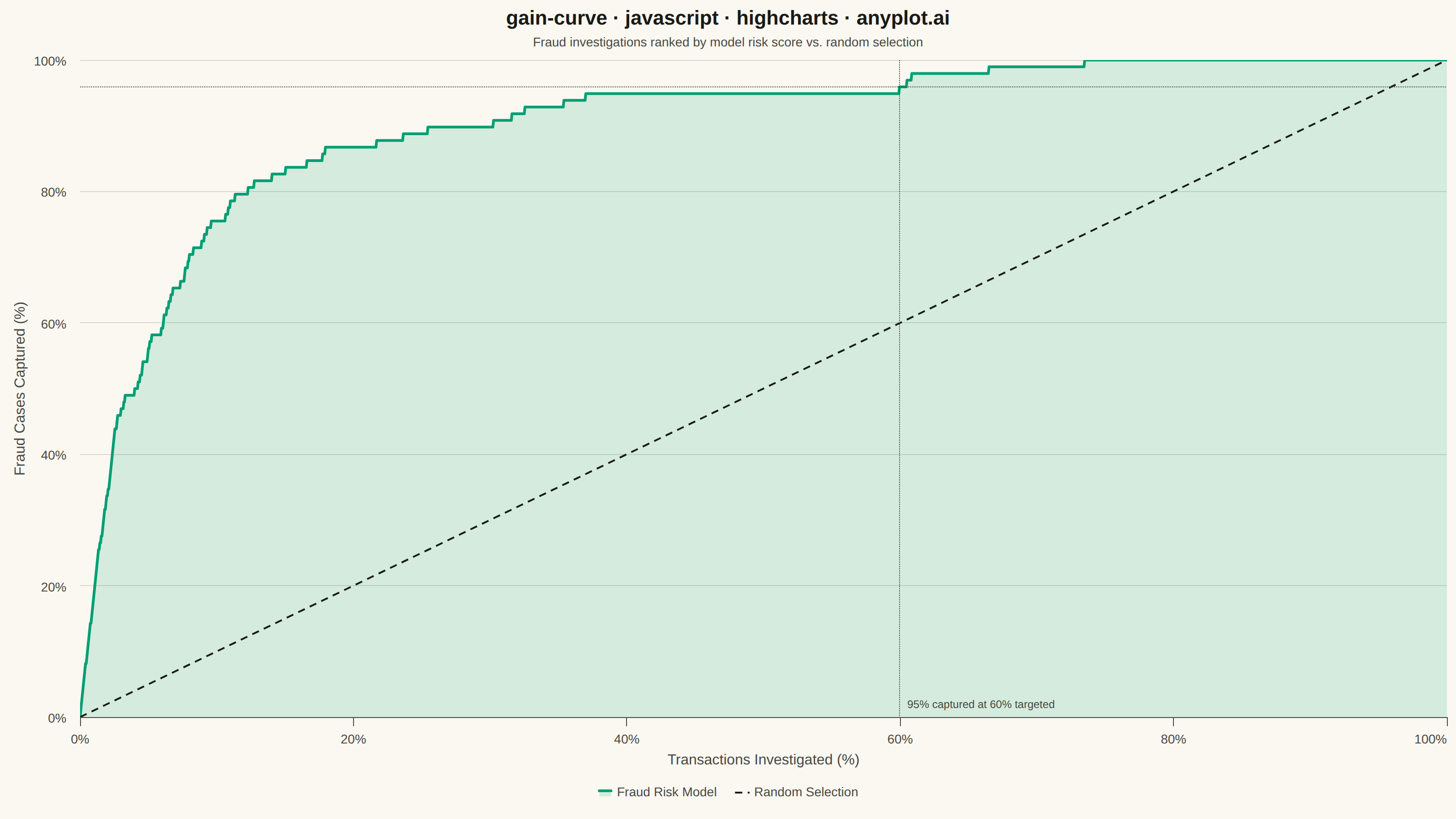

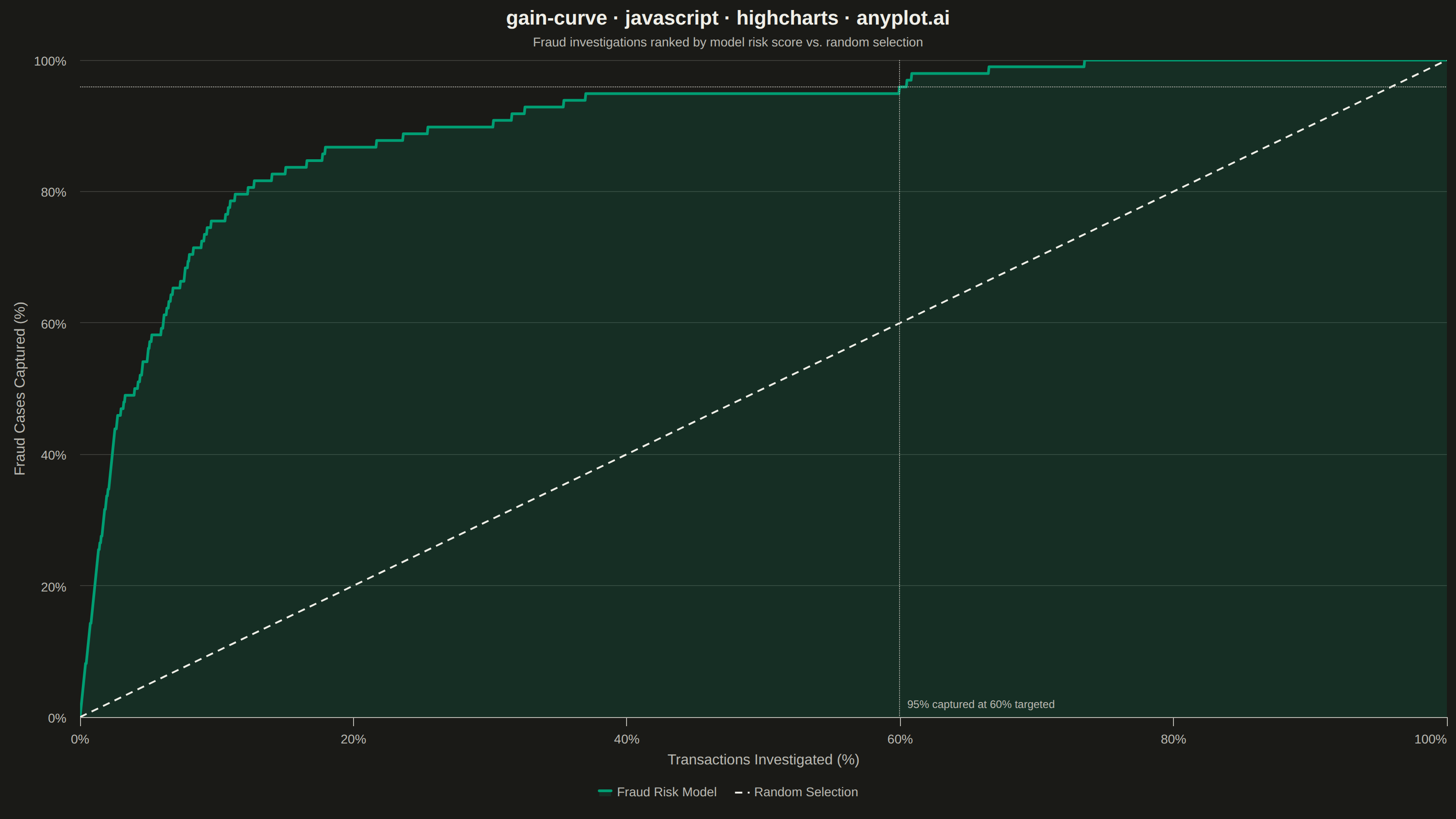

A cumulative gains chart visualizes the effectiveness of a classification model by showing what percentage of positive cases is captured when targeting increasing percentages of the population, ranked by predicted probability. It answers the question: "If I target the top X% of my predictions, what percentage of all actual positives will I capture?" This plot is essential for evaluating targeting strategies in marketing, risk assessment, and resource allocation scenarios.
// anyplot.ai
// gain-curve: Cumulative Gains Chart
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-05
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ---------------------------------------
const N_TRANSACTIONS = 2000;
const FRAUD_RATE = 0.05;
function mulberry32(seed) {
return function () {
seed = (seed + 0x6d2b79f5) | 0;
let z = Math.imul(seed ^ (seed >>> 15), 1 | seed);
z = (z + Math.imul(z ^ (z >>> 7), 61 | z)) ^ z;
return ((z ^ (z >>> 14)) >>> 0) / 4294967296;
};
}
const rand = mulberry32(42);
function randNormal() {
let u1 = rand();
while (u1 === 0) u1 = rand();
const u2 = rand();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
// A fraud-detection risk score: fraudulent transactions skew higher, but
// overlap with legitimate ones, mimicking a realistic (imperfect) model.
const transactions = [];
for (let i = 0; i < N_TRANSACTIONS; i++) {
const isFraud = rand() < FRAUD_RATE ? 1 : 0;
const riskScore = isFraud ? 0.62 + 0.22 * randNormal() : 0.22 + 0.18 * randNormal();
transactions.push({ isFraud, riskScore });
}
transactions.sort((a, b) => b.riskScore - a.riskScore);
const totalFraud = transactions.reduce((sum, tx) => sum + tx.isFraud, 0);
const modelGains = [[0, 0]];
let capturedFraud = 0;
transactions.forEach((tx, i) => {
capturedFraud += tx.isFraud;
const targetedPct = ((i + 1) / N_TRANSACTIONS) * 100;
const capturedPct = (capturedFraud / totalFraud) * 100;
modelGains.push([targetedPct, capturedPct]);
});
const baselineGains = [
[0, 0],
[100, 100],
];
// Highlight the point where the model first captures 95% of fraud cases —
// the "diminishing returns" transition called out via a plotLine dropline.
const PLATEAU_CAPTURE_PCT = 95;
const [plateauTargetedPct, plateauCapturedPct] =
modelGains.find(([, capturedPct]) => capturedPct >= PLATEAU_CAPTURE_PCT) ??
modelGains[modelGains.length - 1];
// --- Chart -------------------------------------------------------------
Highcharts.chart("container", {
chart: {
type: "line",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
title: {
text: "gain-curve · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
subtitle: {
text: "Fraud investigations ranked by model risk score vs. random selection",
style: { color: t.inkSoft, fontSize: "14px" },
},
xAxis: {
title: {
text: "Transactions Investigated (%)",
style: { color: t.inkSoft, fontSize: "16px" },
},
min: 0,
max: 100,
tickInterval: 20,
lineColor: t.inkSoft,
tickColor: t.inkSoft,
gridLineColor: t.grid,
labels: { format: "{value}%", style: { color: t.inkSoft, fontSize: "14px" } },
plotLines: [
{
value: plateauTargetedPct,
color: t.inkSoft,
width: 1,
dashStyle: "ShortDot",
zIndex: 4,
label: {
text: `${PLATEAU_CAPTURE_PCT}% captured at ${plateauTargetedPct.toFixed(0)}% targeted`,
style: { color: t.inkSoft, fontSize: "12px" },
rotation: 0,
align: "left",
x: 8,
verticalAlign: "bottom",
y: -10,
},
},
],
},
yAxis: {
title: {
text: "Fraud Cases Captured (%)",
style: { color: t.inkSoft, fontSize: "16px" },
},
min: 0,
max: 100,
tickInterval: 20,
gridLineColor: t.grid,
labels: { format: "{value}%", style: { color: t.inkSoft, fontSize: "14px" } },
plotLines: [
{ value: plateauCapturedPct, color: t.inkSoft, width: 1, dashStyle: "ShortDot", zIndex: 4 },
],
},
legend: {
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink },
},
tooltip: {
formatter: function () {
const lift = this.x > 0 ? (this.y / this.x).toFixed(2) : "—";
return `<b>${this.series.name}</b><br/>Targeted: ${this.x.toFixed(1)}%<br/>Captured: ${this.y.toFixed(1)}%<br/>Lift vs. random: ${lift}×`;
},
},
plotOptions: {
series: { animation: false, marker: { enabled: false } },
},
series: [
{
name: "Fraud Risk Model",
type: "area",
data: modelGains,
color: t.palette[0],
fillOpacity: 0.15,
threshold: 0,
lineWidth: 3,
zIndex: 2,
},
{
name: "Random Selection",
type: "line",
data: baselineGains,
color: t.ink,
lineWidth: 2,
dashStyle: "Dash",
zIndex: 3,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/gain-curve/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "gain-curve",
"language": "javascript",
"library": "highcharts",
"page": "https://anyplot.ai/gain-curve/javascript/highcharts",
"hub": "https://anyplot.ai/gain-curve",
"code_json": "https://api.anyplot.ai/specs/gain-curve/highcharts/code",
"spec_json": "https://api.anyplot.ai/specs/gain-curve",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/gain-curve/javascript/highcharts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/gain-curve/javascript/highcharts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/gain-curve/javascript/highcharts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/gain-curve/javascript/highcharts/plot-dark.html",
"quality_score": 90.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Cumulative Gains Chart on anyplot.ai.
