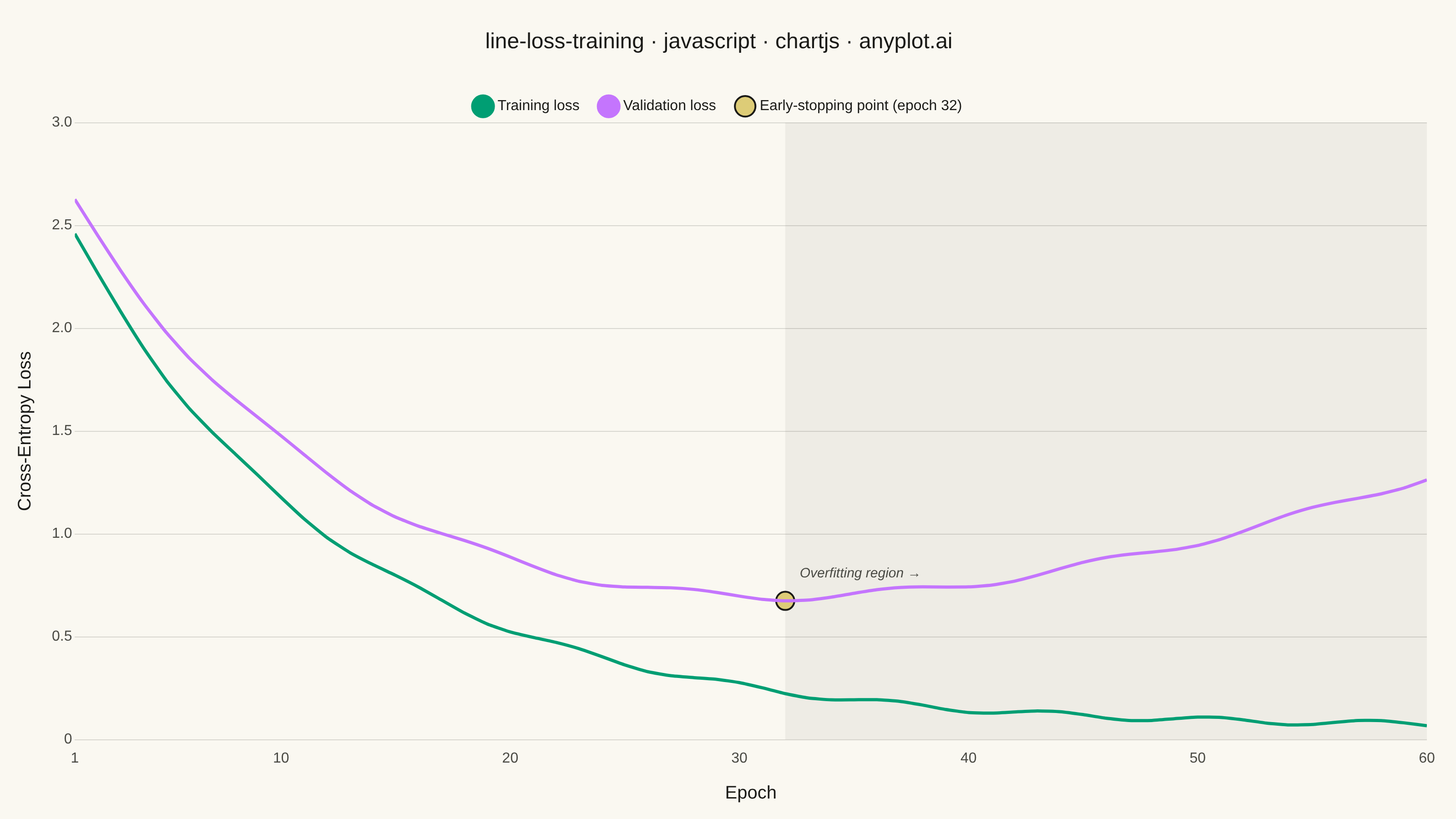

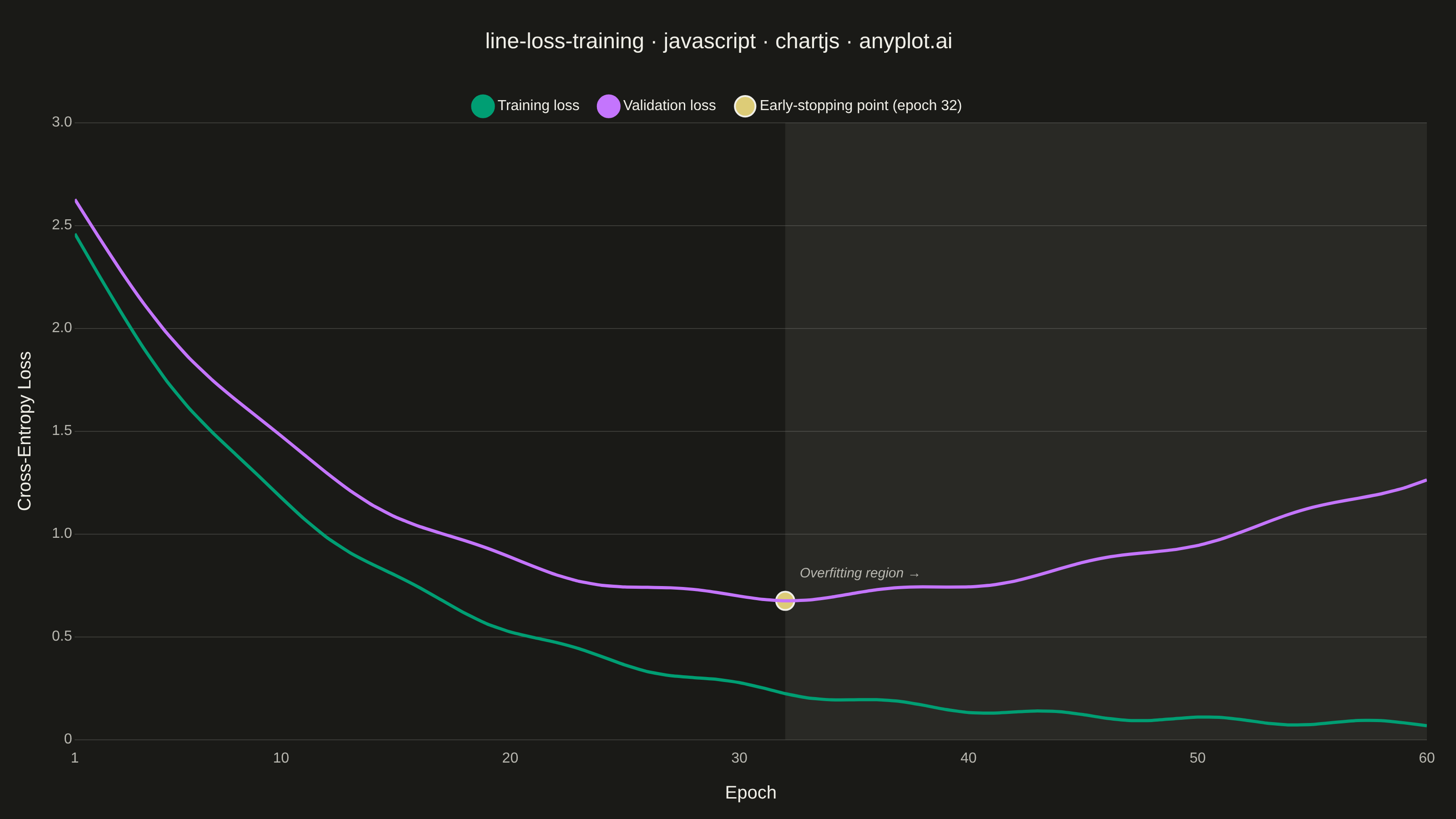

A line plot showing training and validation loss curves over epochs during neural network training. This visualization is essential for monitoring model training, detecting overfitting (when validation loss diverges from training loss), and determining optimal early stopping points. The dual-curve display reveals the gap between training and generalization performance.
// anyplot.ai
// line-loss-training: Training Loss Curve
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 94/100 | Created: 2026-09-05
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Data: train/validation cross-entropy loss over 60 epochs ---------------
// Deterministic — no RNG needed, both curves are closed-form functions of epoch.
const EPOCHS = 60;
const epochs = [];
const trainLoss = [];
const valLoss = [];
for (let e = 1; e <= EPOCHS; e++) {
epochs.push(e);
trainLoss.push(2.6 * Math.exp(-0.085 * e) + 0.06 + 0.015 * Math.sin(e * 0.9));
// Validation loss tracks training loss early on, then overfitting sets in:
// a slow quadratic climb overtakes the exponential decay past ~epoch 30.
valLoss.push(2.7 * Math.exp(-0.07 * e) + 0.00033 * (e - 1) ** 2 + 0.09 + 0.02 * Math.sin(e * 0.7 + 1));
}
// --- Optimal early-stopping point: epoch with minimum validation loss -------
let minIdx = 0;
for (let i = 1; i < valLoss.length; i++) {
if (valLoss[i] < valLoss[minIdx]) minIdx = i;
}
const stopEpoch = epochs[minIdx];
const stopLoss = valLoss[minIdx];
// --- Mount --------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Overfitting-region plugin ---------------------------------------------
// Shades epoch > stopEpoch and labels it, so the divergence reads at a glance
// instead of relying on the marker alone. Muted, theme-adaptive fill sits
// behind the data (drawn before the datasets) and never competes with it.
const regionFill = t.theme === "dark" ? "rgba(240,239,232,0.07)" : "rgba(26,26,23,0.05)";
const overfitRegionPlugin = {
id: "overfitRegion",
beforeDatasetsDraw(chart) {
const { ctx, chartArea, scales } = chart;
const xStart = scales.x.getPixelForValue(stopEpoch);
ctx.save();
ctx.fillStyle = regionFill;
ctx.fillRect(xStart, chartArea.top, chartArea.right - xStart, chartArea.bottom - chartArea.top);
ctx.restore();
},
afterDraw(chart) {
const { ctx, scales } = chart;
const x = scales.x.getPixelForValue(stopEpoch);
const y = scales.y.getPixelForValue(stopLoss);
ctx.save();
ctx.fillStyle = t.inkSoft;
ctx.font = "italic 15px sans-serif";
ctx.textAlign = "left";
ctx.fillText("Overfitting region →", x + 16, y - 30);
ctx.restore();
},
};
// --- Chart ----------------------------------------------------------------
new Chart(canvas, {
type: "line",
plugins: [overfitRegionPlugin],
data: {
labels: epochs,
datasets: [
{
label: "Training loss",
data: trainLoss,
borderColor: t.palette[0],
backgroundColor: t.palette[0],
borderWidth: 3.5,
pointRadius: 0,
pointHoverRadius: 5,
tension: 0.15,
},
{
label: "Validation loss",
data: valLoss,
borderColor: t.palette[1],
backgroundColor: t.palette[1],
borderWidth: 3.5,
pointRadius: 0,
pointHoverRadius: 5,
tension: 0.15,
},
{
label: `Early-stopping point (epoch ${stopEpoch})`,
type: "scatter",
data: [{ x: stopEpoch, y: stopLoss }],
backgroundColor: t.amber,
borderColor: t.ink,
borderWidth: 2,
pointRadius: 10,
pointHoverRadius: 12,
pointStyle: "circle",
showLine: false,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
layout: { padding: { top: 24, right: 32, bottom: 12, left: 12 } },
plugins: {
title: {
display: true,
text: "line-loss-training · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 24, weight: "500" },
padding: { top: 8, bottom: 24 },
},
legend: {
labels: { color: t.ink, font: { size: 16 }, usePointStyle: true, padding: 24 },
},
tooltip: {
backgroundColor: t.elevatedBg,
titleColor: t.ink,
bodyColor: t.inkSoft,
borderColor: t.grid,
borderWidth: 1,
padding: 12,
titleFont: { size: 16 },
bodyFont: { size: 14 },
},
},
scales: {
x: {
type: "linear",
title: { display: true, text: "Epoch", color: t.ink, font: { size: 20 }, padding: { top: 14 } },
ticks: { color: t.inkSoft, font: { size: 16 }, stepSize: 10 },
grid: { display: false },
border: { display: false },
min: 1,
max: EPOCHS,
},
y: {
title: {
display: true,
text: "Cross-Entropy Loss",
color: t.ink,
font: { size: 20 },
padding: { bottom: 14 },
},
ticks: { color: t.inkSoft, font: { size: 16 } },
grid: { color: t.grid, drawTicks: false },
border: { display: false },
beginAtZero: true,
},
},
interaction: { mode: "nearest", intersect: false },
},
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/line-loss-training/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "line-loss-training",
"language": "javascript",
"library": "chartjs",
"page": "https://anyplot.ai/line-loss-training/javascript/chartjs",
"hub": "https://anyplot.ai/line-loss-training",
"code_json": "https://api.anyplot.ai/specs/line-loss-training/chartjs/code",
"spec_json": "https://api.anyplot.ai/specs/line-loss-training",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/line-loss-training/javascript/chartjs/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/line-loss-training/javascript/chartjs/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/line-loss-training/javascript/chartjs/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/line-loss-training/javascript/chartjs/plot-dark.html",
"quality_score": 94.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Training Loss Curve on anyplot.ai.
