Training Loss Curve — Highcharts

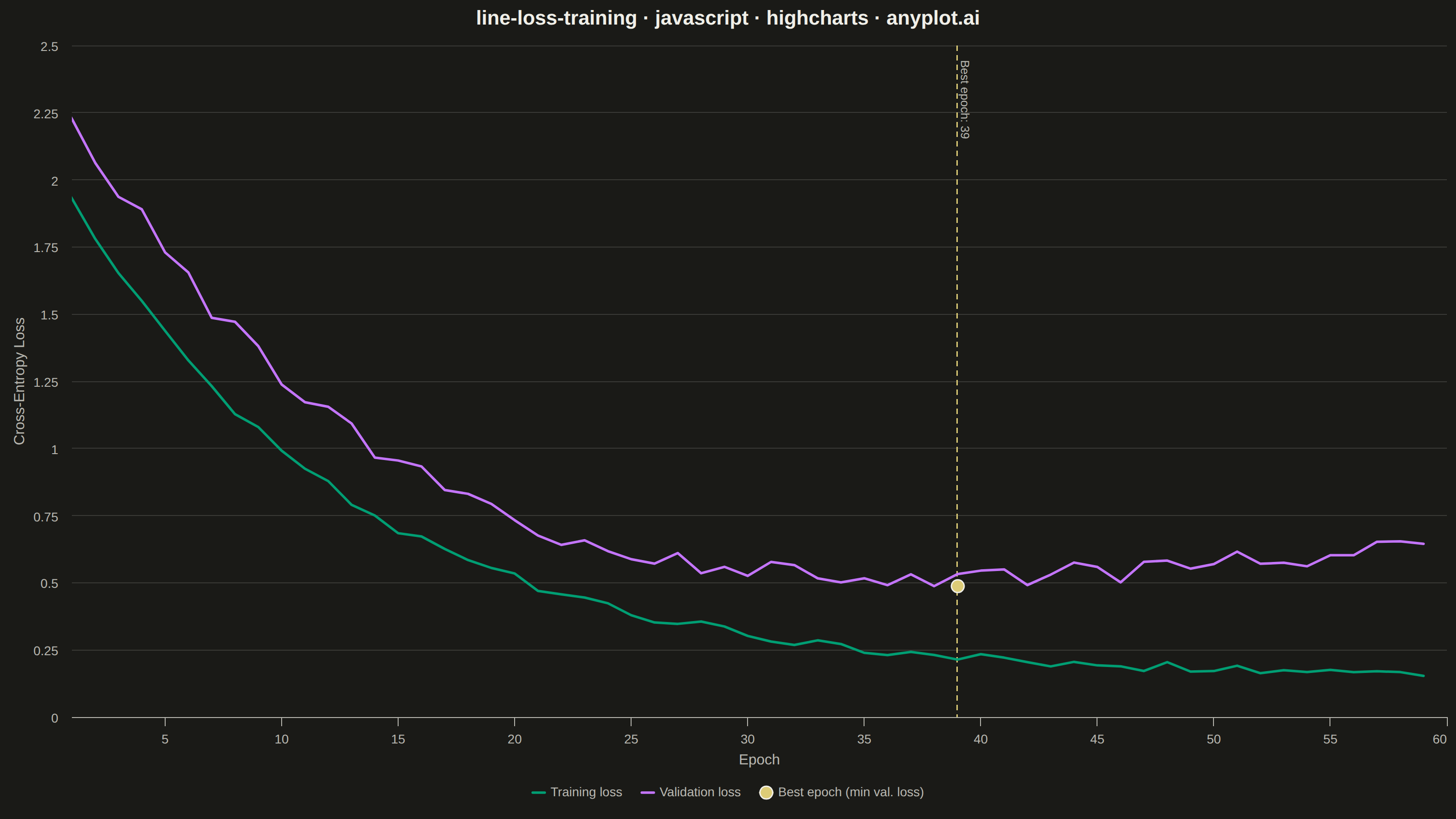

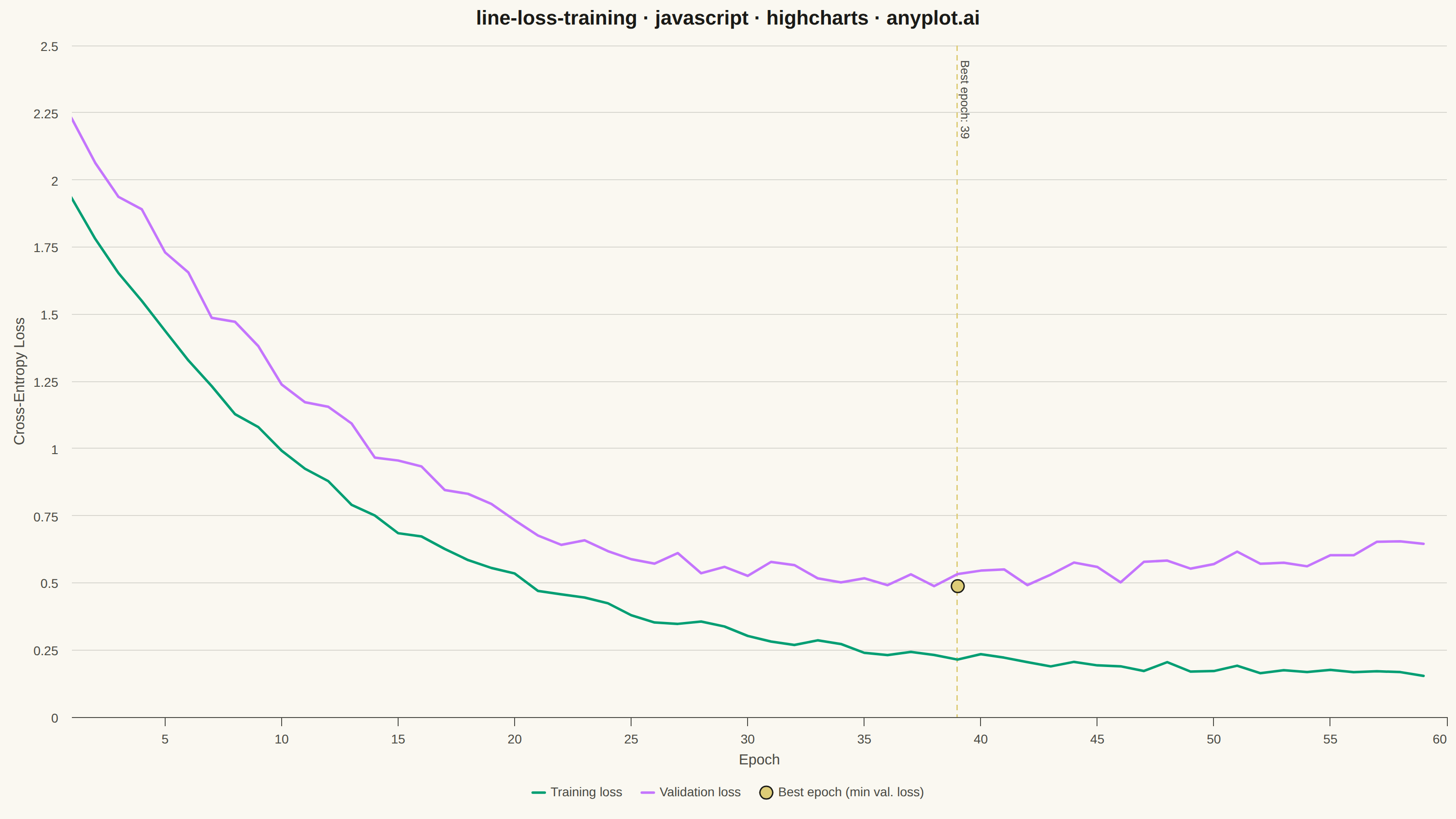

A line plot showing training and validation loss curves over epochs during neural network training. This visualization is essential for monitoring model training, detecting overfitting (when validation loss diverges from training loss), and determining optimal early stopping points. The dual-curve display reveals the gap between training and generalization performance.

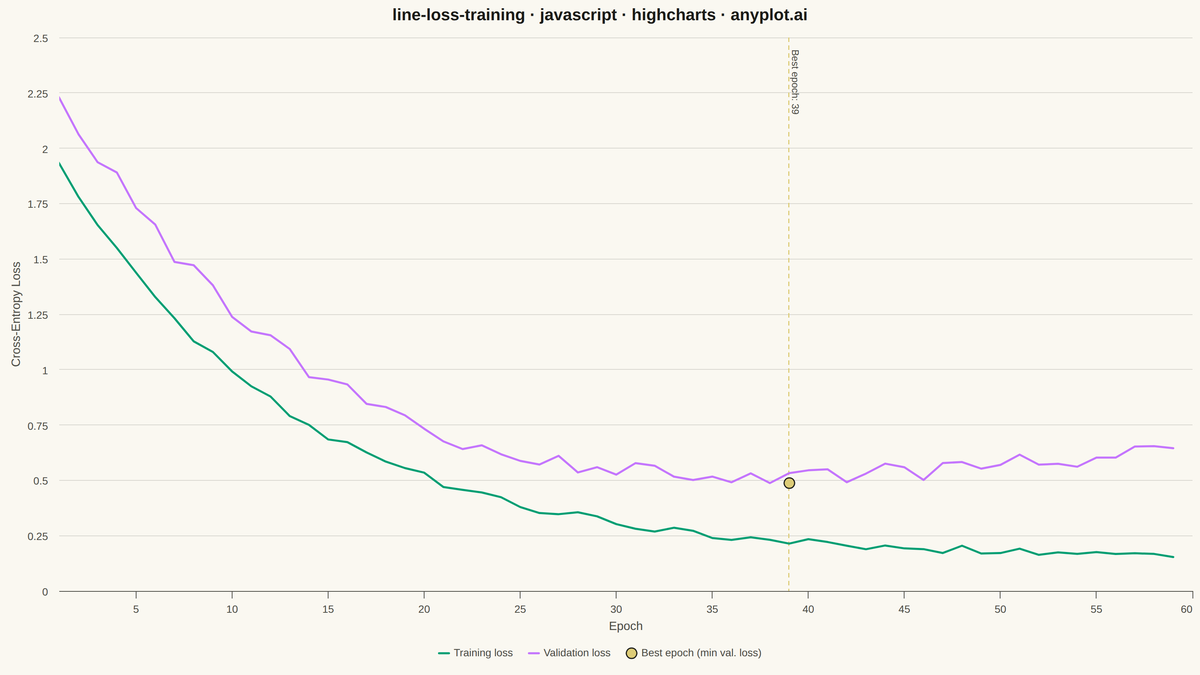

Training Loss Curve rendered with Highcharts

Renders

JavaScript source (Highcharts)

// anyplot.ai
// line-loss-training: Training Loss Curve
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-05

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Fixed-seed LCG so runs are reproducible without a browser RNG.
let seed = 42;
function lcgRandom() {
  seed = (seed * 1664525 + 1013904223) % 4294967296;
  return seed / 4294967296;
}

const epochs = 60;
const epochArray = [];
const trainLoss = [];
const valLoss = [];

for (let epoch = 1; epoch <= epochs; epoch++) {
  epochArray.push(epoch);
  const trainNoise = (lcgRandom() - 0.5) * 0.04;
  const valNoise = (lcgRandom() - 0.5) * 0.09;
  const trainValue = 0.15 + 2.1 * Math.exp(-epoch / 12) + trainNoise;
  // Validation loss tracks training early on, then overfits and creeps back up.
  const overfitTerm = epoch > 22 ? 0.0026 * Math.pow(epoch - 22, 1.35) : 0;
  const valValue = 0.28 + 2.3 * Math.exp(-epoch / 13) + overfitTerm + valNoise;
  trainLoss.push(Math.max(0.05, Number(trainValue.toFixed(4))));
  valLoss.push(Math.max(0.08, Number(valValue.toFixed(4))));
}

let minValEpoch = 1;
let minValLoss = valLoss[0];
for (let i = 0; i < valLoss.length; i++) {
  if (valLoss[i] < minValLoss) {
    minValLoss = valLoss[i];
    minValEpoch = epochArray[i];
  }
}

// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
  chart: {
    type: "line",
    backgroundColor: "transparent",
    animation: false,
    style: { fontFamily: "inherit" },
  },
  credits: { enabled: false },
  colors: t.palette,
  title: {
    text: "line-loss-training · javascript · highcharts · anyplot.ai",
    style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
  },
  xAxis: {
    title: { text: "Epoch", style: { color: t.inkSoft, fontSize: "16px" } },
    lineColor: t.inkSoft,
    tickColor: t.inkSoft,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
    min: 1,
    max: epochs,
    plotLines: [
      {
        value: minValEpoch,
        color: t.amber,
        width: 1.5,
        dashStyle: "Dash",
        zIndex: 3,
        label: {
          text: `Best epoch: ${minValEpoch}`,
          style: { color: t.inkSoft, fontSize: "13px" },
          y: 16,
        },
      },
    ],
  },
  yAxis: {
    title: { text: "Cross-Entropy Loss", style: { color: t.inkSoft, fontSize: "16px" } },
    gridLineColor: t.grid,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
    min: 0,
  },
  legend: {
    itemStyle: { color: t.inkSoft, fontSize: "14px" },
    itemHoverStyle: { color: t.ink },
  },
  plotOptions: {
    series: {
      animation: false,
      marker: { enabled: false },
      lineWidth: 2.75,
    },
  },
  tooltip: { enabled: false },
  series: [
    {
      name: "Training loss",
      data: trainLoss,
      color: t.palette[0],
    },
    {
      name: "Validation loss",
      data: valLoss,
      color: t.palette[1],
    },
    {
      name: "Best epoch (min val. loss)",
      type: "scatter",
      data: [[minValEpoch, minValLoss]],
      color: t.amber,
      marker: { enabled: true, radius: 7, symbol: "circle", lineWidth: 1.5, lineColor: t.ink },
      enableMouseTracking: false,
    },
  ],
});

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/line-loss-training/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "line-loss-training",
  "language": "javascript",
  "library": "highcharts",
  "page": "https://anyplot.ai/line-loss-training/javascript/highcharts",
  "hub": "https://anyplot.ai/line-loss-training",
  "code_json": "https://api.anyplot.ai/specs/line-loss-training/highcharts/code",
  "spec_json": "https://api.anyplot.ai/specs/line-loss-training",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/line-loss-training/javascript/highcharts/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/line-loss-training/javascript/highcharts/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/line-loss-training/javascript/highcharts/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/line-loss-training/javascript/highcharts/plot-dark.html",
  "quality_score": 90.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Training Loss Curve on anyplot.ai.
