Training Loss Curve — plotnine

A line plot showing training and validation loss curves over epochs during neural network training. This visualization is essential for monitoring model training, detecting overfitting (when validation loss diverges from training loss), and determining optimal early stopping points. The dual-curve display reveals the gap between training and generalization performance.

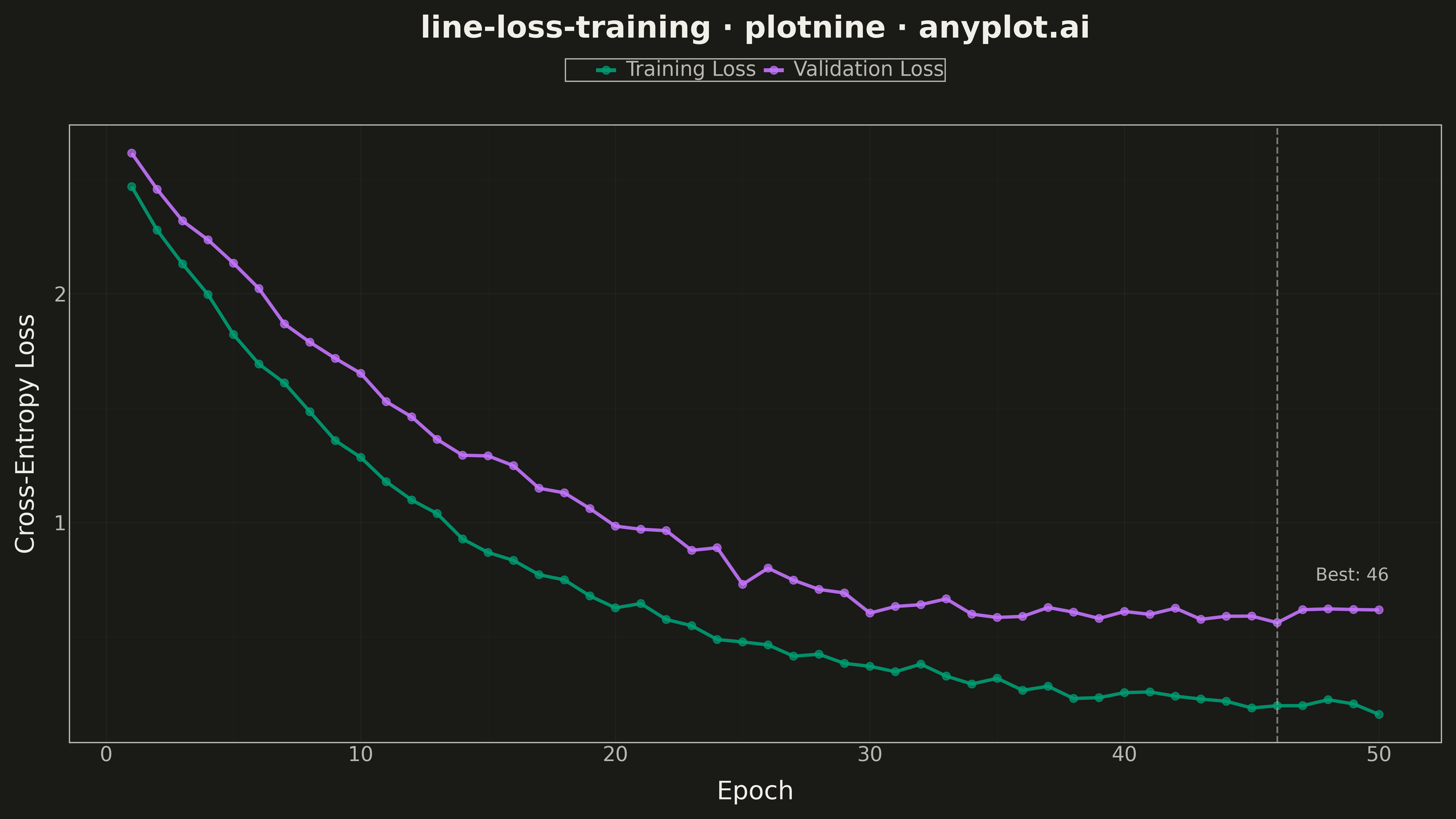

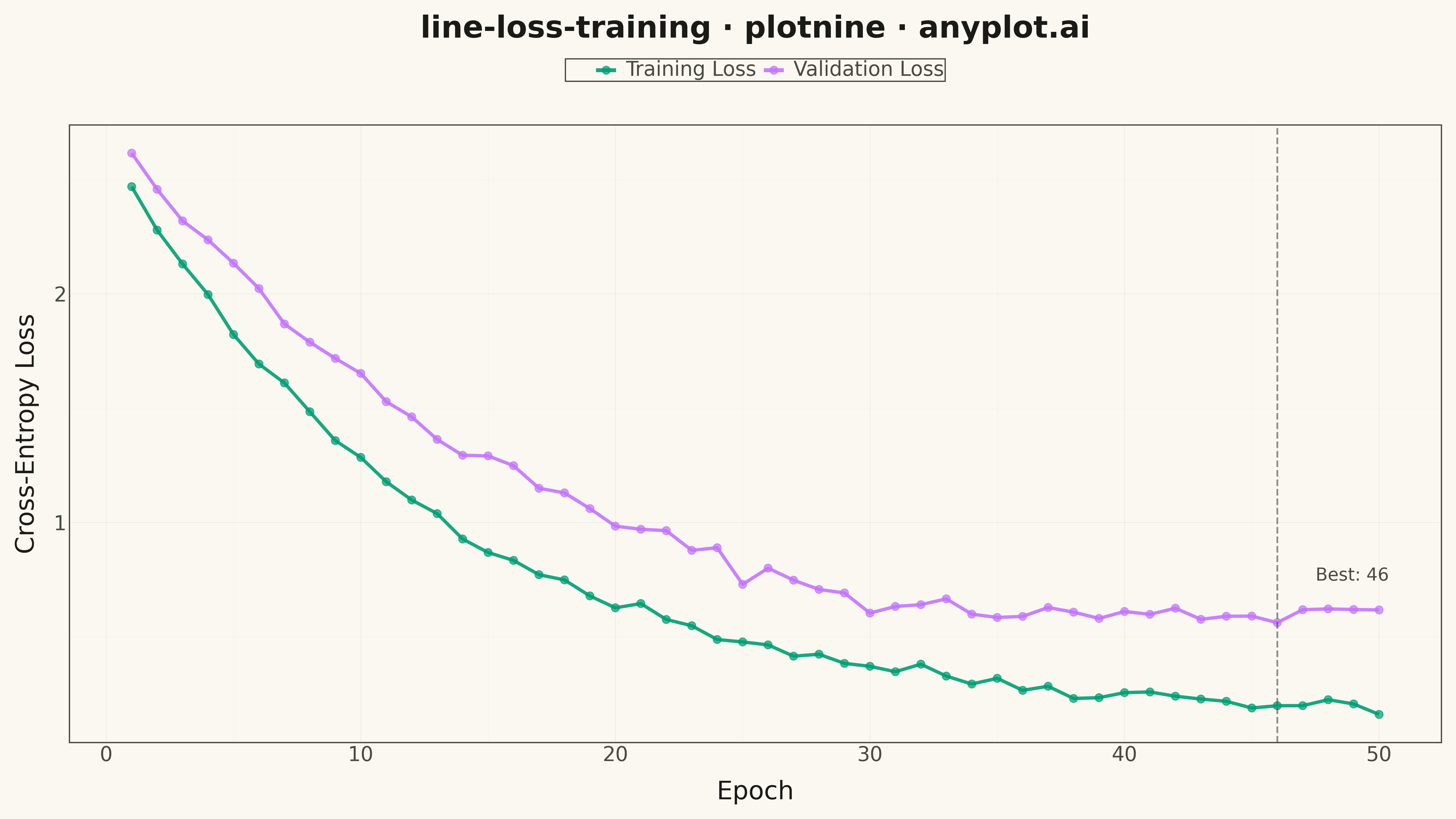

Training Loss Curve rendered with plotnine

Python source (plotnine)

""" anyplot.ai
line-loss-training: Training Loss Curve
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 93/100 | Updated: 2026-05-14
"""

import os
import sys


# Prevent this file from shadowing the plotnine library when run from its own directory
sys.path = [p for p in sys.path if not p or os.path.abspath(p) != os.path.abspath(os.path.dirname(__file__))]

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    annotate,
    element_line,
    element_rect,
    element_text,
    geom_line,
    geom_point,
    geom_vline,
    ggplot,
    labs,
    scale_color_manual,
    theme,
    theme_minimal,
)


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
RULE = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"

# Okabe-Ito palette
TRAINING_COLOR = "#009E73"  # bluish green
VALIDATION_COLOR = "#C475FD"  # vermillion

# Data - Simulated training history with typical loss curve behavior
np.random.seed(42)
epochs = np.arange(1, 51)

# Training loss: starts high, decreases with diminishing returns
train_loss = 2.5 * np.exp(-0.08 * epochs) + 0.15 + np.random.normal(0, 0.02, len(epochs))

# Validation loss: follows training initially, then diverges (overfitting)
val_loss = 2.5 * np.exp(-0.06 * epochs) + 0.25 + np.random.normal(0, 0.03, len(epochs))
# Add uptick after epoch 30 to show clear overfitting
val_loss[30:] += np.linspace(0, 0.25, 20)

# Find optimal stopping point (minimum validation loss)
optimal_epoch = epochs[np.argmin(val_loss)]

# Create long-format DataFrame for plotnine
df = pd.DataFrame(
    {
        "Epoch": np.concatenate([epochs, epochs]),
        "Loss": np.concatenate([train_loss, val_loss]),
        "Type": ["Training Loss"] * len(epochs) + ["Validation Loss"] * len(epochs),
    }
)

# Plot
plot = (
    ggplot(df, aes(x="Epoch", y="Loss", color="Type"))
    + geom_line(size=1.5, alpha=0.9)
    + geom_point(size=3, alpha=0.7)
    + geom_vline(xintercept=optimal_epoch, linetype="dashed", color=INK_SOFT, size=0.8, alpha=0.6)
    + annotate(
        "text",
        x=optimal_epoch + 1.5,
        y=np.min(val_loss) + (np.max(val_loss) - np.min(val_loss)) * 0.1,
        label=f"Best: {int(optimal_epoch)}",
        size=14,
        ha="left",
        color=INK_SOFT,
    )
    + scale_color_manual(values={"Training Loss": TRAINING_COLOR, "Validation Loss": VALIDATION_COLOR})
    + labs(title="line-loss-training · plotnine · anyplot.ai", x="Epoch", y="Cross-Entropy Loss", color="")
    + theme_minimal()
    + theme(
        figure_size=(16, 9),
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
        panel_grid_major=element_line(color=INK, size=0.3, alpha=0.10),
        panel_grid_minor=element_line(color=INK, size=0.2, alpha=0.05),
        panel_border=element_rect(color=INK_SOFT, fill=None),
        text=element_text(size=14, color=INK),
        axis_title=element_text(size=20, color=INK),
        axis_text=element_text(size=16, color=INK_SOFT),
        axis_line=element_line(color=INK_SOFT),
        plot_title=element_text(size=24, weight="bold", color=INK),
        legend_position="top",
        legend_direction="horizontal",
        legend_background=element_rect(fill=PAGE_BG, color=INK_SOFT),
        legend_text=element_text(size=16, color=INK_SOFT),
    )
)

# Save
script_dir = os.path.dirname(os.path.abspath(__file__))
plot.save(os.path.join(script_dir, f"plot-{THEME}.png"), dpi=300, verbose=False)

Part of Training Loss Curve on anyplot.ai.
