Training Loss Curve — D3.js

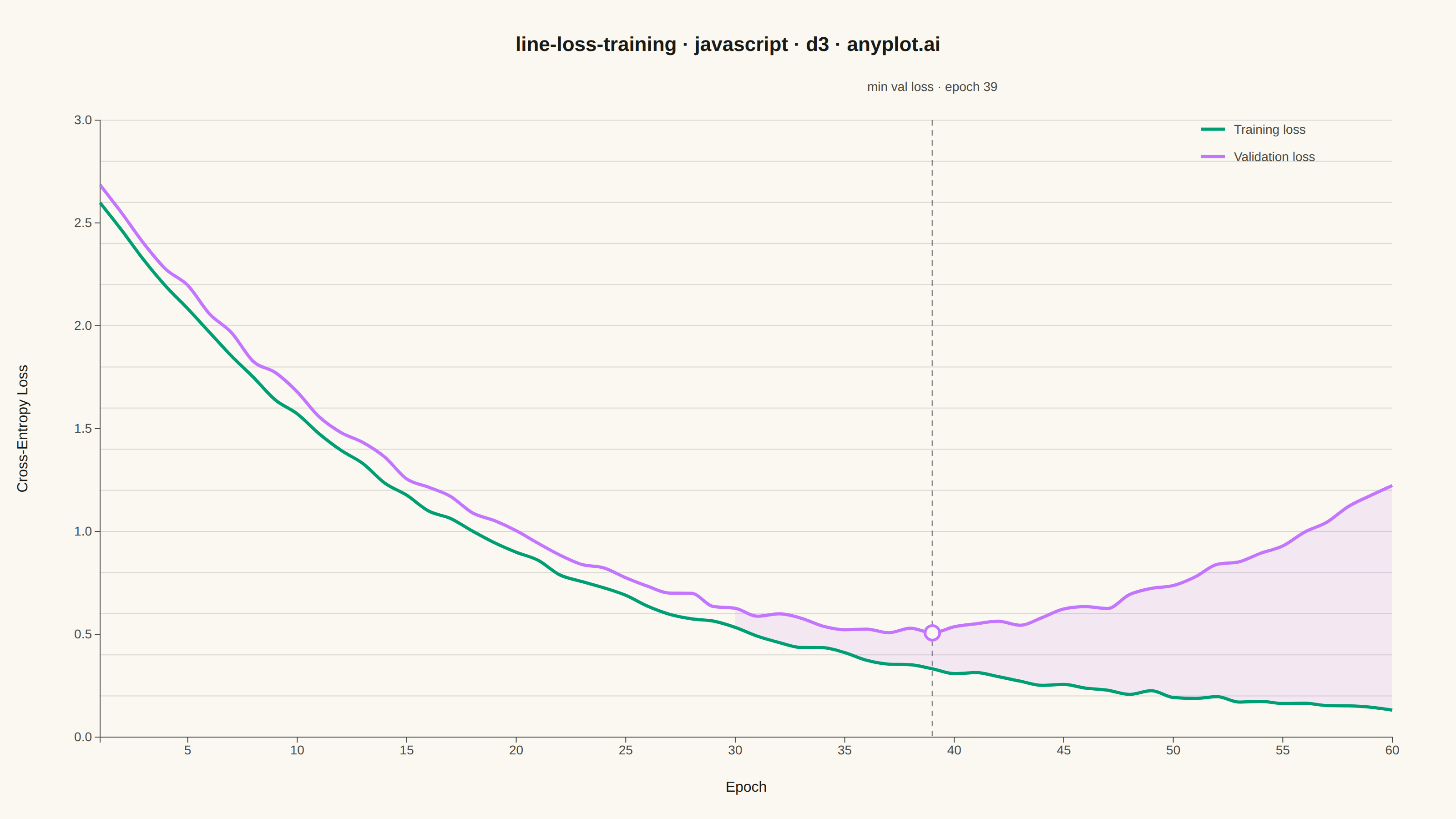

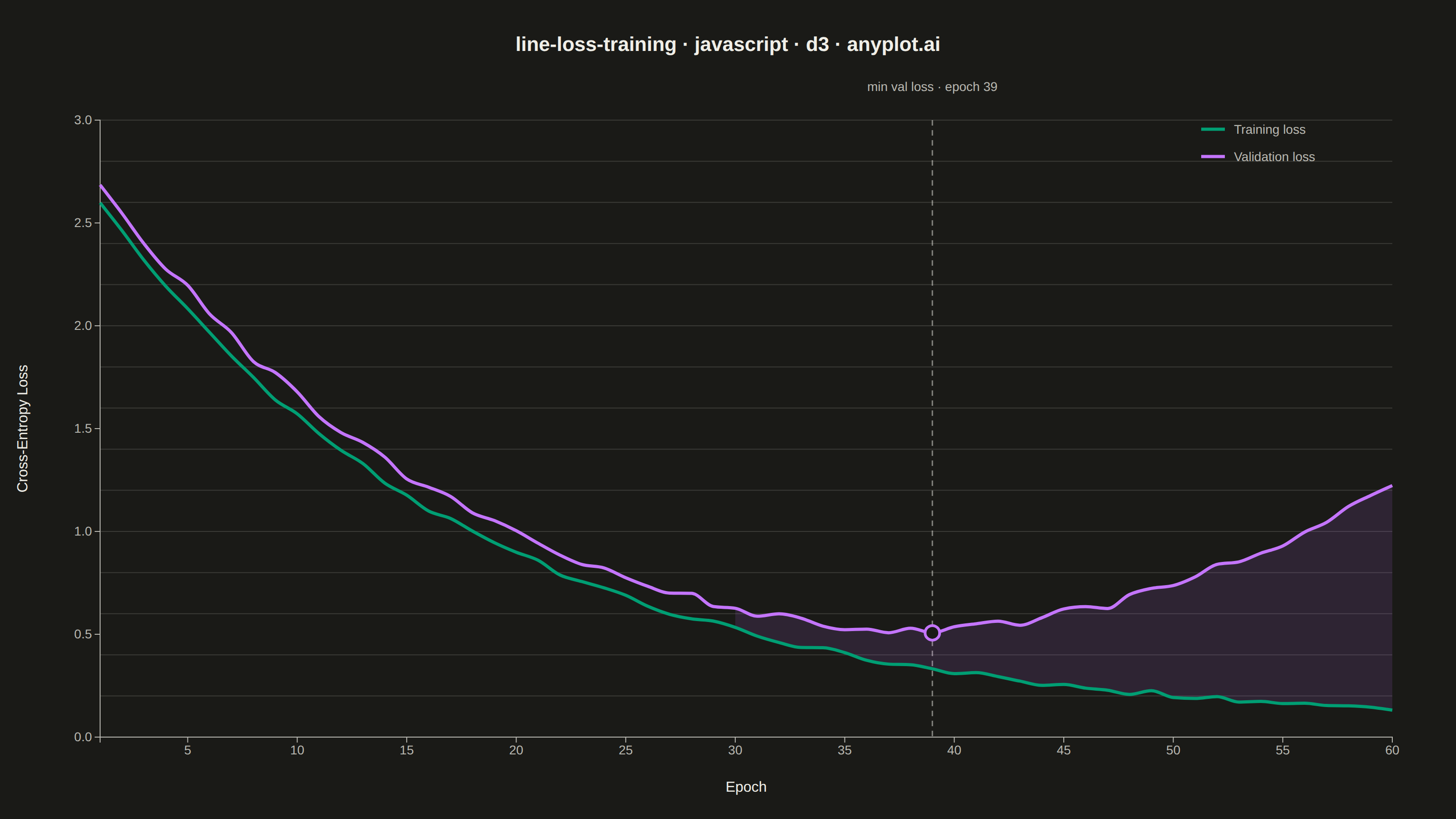

A line plot showing training and validation loss curves over epochs during neural network training. This visualization is essential for monitoring model training, detecting overfitting (when validation loss diverges from training loss), and determining optimal early stopping points. The dual-curve display reveals the gap between training and generalization performance.

Renders

JavaScript source (D3.js)

// anyplot.ai
// line-loss-training: Training Loss Curve
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-05

const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 132, right: 70, bottom: 90, left: 110 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;

// --- Data: deterministic training run (fixed-seed LCG, no Math.random) ------
let seed = 42;
const rand = () => {
  seed = (seed * 1664525 + 1013904223) % 4294967296;
  return seed / 4294967296;
};

const epochs = d3.range(1, 61);
const overfitStart = 30;
const history = epochs.map((epoch) => {
  const smooth = 2.7 * Math.exp(-epoch / 17) + 0.06;
  const trainLoss = Math.max(0.02, smooth + (rand() - 0.5) * 0.03);
  const overfitTerm =
    epoch > overfitStart ? 0.0011 * (epoch - overfitStart) ** 2 : 0;
  const valLoss = Math.max(
    0.02,
    smooth + 0.1 + overfitTerm + (rand() - 0.5) * 0.05,
  );
  return { epoch, trainLoss, valLoss };
});

const minValPoint = history.reduce((best, d) =>
  d.valLoss < best.valLoss ? d : best,
);

// --- Scales -------------------------------------------------------------------
const x = d3.scaleLinear().domain(d3.extent(epochs)).range([0, iw]);
const maxLoss = d3.max(history, (d) => Math.max(d.trainLoss, d.valLoss));
const y = d3
  .scaleLinear()
  .domain([0, maxLoss * 1.08])
  .nice()
  .range([ih, 0]);

// --- SVG mount ------------------------------------------------------------------
const svg = d3
  .select("#container")
  .append("svg")
  .attr("width", width)
  .attr("height", height);
const g = svg
  .append("g")
  .attr("transform", `translate(${margin.left},${margin.top})`);

// --- Gridlines (y-axis only) -----------------------------------------------------
g.append("g")
  .attr("class", "grid")
  .call(d3.axisLeft(y).tickSize(-iw).tickFormat(""))
  .call((sel) => sel.select(".domain").remove())
  .selectAll("line")
  .attr("stroke", t.grid);

// --- Axes -------------------------------------------------------------------------
const xAxis = g
  .append("g")
  .attr("transform", `translate(0,${ih})`)
  .call(d3.axisBottom(x).ticks(10).tickFormat(d3.format("d")));
const yAxis = g
  .append("g")
  .call(d3.axisLeft(y).ticks(6).tickFormat(d3.format(".1f")));
for (const axis of [xAxis, yAxis]) {
  axis.selectAll("text").attr("fill", t.inkSoft).style("font-size", "14px");
  axis.selectAll("line").attr("stroke", t.inkSoft);
  axis.select(".domain").attr("stroke", t.inkSoft);
}

// --- Axis labels --------------------------------------------------------------
g.append("text")
  .attr("x", iw / 2)
  .attr("y", ih + 60)
  .attr("text-anchor", "middle")
  .attr("fill", t.ink)
  .style("font-size", "16px")
  .text("Epoch");

g.append("text")
  .attr("transform", "rotate(-90)")
  .attr("x", -ih / 2)
  .attr("y", -80)
  .attr("text-anchor", "middle")
  .attr("fill", t.ink)
  .style("font-size", "16px")
  .text("Cross-Entropy Loss");

// --- Reference marker: epoch of minimum validation loss ------------------------
g.append("line")
  .attr("x1", x(minValPoint.epoch))
  .attr("x2", x(minValPoint.epoch))
  .attr("y1", 0)
  .attr("y2", ih)
  .attr("stroke", t.ink)
  .attr("stroke-width", 1.5)
  .attr("stroke-dasharray", "6,5")
  .attr("opacity", 0.5);

g.append("text")
  .attr("x", x(minValPoint.epoch))
  .attr("y", -32)
  .attr("text-anchor", "middle")
  .attr("fill", t.inkSoft)
  .style("font-size", "14px")
  .text(`min val loss · epoch ${minValPoint.epoch}`);

// --- Generalization-gap fill: d3.area() between train/val after the overfit point
const gapData = history.filter((d) => d.epoch >= overfitStart);
const gapArea = d3
  .area()
  .x((d) => x(d.epoch))
  .y0((d) => y(d.trainLoss))
  .y1((d) => y(d.valLoss))
  .curve(d3.curveMonotoneX);

g.append("path")
  .datum(gapData)
  .attr("fill", t.palette[1])
  .attr("fill-opacity", 0.12)
  .attr("stroke", "none")
  .attr("d", gapArea);

// --- Loss curves ----------------------------------------------------------------
const line = (accessor) =>
  d3
    .line()
    .x((d) => x(d.epoch))
    .y((d) => y(accessor(d)))
    .curve(d3.curveMonotoneX);

g.append("path")
  .datum(history)
  .attr("fill", "none")
  .attr("stroke", t.palette[0])
  .attr("stroke-width", 3.5)
  .attr(
    "d",
    line((d) => d.trainLoss),
  );

g.append("path")
  .datum(history)
  .attr("fill", "none")
  .attr("stroke", t.palette[1])
  .attr("stroke-width", 3.5)
  .attr(
    "d",
    line((d) => d.valLoss),
  );

g.append("circle")
  .attr("cx", x(minValPoint.epoch))
  .attr("cy", y(minValPoint.valLoss))
  .attr("r", 8)
  .attr("fill", t.pageBg)
  .attr("stroke", t.palette[1])
  .attr("stroke-width", 3);

// --- Legend -----------------------------------------------------------------------
const legend = g.append("g").attr("transform", `translate(${iw - 210}, 10)`);
const legendItems = [
  { label: "Training loss", color: t.palette[0] },
  { label: "Validation loss", color: t.palette[1] },
];
legendItems.forEach((item, i) => {
  const row = legend.append("g").attr("transform", `translate(0, ${i * 30})`);
  row
    .append("line")
    .attr("x1", 0)
    .attr("x2", 26)
    .attr("y1", 0)
    .attr("y2", 0)
    .attr("stroke", item.color)
    .attr("stroke-width", 3.5);
  row
    .append("text")
    .attr("x", 36)
    .attr("y", 5)
    .attr("fill", t.inkSoft)
    .style("font-size", "14px")
    .text(item.label);
});

// --- Title ------------------------------------------------------------------------
svg
  .append("text")
  .attr("x", width / 2)
  .attr("y", 56)
  .attr("text-anchor", "middle")
  .attr("fill", t.ink)
  .style("font-size", "22px")
  .style("font-weight", "600")
  .text("line-loss-training · javascript · d3 · anyplot.ai");
